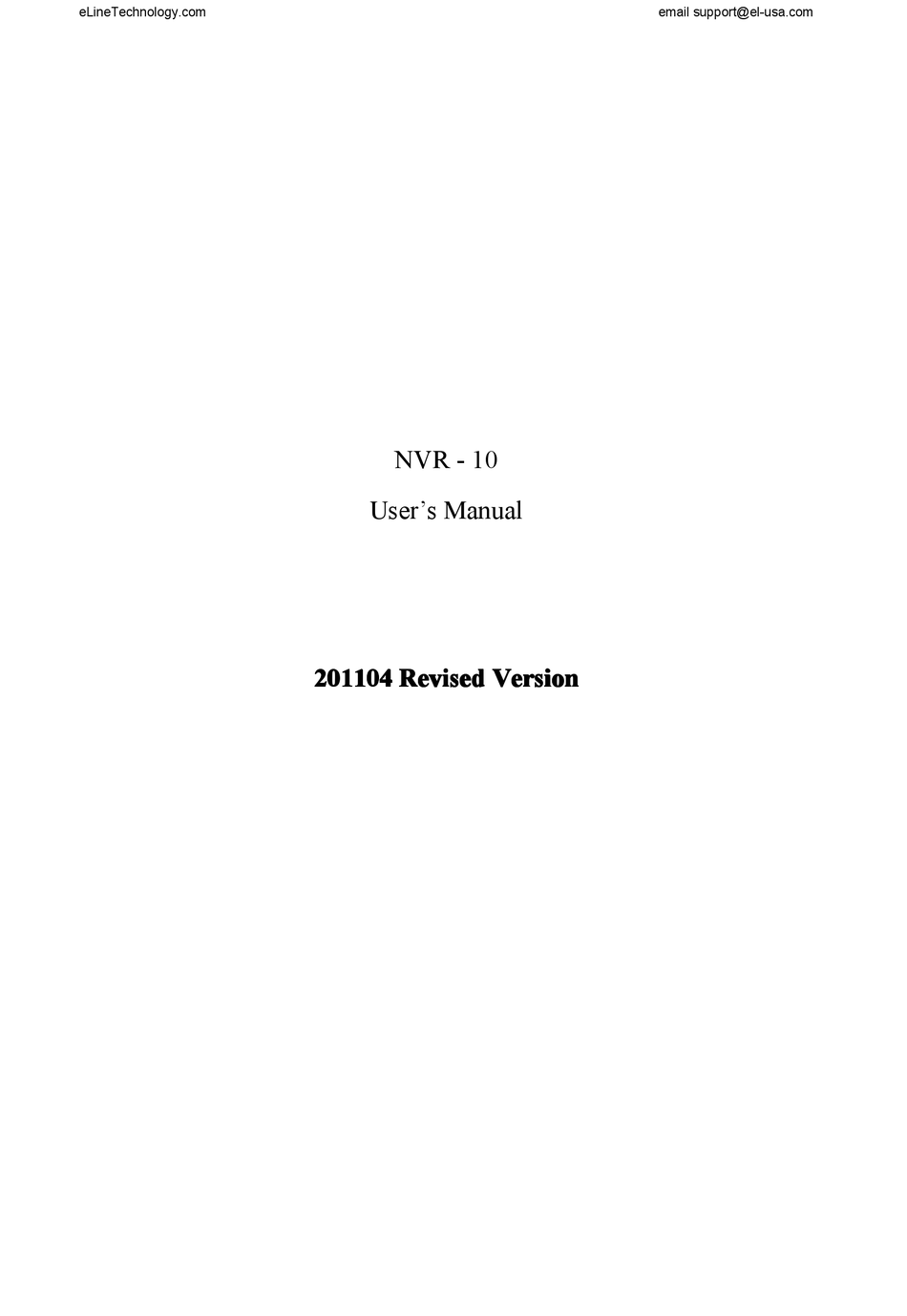

- Page 1 eLineTechnology.com email support@el-usa.com NVR - 10 User’s Manual 20 20 20 201 1 1 1 104 104 Revised Revised Revised Revised Version Version Version Version...
-
Page 2: Table Of Contents
NVR-10 user manual Contents <1> Group Management.............................2 <1.1> Adding Groups............................2 <1.4>Attributes..............................6 <2.6> Time Synchronization..........................17 <2.7>NAS Recording............................20 <3>Recording settings.............................. 22 <3.1>Basic Settings............................22 <3.2>Group settings............................23 <4>Authorization management..........................25 <4.1>Add account............................25 <4.2>Account attributes........................... 27 <4.3>... -
Page 3: 1> Group Management
NVR-10 user manual NVR -10 includes group management, real time monitoring, recording, playback, and authorized remote playback viewing. <1> <1> Group Group Management Management <1> <1> Group Group Management Management Before using NVR functions, user must add cameras and manage them into groups. - Page 4 NVR-10 user manual <1.2> Adding local cameras Local camera can be added in two ways, by searching or adding the static IP. Search ing: : : : By Search Search Searching Click Search，NVR will search for all cameras in LAN, user can add camera one by one or all at once to specific group.
- Page 5 NVR-10 user manual adding static static IP IP IP IP： By adding adding adding static static Input camera IP, name, and camera password and select the group to be added in.
- Page 6 NVR-10 user manual <1.3>Adding <1.3>Adding network network camera camera <1.3>Adding <1.3>Adding network network camera camera Network camera can be added in two ways，by account or IP（Port）. Account Account Account Account： Select the desired group, then input name， account， password， and server to add.
-
Page 7: Attributes
NVR-10 user manual <1.4>Attributes <1.4>Attributes <1.4>Attributes <1.4>Attributes User may modify local groups, local cameras, account, and network cameras. User may modify group names, delete groups, and clear camera operations. - Page 8 NVR-10 user manual User may modify camera name, delete camera, or move camera to another group. User may modify account name，server, or delete account.
- Page 9 NVR-10 user manual User User modify modify camera camera name name User User may may modify modify camera camera name name...
- Page 10 NVR-10 user manual <2>Camera settings The camera settings include six major functions：camera control，other controls， motion detection，local alarm，E-mail alarm and synchronization. Before setup, user must select camera wished to be modified. <2.1>Camera control The two types of camera control：CMOS和CCD...
- Page 11 NVR-10 user manual CCD camera controls： � Backlight Compensation: There are six regional backlight compensation set as default，user may also customize backlight compensation. After choosing desired region，user may adjust the strength of the backlight compensation.
- Page 12 NVR-10 user manual � AI：Auto aperture. When external, AI must be selected. After AI is selected, you may adjust it. � AES：Automatic electronic shutter Y Y Y Y ：Brightness combination � � CB：Blue polarized light � CY：Yellow polarized light...
- Page 13 NVR-10 user manual <2.2>Other Controls User may switch on or switch off the timer on the camera screen. Video input source：User may choose between Composite or S-Video. System control: User may reboot camera. Vertical and Horizontal mirror：User may adjust image.
- Page 14 NVR-10 user manual <2.3>Motion Detector Regional Regional Regional Regional Choice Choice Choice Choice：User may choose up to three regions. Opening Opening motion motion detector detector Opening Opening motion motion detector detector：Check the region wished to open. T T T T hreshold...
- Page 15 NVR-10 user manual <2.4>Local Alarm Once alarm is activated, the alarm will notice user once motion is detected Alarm sound can be chosen by user. User may setup the alarm length, if not, default is around 5 seconds.
- Page 16 NVR-10 user manual <2.5> E-mail Alarm If e-mail alarm is activated, the system will send an e-mail alarm when motion is detected. User may add or delete e-mail recipients. Click “E-mail edit” to change the subject of the mail.
- Page 17 NVR-10 user manual System has a default setting: Server Server Settings Settings Server Server Settings Settings：Verification is needed for the sender. Input mail server, sender, and sender’s account and password.
-
Page 18: Time Synchronization
NVR-10 user manual <2.6> Time Synchronization <2.6> <2.6> <2.6> Time Time Time Synchronization Synchronization Synchronization There are three ways to set time synchronization：NVR time sync.，NTP time sync., and no time sync. When it is set as no time sync.，nothing will change. - Page 19 NVR-10 user manual When using NVR time sync.，NVR automatically reads the clock displayed on the computer. If the time is still not correct, modify the time on the computer.
- Page 20 NVR-10 user manual When using NTP time sync.，it is only required to setup time zone and time server. After setup，use “Apply to…”to apply to another camera.
-
Page 21: Nas Recording
NVR-10 user manual <2.7>NAS Recording <2.7>NAS <2.7>NAS <2.7>NAS Recording Recording Recording When launched NAS recording，the recorded file will be saved to the NAS device. NAS settings： IP: NAS IP address Path: Path: Path: Path: NAS recording save path. - Page 22 NVR-10 user manual Insert the NAS save path. Ex：\\192.168.1.253\record Click finish to map to local drive. Then add the driver on the selection window when playback. NAS image quality is affected by the following： 1> Only under the circumstances of NAS recording, the image quality is determined according to the FPS and RES in video settings.
-
Page 23: 3>Recording Settings
NVR-10 user manual <3>Recording <3>Recording settings settings <3>Recording <3>Recording settings settings The recording settings are for group operation, not for the operation of a single camera. Thus, you may not have two different camera recording mode in a same group. -
Page 24: Group Settings
NVR-10 user manual <3.2>Group settings <3.2>Group <3.2>Group <3.2>Group settings settings settings Choose a camera group from the group list. User may adjust the audio, FPS, RES, and BPS of the camera. Two ways ways ways ways to to to to enable... - Page 25 NVR-10 user manual Regular recording：Select the time-frame wished to be recorded. The selected ones will turn bright green. Event recording：Select the detection region, then select the time-frame wished to be recorded. The selected region will turn into different colors of blue.
-
Page 26: 4>Authorization Management
NVR-10 user manual <4>Authorization <4>Authorization management management <4>Authorization <4>Authorization management management Authorization management is used to authorize user visit of NVR.including administrator ， common user and remote user. Administrator and common user are used to manager NVR. - Page 27 NVR-10 user manual...
-
Page 28: Account Attributes
NVR-10 user manual <4.2>Account attributes <4.2>Account <4.2>Account <4.2>Account attributes attributes attributes Select added account. Then user may change the password in account attributes. -
Page 29: Authorization
NVR-10 user manual <4.3> Authorization <4.3> <4.3> <4.3> Authorization Authorization Authorization Click the authorize button, select group，then select the authority of the client. Selected group will show a list of authorities. User may modify the authorities. The following page shows the authorized groups. User may edit the group... -
Page 30: 5>System Settings
NVR-10 user manual <5>System <5>System settings settings <5>System <5>System settings settings System settings include startup，M-Server setup and other settings <5. <5. <5.1 1 1 1 > > > > startup startup startup <5. startup startup setting selects the default each time NVR launches. -
Page 31: M-Server Settings
NVR-10 user manual <5. <5.2 2 2 2 >M-Server >M-Server settings <5. <5. >M-Server >M-Server settings settings settings M-Server include two of the following： 1. The number of authorized users may be controlled by the system. This includes the number of login limitation, the number of camera connection and Media Server port –... -
Page 32: Other Settings
NVR-10 user manual <5. <5.3 3 3 3 > > > > O O O O ther ther settings <5. <5. ther ther settings settings settings Auto-flip：the time gap between the flipping of pages, the default is set as 10 seconds. -
Page 33: 6>Log
NVR-10 user manual <6>Log <6>Log <6>Log <6>Log Users can use the Event Log data base to retrieve the S S S S ystem ystem ystem, , , , Network, Network, Alarm, ystem Network, Network, Alarm, Alarm, Alarm, and... -
Page 34: 7>Playback
NVR-10 user manual <7>Playback <7>Playback <7>Playback <7>Playback Click “select camera” to obtain the camera list. The camera list has two sources: the group recordings set by NVR and the... -
Page 35: Group Playback
NVR-10 user manual recordings that were searched. <7.1>Group playback <7.1>Group <7.1>Group <7.1>Group playback playback playback After selected camera, click the camera icon to view its single playback. You may also view multiple playbacks at once, select multi-channel playback – it supports up to 4 channels. - Page 36 NVR-10 user manual The following functions are also included during playback: Play Play Play Play Motion Motion Motion Motion Sequence Sequence Sequence Sequence： The camera will record once it detects motion, this function is to only play the recording when motion is detected.
-
Page 37: 8>Avi Conversion
NVR-10 user manual <8>AVI <8>AVI conversion conversion <8>AVI <8>AVI conversion conversion AVI Conversion feature is to allow users to convert the recorded video into .avi format. Select the camera group or cameras in the “Camera List” column for AVI conversion. - Page 38 NVR-10 user manual...
-
Page 39: 9>Other
NVR-10 user manual <9>Other <9>Other <9>Other <9>Other The right list shows all groups and account， double click group or account to see all the camera icons of this group. At the same time, the left side will show all cameras within the group. - Page 40 NVR-10 user manual Page/Group Page/Group flip flip flip：This function includes flipping upwards, downwards, or auto-flip. Page/Group Page/Group flip Mode switch Mode Mode Mode switch switch switch：Click icon to switch preview mode or play mode. Preview mode displays one image per a few seconds，to save PC performance.
- Page 41 NVR-10 user manual PTZ control：when selected camera have PTZ functions included，then “PTZ controls” can be used. Click “PTZ” to maximize PTZ interface. Click “PTZ” located in the center of the circle to access advanced PTZ control.
-
Page 42: Ptz Controls
NVR-10 user manual PTZ controls Zoom in Zoom out Focus near Focus far Widen iris Narrow iris Preset selection Preset point management ： User can add preset points, delete preset points, or clear all preset points. -
Page 43: Snapshot
NVR-10 user manual Screen lock：Unlocking requires NVR password. If there is no password, system will remind you to set one. Stop recording：When setting image quality, user can stop recording, then modify. Snapshot Snapshot Snapshot Snapshot User can use cameras to take pictures Click the snapshot icon to take a photo of the current screen of selected camera. -
Page 44: 9>Icon Definition
NVR-10 user manual <9>Icon <9>Icon definition definition <9>Icon <9>Icon definition definition： From left to right 1. Camera is recording Scheduled recording, not now. Recording error Unknown status Offline Password error Connecting Connection failure Connection error 10. Connected, awaiting data 11. - Page 45 NVR-10 user manual...
