- Page 1 User’s Manual *Please read this user’s manual carefully before using this product.
-
Page 2: Basic Operations

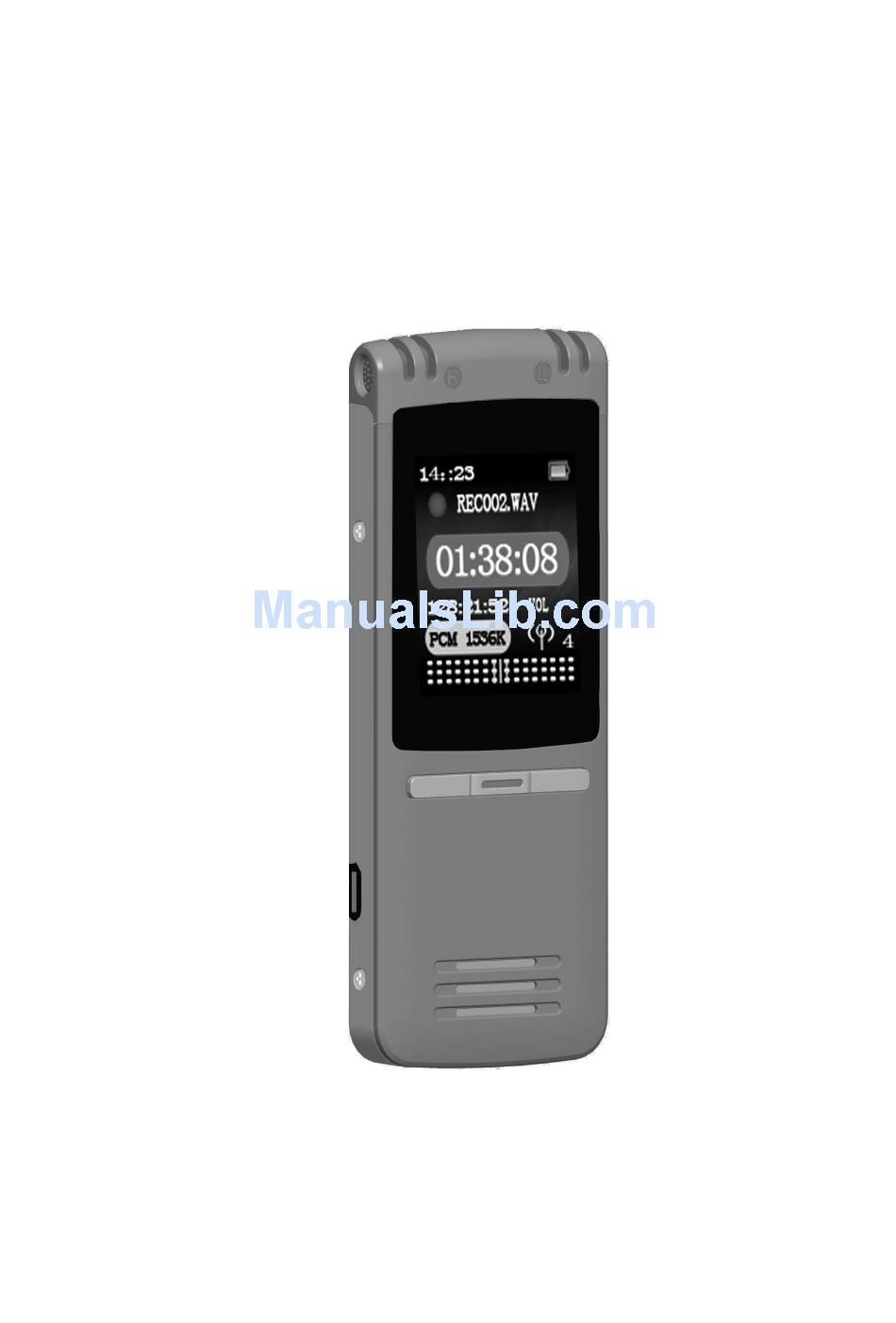

Appearance .1.USB port 2. Stop/A-B repeating 3.REC/Recording Button 4. Play / 5. Power switch 6.M/ menu button 7.VOL/volume button 8. Previous / 基 .9. Next / .10. Earphone jacket Basic operations ■ Power-on/off Turn the “Power switch” to On position and the device will be powered on automatically. -
Page 3: Recording Interface
Note: (When in recording or music playing status, do not turn off the power switch directly, so as to avoid file damage.) When this device is out of use for a long time, please turn off this device in soft power-off and then turn the power switch to Off position. -
Page 4: Recording Mode
11. Right channel level indication ■ Recording In power-on status, press the “REC/Recording button” to enter the recording status directly and start recording. In the course of recording, press “Recording” button to pause recording and the recording indicator stays in flashing status. ■... - Page 5 reduction): press “ ” or “ ” button to select the recording mode settings, press “ ” button to enter, press “ ” or “ ” button to select “Normal scenario” or “Dual-core noise reduction recording” as needed, and press “...
- Page 6 or “ ” button to select “Normal mode” or “VOR voice control mode” as needed, and press “ ” for confirmation. Note: (When the device is in VOR voice control mode, if there is no sound, the recording will be paused; do not use this function for recording of important files) MIC sensitivity: Press “...
- Page 7 Press “ ” or “ ” button to select the monitoring volume settings, press “ ” button to enter, press “ ” or “ ” button to select the grade as needed. After selecting, press “ ” button to confirm the selection. Sound control sensitivity Press “...
- Page 8 (Note: the settings of level of noise reduction and AGC level are effective for dual-core noise reduction recording only; such functions are not available for normal recording.) ■ Timed Recording: 1. Select “Timed recording” and press “ ” button to enter. Press “...
- Page 9 day, working days. Single setting: select single recording and press “ ” button to enter. At this time, the date shown on the top of the screen is in red color. Press “ ” or “ ” to select the date and then press “M”...
-
Page 10: Music Playing
2. File number 3. Song name 4.Play or Pause symbol 5. Total time to play a song file 6. Loop indication 7. Battery power indication 8. Lyrics indication 9. Playing progress time 10. Current volume indication 11. A-B repeating indication 12. -
Page 11: Volume Adjustment
pause and press “ ” button again to continue playing. ■ Recording file playing Turn on the device and press “ ” or “ ” button to select “Recording”, and then press “ ” button for confirmation. After entering the menu, select “Recording file library” and press “... - Page 12 In the course of recording file or music playing, press and hold “ ” or “ ” button for fast backward or fast forward and press “ ” or “ ” button for previous or next music file. ■ AB repeating adjustment: In the course of music or recording file playing, press “Stop”...
-
Page 13: File Deletion
status, the device will continue the playing of the unfinished file or return to the previous pause status when powered on. If you don’t want to play or pause playing when the device is powered on, you can cancel the memory in the “Create a play list” in the music interface or by directly pressing the “Stop”... - Page 14 Delete music files: in music playing pause status, press and hold “VOL” button to enter the file list, press “ ” or “ ” button to select the file you want to delete, and press “ ” button again for confirmation. After entering the menu, select YES/NO and press “...
-
Page 15: System Settings
After entering, select YES/NO and press “ ” button again to confirm and delete. (You can also delete the current file by pressing and holding VOL button in playing pause status). Note: please make backup for important files before deletion. System settings: Playing settings: enter setting menu, press “... - Page 16 “ ” button to enter for adjustment and press “ ” or “ ” to select the maximum volume for recording/music output. After making the selection, press “ ” for confirmation. Timed power-off: press “ ” or “ ” to select “Timed power-off”, press “...
-
Page 17: Date And Time
Date and time: press “ ” or “ ” to select “Date and time” and press “ ” button to enter. ■ Date and Time: P lease refer to the time setting for timed recording. Language: press “ ” or “ ”... -
Page 18: Specification Parameters
Note: (when performing any setting operation on this device, you can press “M” button to return to the previous menu or press and hold the menu button to return to the main interface directly.) Specification Parameters Item Specification Storage capacity 1536KBPS 2.5 hrs 5 hrs... -
Page 19: Operating Temperature
Dimensions 98MM*40MM*10MM Weight Display 1.44 inch TFT Microphone Indirectional dual microphone Operating temperature 0-40℃ Note: The duration of recording is closely related to the continuous operating hours of the battery and the settings, operations and environmental factors. The duration may be slightly different with the nominal value, which is normal. - Page 20 control if the user has any misunderstanding on this manual. Therefore, this company will not be liable for any accidental damage that may arise in the use of this manual or any claim from any third party due to the use of this product. (The system software on this device will take a part of the capacity and space, so there will a slight difference between the nominal space and the actual space available, which is...
