DESCRIPtION

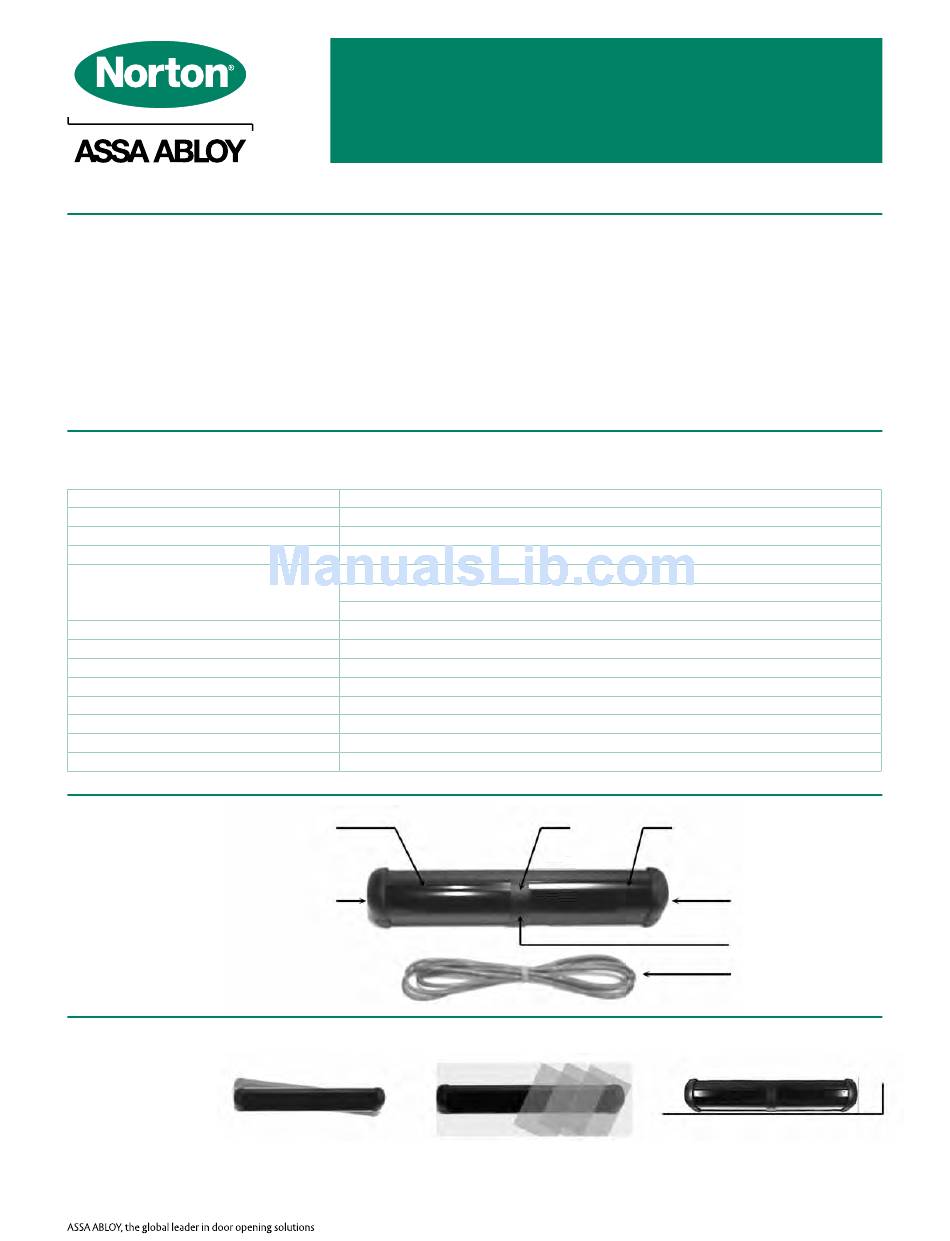

The Norton #585 Presence Sensor is a self-monitored ready overhead-mounted diffused active infrared sensing device that
provides detection for the triggering of automatic swing door safety functions. This sensor is designed for use with all of Norton
Low Energy Operators.
Full adjustability is achieved with the use of a hand-held remote control (optional accessory - specify part number 585REM to
order). This allows alteration of all of the available functions as well as for inquiry of existing settings. Should the need arise; the
#585 may also be tuned by means of two sensor-mounted buttons contained on the PC Board within the unit. With these two
buttons, the #585 field of detection can be altered without the use of the hand-held remote.
tEChNICal SPECIfICatIONS
Installation Height - Variable
Mounting Angles
Power Supply
Frequency
Output
Relay Hold Time
Operating Temperature
Immunity
Cable
Weight
Dimensions
Material
Housing Color
COmPONENt ID
INStallatION tIPS
• The sensor must be
firmly fastened to
prevent vibration.
9'-0" max. (Recommended 6'-6" to 8'-0")
+5°, +10° (factory default setting: +5°)
12 to 24 V AC / DC +/- 10%
50-60 Hz
Max. Voltage at contacts: 60V DC / 125V AC
Max. Current at contacts: 1 A
Max. switching power: 30 W (DC), 60 VA (AC)
0.5 to 9 seconds
-22°F to +140°F
Immune to electrical and radio frequency interference
4'- six conductor cable
1lb. 11 oz. (765g)
11.8"L (305 mm.) x 1.9"H (51 mm.) x 1.9"W (46 mm.)
Aluminum & ABS plastic
Black anodized aluminum
Left Lens
Left End Cap
• The sensor must not have any
Red LED
unwanted objects likely to
move or vibrate in its path.
#585
USER'S GUIDE
PRESENCE SENSOR
Right Lens
Right End Cap
Center Eye Shield
4' Cable
• The sensor should be
mounted flush with
bottom of door header.
Page 1
Advertisement
Table of Contents
Related Manuals for Norton 585
Summary of Contents for Norton 585
-
Page 1: Technical Specifications
This allows alteration of all of the available functions as well as for inquiry of existing settings. Should the need arise; the #585 may also be tuned by means of two sensor-mounted buttons contained on the PC Board within the unit. With these two buttons, the #585 field of detection can be altered without the use of the hand-held remote. -
Page 2: Safety Precautions
Remember these guidelines when installing a #585: �� • The #585 should be mounted at a height range of 6'6" to 8'. Maximum mounting height is 9'. �� • The #585 should be mounted above the door on the swing side. -
Page 3: Electrical Installation And Cabling
3. If #585 is mounted directly to door header, and cabling is to pass directly into header, drill a ¼" hole next to the #585’s left side end cap to allow wire passage into header (Picture 9). The wire passage hole should be in a location that aligns with the cut out in the end cap (Picture 9). -
Page 4: Mechanical Adjustments
The #585 is factory pre-set to the +5º position, but may be reduced to a 0º position or increased to a 10º position. The greater the angle, the farther from the door the pattern will be. The 0º angle should only be used when the #585 is mounted to a soffit above the door that extends out from the face of the safety side of the door –... - Page 5 POWER-UP PROCEDURES 1. Upon completion of mechanical and electrical installation, apply 12 to 24 V AC / DC +/- 10% to the #585, with the door in the closed position. The #585 will flash a green LED at a rate of 2 Hz, then it will expire upon a successful set-up in the door-closed position.
-
Page 6: Universal Remote Control
UNIvERSal REmOtE CONtROl The #585 is fully compatible with the Remote Control (part # 585REM) as shown on page 7. Use of the remote control should be conducted within 10' – 15' of the sensor, and the remote should be pointed directly at the sensor when used. Refer to the 'Programming Guide' in the following section for each parameter and its values. - Page 7 585REm - REmOtE CONtROl PROGRammING GUIDE GENERal fUNCtIONS Page 7...
- Page 8 PROGRammING GUIDE – PattERN aDJUStmENtS thREShOlD: the threshold is always Off when the door is closed. PattERN WIDth OR DEPth: When pattern width or depth is changed, a setup of the new pattern size will automatically be triggered once a value key has been pressed. Page 8...
- Page 9 (NON-REmOtE) SEt-UP Without the Remote Control, the #585 may be set up using the manual push buttons (see diagram below) located under the right end cap. ONLY THE SENSITIVITY, RELAY MODE, AUTO-LEARN TIME, PATTERN WIDTH, AND PATTERN DEPTH MAY BE ADJUSTED WITH THE MANUAL PUSH BUTTONS.
- Page 10 Row 1 (spots 1 through 6), remain on, even during the closed door position NOTE: When the #585 is mounted at 7', each block on the pattern charts shown above equates to a size of approximately 14" x 14". Pattern sizes shown are only as an approximation. Always walk-test the pattern once complete, to insure compliance with all applicable safety and performance standards.
-
Page 11: Troubleshooting
2. Make certain that the field of detection is all clear during 3. Potential interferences from high the set-up and that all lenses are installed on the #585. If intensity lighting. detection is encountered upon initial set-up, the #585 will continuously flash Green at + 2 Hz. - Page 12 – CONt. #585 repeatedly relearns the environment 1. Data polarity at the #585 is incorrect. 1. Allow the door to open in the automatic with each door position. mode. Unlock the #585 and launch a setup by pressing the Setup key, followed by the number 2.
