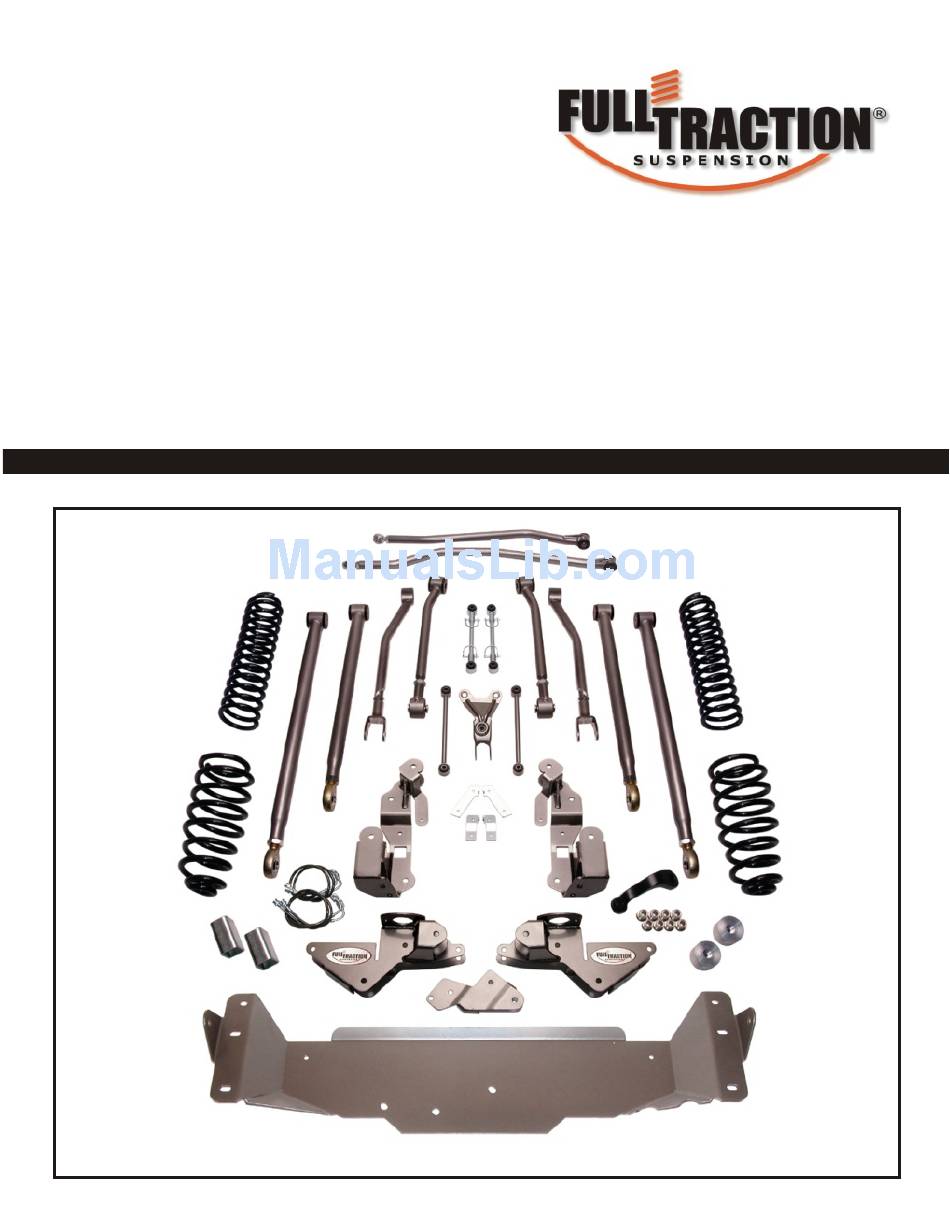

Read instructions from start to finish before installation. It is recommended to use the services of a professional installer. INSTALLATION INSTRUCTIONS Part Number FTS7330 3.0” Long Arm Suspension System 2013-07 Jeep Wrangler JK Component Box A Component Box A 50-7330H1 Master Hardware Box Continued CA2005 Bracket, Front Brake Line / Left Components in Carton “A”...
Page 3
FTS7330B Component Box FTS7330C Component Box 50-750610 Front & Rear Lower Control Arms 29.25” 2 50-750301 3.0” JK Front Coil Springs 50-730800 Front Upper Control Arm Uni 50-710302 3.0” JK Rear Coil Springs FTS306071 JK NEW GEN. Front Sway Bar Link Kit FTS7340D Component Box (Assembled) 50-710301 JK Front Sway Bar Link Rod...
Page 4
For a correctly installed system, follow these instructions. If you do not have the tools or are unsure of your abilities, have this system installed by a certified technician. FULL TRACTION SUSPENSION IS NOT RESPONSIBLE FOR DAMAGE OR FAILURE RESULTING FROM AN IMPROPER OR MODIFIED INSTALLATION.
Page 5
Important Safety Warning 2013-07 Jeep Wrangler JK with Electronic Stability Program (ESP) Must Read: Standard on the all-new 2007 Jeep Wrangler is an Electronic Stability Program (ESP), which aids the driver in maintaining vehicle directional stability in severe driving maneuvers on any type of surface. ESP features three modes –...
PLEASE NOTE: The required wheel size - minimum diameter of 16". Recommended width of 8” with a 4.0” offset from the inward side. Maximum recommended tire size-35” This system is designed to reuse many of the factory installed metric bolts and hardware, except where noted. BEFORE YOU BEGIN: Check the parts and hardware against the parts list to assure that your kit is complete.
Page 7
MUST READ The installer of this system should be prepared to remove the exhaust system before installation to allow installation of the new suspension system. Check the parts and hardware against the parts list to assure that your kit is complete. Refer to page #4 of these instructions for a list of tools and supplies needed to perform the installation.
INSTALLATION PROCEDURE 1. Drain gas from gas tank. 2. Remove the gas tank skid plate. 3. Disconnect all hoses related to the gas tank. Remove gas tank completely from vehicle. 4.Un-bolt exhaust at the manifolds from both sides of engine and remove exhaust system from vehicle complete.
Page 9
Do not use this hole *** NOT USED*** Finish grinding off remaining metal as shown Fig.4 Drill 3/8” hole from inside these holes to outside of frame Pg.9...
Page 10
Upper control arm mount- ready for removal. Fig.5 Using a die grinder and cutoff wheel, cut around the base of the upper mount. Fig.6 Here, we have used a plasma cutter to remove mount. An electric grinder or die grinder w/cut off wheel will work.
Page 11
Installing Full-Traction Upper Front Control Arms New Full-Traction upper control arm support brackets are Left and Right. Left Fig.9 Fig.10 1.Insert 1/2” x 5-1/2” bolts & washers from rear of transmission cross-member with thread pointing to the front of the vehicle. 9/16”...
Page 12
Continued from previous page..If any bolts do not line up, slowly tighten the 1/2” bolts up to pull the bracket towards the transmission cross-member. 3. Insert the 9/16” x 4” bolt with crush sleeve loosely in the side of the frame. 4.
Page 13
continued..Fig.13 Fig.14 Driver Side on USA models System shown with modifications. Arrows indicate the location to cut, rotate 180 degrees and re-weld to allow for proper clearance. Fig.15 Fig.16 Fig.16A Pg.13...
