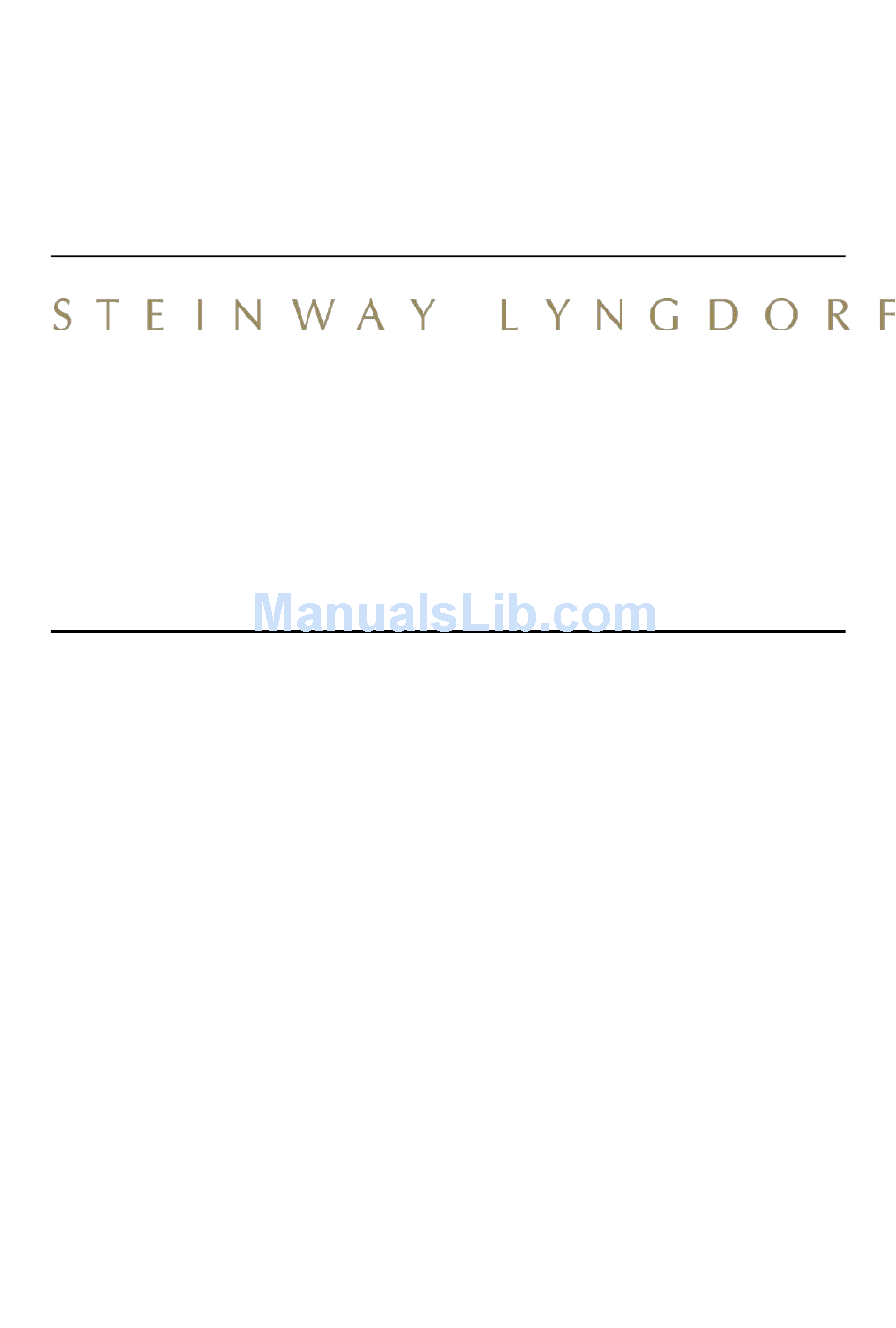

  • Page 1 MODEL M INSTALLATION MANUAL VERSION 2.0...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ..................2 INTRODUCTION ....................3 COMPLIANCE ....................3 MODEL M MUSIC SYSTEM PRE-INSTALLATION ..........4 INSTALLATION ....................6 POSITIONING OF PRODUCTS ................7 CONSTRUCTION WALL SUPPORT ..............8 CUTOUT TEMPLATE ..................12 MOUNTING OF IN-WALL BRACKETS ............. 13 MOUNTING OF IN-CEILING BRACKETS ............18 TRADEMARKS ....................

  • Page 3: Introduction

    Steinway Lyngdorf products and accessories comply with parts 15 and 68 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; and (2) this device must accept any interference received, including any interference that may cause undesired operation.

  • Page 4: Model M Music System Pre-Installation

    Carefully remove the loudspeaker units and accessories from the carton and check for shipping damage. Contact both the shipper and your Steinway Lyngdorf representative immediately if the unit bears any sign of damage from mishandling. Note: Keep shipping carton and packing material for future use or in the unlikely event that the unit needs servicing.
  • Page 5 Speakon connector (NL4FC) Delivered with all In-Wall brackets: • Cutout Template Delivered with Model M Boundary Woofers: Spike Kit – containing: • 28mm Spikes for wooden floors or carpets with low tufts • 48mm Spikes for carpets with big tufts •...

  • Page 6: Installation

    • Non-penetrating rubber faced feet for stone floors. To mount the spikes to the Model M boundary woofers, we recommend that you gently lay the speaker on its back on a thick towel or soft blanket. After mounting the selected spikes, gently bring the speaker to its upright position in the selected place.

  • Page 7: Positioning Of Products

    POSITIONING OF PRODUCTS Model M L/R & Center The recommended height from floor to center of the tweeter in the Model M is: • 1000mm/39.4in. for use as front speakers • 1700mm/66.9in. for use as surround speakers For In-Wall mounting the available depth of the wall must be at least 112mm/4.41in.

  • Page 8: Construction Wall Support

    In-wall Model M Center and In-Ceiling Optimal construction of wall support for the in-wall Model M center and in-ceiling bracket: Note: The total combined weight of a Model M speaker and frame is 15kg/33lbs. Screws and wall must be able to handle this weight.
  • Page 9 Semi in-wall Model M Center Optimal construction of wall support for the semi in-wall Model M center bracket: Note: The total combined weight of a Model M speaker and frame is 15kg/33lbs. Screws and wall must be able to handle this weight.
  • Page 10 In-wall Model M L/R Optimal construction of wall support for the in-wall Model M L/R bracket: Note: The total combined weight of a Model M speaker and frame is 15kg/33lbs. Screws and ceiling must be able to carry this weight.
  • Page 11 Semi in-wall Model M L/R Optimal construction of wall support for the semi in-wall Model M L/R bracket: Note: The total combined weight of a Model M speaker and frame is 15kg/33lbs. Screws and ceiling must be able to carry this weight.

  • Page 12: Cutout Template

    CUTOUT TEMPLATE 1. Unpack the supplied cardboard template and place it against the wall/ceiling, where the speaker will be installed. 2. The cutout size for in-wall Model C center and in-ceiling is: 520mm x 290mm (20.47in x 11.42in) The cutout size for semi in-wall Model C center is: 490mm x 260mm (19.29in x 10.24in) The cutout size for in-wall Model C L/R is: 290mm x 520mm (11.42in x 20.47in)

  • Page 13: Mounting Of In-Wall Brackets

    MOUNTING OF IN-WALL BRACKETS The wall brackets are factory fitted with red guides for either in-wall or semi in-wall mounting of the bracket. These guides will help position the bracket in the correct depth in the wall. The wall brackets can be adjusted in size. Push the adjustable frame sides to minimize the size of the bracket.
  • Page 14 When positioning the wall brackets, make sure that the red brackets are spaced so their distance to the sides of the cutout are exactly the same. The wall brackets must be positioned deep in the wall, so that the red brackets are aligned with the outer wall.
  • Page 15 Tighten the screws that hold the adjustable frame sides. Use screws to fasten the sides of the bracket into the studs, and be careful not to move the positioning of the bracket. Note: Never use countersunk screws.
  • Page 16 Remove the red brackets. Save the red brackets for future use. They can be used to remove the speaker from the bracket if service is needed.
  • Page 17 Connect the speaker cable to the speaker in accordance with the connection label on the back of the speaker. Place the speaker in the wall. The speakers are held in position by magnets on the speaker and the 4 guides on the bracket. [Skriv tekst]...

  • Page 18: Mounting Of In-Ceiling Brackets

    A standard Model M L/R and center speaker can be converted into a Model M in-ceiling by mounting 4 mounting rails (article no. 581023701) – two on each end. Pre-drill 2mm holes and mount the rails...

  • Page 20: Trademarks

    TRADEMARKS DTS is a registered trademark & the DTS logos and Symbol are trademarks of DTS, Inc. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD Master Audio are trademarks of DTS, Inc.

  • Page 21: Service Information

    SERVICE INFORMATION In order to obtain warranty service you must contact your original dealer or the Steinway Lyngdorf distributor of the region or country where you are located. If you have trouble locating an authorized representative, please contact the Steinway Lyngdorf Customer Service Department using the contact information at www.steinwaylyngdorf.com, or you may email service@steinwaylyngdorf.com.
