Summary of Contents for ICINTRACOM BT MIRROR KIT

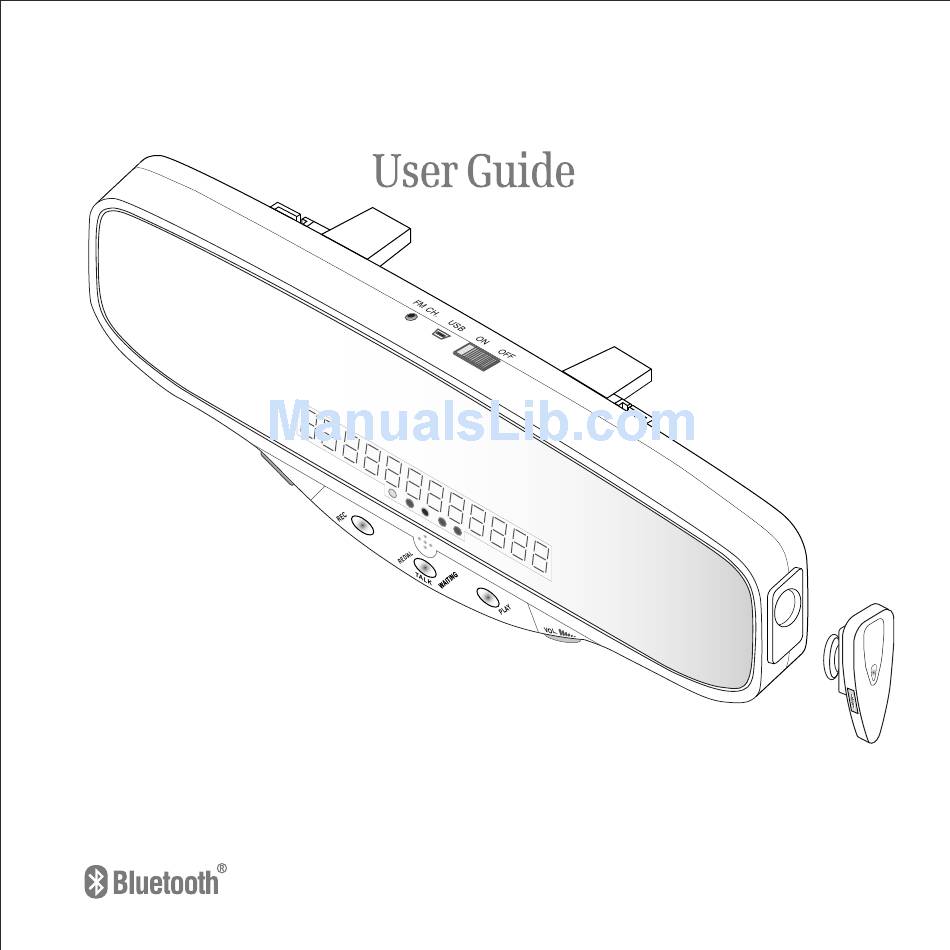

- Page 1 BT MIRROR KIT Bluetooth® Rearview Mirror Hands Free Car Kit...
-
Page 2: For Your Safety
(for example, in a holder). OFF MODE WHEN REFUELLING: Switch your BT Mirror Kit over to OFF mode at a refuelling point. Do not use near fuel or chemicals. Also remember to switch your mobile phone OFF if necessary. - Page 3 Keep your eyes on the road your hands on the wheel. The BT Mirror Kit is a Bluetooth Hands-Free adapter for cars. It clips on any vehicles rear-view mirror and gives unrivalled freedom on the move. The carkit has optimised DSP sound technology for improved call quality and supports voice dialing (if supported by your handset).
-
Page 4: Table Of Contents
Answering and Ending a Call............Rejecting a Call..................Voice Dialling from your BT Mirror Kit.......... Call Waiting from your from your BT Mirror Kit......Last number Redialing from your BT Mirror Kit......Selecting between your BT Mirror Kit Speaker or Car Speakers.................... - Page 5 Table of Content: Care and Maintenance..............Safety Information................ Troubleshooting................Features.................... Quick Guide..................Product Specifications..............Under no circumstances shall the manufacturer be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document.
-
Page 6: Bt Mirror Kit Overview
BT Mirror Kit Overview HOOKING CLIPS (TOP PAIR) FM CH. FM CH. View USB PORT FM FREQUENCY SELECTION KEY ON / OFF POWER SWITCH (for firmware upgrade only) EARPIECE Front View CALLER ID DISPLAY MICROPHONE STATUS LED RECORDING PLAYBACK FUNCTION KEY... -
Page 7: Getting Started
Getting Started Your BT Mirror Kit (The device) has the following keys and functionalities as shown in fig. 1: - POWER SWITCH: turn ON / OFF the device to save battery power when not used for a prolonged time. - MULTI FUNCTION KEY: press this key to (i) Answer a Call, (ii) End a Call, (iii) Voice Dial, (iv) Redial Last Number, (v) Reject a Call, (vi) Call Waiting, (vii) Bluetooth reconnect. - Page 8 Getting Started... (continue): - EARPIECE: to ensure privacy during a call. Once in use the Internal Speaker and Car Speaker will mute. - EARPIECE ON /OFF SWITCH: switch the earpiece ON to be used for private conversation and OFF for power saving. - MICROPHONE: internal Full duplex system Microphone.
-
Page 9: Charging The Device
CHARGING THE DEVICE: Your VT-88 Bluetooth Mirror Kit is powered with a fully re-chargeable and replaceable Li-Ion battery. Note that a new battery's full performance is achieved only after two or three complete charge and discharge cycles. 1. Connect the provided charger into the cigarette lighter port on the dashboard of your car. -
Page 10: Installation
INSTALLATION: Your BT Mirror Kit simply clip securely onto your existing rear-view mirror. Just follow these simple steps: 1. Identify two pairs of clips on the back of the device. CLIPS 2. Place the bottom pair of clips on the underside of the car’s original rear view... -
Page 11: Turning Your Bt Mirror Kit On And Off
The information on the next page describes pairing instructions for a typical Bluetooth-enabled mobile phone. BT Mirror Kit pairing procedure is subject to different models of mobile phones. Please refer to the user manual of your mobile phone for specific details on Bluetooth... -
Page 12: Bluetooth Function
PAIRING YOUR BT MIRROR KIT STEP BY STEP: 1. Turn ON the device and make Blue LED blinking every 5 seconds. sure it's on "Stand-By Mode". 2. Activate your mobile phone Refer to the mobile phone's User Guide Bluetooth function. -
Page 13: Using Your Bt Mirror Kit
USING YOUR BT MIRROR KIT: Once paired the device with your mobile phone, you are ready to receive or make calls. The Blue LED is ON and the ID Caller displays [CAR] every 1 minute. Answering a call: When there is an Incoming Call you will hear your mobile phone Ring Tone through the VT-88 Speaker. -
Page 14: Rejecting A Call
The Blue LED is ON or blinking and the ID Caller Display will show [REJECT]. Voice Dialing from your BT Mirror Kit: (ONLY APPLICABLE TO MOBILE PHONE EQUIPPED WITH VOICE DIAL FUNCTION) To make a call using Voice Dialing function shortly press the Multi Function Key. -
Page 15: Last Number Redialing From Your Bt Mirror Kit
USING YOUR BT MIRROR KIT: Last Number Redialing from your BT Mirror Kit: To Redial the last dialed number press twice quickly the Multi Function Key. The ID Caller Display shows [REDIAL]. Selecting between your BT Mirror Kit Internal Speaker... -
Page 16: Earpiece Conversation
USING YOUR BT MIRROR KIT: Earpiece Conversation: To begin a conversation with the Earpiece, simply take it from the unit, turn it ON and wear it. The ID Caller Display shows [EAR]. To switch conversation between Earpiece to Car Speaker or Internal Speaker Mode just repose the Earpiece into the unit. -
Page 17: Adjusting The Volume Of Your Bt Mirror Kit Speaker
It is NOT recommended to set maximum Volume when using the Earpiece. Dialing from your Mobile Phone Handset: While using your BT Mirror Kit, you can make and receive calls directly from your handset while communications will be through the device. -
Page 18: Voice Recording And Playback Functions
USING YOUR BT MIRROR KIT: Voice Recording and Playback functions: To easy the procedures of taking notes with your hands on the wheels, your BT Mirror Kit has embedded a Voice Recording Function. To START recording press the Recording Function Key once . -
Page 19: Care And Maintenance
Do not attempt to disassemble the device as it does not contain serviceable components. If you do not use the BT Mirror Kit for long periods, be sure to store it in a dry place, free from extreme temperatures and dust. -
Page 20: Safety Information
Check local laws regarding use of a mobile phone and Bluetooth car kit while driving. If you use the BT Mirror Kit while driving, ensure your attention and focus remain on the road and you drive in a responsible and safe manner. -
Page 21: Troubleshooting
TROUBLESHOOTING: If you are unable to connect your BT Mirror Kit to the handset please check and try the following: - Ensure the device is switched ON. - Ensure both your device and handset have enough battery power to reach connectivity. - Page 22 In this case, please reset both the BT Mirror Kit and cell phone. Your BT Mirror Kit is complaint with and adopts the Bluetooth Specification 1.2. However, interoperability between the device and other Bluetooth-enabled products is not guaranteed because it depends on compatibility. For more...
-
Page 23: Features
FEATURES LIST: þ Answer and End a call þ Reject a Call þ Call Waiting þ Redial þ Voice dial þ Caller ID display þ Record & Play þ Wireless Earphone þ 4 Preset radio transmittance þ Built-in speaker þ Built-in microphone þ... -
Page 24: Quick Guide
Quick Guide: if... You should..BTMirror Kit you would like to press and hold the Multi switch conversation [TRANSFER] Function Key for 3 seconds to the handset you would like to press the Multi Function Key [CONNECTED] switch conversation once (do not hold the key) back to the device (select a channel you would like to... - Page 25 Quick Guide: if... You should..BTMirror Kit press the Multi Function Key there is no wireless once to reactivate the [CONNECTED] connection pairing link dial the number from the you would like to handset as usual; talk and [CALL] make a call listen from the device you would like to press the Multi Function Key...
-
Page 26: Product Specifications
Product Specifications: Bluetooth Specification: Version 1.2 Class 2 Bluetooth Profile Supported: Headset and Handsfree Profile Range of Frequency: 2.4GHz Spectrum Input Voltage: DC 12V-24V Dimensions: Weight: ** The manufacturer has the right to modify infos, product specifications and product IDs without any advice. - Page 27 Personal Notes:...
