SECUBEST PTI400 User Manual

X39 ip ptz wall/ceiling/all in one/in-ceiling camera

page of 114

/ 114
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Download this manual

x39

IP PTZ

Wall/Ceiling/All in One/In-ceiling

Camera

User's Manual

Ver. 1.1 / 2013.06

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Table of Contents

Need help?

Do you have a question about the PTI400 and is the answer not in the manual?

Questions and answers

Summary of Contents for SECUBEST PTI400

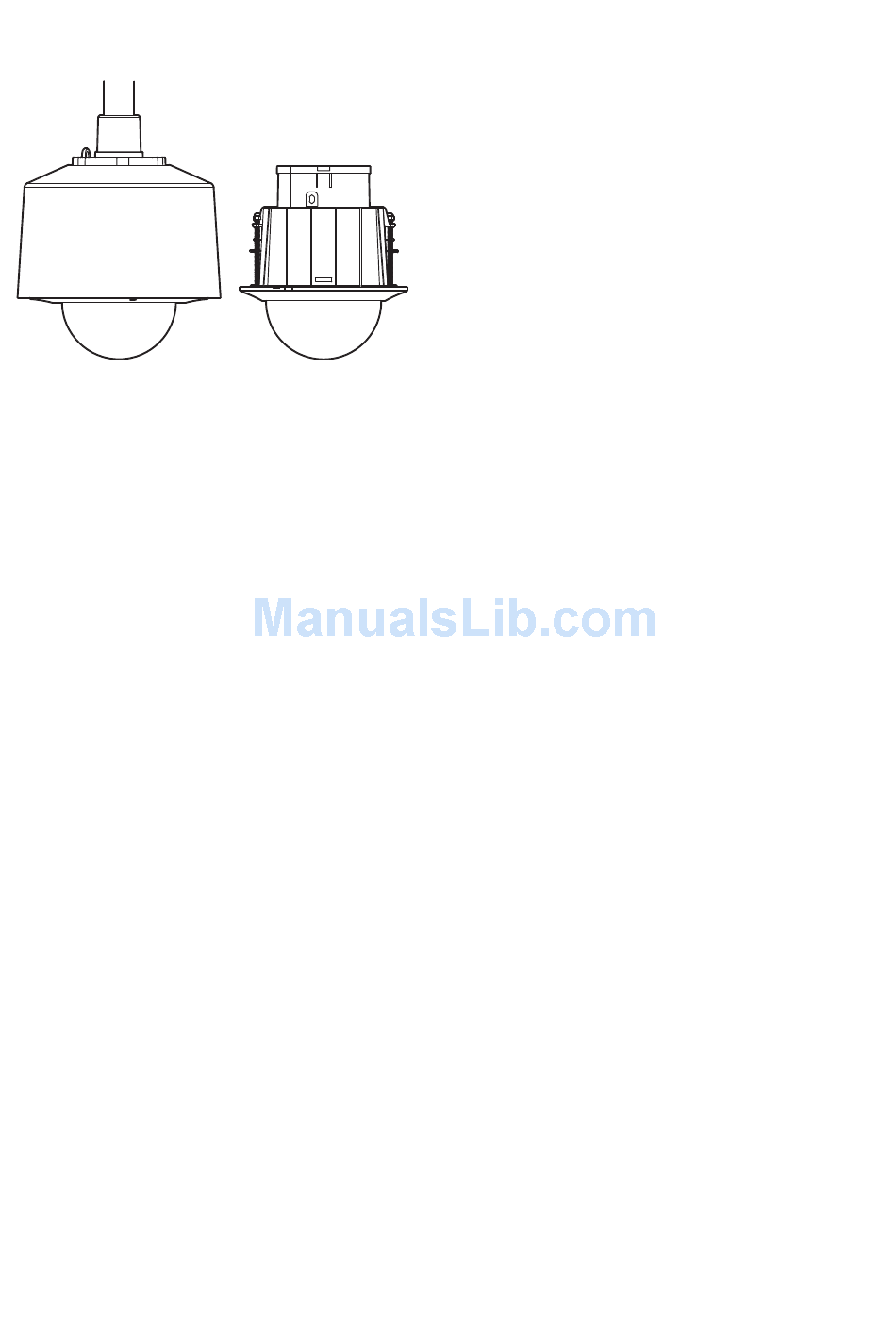

Page 1 IP PTZ Wall/Ceiling/All in One/In-ceiling Camera User’s Manual Ver. 1.1 / 2013.06 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
Page 2: Safety Information
Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Warning Precaution This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and...
Page 3: Important Safety Instructions
Important Safety Instructions Read these instructions. - All these safety and operating instructions should be read before the product is installed or operated. Keep these instructions. - The safety, operating and use instructions should be retained for future reference. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to. Follow all instructions.
Page 4 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream stream in accordance to laws designated by the government or the local authorities.
Page 5: Product And Accessories
Wall/Ceiling Mount Camera Introduction - Product & Accessories Product Accessories Housing Safety Water Proof Tape Cable Hanger Hexagonal Wrench Anchor Bolt(4pcs) Wall Mount Type Hole Template Manual CD Safety Wire Quick Manual Ceiling Mount Type...
Page 6 All in One Camera Introduction - Product & Accessories Product Accessories Hexagonal Wrench Ferrite Core All-In-One Camera Manual CD Quick Manual...
Page 7 In-ceiling Camera Introduction - Product & Accessories Product Accessories Safety Wire x 2 Manual CD Dome Cover Quick Manual In-ceiling Housing with PTZ Mechanism...
Page 8: Part Name & Functions
Wall/Ceiling Mount Camera Introduction - Part Name & Functions Wall/Ceiling Mount Bracket These are used to install the camera on the wall or ceiling and have junction box. The wall/ceiling mount bracket accommodate the junction box. Housing Safety Wire Hanger Wall Mount Bracket Junction Box Ceiling Mount Bracket...
Page 9 Wall/Ceiling Mount Camera Introduction - Part Name & Functions_Junction Box Main Connector Micro SD Card Slot Protocol DIP Switch Address DIP Switch Alarm Out Power, Active, Locked Light Alarm In Audio In/Out RS-485 Power RJ-45 Test Video Out...
Page 10 All in One Camera Introduction - Part Name & Functions_Appearance Sunshield & Upper Housing PTZ Mechanism Dome Safety Wire Dome Cover Sunshield & Upper Housing Dome Safety Wire Prevents the dome cover from falling. Sunshield protect bubble dome cover from the sun rays and rain fall.
Page 11 All in One Camera Introduction - Part Name & Functions_Inside Audio Output Port Audio Input Port ID Setup Switch Alarm Output Port Communication Setup Switch Alarm Input Port Micro SD Card Slot & Cover Network Cable Port RS-485 Port Power Port Heater Audio Output Port Alarm Output Port...
Page 12 In-ceiling Camera Introduction - Part Name & Functions_Appearance Dome Cover Hooks Dome Cover Side Hole Dome Cover PTZ Mechanism Hook PTZ Mechanism PTZ Mechanism Hook Guide Inceiling Housing Border Mounting Clip Bolt Mounting Clip Housing Safety Wire Hanger Junction Box Junction Box Hook In-ceiling Housing Junction Box Cover Side Hole...
Page 13 In-ceiling Camera Introduction - Part Name & Functions_Junction Box Main Connector Micro SD Card Slot Protocol DIP Switch Address DIP Switch Alarm Out Power, Active, Locked Light Alarm In Audio In/Out RS-485 Power RJ-45 Video Output...
Page 14: Dip Switch Setup
Installation - DIP Switch Setup Before installing the camera, set up the DIP PELCO-P switch to configure the Camera ID, communication protocol. Junction Box SAMSUNG Panasonic Protocol Setup Baud Rate Setup RS-485 Termination Resistor GE(Kalatel) AD(American Dynamics) Interface Board of All in One Camera 1.
Page 15 Installation - DIP Switch Setup 2. Communication Baud Rate Setup 4. Camera ID Setup Select the appropriate baud rate with DIP switch combination. Junction Box 2400 BPS - Factory Default 4800 BPS 9600 BPS Interface Board of All in One Camera 19200 BPS The ID number of the camera is set using binary numbers.
Page 16 Wall/Ceiling Mount Camera Installation - Installation Wall Mount Bracket Installation Ceiling Mount Bracket Installation Using the mount template sheet, mark the holes on the wall or ceiling. After drilling the holes, fix the four anchor bolts into the holes. Place the wall/ceiling mount bracket on the anchor bolts properly and tighten the nuts on the anchor bolts.
Page 17 Wall/Ceiling Mount Camera Installation - Installation Connect each of the following cables to the applicable slots and set the DIP switch to configure the camera ID and communication protocol. Junction Box Main Connector Micro SD Card Slot Protocol, Address DIP Switch Alarm Out RS-485 Port Alarm In...
Page 18 Wall/Ceiling Mount Camera Installation - Installation [1] Wind the waterproof tape around the pipe of housing. [2] Hook the safety wire on the hole of pipe and the housing safety cable hanger. [3] Attach the upper housing to wall mount bracket by turning it at least seven turns.
Page 19 Wall/Ceiling Mount Camera Installation - Installation Connect the dome satety wire into the connectors in the upper housing. Align ‘A’, ’B’ mark of one touch connector in the upper housing with the two black handles of PTZ mechanism, and insert the PTZ mechanism into hook in the upper housing.
Page 20 Wall/Ceiling Mount Camera Installation - Installation To lock the PTZ mechanism to the upper housing, press the two black handles until a snap sound is heard. Close the dome cover. Match the arrow mark on the dome cover and the housing. Arrow Mark Tighten four screws on the dome cover in the sequence shown in the image below.
Page 21 Wall/Ceiling/In-ceiling Mount Camera Installation - Cabling Junction Box RS-485 BNC Cable (Keyboard Controller/DVR) Crossover Cable Power Test Video Out RS-485 Communication (Keyboard Controller/DVR) Power For PTZ control, connect this line to keyboard and DVR. - Please check the correct rated power. To control multiple cameras at the same time, RS-485 - The rated power is marked on the front of the inner box communication lines of them are connected in parallel as...
Page 22 Wall/Ceiling/In-ceiling Mount Camera Installation - Cabling Junction Box Alarm Output Alarm Input Alarm Output In 1 In 8 Alarm Input/Sensor Alarm Output Sensor Input/Sensor - It connects to the alarm lights, siren or lamps, and it is - It connects to IR sensor, IrDA sensor or door switch. If activated according to the ‘Camera Setup’...
Page 23 Wall/Ceiling/In-ceiling Mount Camera Installation - Cabling Junction Box Mic. Audio In Amplifier Audio Out Mic. Speaker Audio In Audio Out Connect the ‘Audio In’ port of the camera to the Connect the ‘Audio Out’ port of the camera to the ‘Line In’ microphone directly or ‘Line Out’...
Page 24: Inserting/Removing An Sd Memory Card
Wall/Ceiling/In-ceiling Mount Camera Installation - Inserting/Removing an SD Memory Card The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices. Micro Recommended SD Card Specification (Not Included)
Page 25: Installation
All in One Camera Installation - Installation Wall Mount Bracket Installation Ceiling Mount Bracket Installation Using the hole template, mark the holes on the wall/ceiling. After drilling the holes, ﬁx the four anchor bolts into the holes. Place the wall/ceiling mount bracket on the anchor bolts properly and tighten the nuts on the anchor bolts.
Page 26 All in One Camera Installation - Installation Detach the PTZ mechanism from the upper housing to plug the main cable. When detaching the PTZ mechanism, press down and hold up the black handles on both sides of the PTZ mechanism. Remove the protecting tape used to fix the PTZ mechanism.
Page 27 All in One Camera Installation - Installation Connect each of the following cables to the applicable slots and set the DIP switch to configure the camera ID and communication protocol. Alarm Out Alarm In Audio Out Audio In DIP Switch for Camera ID Setup DIP Switch for Communication RS-485 Micro SD Card Slot &...
Page 28 All in One Camera Installation - Installation Align ‘A’, ’B’ mark of one touch connector in the upper housing with the two black handles of PTZ mechanism, and insert the PTZ mechanism into hook in the upper housing. To lock the PTZ mechanism to the upper housing, press the two black handles until a snap sound is heard.
Page 29 All in One Camera Installation - Installation Close the dome cover. Match the arrow mark on the dome cover and the housing. Arrow Mark Tighten four screws on the dome cover in the sequence shown in the image below. To maintain the best sealing, the torque of each screw must be in the range of 0.5 ~ 1.0 N·m(0.3 ~ 0.73 lbf·ft).
Page 30 All in One Camera Installation - Cabling Network Connection Power RS-485 Test Video Out (Keyboard Controller/DVR) Network Connection RS-485 Communication (Keyboard Controller/DVR) Connect the crossover cable into the RJ-45. For PTZ control, connect this line to keyboard and DVR. To control multiple cameras at the same time, RS-485 Power communication lines of them are connected in parallel as - Please check the correct rated power.
Page 31 All in One Camera Installation - Cabling Alarm Input Alarm Output In 1 In 8 Alarm Input/Sensor Alarm Output Sensor Input/Sensor Alarm Output - It connects to IR sensor, IrDA sensor or door switch. If - It connects to the alarm lights, siren or lamps, and it is the sensor is activated, it can be activated to move a activated according to the ‘Camera Setup’...
Page 32 All in One Camera Installation - Cabling Amplifier Mic. Audio In Line Out Connection Direct Connection Mic. Audio Out Line In Connection Speaker Audio In Audio Out Connect the ‘Audio In’ port of the camera to the Connect the ‘Audio Out’ port of the camera to the ‘Line In’ microphone directly or ‘Line Out’...
Page 33 All in One Camera Installation - Inserting/Removing an SD Memory Card The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices.
Page 34 In-ceiling Mount Camera Installation - Installation Detach the PTZ Mechanism and the Junction Box Cover By pressing down and holding up the hooks in both sides of PTZ Mechanism, detach PTZ Mechanism from the housing. Then, detach the junction box cover by pressing down the hooks in both sides of the junction box.
Page 35 In-ceiling Mount Camera Installation - Installation Connect each of the following cables to the applicable slots and set the DIP switch to configure the camera ID and communication protocol. Junction Box Main Connector Micro SD Card Slot Protocol, Address DIP Switch Alarm Out RS-485 Port Alarm In...
Page 36 In-ceiling Mount Camera Installation - Installation Insert the In-ceiling Housing Insert the housing to the ceiling hole and press the edge of housing against the ceiling. Fix the In-ceiling Housing Fix the In-ceiling housing by turning the mounting clip bolts clockwise.
Page 37 In-ceiling Mount Camera Installation - Installation Attach the Dome Cover Attach the dome cover by fixing the dome cover side hooks to the edge of housing. Detach the Protection Vinyl Detach the Dome Cover Detach the dome cover from the cover side hole by using a flathead screwdriver or a coin.
Page 38 Wall/Ceiling/In-ceiling Mount Camera Installation - Cabling Junction Box RS-485 BNC Cable (Keyboard Controller/DVR) Crossover Cable Power Test Video Out RS-485 Communication (Keyboard Controller/DVR) Power For PTZ control, connect this line to keyboard and DVR. - Please check the correct rated power. To control multiple cameras at the same time, RS-485 - The rated power is marked on the front of the inner box communication lines of them are connected in parallel as...
Page 39 Wall/Ceiling/In-ceiling Mount Camera Installation - Cabling Junction Box Alarm Output Alarm Input Alarm Output In 1 In 8 Alarm Input/Sensor Alarm Output Sensor Input/Sensor - It connects to the alarm lights, siren or lamps, and it is - It connects to IR sensor, IrDA sensor or door switch. If activated according to the ‘Camera Setup’...
Page 40 Wall/Ceiling/In-ceiling Mount Camera Installation - Cabling Junction Box Mic. Audio In Amplifier Audio Out Mic. Speaker Audio In Audio Out Connect the ‘Audio In’ port of the camera to the Connect the ‘Audio Out’ port of the camera to the ‘Line In’ microphone directly or ‘Line Out’...
Page 41 Wall/Ceiling/In-ceiling Mount Camera Installation - Inserting/Removing an SD Memory Card The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices. Micro Recommended SD Card Specification (Not Included)
Page 42 Network Setup - IP Installer 1. Run IP Installer Manual CD > Software > Run ‘IP Installer.exe’ If you run the program, it will automatically search all IP cameras connected to the current PC within LAN. If you click one of the lists, corresponding information on IP and port setting will be shown on the right.
Page 43 Network Setup - IP Installer Port Setting: Configure Port Setting. 2. IP Installer details Search: IP installer searches and lists all IP You don’t need to change the setting when connected to IP cameras connected to the current PC within camera via IP router or within LAN.
Page 44: Quick Start Of Network Connection
Network Setup - Quick Start of Network Connection Please follow the steps below to complete Configure the IP Camera’s TCP/IP settings as you normally do any other PCs on your network by providing a proper IP the initial setup of the network function. address, subnet mask, default gateway, and DNS server.
Page 45: Initial Setup Via A Crossover Cable
Network Setup - Initial Setup via a Crossover Cable This section provides a guide on how to Now you will be able to access the viewer software within the IP Camera. connect the IP Camera to your PC/Laptop for initial setup. Open Internet Explorer and type the IP address of 192.168.1.80 (default IP of the IP Camera from the factory) into the Address Bar Please follow the instructions in the order...
Page 46: Ddns Registration
Network Setup - DDNS Registration If you have DYNAMIC IP service from your Internet Service Provider (ISP), you can’t tell the current IP address of the IP Camera. To solve this problem, you have to register to our DDNS service. At first, you have to check if you are using dynamic addressing.
Page 47: Guide To Network Environment
Network Setup - Guide to Network Environment Please configure the IP Camera at the 5. The following descriptions are several basic network scenarios. Determine which scenario describes your network. installation site. You must determine your If your network does not match one of the scenarios below network scenario in order to configure the IP and you are unsure how to setup your IP Camera, contact Camera with the proper TCP/IP settings.
Page 48 Network Setup - Setup Case A, B Configure your IP Camera's TCP/IP properties Case A: as follows : Dynamic IP + Personal Router [Most SOHO] Network Type : STATIC (even though you have Dynamic IP from your ISP, use STATIC on the IP Camera) Camera Internet Address : A private IP address such as...
Page 49 Network Setup - Setup Case C, D Case C: Case D: Static(Fixed) IP [Dedicated line directly Dynamic IP + DSL/Cable Modem [Connected to the IP Camera] directly to the IP Camera] Camera Camera Phone Line or CATV Cable/xDSL Modem (ISP Provided) Public Line Gateway or Router at ISP...
Page 50: Port Forwarding
Network Setup - Port Forwarding After entering the correct TCP/IP settings, you are ready for ‘Port Forwarding’(Cases A, B). Please record the TCP/IP settings of your IP Camera for future reference. You may need this information to access your IP Camera and to configure ‘Port Forwarding’...
Page 51 Network Setup - Starting IP Camera After forwarding correctly the Web Port, Video Port, Control Port and two Audio Ports through your router (if applicable), install the IP Camera in a proper location. Locate the serial number located on the label attached to the bottom of the IP Camera, you will need this for DDNS registration.
Page 52: Basic Screen
Web Viewer Screen - Basic Screen OSD setup tab button. Click it to extend the panel to setup Web viewer is optimized with Windows XP or above version and explorer browser. camera using OSD menu. See the section ‘Web Viewer Screen –...
Page 53 Web Viewer Screen - PTZ Control & Aux Function Control PTZ Tab Aux Function Tab The Pan-tilt wheel button. The Pan-tilt wheel enables to move The Pan-tilt wheel button. Enables to move the camera for 8 the camera for 8 directions by pressing the corresponding directions to adjust live view.
Page 54 Web Viewer Screen - Backup Control & OSD Setup Backup Tab OSD Tab The Pan-tilt wheel button. Enables to move the camera for 8 The Pan-tilt wheel button. Enables to move the camera for 8 directions to adjust live view. directions to adjust live view.
Page 55 Web Viewer Screen - Etc. Setup & Motion Detection Setup Etc. Tab Motion Detection Tab Alarm Input Status. It shows the Alarm Input status. If an Motion Detection. Enable or Disable motion detection alarm is fired, the color of corresponding input number will function.
Page 56 Web Viewer Screen - Auto-map The Auto-map is the easiest way to control the PTZ in an intuitive manner. If you click the Auto-map popup button in the web viewer, the auto map window will appear as shown in the picture below.
Page 57: Viewer Interface
Web Viewer Screen - Viewer Interface 1. Click & Go Since in the full screen mod, all GUIs are hidden, you can By clicking a target in main view, PTZ camera will move to control PTZ using powerful Virtual joy stick functions instead. This functions can be used simultaneously.
Page 58: Video Setup
Setup - Video Setup Live Video Channel Setup Resolution Setup the multiple codec and Video according to the Select the video resolution. environment of installed camera. Using selected channel Available resolution can be depends on the codec setup between on the ‘Web-Viewer > PTZ Control > Video Format’. the channels.
Page 59 Setup - Video Setup Bitrate Mode GOP(Group of Pictures) Size is.. I-frame and P-frame can be created for MPEG4 and H.264 Select the bit rate control scheme of video compression from CBR (Constant Bit Rate) or VBR (Variable Bit Rate). video compression.
Page 60: Audio Setup
Setup - Audio Setup Input Gain Adjust the input gain of audio. Output Gain Adjust the output gain of audio. Output gain 0 is mute. Click ‘Apply’ to make above setting effective.
Page 61: Tcp/Ip Setup
Setup - TCP/IP Setup Network Type Preferred DNS Server Define network IP address type from the Static Mode for the Define the DNS server IP address. Format is same as the IP fixed IP or the Dynamic Mode by the dynamic IP address. address.
Page 62: Ddns Setup
Setup - DDNS Setup DDNS Disable If it is selected, DDNS service does not work. Basic DDNS Please register the camera in net4c site so as to use net4c DDNS. Insert the serial number shown on the screen in the serial entry field.
Page 63 Setup - HTTPS Setup Secure Connection System Install a public certificate Secure Connection System chooses a method of security A certificate issued by Certificate Authority can be installed connection. to the camera and the installed certificate can be deleted. <How to install or delete the certificate> HTTP 1) Input the description(name) of a certificate.
Page 64: Snmp Setup
Setup - SNMP Setup SNMP V3 Secure Setup - The information of camera system can be known and configured with SNMP. - The changes for configuration use version 3 and username and password should be certified at that time. Username Username is the information of user account for user authentication.
Page 65 Setup - Status This menu will show you all the information of Network setting in the camera. However, you cannot change those here.
Page 66: Alarm Input Setup
Setup - Alarm Input Setup Input Device Setup Action Select input device type from OFF / N.O. / N.C. Define a counter action from Alarm Output / Alarm Image Transfer / Camera Action when Alarm Input is detected. Operation Action Description Ignore this Input sensor.
Page 67: Motion Detection Setup
Setup - Motion Detection Setup Activation Time Action Select activation time from Always / Only Scheduled Time. Define a counter action from Alarm Output / Alarm Image transfer when motion is detected. An alarm is activated whenever motion is Always detected.
Page 68: Schedule Setup
Setup - Schedule Setup Schedule function enables to transfer series of still images in Activation Time a time interval specified via E-mail or FTP. (For more detail, Select activation time from Always / Only Scheduled Time. see ‘Transfer Setup’ in this chapter) Always Transfer image at all times.
Page 69: Transfer Setup
Setup - Transfer Setup Transfer Mode Click ‘Apply’ to make above setting effective. Image Transfer method is selected from FTP and E-Mail (SMTP). To use image transfer, FTP and SMTP in the next sections must be configured properly. SD Card Record If it is set to On, the image is saved into the SD card as well.
Page 70 Setup - FTP Setup To transfer/save the image to the relevant sites through FTP, Port then FTP needs to be setup. Define the FTP Server Port. If Port is not appropriate, it is impossible to access to FTP Server. Use Passive Mode Check it to use Passive mode for FTP transfer.
Page 71: Smtp Setup
Setup - SMTP Setup To send/save the image to the relevant sites by Email, SMTP E-Mail Sender needs to be setup. Define the e-mail address of E-Mail Sender. It will be displayed as the sender when the camera sends an E-mail. Plain, SSL/TLS Select Security mode of SMTP from Plain or SSL/TLS.
Page 72: Sd Card Setup
Setup - SD CARD Setup Total size / Free size Capacity Warning E-mail Total capacity of SD card and the remainder of it are If it is set ON and remained space of SD card reach to less displayed. than 8MB, a warning e-mail will be sent to the e-mail account set in SMTP menu.
Page 73: Users Setup
Setup - Users Setup Users Modify List all the user accounts for authentication. Modify the information of the user accounts registered. For admin account, only Password and Auto Login function can be modified. Register a new user Delete Delete the selected user account. Admin account cannot be deleted.
Page 74: Date/Time Setup
Setup - Date/Time Setup Current Date & Time Synchronize with the time server Shows the current date and time setting in the Camera. In this mode, date/time is automatically updated using the Time Server selected. After selecting the Time Zone Synchronize with my computer properly, Time Server must be selected.
Page 75: Firmware Update
Setup - Firmware Update Firmware Version Warning: It shows the current Firmware Version in the system. 1. Do not turn off the power of camera during the Firmware update. Otherwise, the system can be stuck to be unstable. Firmware Filename If updating is finished, the system will be rebooted Designate the Firmware file name in your computer by automatically.
Page 76: Default Set
Setup - Default Set Reset to the Factory Defaults Return the setup to the Factory Default. Reset all Settings to the Factory Defaults. Except Except Network related settings, reset all Network Settings others to the Factory Defaults. Warning: If you click ‘Apply’, you will lose all setting data. If needed, please, make a note for further installation.
Page 77 Setup - Restart If you click the ‘RESTART’ menu, a message box will be shown to confirm. Click the ‘Ok’ button to restart.
Page 78 Setup - System Start, Network Connection Status(Including IP Address), Changing System Time, Changing Video Setup, Network Setup and Event(Alarm / Motion) Alert will be recorded. 1000 PCS of Log can be stored and the recorded data won't be deleted.
Page 79 SD Card Search - Search Date of stored image Choosing the date to find the stored events. Stored Events(Schedule / Motion / Alarm) The interval of stored time and number of stored images in the Event Setup can be different. Page No.
Page 80: Check Points Before Operation
OSD - Check Points before Operation The OSD menu in this manual is based on the analog camera. Some of the menu items (Date/Time Setup, Alarm Input Setup, Exit, etc.) might be different when IP base is used. Check Points before Operation 1.
Page 81: Aux Functions
OSD - Aux Functions Preset Group - You can setup and save the camera position. - The group function allows running sequence of presets, pattern and/or scans. - See the section ‘ROOT MENU>FUNCTION SETUP>PRESET SETUP’ for more detailed information. - See the section ‘ROOT MENU>FUNCTION SETUP>GROUP SETUP’...
Page 82: Osd Information
OSD - OSD Information PRESET LABEL PATTERN 1 Preset Label Action Title CAMERA ID_TOP Camera ID_Top Temperature CAMERA ID_TOP Alarm In Information 25 C CAMERA ID_BOT Relay Out Information Camera ID_Bottom CAMERA ID_BOT Compass Direction O 1234 23/MAR/2009 Date / Time I 12345678 24 00 00 Zoom Magnification...
Page 83 OSD - General Rules of Menu Operation See the below to operate the menu items. ROOT MENU IP Camera Analog Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - Controll <SYSTEM INFORMATION>...
Page 84 OSD - ROOT MENU & SYSTEM INFORMATION ROOT MENU ROOT MENU - - - - - - - - - - - - - - - - - - - - - - - - - - - <SYSTEM INFORMATION> <SYSTEM INFORMATION>...
Page 85 OSD - DISPLAY SETUP > CAMERA ID DISPLAY SETUP DISPLAY SETUP This menu defines enable/disable of OSD display on main screen. - - - - - - - - - - - - - - - - - - - - - - - - - - - ADDRESS If an item is set to be ‘AUTO’, the item is displayed only when the CAMERA ID...
Page 86 OSD - DISPLAY SETUP > PRIVACY ZONE DISPLAY SETUP DISPLAY SETUP See the previous page. - - - - - - - - - - - - - - - - - - - - - - - - - - - ADDRESS CAMERA ID EDIT MASK - Move to Target Position...
Page 87 OSD - DISPLAY SETUP > PRIVACY ZONE PRIVACY ZONE - STYLE>COLOR Set the color of the mask. PRIVACY ZONE - - - - - - - - - - - - - - - - - - - - - - - - - - - Y-LEVEL MASK NO.
Page 88: Motion Setup
OSD - MOTION SETUP MOTION SETUP MOTION SETUP Setup the general functions of pan/tilt motions. - - - - - - - - - - - - - - - - - - - - - - - - - - - PRESET LOCK PWR UP ACTION PRESET LOCK...
Page 89 OSD - MOTION SETUP > PARKING ACTION SETUP PARKING ACTION SETUP MOTION SETUP If ‘PARK ENABLE’ is set to ‘ON’, camera runs assigned function - - - - - - - - - - - - - - - - - - - - - - - - - - - PRESET LOCK automatically if there is no PTZ command during assigned PWR UP ACTION...
Page 90 OSD - MOTION SETUP > ALARM INPUT SETUP This setup is supported only analog camera. MOTION SETUP - - - - - - - - - - - - - - - - - - - - - - - - - - - PRESET LOCK ALARM INPUT SETUP PWR UP ACTION...
Page 91 OSD - FUNCTION SETUP > PRESET SETUP FUNCTION SETUP FUNCTION SETUP Configure 5 special functions with this menu. - - - - - - - - - - - - - - - - - - - - - - - - - - - <PRESET SETUP>...
Page 92 OSD - FUNCTION SETUP > PRESET SETUP LABEL PRESET SETUP - Edits label to show on monitor when camera arrives at preset. - - - - - - - - - - - - - - - - - - - - - - - - - - - PRESET NO.
Page 93 OSD - FUNCTION SETUP > SCAN SETUP SCAN SETUP FUNCTION SETUP By using the scan function, you can make the camera to move - - - - - - - - - - - - - - - - - - - - - - - - - - - <PRESET SETUP>...
Page 94 OSD - FUNCTION SETUP > PATTERN SETUP PATTERN SETUP FUNCTION SETUP Pattern function is that a camera memorizes the path (mostly - - - - - - - - - - - - - - - - - - - - - - - - - - - curve path) by the pan-tilt wheel button for assigned time and...
Page 95 OSD - FUNCTION SETUP > GROUP SETUP GROUP SETUP SCREEN FUNCTION SETUP The group function allows running sequence of presets, pattern - - - - - - - - - - - - - - - - - - - - - - - - - - - and/or scans.
Page 96 OSD - FUNCTION SETUP > GROUP SETUP EDIT GROUP - Assign Function EDIT GROUP Move the focus to the left/right to select items and move focus - - - - - - - - - - - - - - - - - - - - - - - - - - - to the up/down to change each value.
Page 97 OSD - FUNCTION SETUP > SCHEDULE SETUP SCHEDULE SETUP SCREEN FUNCTION SETUP The schedule function allows running an appropriate function - - - - - - - - - - - - - - - - - - - - - - - - - - - like preset, scan, pattern, group, home move at designated <PRESET SETUP>...
Page 98 OSD - FUNCTION SETUP > SCHEDULE SETUP SCHEDULE SETUP - Save Edited Setting SCHEDULE SETUP To save data and exit, press(click) Near or Enter button. - - - - - - - - - - - - - - - - - - - - - - - - - - - MASTER ENABLE If there are rules conflicts to each other, the higher number is the higher DAY TIME ACT NO ON...
Page 99 OSD - CAMERA SETUP > WB SETUP ZOOM CAMERA SETUP ZOOM CAMERA SETUP Setup the general functions of zoom camera module. - - - - - - - - - - - - - - - - - - - - - - - - - - - FOCUS MODE SEMIAUTO FOCUS MODE...
Page 100 OSD - CAMERA SETUP > WB SETUP WB SETUP - NIGHT WB SETUP - - - - - - - - - - - - - - - - - - - - - - - - - - - BRIGHTNESS DAY/NIGHT NIGHT...
Page 101 OSD - CAMERA SETUP > AE SETUP AE SETUP AE SETUP - - - - - - - - - - - - - - - - - - - - - - - - - - - <ALC> IRIS IRIS DAY/NIGHT <AUTO>...
Page 102 OSD - CAMERA SETUP > AE SETUP DAY/NIGHT AE SETUP It is automatically changed by sensing the brightness of the - - - - - - - - - - - - - - - - - - - - - - - - - - - <ALC>...
Page 103 OSD - CAMERA SETUP > SPECIAL SPECIAL ZOOM CAMERA SETUP Sets the special function relaced to the image. - - - - - - - - - - - - - - - - - - - - - - - - - - - SEMIAUTO FOCUS MODE DIGITAL ZOOM...
Page 104: System Setup
OSD - SYSTEM SETUP SYSTEM SETUP SYSTEM SETUP <DATE/TIME SETUP> - - - - - - - - - - - - - - - - - - - - - - - - - - - <DATE/TIME SETUP> Start ‘DATE/TIME SETUP’ setup. <RELAY TYPE>...
Page 105 OSD - SYSTEM SETUP SET HOME POSITION SET HOME POSITION Home position means the origin of pan angle calculation. - - - - - - - - - - - - - - - - - - - - - - - - - - - The value of pan angle displayed on the screen is based on this home position.
Page 106: System Initialize
OSD - SYSTEM INITIALIZE SYSTEM INITIALIZE SYSTEM INITIALIZE CLEAR ALL DATA YES / NO - - - - - - - - - - - - - - - - - - - - - - - - - - - CLEAR ALL DATA Deletes all configuration data such as display, camera, motion CLR DISPLAY SET...
Page 107 Appendix A : Current TCP/IP Settings If your IP settings are obtained automatically, you could use the MS-DOS prompt (or Command Prompt) to determine your IP address. For information on how to do this, please read the FAQ. 1. Windows 98 / ME Users 2.
Page 108 Appendix - B : Changing IP address and subnet mask 1. Windows 98 / ME Users 2. Windows 2000 or XP Users 3. Windows Vista or 7 Users Start Start Start Setting Control Panel Control Panel Control Panel Network and Network and Dial-up sharing center Connection or...
Page 109: C : Port Forwarding
Appendix - C : Port Forwarding After assigning the IP Camera a web server For Linksys BEFSR41 Cable/DSL routers: port and video server port you must use Port 1) Open a web browser and type http://192.168.1.1 into you Forwarding. (for cases A, B) Address bar.
Page 110 Appendix - C : Port Forwarding For Netgear RP614 routers: 1) Input http://192.168.0.1 in address bar of web browser. http://192.168.0.1 is the default IP address. 2) If it asks ID and password, input admin as ID and password as password. 3) Click “Port Forwarding”...
Page 111 My POWER light is not on? I can’t connect!! Power is not being supplied to the unit. Please use the power In the case of a connection failure. supply shipped with the unit and verify that a power source is active from the attached power outlet used to connect the >...
Page 112 Specifications - Dimension Unit: mm 182.5 3/4” PIP THREAD 78.7 404.5 Wall Mount Bracket 182.5 3/4” PIP THREAD 3/4” PIP THREAD 78.7 Ceiling Mount Bracket...
Page 113 Specifications - Dimension Unit: mm 117.7 51.5 101.8 90.9 072.7 0211.8...
