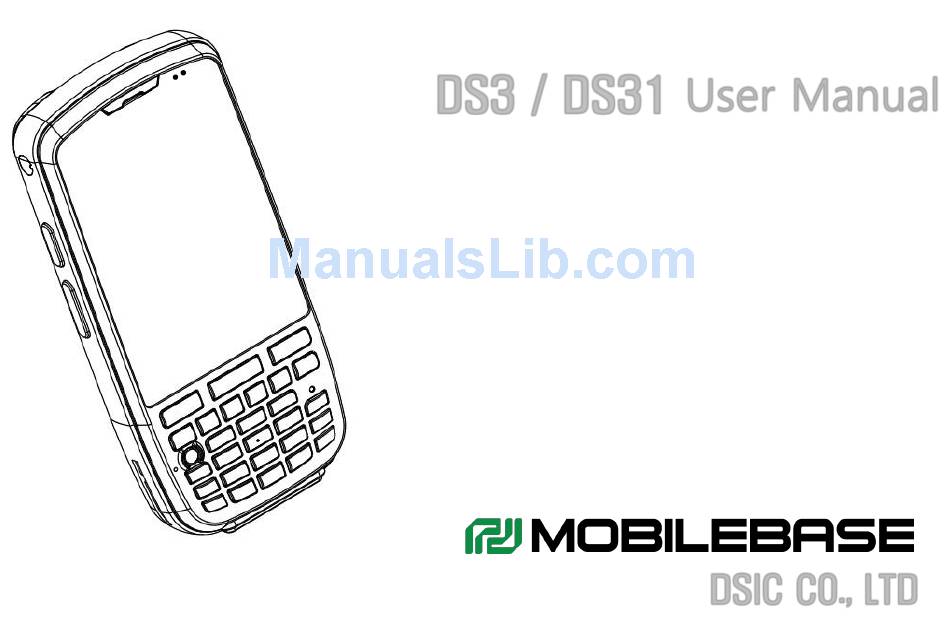

DS3 / DS31 User Manual
• Please read the following warnings before using the
product..
• Contents of manual may differ based on the software version of products.
• Please visit web site(www.mobilebaseglobal.com) for the more detailed information.
DSIC CO., LTD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ds3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mobilebase ds3

  • Page 1 DS3 / DS31 User Manual • Please read the following warnings before using the product.. • Contents of manual may differ based on the software version of products. • Please visit web site(www.mobilebaseglobal.com) for the more detailed information. DSIC CO., LTD...

  • Page 2: Table Of Contents

    < Table of Contents >  Notice 3 Communication  Cautions and Instructions 3.1 Using Wireless LAN 1 Understanding the Product 3.2 Using Bluetooth 1.1 Components 1.2 Closed view of product 4 Scanner and Camera 1.3 Install/Remove the Battery 4.1 Using Barcode Scanner 1.4 Charging the Battery 4.2 Using Camera 1.5 Using SD Memory...

  • Page 3: Notice

    < Notice > Please read “Caution and Instruction” and conform according to the direction. The contents in manual could be modified without pre-notice and different according to PDA software version. The figure and color of components could be different with the actual. Unauthorized copying, transferring, or deletion is strictly prohibited.

  • Page 4: Cautions And Instructions

    < Cautions and Instructions > In order to use the product properly and safely and to prevent accidents in advance, Please follow the guidelines indicated bleow. - Please use the authorized battery and accessory, which provided with PDA. User Cautions * For a defect by using a non-authorized equipment, You can not receive A/S.
  • Page 5 < Cautions and Instructions > - Please don’t put PDA, battery and charger in or near heating equipment such as stove, microwave oven. Precaution * It could bring on fatal injury. In addition, Could cause product explosion, transformation or a certain defect. Furthermore, Free repair service is not provided.

  • Page 6: Understanding The Product

    1 Understanding the Product 1.1 Components 1.2 Closed view of Product 1.3 Install/Remove the Battery 1.4 Charging the Battery 1.5 Using SD Memory Card 1.6 Reset(H/W and S/W)

  • Page 7: Components

    1 Understanding the Product 1.1 Components ● ● [ DS-3 PDA ] [ Cradle ] [ Battery ] [ Stylus Pen and String ] [ Power Cable ] [ USB Cable ] [ Ear Microphone(Options) ] [ User Manual ]...

  • Page 8: Closed View Of Product

    1.2 Closed view of Product LCD Touch Screeen Voice call Speaker Battery cover Handstrap Status LED (Modem/Barcode Scan) Camera lenz Keypad Flash Reset Barcode scanner button Volume Up / Down Camera Barcode button scanner Cradle Stylus pen Barcode scanner Microphone connector 24-pins Connector button...
  • Page 9 1.2 Basic Terms Extra-Battery Charging Part Connector (Client) Connecting Power Charging Status LED Connector Connector Connector (Host) [ Cradle ]...

  • Page 10: Install/Remove The Battery

    1.3 Install/Remove the Battery [ Install the Battery] ① Install battery by making connector upward. ② Close battery cover ③ Push the locker to left side ④ Fix the hand strap on back of body. [ Remove the Battery] ① Separate the hand strap ②...

  • Page 11: Charging The Battery

    1.4 Charging the battery Charging status LED [ Charging by Cradle] ① Connect the power cable to the connector of cradle ② Mount the PDA body to Cradle ③ During the charging, it displays in red color. When the charging completed, it turns to green color. ②...

  • Page 12: Using Sd Memory

    1.5 Install & Remove Micro SD Card ① Pull out the battery ② Inset a SD card. [ Install SD Card ] ③ Install the battery back. ④ Fix a hand strap on PDA.. <Caution> • Please power-off before installing or removing the battery •...

  • Page 13: Reset(H/W And S/W)

    1.6 Reset(H/W and S/W) [ Software Reset ] ① Please press [reset] button at the front of the body using the stylus pen ② Programs currently in use will be shut down and data or file can be deleted. However, Saved files are out of effect.

  • Page 14: Basic Use

    2 Basic Use 2.1 Display Calibration 2.2 Using Keyboard...

  • Page 15: Display Calibration

    2 Basic Use 2.1 Display Calibration [ Display Calibration ] ① Execute the Display Calibration when correct position is not selected with using stylus pen. ② When H/W reset done or when needed, please execute [start]-[setting]-[control panel] in stylus properties. ③...

  • Page 16: Using Keyboard

    2.2 Using Keyboard [ Using Keyboard ] ① When inputting a letter, you can use keyboard function. ② Press [keyboard] icon with stylus pen in taskbar. ③ If pressing a button in [keyboard screen], the appropriate letter is input.

  • Page 17: Communication

    3 Communications 3.1 Using Wireless LAN 3.2 Using Bluetooth...
  • Page 18 3.1 Using Wireless LAN < Reference > • Wireless LAN supports IEEE 802.11 b/g [ Wireless LAN ON/OFF] • To connect the wireless LAN, There should be AP(Access Point) to support 802.11 b or 8002.11.g around. • Please use the wireless LAN after manually or automatically setting-up IP.
  • Page 19 3.1 Using Wireless LAN ①Press “Yes” in pop-up window about creating a new profile. ② Write the setting password of AP and press the OK button. ③To save the all settings, press Commit button. ④Move the [Main] Tab and select the settings of AP from Active Profile.
  • Page 20 3.2 Using Bluetooth [ Bluetooth On/Off ] [Bluetooth On/Off] ①After pressing the spanner icon in taskbar and selecting the Bluetooth, and pressing the B ON/OFF icon. [ Bluetooth Device Search ] [Bluetooth Device Search] ①Press the [Device search] after executing [Bluetooth manager] in [Control Panel].

  • Page 21: Scanner And Camera

    4 Scanner and Camera 4.1 Using Barcode Scanner 4.2 Using Camera...
  • Page 22 4 Scanner and Camera 4.1 Using Barcode Scanner [ Using Barcode Scanner ] In order to operate it, Press red button on the upper right side for 3 seconds. <Reference> Scanning Model Dimension Method Laser Image 2D support Barcode scanner <...
  • Page 23 4.2 Using Camera [ Using Camera] ① Press the bottom of right side camera key. ② Press [Preview] button in [Camera] and then, have a subject moved on preview display. ③ Pressing [Focus] button, it can automatically adjust the focus. Camera ④...
  • Page 24 4.2 Using Camera [ Using Camera] ① Execute Camera program. ② Camera preview display is on/off when pressing [Preview]/[Stop] button. ③ Pressing [Focus] button, it can automatically adjust the focus . ④ In case that surrounding is dark, please operate the flash by pressing [Flash On] button.
  • Page 25 4.2 Using Camera < Reference > • Activate [setting] after pressing [Stop] button of the display. • You can do set up by pressing [Setting] in [Camera]. Preview / Stop Auto Focus Shooting and Save Flash on / off Setting * Program related with camera could be modified.

  • Page 26: Connecting Activesync

    5 ActiveSync 5.1 Installing ActiveSync 5.2 Using ActiveSync 5.3 Solving Problem...
  • Page 27 5.1 Installing ActiveSync [ Installing ActiveSync ] ① Please download ‘ActiveSync’ and ‘USB driver’ from www.mobilebase.co.kr ② Please start the installation by executing the files. ③ Please have it proceed with pressing [Next] button. ④ Please connect the computer with a cradle by USB cable when the installation is completed.
  • Page 28 5.2 Using ActiveSync [ Using ActiveSync ] ① By using ActiveSync, You can synchronize the data of PDA and computer. ② You can load a file in PDA or transfer a file in computer after clicking [Search] button in ActiveSync.. ③...
  • Page 29 2. In case that ActiveSync file is damaged, installation could not be completed. You can download ActiveSync program from www.microsoft.com or www.mobilebase.co.kr 3. If you use MS Vista OS in computer, ActiveSync is not available. Please download WMDC(Windows Mobile Device Center) from Microsoft homepage.

  • Page 30: Technical Support

    6 Technical support Contact point Technical Support Team Tel : 1577-7131 Fax: 02-2107-5119 Address : 153-772 2F, DeaRung TechnoTown 448 Gasan-dong KuemChun-gu Seoul Korea Online Technical Website : http://www.mobilebaseglobal.com Support E-mail : service@mobilebaseglobal.com...
