Summary of Contents for TOCH ANGEL II

  • Page 2: Table Of Contents

    1 About Data Storage And Operation…………… 4 2 Considerations and Safety……………………… 4 Keys, Phone Appearance and Illustrated Icons…………………………………………………… 3.1 External view…………………………………… 7 3.2 Buttons / Keys Illustrations…………………….7 4. Icons On Screen ……………………………..….12 5 Install And Remove The Sim Card………...…. 15 6 Battery And Charger………………………..…..
  • Page 3 8.12 Disable / Enable reading incoming call number and pronunciation of numbers when you press the keypad…………………………………... 37 8.12.1 Disable / Enable reading incoming call number………………………………………………. 37 8.12.2 Pronunciation of numbers when you press the keypad…………………………………………. 37 8.13 Taking pictures……………………………… 39 8.14 View Photos…………………………………..
  • Page 4 10.1 The phone does not turn on……………… 55 10.2 SOS function is not activated……………. 55 11 Quick Troubleshooting Guide……………… 56...

  • Page 5: About Data Storage And Operation

    Internet application or data from those applications. TOCH Mobile shall not be responsible for the data that the phone user reads, writes, modifies or deletes in the phone storage areas. These data will be sole responsibility of the phone user.
  • Page 6 • According to the FCC certification obtained by this device, it must be used at a distance of 1.5 cm from the human body. • Authorized Service: only seek maintenance of your phone through authorized service centers for TOCH...
  • Page 7 Mobile. Please do not disassemble the phone yourself.

  • Page 8: Keys, Phone Appearance And Illustrated Icons

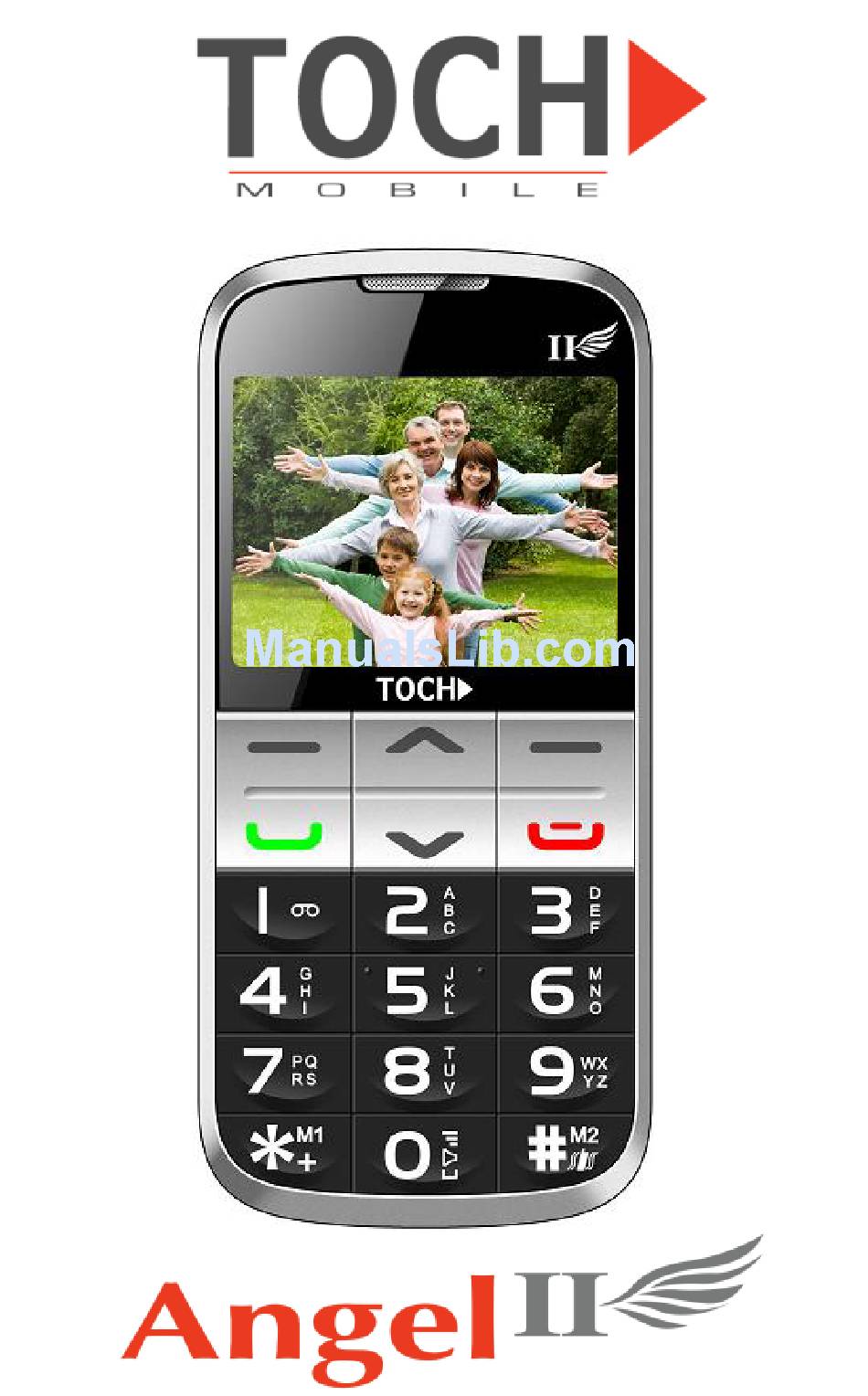

    3 Keys, phone appearance and illustrated icons. 3.1 External View Right Function Left Function Call End key (also turns the Call Key phone on / off) Keypad Menu Key: and down...
  • Page 9 Flashlight button Volume button Lock button FM Radio Button...
  • Page 10 button...

  • Page 11: Buttons / Keys Illustrations

    3.1.1 Buttons / Keys Illustrations Buttons / Keys Illustrations Right function key On Standby mode, access the calendar. On menu mode (Back to the top interface.) Left Function key (OK) On Standby mode, enter the menu information or acts as the "OK" button) Call key.
  • Page 12 End of call Key. • Press and hold the button for 3 seconds to turn on or off the phone. • On call mode, disconnect the call. Menu keys. When pressed up or down select menu options.Teclas de Menú. Flashlight Button To switch flashlight on, slide it To turn flashlight off, slide down.

  • Page 13: Icons On Screen

    Lock button Lock keypad: Press the button Un-lock the keypad: Press the button down. Volume button several functions: • Recall Mode, raises and lowers the volume (volume change) • In FM Radio and music player mode, volume up and down. FM Radio Button •...
  • Page 14 Tone Keypad locked Headphones tone + vibration connected alarm vibration silence batería level New message Roaming Charger SIM Card Connected Charger Error SIM Card Disconnected SOS calls headphones connected unlocked keypad locked keypad hands free hands free connected disconnected Error incoming call...
  • Page 15 outgoing call question Lost call Call ended low level wait Charging Silence Signal search...

  • Page 16: Install And Remove The Sim Card

    Install and remove the SIM card 1) Turn off the phone: If it is on, turn it off by pressing the key for 5 seconds. 2) Remove the back cover: Remove the back cover by pushing down as shown in picture 3: Back Cover image 3...
  • Page 17 3) Insert the SIM card as shown in the following image 3-1 ensure that the metal part of the SIM card is facing downwards. image 3-1...

  • Page 18: Battery And Charger

    Battery and charger Battery This phone uses a battery type: Li-ion. When using the phone for the first time, install the battery and charge the phone for 4 hours. To install the battery follow these steps: 1) Remove the back cover: Remove the back cover by pushing down as shown in image 3-2: Back Cover...
  • Page 19 2) Install the battery: battery metal points should be placed face to face with metal points inside the phone, then push the battery down until it is in place, shown image 3-3. Image 3-3 NOTE: When the battery is low, this image is displayed: and a high -pitched beep warning signal sounds.
  • Page 20 Image 3-4...

  • Page 21: Installing Of A Microsd Memory Card

    b) You can also directly connect the wall adapter cable to your phone. c) The battery charge indicator will be on during charging. If the phone is off while the charger is connected to the phone, only the battery charge indicator is displayed on the screen.
  • Page 22 Remove the back cover: by pushing down as shown in image 3-5: Back Cover image 3-5...
  • Page 23 3) Insert the MicroSD card: Insert the MicroSD card as shown in picture 3-6 NOTES: • The metal part should go upside down • The phone can only handle cards up to 8GB. image 3-6 The MicroSD memory card acts as phone storage: The first time you insert the card, it is best to configure the music player, video player, video recorder, camera and sound recorder to store the...

  • Page 24: Getting Started

    To know how to set these options please refer to section 8.4 Multimedia Settings Getting Started 8.1 Turning the phone on and off TURNING THE PHONE ON: If the phone is off, press the key for 5 seconds, if the SIM card is installed, the phone will request a PIN, enter the PIN and press the "OK"...

  • Page 25: Make Call With Keypad

    8.2.1 Make call with keypad When the phone is in standby, enter the desired number with the numeric keypad and press the key. After the call is answered, the call information is displayed on the screen. To hang up press the key twice.

  • Page 26: Dial From Recent Calls

    8.2.3 Dial from recent calls 1. While in standby mode, press and a list of recent calls is displayed. 2. Scroll to the desired number, and press 8.2.4 Receiving Calls 1. When you receive a call, the screen displays the caller's number and name if it has been included in the list of contacts.

  • Page 27: Multimedia Configuration

    To activate the SOS Function press the SOS button for 5 seconds. An alarm will sound and the phone will send the predefined text message to the numbers you have registered in the SOS Function (see paragraph 8.11). After sending the message, the phone will automatically call those numbers and when the call is answered the phone will be in speakerphone mode.
  • Page 28 Installing a MicroSD memory card of this user manual. NOTE : Memory card not included with the phone so the user must provide one. 2) Turn on the phone and follow the instructions that will allow you to use the MicroSD card for storing music, photos and videos.
  • Page 29 2.4) With the up or down menu key go to menu: Multimedia -> Video Player - > Options - > Storage with the up or down menu key , select " Memory Card" , press the key "OK" and then exit the menu by pressing the Red button 3) Turn your computer on and once you have entered to your user session, connect the computer...
  • Page 30 Choose "Mass Storage", then press the "OK " key. 5 ) Two storage units will be added to your computer: the first one from top to bottom corresponds to the MicroSD card installed in your phone and this is where you should store your files . 6) The following three folders must exist in the root of the MicroSD card: .

  • Page 31: Use Fm Radio

    Use FM radio 1. While in standby mode, press the button for 4 seconds 2. With the up or down menu key tune to the desired station. 3 Use the "+" and "-" volume key button to raise or lower the volume respectively. 4.
  • Page 32 2. With the up or down menu key choose the song you want to hear. 3. Press "5" to play or pause music. 4 Use the "+" and "-" volume key button to raise or lower the volume respectively. 5. To exit the music player press the key.

  • Page 33: Keypad Lock And Unlock

    Keypad Lock and Unlock 1. To lock the keypad, press up the key. Your phone will display the message: Locked keyboard and will display this image 2. To unlock the keypad by pressing down the key. Writing Text Message (SMS) 1.
  • Page 34 3. Choose "Text Messaging" and press "OK." 4. Enter your message using the keypad. For a list of special characters, press asterisk , select the desired character with the Menu key and click "OK". 5. Once you finish the message, press the Left Function Key, "Options".

  • Page 35: Text Messages And Multimedia

    See text messages and multimedia messages 1. While in standby mode, press the Left Function , "Messages " . 2. Select "Inbox" and click "OK". 3. With the up and down menu key , view the list of received messages. 4.

  • Page 36: Configure Sos

    folder, whichever file you wish to delete the message from. Then press "OK". With the up or down menu key , choose the message you want to delete and press "Options" . With the up or down menu key , choose "Delete."...
  • Page 37 2. To record or erase the numbers where the SOS message and call will be sent, choose the menu key , the "SOS Numbers" option, and then press "OK" button. Then with the menu button choose the options "Number 1" to "Number 5", type or delete the number, then press "Options"...

  • Page 38: Disable / Enable Reading Incoming Call Number And Pronunciation Of Numbers When You Press The Keypad

    8.12 Disable / Enable reading incoming call number and pronunciation of numbers when you press the keypad. 8.12.1 Disable / Enable reading incoming call number 1. While in standby mode, press the up or down Menu key , and select "Settings" , then press the Left Function Key , "OK."...
  • Page 39 2 . With the menu key, choose " User Profiles " and the Left function key press "OK" , then the Menu key , choose " General" then press "Options" and " Customize" . 3. With the menu key , choose " Custom" and press "Select"...

  • Page 40: Taking Pictures

    5. With the menu key , choose " Silent", "Click" or " Tone" and press "OK." 6. Then press "Options " and choose " Save" and press "Select". 8.13 Taking pictures 1. While in standby mode , press the up or down Menu key , and select "...

  • Page 41: View Photos

    3. Zoom in or out with the "4" and "6" keys. 4. With the Left Function Key can enter the setup menu of the camera to set different camera options and also to establish where the images are stored: whether the phone or the MicroSD memory card if one has been installed.

  • Page 42: Record Videos

    3. With the keys "4” and "6 " you may see the shots taken . 4. Exit with the Red key 8.15 Record videos 1. While in standby mode , press the up or down Menu key , and select " Video Camera ", then press the Left Function Key , "OK."...

  • Page 43: View Videos

    function key stops recording . Then press the Right function key to return to the camera. 3. Zoom in or out with the "4" and "6" keys. 4. With the Left Function Key enter the camera setup menu to set different camera options and further establish where videos are stored: whether the phone or the MicroSD memory card if one has been installed.
  • Page 44 2.. Centre Menu Key , choose " video player " , then press the Left Function Key , "OK." 3. With the Menu Key , you can see the list of recorded video . 4. To play a video, press the Left Function Key on desired video "Options ", then press "Select "...

  • Page 45: Set Date And Time

    4. Exit with the red key 8.17 Set Date and Time 1. While in standby mode , press the up or down Menu key , and select " Settings" , then press the Left Function Key , "OK." With the menu key , choose "...

  • Page 46: Change Sim Pin

    8.18 Change SIM PIN 1. While in standby mode, press the up or down Menu key and select " Settings" , then press the Left Function Key , "OK." With the menu key , choose " Security Settings " and press "OK." 2.

  • Page 47: Access Calculator

    5 . Then press "OK." 8.19 Access Calculator 1. While in standby mode , press the up or down Menu key , and select " Calculator" , then press the Left Function Key , "OK." 2. With the numeric keypad type the desired number and with the menu key select the "+"...

  • Page 48: View Calendar And Schedule Events

    8.20 View Calendar and schedule events 1. While in standby mode, press the up or down Menu key , and select "Calendar", then press the Left Function Key , "OK." 2. With the menu key you will move up and down between calendar days and the volume key "+"...

  • Page 49: Write Multimedia Message

    2. You can set up to 5 different alarms. With the menu key you can move up and down between alarms. 3. Press the Left Function Key "Edit" on the desired alarm. 4. Move between the main options of the alarm with the Menu Key and with the volume key "4"...
  • Page 50 1. While in standby mode, press the Left Function , "Messages". 2. Select "Write Message" and press "OK" 3. Choose "Multimedia Message" and press "OK." 4. Press "Options" 5. Choose "Add image" or "Add sound" or "Add Video", then press "OK" 6.

  • Page 51: Set Send And Receive Multimedia Messages (Mms)

    9. Menu up or down key , and select the file you want to send and press "OK" 10. Press "Options" 11. Choose the option "Send to" and press "Select". 12. With the Menu key, choose "Enter Number" and enter the number you want to send the message to or, choose "Add from Contacts"...
  • Page 52 Furthermore, to send and receive multimedia messages, it is essential that: a. Your telephone service provider has enabled this feature for your telephone line. b. You have a MicroSD memory card installed on your phone. Be sure to have the above before continuing with the setup.
  • Page 53 4. Password 5. Auth Type (Normal, Safe). Choose with the "+" and "-" keys. 6. Advanced Settings 1. Homepage 2. Connection type (HTTP, WAP) 3. Use proxy (Yes, No) 4. Proxy address 5. Puerto proxy 6. Username 7. Password 8. Primary DNS 9.

  • Page 54: Problem Solving

    Problem Solving In order to avoid unnecessary calls to the service center save time money malfunctioning phone, please perform the following self- tests. The mobile phone requests the "PIN code" when turned on Verify that the PIN code is activated. You must enter the PIN code of the SIM card.

  • Page 55: I Cannot Hear Others But Everybody Else Can Hear Me

    I cannot hear others but everybody else can hear me Verify that the earpiece volume is not completely disabled. Make a phone call and while on the call, repeatedly press the "+" volume button Phone does recognize MicroSD card or cannot read music, pictures or video stored on my MicroSD card The following three folders must exist in the root of the MicroSD card:...
  • Page 56 10.1 The phone does not turn on If the phone is new and has never been used, make sure to perform ALL the steps in section 6 Battery and Charger If the phone has already been used and it worked perfectly and now will not turn on.
  • Page 57 Quick Troubleshooting Guide To ensure a smooth operation of all our units, the point of sale or seller must provide the consumer (user) completely tested out-of-the-box unit and all the accessories. UNIT DOES NOT CHARGE: The basic procedure is to rule out failures involving accessories which are: battery, charger and cable, verify that these are in good condition and test with new accessories.
  • Page 58 NOTE: some reason your phone misconfigured, restore manufacturer’s basic default settings. WARNING: THIS PROCEDURE WILL ERASE ALL DATA RECORDED PHONE INCLUDING PICTURES, MESSAGES, CONFIGURATION. PERFORM THIS PROCEDURE AT YOUR OWN RISK; MAKE SURE YOU HAVE A BACKUP MADE PHONE INFORMATION. How do I do it? 1 - Go to settings, press (OK) 2 - Press the Number 12 (Restore Settings) , then...
