Summary of Contents for Lutool 7663L

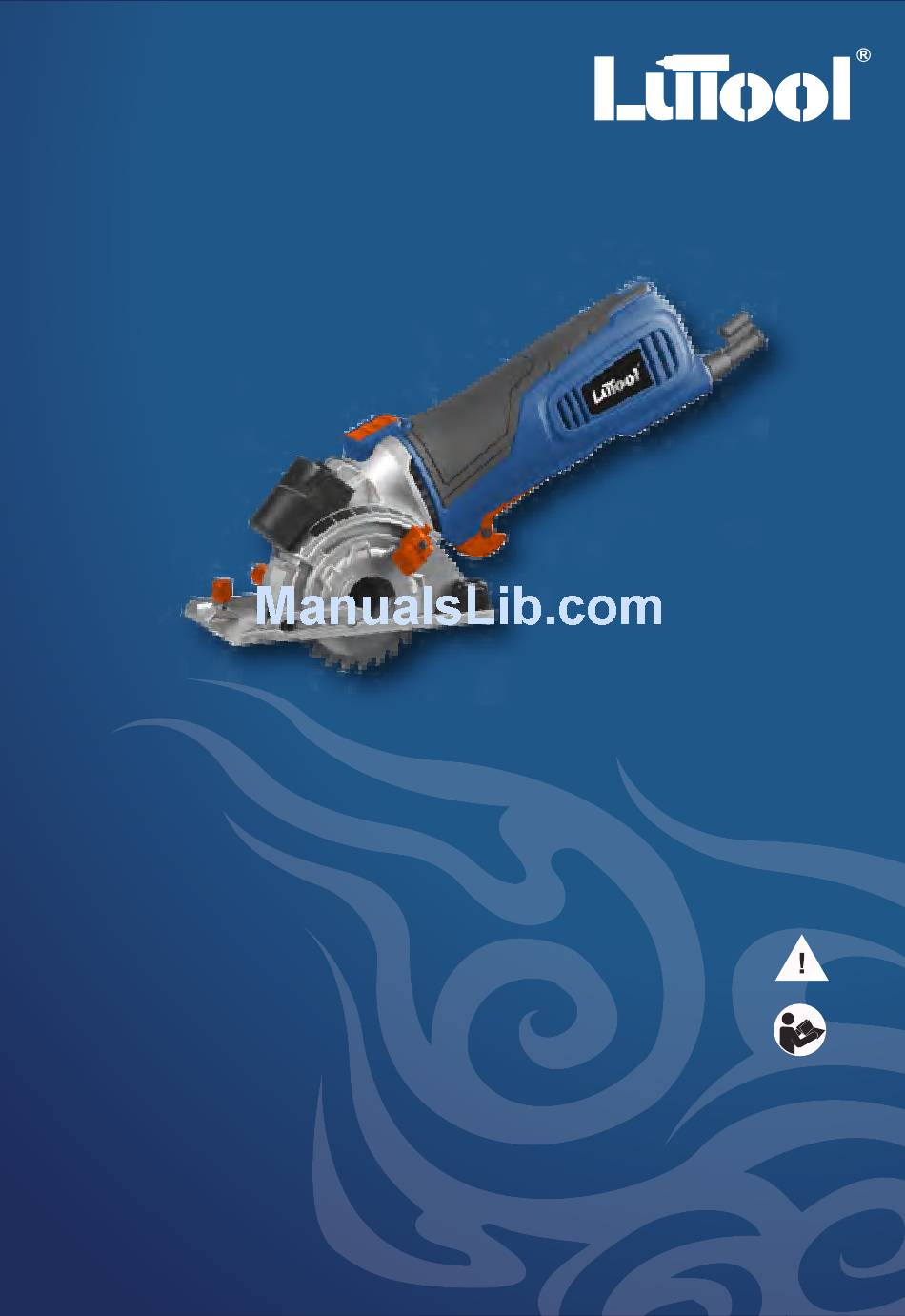

- Page 1 Mini Circular Saw 7663L nstruction Manual Warning: Please make certain that the person intended to use this equipment carefully reads and understands these instructions before starting opertions.
- Page 2 GENERAL AND SPECIFIC SAFETY INSTRUCTIONS 1. know YouR tool Read and understand the owners manual and labels affixed to the tool. Learn its application and limitations as well as its specific potential hazards. 2. don’t use power tools in damp or wet locations or expose them to rain. Keep work area well lit and provide adequate surrounding work space.
-
Page 3: Specifications
7. Edge guide lock knob 14. Universal TCT blade- cuts wood, plastic 8. Edge guide 15. Blade changing hex. key 9. Retractable blade guard speciFications Model ........................7663L Voltage.........................230-240V Rated power........................600W Frequency ........................50Hz No load speed (RPM) ....................5,500 Blade diameter ......................150mm Arbor size ........................10mm... -
Page 4: Assembly And Operation
ASSEMBLY & OPERATION setting the cutting depth NOTE: If possible we recommend that the cutting depth be set approximately 1/16” deeper than the material thickness. This should help to ensure you achieve a clean cut. 1) Lift the lock lever (A) Fig.3 to release the cutting depth setting clamp (B). - Page 5 ASSEMBLY & OPERATION switching on the tool waRning!: Before switching the tool on, check that the saw blade is properly fitted and runs smoothly, and that the blade cap screw is well tightened. Connect the 120V plug to the power supply. The LED power-on light (C) Fig.6 will turn on until the tool is disconnected from the power supply.
- Page 6 ASSEMBLY & OPERATION laser guide waRning!: Do not stare directly at the laser beam, do not deliberately aim the beam at personnel and ensure that it is not directed towards the eye of a person for longer than 0.25s. When you make a cut line on your workpiece, the laser can help you get better alignment.
-
Page 7: Operation
OPERATION cutting waRning!: Always cut in a forward direction. Never draw the tool backwards. If you are a novice user, practice by cutting thin wood until proficient. 1) Install the correct blade ensuring it is sharp and not damaged. 2) Set the depth of cut. 3) Place the material to be cut onto a flat surface such as a workbench, table or floor. -
Page 8: Operation And Maintenance
OPERATION & MAINTENANCE cutting paRticulaRlY tougH oR abRasiVe mateRials Learn to use the tool by cutting wood before attempting to cut anything tougher. When cutting tougher material, such as metals, more force is required to hold the workpiece and clamping may be required. sheet metal: Use the HSS balde.
