Page 3
Arkal Spin Klin Battery Service & Maintenance Manual www.irrigationglobal.com disk filtration batteries spin klin irrigation water...
Page 4
Operation backwash valves into the Spin Klin filters. The water then passes through the filter elements to the outlet manifold for consumer use. Description of the Backwashing Process 1. The controller transmits an electrical command to the first solenoid according to either differential pressure or time.
Page 5
Spin Klin Technology - Spin Klin Spine General: The Spin Klin discs are stacked on the Spin Klin spine. The discs are color-coded by micron size, and are assembled according to your water filtration requirements. The spine assembly has a spring compression unit and an internal piston...
Page 6

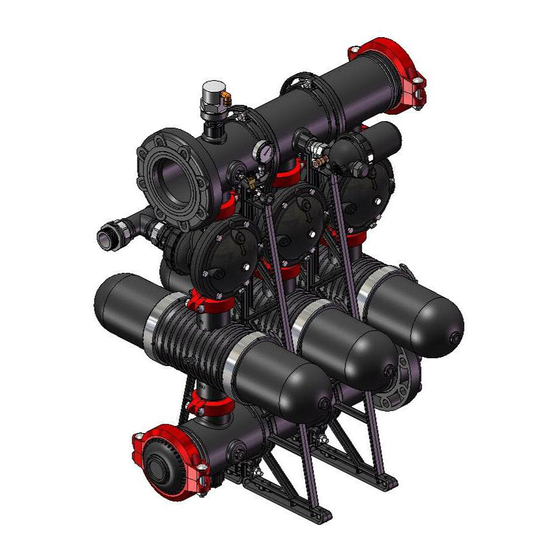

158 F 4-11 4-11 3” Spin Klin Battery with Plaslite Valves Installation Make sure that the inlet and outlet orientation is correct (shown by arrows on filter). Prior to start-up check for any transport damage to the unit (system operates under pressure!).
Page 7
Back Flushing controller DRAIN COMMAND COMMAND WATER FILTER Control Make sure that the voltage of both the solenoid unit and controller are correct. Set the manual operation button to automatic. OW pressure lines are correctly connected to the appropriate ports. -7 meters (6 - 8p.s.i.).
Page 8
Check inlet /outlet pressures: In case the pressure differential is above 5 m / 7 Activate automatic backwash of the Spin Klin filter battery. In the event that the pressure differential remains high check for possible failures. Check for leakages from the drain manifold: In case there is a leakage of water during the filtration stage, check for possible failure at the backwash valve seals.
Page 9
Seasonal Maintenance Cleaning the Discs When manual cleaning of the discs is required, please follow the steps described below: Make sure that system is not under pressure! Release the clamp and remove the cover (Figures 1, 2) Unscrew the butterfly-nut on the filtration element (Figure 3) Remove tightening...
Page 10
Cleaning Recommendations for Clogged Filtration Discs Water-formed deposits may cause clogging of the filter discs. The formation of these deposits depends on the quality of the filtered water and environmental conditions like temperature, pH, light, duration of filtration and more. Common water-formed deposits are: Biological or organic deposits (mostly mucous or oily to the touch, beige, brown or green in color)
Page 11
Cleaning Organic and Biological Deposits Open the filter and remove dirty discs. Attention Never open the filter before the pressure has been released. Arrange the discs loosely on the plastic rope Prepare a 5% Sodium Hypochlorite solution: 1) Pour 5 liters of water into one of the large containers. 2) Add 5 liters of Sodium Hypochlorite (10%) into the water.
Page 12
Cleaning Complex Deposits If the composition of the deposit is not known, perform the following test: Take 5 discs for the test. Soak 2 discs in a 5% Sodium Hypochlorite Solution. Preparation of the solution: Pour 1 cup of water into a small container, then add 1 cup of Sodium Hypochlorite (10% NaOCl).
Page 13
No Backwash Operation Check inlet and outlet pressures Check & clean command filter Check controller manually operate the backwash cycle No command transfer Functioning correctly Some commands do not function Check electrical source Check electrical source Replace battery if needed Replace battery if needed Check solenoid electrical connectors...
Page 14
Continuous or Non-stop Backwashing Continuous backwash Non stop backwash cycle Disconnect the control Check inlet / outlet pressure pipes from the valves Check pressure differential gauge and replace if needed Check controller described above Contact your local distributor Command transfer No command transfer Disconnect the drain manifold...
ARKAL FILTRATION SYSTEMS or its authorized representative, of written notice thereof from the customer within 30 days of discovery of such defect or failure - ARKAL FILTRATION SYSTEMS will repair or replace, at its sole discretion, any item proven to be defective.
Page 16

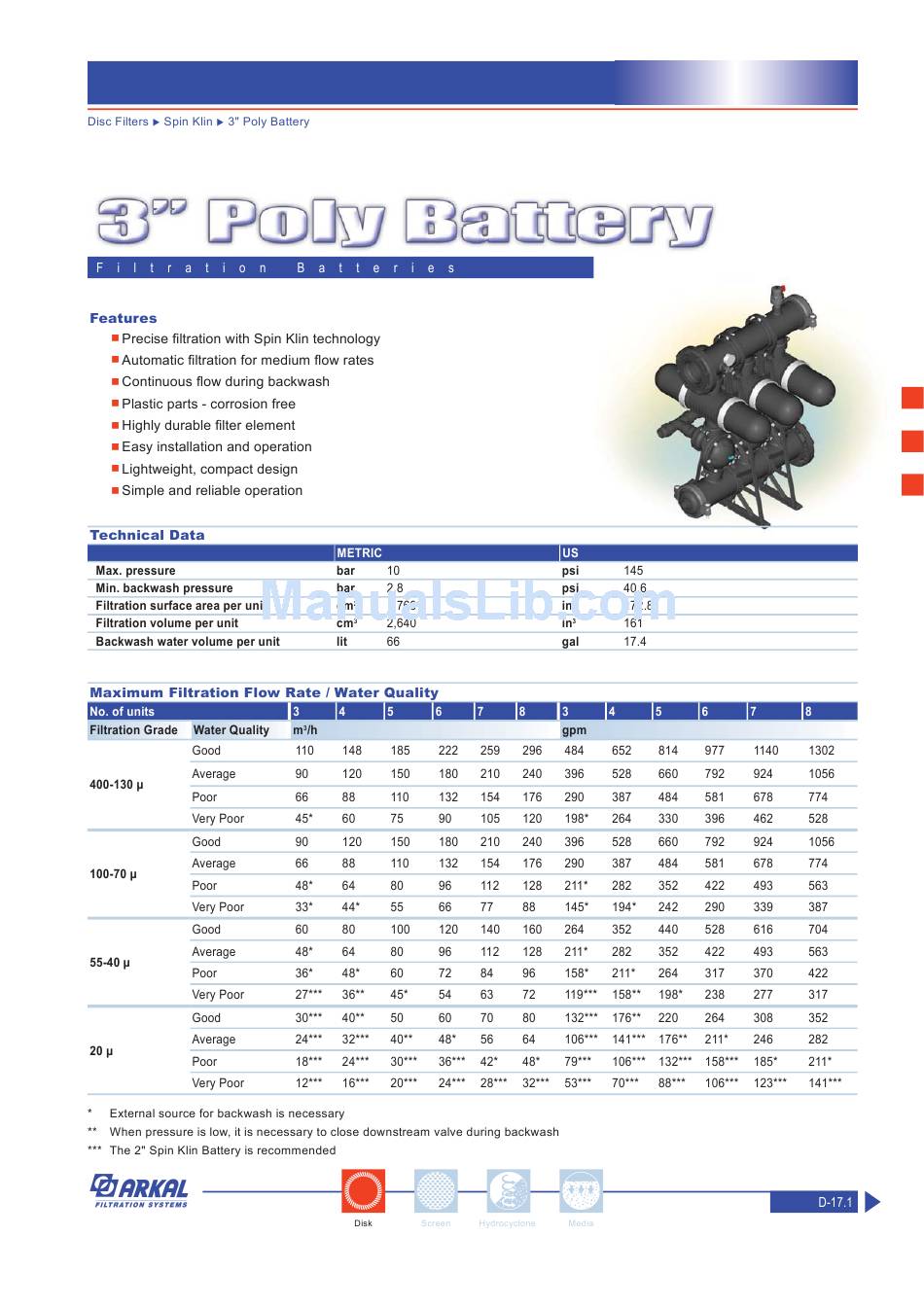

Drawings Spin Klin 3" All Plastic Batteries w w w . a r k a l - f i l t e r s . c o m...
Page 17
Drawings Spin Klin 3" All Plastic Batteries Crystal With Plaslite Valves w w w . a r k a l - f i l t e r s . c o m...
Page 24
Drawings Spin Klin 3" All Plastic Batteries Sapphire With Plaslite Valves w w w . a r k a l - f i l t e r s . c o m...
Page 31
Drawings Spin Klin 3" All Plastic Batteries Gavish With Bermad Plastic Valves w w w . a r k a l - f i l t e r s . c o m...
