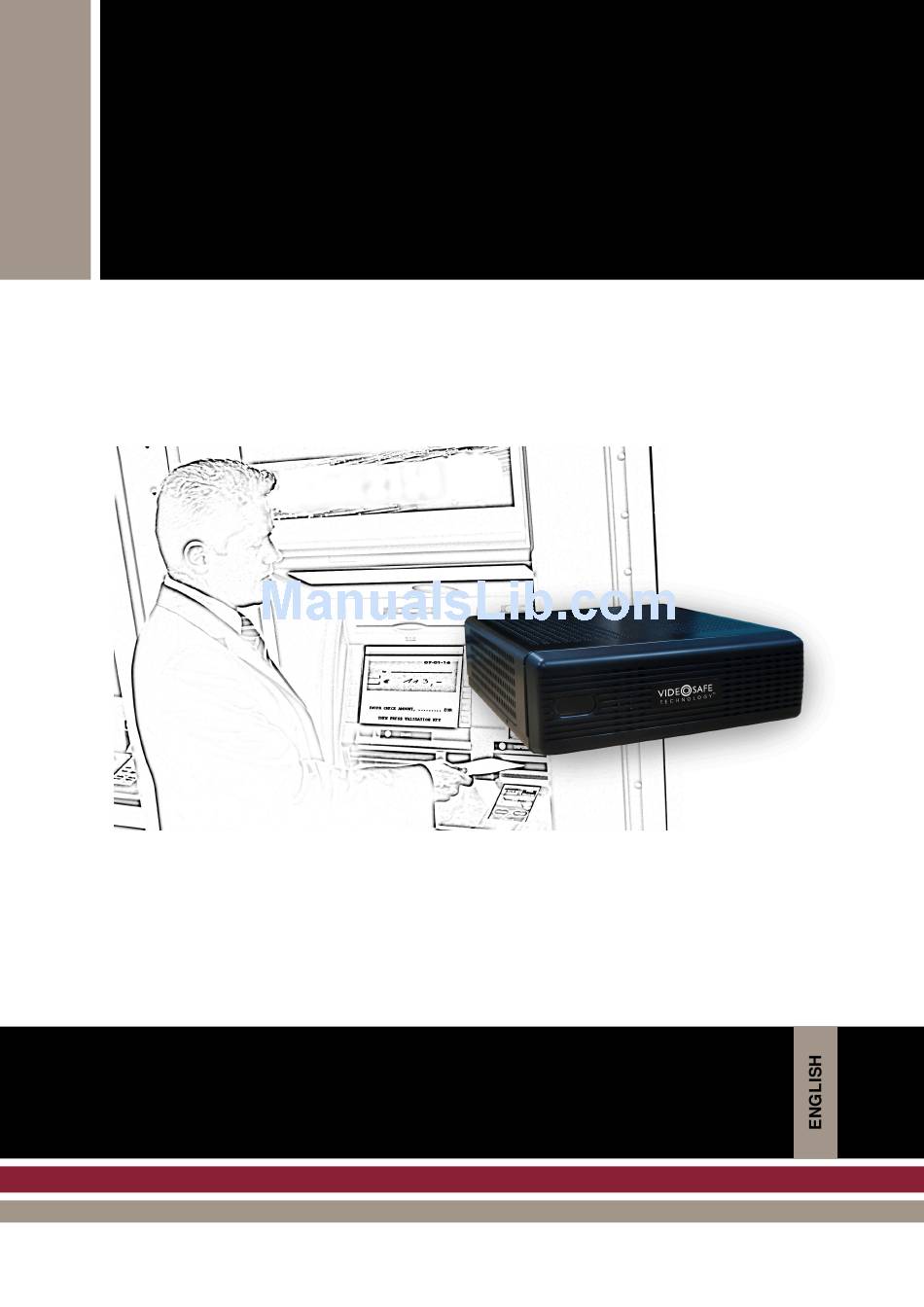

- Page 1 VX ATM Installation and user guide Video recording and ATM function unit...
-
Page 3: Table Of Contents
INDEX FUNCTIONALITY ............................ 2 CAMERAS INSTALLATION ........................3 ATM CONNECTION TO THE VX-ATM ....................4 ATM FUNCTIONALITY CONFIGURATION .................... 7 ............................. 8 EVENTS ....................9 HECKING THE INSTALLATION ............................9 IVE VIDEO ..................10 NFORMATION SEARCH IN RECORDING VIDEO APPENDIX 1 – TECHNICAL SPECIFICATIONS ................. 12 User manual 1... -
Page 4: Functionality
1 Functionality A unit with ATM function can link images to the transactions generated by the ATM, both live video and recording video. The functionality is available for local and remote interface. The units are compatible with the Supervisor VS for video functionality. Images associated with ATM One of the main features is the searching simultaneously of data and images. -
Page 5: Cameras Installation
2 Cameras installation You can use any camera, PAL or NTSC depending on the VX-ATM model. Bear in mind that the unit will records the camera signal being recommend colour cameras with good signal level and clarity. The cameras can be used for surveillance and transaction recording. The VX-ATM associates the operating person to the transaction, allowing identifying any issue. -
Page 6: Atm Connection To The Vx-Atm
3 ATM connection to the VX-ATM The connection between the ATM and the VX-ATM it is done thought the local network cable or from the ATM serial port to the unit USB port. 1.- Connection through local network, HTTP connection. 1. - Page 7 Configuration: 1. The ATM serial port has to be configured as follows: .- Bits per second: 9600 .- Data bits: 8 .- Parity: None .- Stop bits: 1 .- Flow control: None 2. Features of the text sent: .- The characters must be coded in ANSI format. .- Each line must finish with a CR.
- Page 8 The unit includes a RS232-USB converter. In case that you need to connect a second ATM you need to order an additional cable. Figure.- 3 RS232 – USB converter The units have two digital inputs that are wired up to a DB9 connector with the following diagram: Input 1 Input 2...
-
Page 9: Atm Functionality Configuration
4 ATM functionality configuration Each ATM based unit has 1 HTTP connection and 2 USB ports. To configure the connections on the VX-ATM unit it is necessary to access as Administrator user. Note: In the configuration interface the ATM connections are shown as POS (Point of sale), bear in mind that for all purposes the terms are equivalent. -
Page 10: Atm Events
Configured: It shows whether the connection to the ATM is running or is stopped. In the lower part you can choose the different types of connection for the ATM. USB ports. Direct connection to the USB ports. USB hubs. This option is not available for the ATM. ... -
Page 11: Checking The Pos Installation
4.2 Checking the POS installation Visualization checking: 1. Connect remotely to the unit through an Internet Explorer or connect locally. 2. Log in with a user able to watch live video. 3. Select the camera associated to the POS. 4. Press the POS button to access the window where you can see the transactions received by the POS that it associated to the selected camera. -
Page 12: Information Search In Recording Video
4.4 Information search in recording video The information that the ATM gets is associated to the recording video, you can access the recording video screen to search for transactions. Figure.- 7 recording video screen Pres in the icon to open the search screen. Figure.- 8 Transaction search screen Select the POS device (ATM device) where you want to make the search, set a starting and final date, write the text screen to search and press the SEARCH button. - Page 13 Figure.- 9 Search result screen When you select a transaction it appears the following areas. Transactions that takes place in the selected moment Data from the last search and new search button Test results: the results shown in the video viewer appears in black Video viewer it shows the video...
-
Page 14: Appendix 1 - Technical Specifications
5 Appendix 1 – Technical specifications MODELS: VXATM: DVR of 2 cameras and 2 ATM. OPERATOR Local interface for a VGA monitor WORKSTATION: Remote access via WEB browser from any PC with MS Internet Explorer or with the Supervisor VS reception and management software. - Page 16 VX-ATM Installation and User Guide DOCVXATMUM00EN_120612v400...
