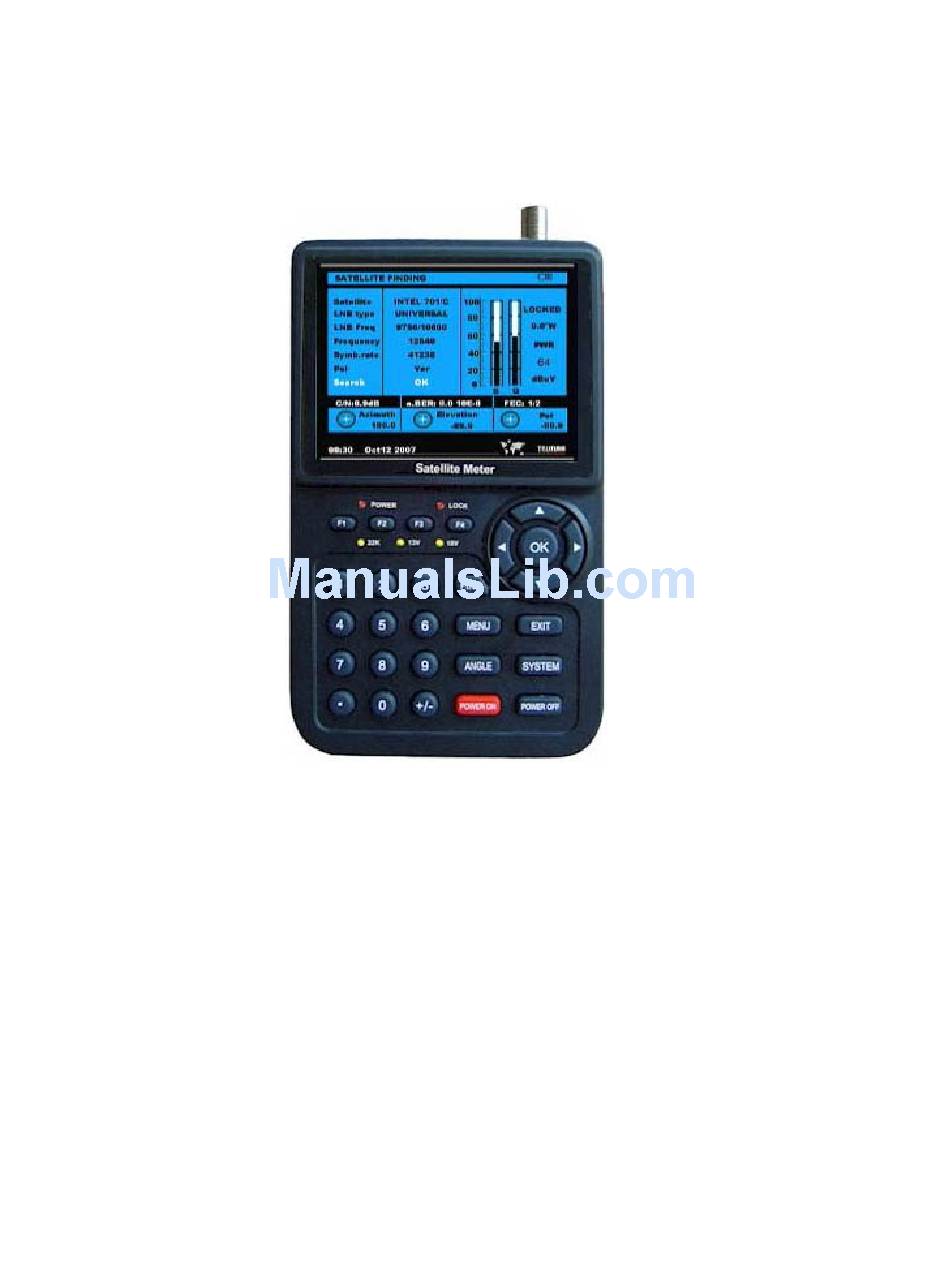

Trimax Meters - www.TrimaxMeters.com - sales@TrimaxMeters.com

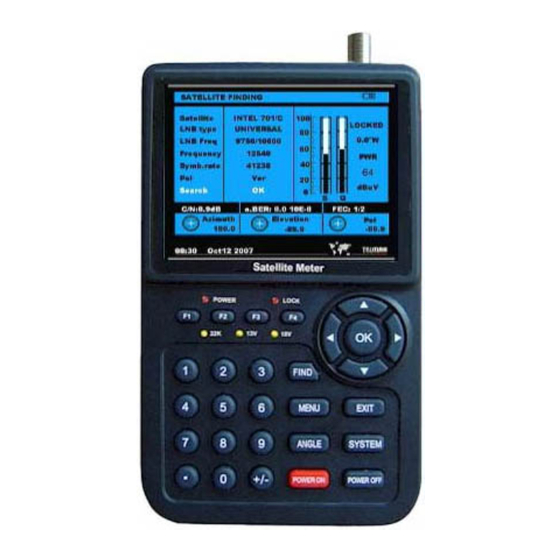

DIGITAL SATELLITE METER
SM-800
USER'S MANUAL
Please read this manual carefully before using your meter for the first
time.
The technical specifications and operating methods included in this
manual are subject to changes without notice. In case of any inquires
after a period of usage, please contact the manufacturer.
Please charge the battery before using your meter for the first time.
(Recommend 5 hours)
1 of 14
Advertisement
Table of Contents
Related Manuals for Trimax Meters SM-800
Summary of Contents for Trimax Meters SM-800
- Page 1 Trimax Meters - www.TrimaxMeters.com - sales@TrimaxMeters.com DIGITAL SATELLITE METER SM-800 USER’S MANUAL Please read this manual carefully before using your meter for the first time. The technical specifications and operating methods included in this manual are subject to changes without notice. In case of any inquires after a period of usage, please contact the manufacturer.
-
Page 2: Table Of Contents
Trimax Meters - www.TrimaxMeters.com - sales@TrimaxMeters.com Contents Introduction................3 Chapter I. Function..................3 Chapter II. Front Panel....................3 Quick Operation...................6 Language setting................6 Quick operation guide ..............6 Detailed operation Guide..............8 Turn on the equipment..............8 Satellite Setting.................8 Edit Satellite.................8 Dish Set-up..................10 Auto Scan..................11 System Setting..................11 Channel Selection................12... -
Page 3: Chapter I Introduction
Trimax Meters - www.TrimaxMeters.com - sales@TrimaxMeters.com Chapter I Introduction This meter is simple and convenient for setting and aligning a satellite dish. Using the parameters of satellite, you can set and align a satellite dish quickly, easily and accurately. Chapter II Function A. - Page 4 Trimax Meters - www.TrimaxMeters.com - sales@TrimaxMeters.com Normally, Red: the meter is power on, Dim: the meter is power off, Charge, Green: the battery is being charged, Red: the battery is full. (4) Lock Light： This light will be on when signal is locked.
-
Page 5: Quick Operation
Trimax Meters - www.TrimaxMeters.com - sales@TrimaxMeters.com B. Quick Operation Through this function, user can quickly and easily find the right satellite and accurately set the dish. 1. Menu language Setting 1. Turn on your satellite meter Press the SYSTEM button to display the system setting menu <Figure2-1>... - Page 6 Trimax Meters - www.TrimaxMeters.com - sales@TrimaxMeters.com <Figure2-2> Use [◄][►] button to select the satellite .in this item Press F4 can view the satellite longitude Select the item that you want to edit, and set its parameters as desired. LNB Type：Use [◄][►] button to choose LNB Type LOW L.O.F：Use digital button to input the LOW L.O.F once the LNB...
-
Page 7: Detailed Operation Guide
Trimax Meters - www.TrimaxMeters.com - sales@TrimaxMeters.com C. Detailed operation Guide 1. Turn on the equipment Press and hold POWER button for 2 seconds to turn on the satellite meter Satellite Setting (1) EDIT SATELLITE a. Press the MENU button to display the main menu b. - Page 8 Trimax Meters - www.TrimaxMeters.com - sales@TrimaxMeters.com <Figure2-4> e. Use [◄][►] button to move cursor, it’ll show the satellite name ,angle and location. <Figure2-5> <Figure2-5> f. Use [►] to move to TP list , and press OK , you can modify Frequency, Pol and symbol rate<Figure2-6>...
-
Page 9: Dish Set-Up
Trimax Meters - www.TrimaxMeters.com - sales@TrimaxMeters.com <Figure2-6> DISH SET-UP a. Press OK on ‘DISH SET-UP’ The following window will appear,<Figure2-7> <Figure2-7> b. Use [▲][▼]to move cursor c. Use [◄][►]button to select the item you want LNB Type： Use [◄][►] button to choose LNB Type between UNIVERSAL/5150/9750/10750/Customised LOW L.O.F：... -
Page 10: System Setting
Trimax Meters - www.TrimaxMeters.com - sales@TrimaxMeters.com a. Use[▲][▼]button to move cursor b. Use [◄][►]button to select the item you want SATELLITE : choose the SATELLITE you want TRANSPONDER: choose the TRANSPONDER you want NETWORK SEARCH : ON/OFF MODE: ALL/ FTA/SCRAMBLED SERACH: choose SATELLITE/TRANSPONDER 3. -
Page 11: Channel Selection
Trimax Meters - www.TrimaxMeters.com - sales@TrimaxMeters.com <Figure2-9> (4) FACTORY RESET This sub menu allows you to restore the factory default value<Figure2-10) <Figure2-10) Factory Reset：Erase all channels and restore the factory default settings. Channel Selection Press “OK”,You can use [▲][▼] to navigate between channels until you find the channel you want<Figure2-11>... -
Page 12: Channel Information
Trimax Meters - www.TrimaxMeters.com - sales@TrimaxMeters.com <Figure2-11> If you know the channel number, you can enter it with the NUMERIC buttons and wait 2 seconds until the channel is changed Channel Information While watching a channel, you can press the F3 button to display the information menu <Figure2-12>... -
Page 13: Figure2
Trimax Meters - www.TrimaxMeters.com - sales@TrimaxMeters.com <Figure2-13> SATELLITE : choose the satellite you want Your longitude : input your local longitude Location : input your local location Your Latitude: input your local latitude Hemisphere: input your local Hemisphere Antenna azimuth: shows the azimuth of the chosen satellite. -
Page 14: Specification
Trimax Meters - www.TrimaxMeters.com - sales@TrimaxMeters.com resource FLASH 2Mbyte MPEG 2 Main Proflie@Main Level Video Data Rate up to 15M bits/s decoder Resolution 720*576,720*480 Video format PAL/NTSC/SECAM MPEG 1 layer 1&2 MPEG Audio Type Mono Sampling rates 32,44.1 and 48KHz...
