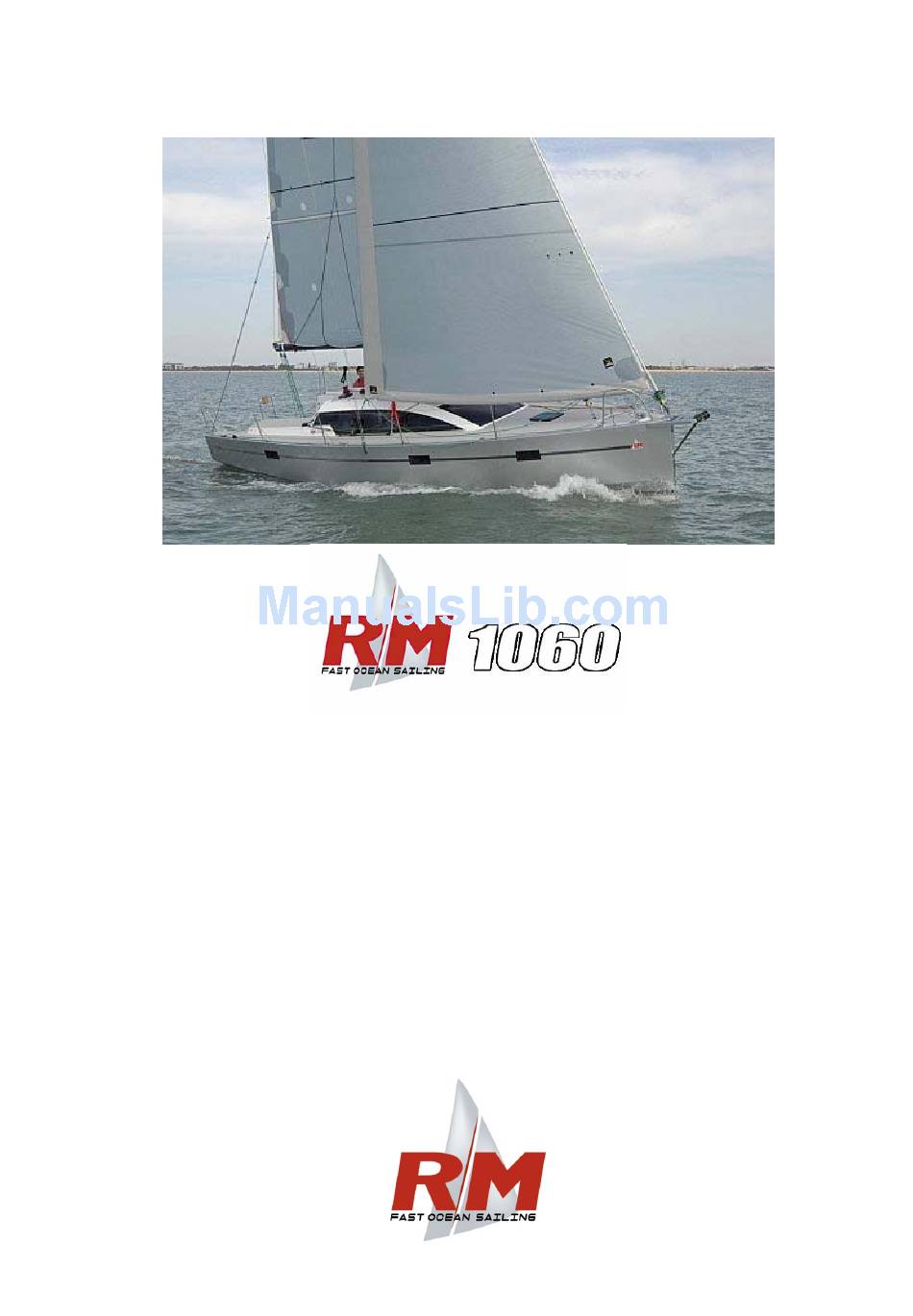

- Page 1 FORA MARINE DESIGN CATEGORY OF YACHT A Owner’s Manual In accordance with European directive 94/25/CE As amended by European directive 2003/44/CE ENGLISH 2010-10-27 1/72...
- Page 2 FORA MARINE This page intentionally left blank This page intentionally left blank This page intentionally left blank ENGLISH 2010-10-27 2/72...
- Page 3 Owner's Manual receipt acknowledgement to be kept in your Manual I, the undersigned: Name Address owner of No. CIN: FR-__________ RM 1060 confirm that I have received the _____________________ Owner’s Manual and accept its being written in the English language. Dated: Signature: conditions: refer to page 28 Guarantee...
- Page 4 FORA MARINE This page intentionally left blank This page intentionally left blank This page intentionally left blank ENGLISH 2010-10-27 4/72...
-
Page 5: Table Of Contents
FORA MARINE Contents Introduction……………………………………………..………………………………… Page 6 Design category of yacht………………………………………………………………..Page 7 Specifications……………………………………….……………………………………..Page 8 Electrical systems…………………………………………………………………….... Page 11 Gas installation……………………………………………………………………………… Page 14 Layout………………………………………....…………………………………….. Page 16 Drain and sanitation system………………………………………………………………… Page 17 Flooding……………………………………………………………………………………. Page 19 Fire protection……………………………………………………………………………… Page 20 Engine……………………………………………………………………………………… Page 21 10 - Fuel installation………………………………………………...………………………..…... -
Page 6: Introduction
Welcome aboard and welcome to the family of satisfied owners of sailboats. RM 1060 This Manual has been produced to help you use your boat safely and enjoyably. It contains details of the boat, the equipment supplied or fitted, its systems and information about their use. Read it carefully and familiarize yourself with the boat before using it. -
Page 7: Design Category Of Yacht
Your comes under the OCEAN-GOING design category A. RM 1060 Under conditions of normal use, your boat is designed to sail in waves with a significant height exceeding 4 m and winds of force 8 or above on the Beaufort scale, and to withstand the severest conditions. -
Page 8: Specifications
Indicates a reminder about safety-related practices, or points out dangerous NOTE practices that could result in personal injury or damage to the boat or its components. Boat technical specifications General specifications Model: RM 1060 Designer Marc Lombard Boatbuilder Fora Marine Design category Notified body no. - Page 9 FORA MARINE Mainsail area 33.6 m² Genoa area 38 m² Staysail area 19 m² Water capacity excluding water-heater (approximate) 4 x 100 L Diesel capacity (approximate) 130 L Waste water holding tank capacity (optional) 35 L Engine battery 80 Ah Auxiliary battery (1 standard, 2 optional) 80 Ah Primary means of propulsion...
- Page 10 FORA MARINE Builder’s plate (ISO 14945) FORA Marine ZI des Quatre Chevaliers - 17185 PERIGNY - FRANCE Part of this information is given on the builder’s plate attached in the cockpit. A full explanation of this Catégorie de Design : information is given in the chapter that follows.
-
Page 11: Electrical Systems
FORA MARINE Electrical systems (ISO 10133) Safety and operating instructions for the electrical system WARNING Improper use of the DC and/or AC systems may give rise to fire or explosion hazards. Improper use of the AC systems may give rise to electric shock hazards. Always: ●... - Page 12 FORA MARINE Batteries The battery set capacity has been designed to meet the power requirements of the on-board accessories. One 80 amp-hr duty battery (2 additional batteries optional) and one 80 amp-hr ignition battery. To avoid any problems, it is necessary to keep a close eye on the maintenance and correct charging of the batteries. Batteries located beneath saloon floor ATTENTION! ●...
- Page 13 FORA MARINE 220/110 volt installation (ISO 13297) DANGER! The on-board 220 V installation is protected by a circuit breaker and fitted with a residual current device. The wiring of additional 220 V on-board accessories must be carried out by professionals, and the master circuit-breaker uprated if necessary.
-
Page 14: Gas Installation
FORA MARINE Gas installation Operating advice - Read carefully all instructions for cooker and oven before use or maintenance. - Ensure that the gas cylinder and oven are in accordance with the requirements of the cooker (flow rate, pressure, type of gas). - Ensure that the gas cylinder complies with the regulations in force in the country where it is being used. - Page 15 FORA MARINE Checking the system - The gas system must be tested periodically: ● Close all the cooker taps. ● Open the cooker supply and regulator valves. ● Check all connections are gas-tight using a leak detector or by applying soapy water. Gas shut-off valve in forward cabin starboard cubby-hole ATTENTION! Do not use solutions containing ammonia.
-
Page 16: Layout
FORA MARINE Layout The boat’s “signature” feature: very attractive interior decoration, maximum use of natural light, maximizing use of space and volumes. Forward cabin Double Breton box bed Wardrobe Ventilated lockers under the bed Saloon/ 2 Banquettes Saloon table Huge amounts of storage space 2 quarter berths Galley area / chart table Double sink... -
Page 17: Drain And Sanitation System
FORA MARINE Drain & sanitation system (ISO 15083) Specifications of the drain system Pump type Theoretical flow rate Manual 50 L @ 60 strokes/minute Central drain well 16 L/min Manual bilge pump on port side of cockpit Read carefully the operating and maintenance instructions for the bilge pumps that go with your boat. ATTENTION! The level of the water in the bilge must be kept to a minimum. - Page 18 FORA MARINE Pressurized fresh-water pump An electric pump located under the galley floor, to starboard in the saloon, provides fresh water to the sink to starboard in the saloon, and the bathroom sink, aft portside. A filter is installed upstream of the pump, and must be cleaned regularly. Filter Water pump unit under galley floor Never run the pump if the tanks are empty;...
-
Page 19: Flooding
FORA MARINE Operation of the sea toilet - Open the sea-water inlet seacock. - Open the bowl emptying seacock. - Set the lever to the “FLUSH” position. - Operate the pump. - To empty the bowl and avoid any water slopping when heeling, set the lever to the "DRY BOWL"... -
Page 20: Fire Protection
FORA MARINE Fire protection (ISO 9094) Fire extinguishers are subject to national regulations, for this reason they are not supplied with your boat. We recommend you to equip your boat with fire extinguishers meeting the ISO 9094-1 standard, with the following specifications: a) Minimum capacity per extinguisher: 5A/34B(*) b) Minimum combined extinguisher capacity: 10A/68B to ISO/WD 9094-2 standards... -
Page 21: Engine
FORA MARINE WARNING If a CO extinguisher is fitted, the following information must be displayed close to its location: “This extinguisher contains CO - use only on electrical or cooker fires. To avoid suffocation after discharging, leave the area immediately. Ventilate before re-entering.” Do not open the engine compartment immediately after putting out a fire, to avoid the release of toxic smoke or spraying of burning materials (oil, water). - Page 22 FORA MARINE Launching the boat / settings ATTENTION! After first launching and tensioning of rigging, check the alignment of the propeller shaft or the sail-drive flange ring. ● Ensure that the cooling circuit water intake seacock is open, and that water is coming out of the engine exhaust.
-
Page 23: Check List
FORA MARINE CHECK LIST STARTING ENGINE: Open engine inlet sea-cock Open fuel valve Check engine oil level Check coolant level Check battery level Throttle lever to mid-travel, clutch into neutral Turn on ignition Start Check water output Warning and indicator lights go out Leave engine to warm up at idling speed for 5 to 6 minutes Check for leaks on all the cooling, fuel, oil and exhaust systems In case of any doubt or problem, consult the Owner's Manual, the instruction books, the drawings, or... -
Page 24: Returning To Port
FORA MARINE BEFORE LEAVING PORT Weather forecast Refuelling Sailing apparel Mandatory documents and equipment aboard and in working order Safety equipment (life-jackets, harnesses, fire-extinguishers, distress flares, emergency tiller) Safety instructions given to crew, including pointing out the location of equipment Bilge pumps in working order Navigation lights in working order Fuel tanks filled... -
Page 25: Steering System
Emergency tiller ATTENTION! ● The RM 1060 is fitted with an emergency tiller which must be kept readily accessible; we advise stowing it in one of the nacelle cockpit lockers. ● It is only designed for sailing at reduced speed in the event of damage to the helm. -
Page 26: Lightning Protection
FORA MARINE WARNING You should fit your boat with life-lines. Anchor-points are provided on the deck. Please refer to the deck fittings plan for your boat. Your boat’s stability has been designed to take into account the boat builder’s catalogue options. Any alteration to on-board weight distribution (for example: adding a radar, changing the engine, etc.) can affect the stability, trim and performance of your boat. -
Page 27: Safety Facilities
Sailing schools and clubs regularly organize training sessions. The RM 1060 also comes with a built-in rescue ladder that allows a person to get back on board easily without outside assistance, useful when swimming or in case of man overboard. -
Page 28: Guarantee
FORA MARINE Guarantee and transfer of ownership CONTRACTUAL GUARANTEES Note: This guarantee does not apply to boats being used for The yacht-builder's contractual guarantee excludes: commercial purposes (it being specified that any hiring or the cost of transporting the boat or any parts, and any chartering activity falls into this category) nor to sailing boats consequences thereof, together with expenses and/or taking part in competitions, which may be covered by special... - Page 29 B) COMMON GUARANTEE CONDITIONS Article L.211-4 of the Consumer Code: Any claim under these guarantee conditions must be made “The seller is required to supply goods that conform to the formally to in writing as soon as the defect is Fora Marine contract and to assume liability for discrepancies existing at discovered, and within eight (8) days for claims under the...
- Page 30 TRANSFER OF OWNERSHIP CERTIFICATE Boat model: ........................Hull no.:.......................... From Mr: ..........Address:....................................... ZIP/POST CODE: ....Town: ..........Tel.: ......Date of Purchase: ......................BEING SOLD TO: Mr: …………………………. Address: ………………………………………………………............................ZIP/POST CODE: ..... Town: ........Tel.:......Date of Purchase: ......................Signed at ..........date ..............
- Page 31 FORA MARINE Sea Charter ENGLISH 2010-10-27 31/72...
- Page 32 FORA MARINE – SNSM ENGLISH 2010-10-27 32/72...
-
Page 33: Presentation
FORA MARINE Documents and drawings Presentation………………………………………………………………………………… Page 34 Layout………………………………………....…………………………………….. Page 36 Deck fittings…………………………………………………………..……………………. Page 38 Sail plan……………………………………………………………..……………………… Page 40 Halyard and sheet rigging plan……………………………………………………………… Page 42 220 V system………………………………………………………….……………………. Page 44 Charging and power system………………………………………………………………... Page 46 12V electrical installation………………………………………………..………………… Page 48 12 V control panel………………………………………………………………………….. - Page 34 FORA MARINE ENGLISH 2010-10-27 34/72...
-
Page 35: Layout
FORA MARINE PRESENTATION Presentation plan LOA: 10.57 m LWL: 10.30 m Maximum beam: 3.99 m Draft (double- or single-keel) 1.65 / 1.95 m Mast height clearance: 16.05 m Light displacement: 5,753 kg Mainsail area 33.6 m² Genoa area 38.0 m² Staysail area 19.0 m²... - Page 36 FORA MARINE ENGLISH 2010-10-27 36/72...
- Page 37 FORA MARINE LAYOUT Forward bunk Breton box bed Ventilated lockers under the bed Wardrobe Saloon 2 Banquettes Saloon table Ventilated lockers below seats 2 quarter berths Galley area / chart table Double sink 2-burner stove / oven Ice-box Chart table Head/shower Basin unit Shower tray...
- Page 38 FORA MARINE ENGLISH 2010-10-27 38/72...
- Page 39 FORA MARINE FITTINGS Label Description Foresail stay chainplate Genoa roller furler Emergency tiller with stick Forward cabin opening hatch Mast foot Grommet Lower shroud chainplate Backstay chain plate Genoa track and Staysail Fresh-water filler deck-plate Opening hatch, head Sewage water discharge deck plate Genoa sheet and staysail winch Halyard winch Double-block deck organizer flat deck...
- Page 40 FORA MARINE ENGLISH 2010-10-27 40/72...
-
Page 41: Sail Plan
FORA MARINE SAIL PLAN Description 13.914 m 4.607 m 12.922 m 4.450 m 9.608 m 3.240 m 5.291 m 3.847 m Mainsail area 33.6 m² Genoa area 38.0 m² Staysail area 19.0 m² ENGLISH 2010-10-27 41/72... - Page 42 FORA MARINE ENGLISH 2010-10-27 42/72...
- Page 43 FORA MARINE RUNNING RIGGING Label Description Spinnaker tack Staysail halyard* Lazy Jack* Reef 1 Reef 3 Mainsail outhaul Reef 2 Mainsail topping lift* Mainsail halyard Genoa halyard Genoa sheet Genoa traveller adjustment Spinnaker sheet Mainsail sheet Genoa roller furler Staysail furler Option ENGLISH 2010-10-27 43/72...
- Page 44 FORA MARINE ENGLISH 2010-10-27 44/72...
-
Page 45: V Electrical Installation
FORA MARINE 220 V ELECTRICAL INSTALLATION Label Description 220V electrical outlet x 2 Electrical box with main circuit breaker* Main Battery charger * Shore AC connection Water heater * Option ENGLISH 2010-10-27 45/72... - Page 46 FORA MARINE ENGLISH 2010-10-27 46/72...
-
Page 47: Charging And Power System
FORA MARINE CHARGING & POWER SYSTEM Label Description Auxiliary ground supply terminal strip Auxiliary positive supply Alternator BATM 80 Ah engine battery BATS 80 Ah Auxiliary batteries (1 as std + 2*) Battery check CBC Battery isolator CBM Engine battery isolator CBN Battery isolator Auxiliary battery isolator Battery charger *... - Page 48 FORA MARINE ENGLISH 2010-10-27 48/72...
-
Page 49: V Control Panel
FORA MARINE 12 V DC ELECTRICAL INSTALLATION Label Description Windlass * Depth and speed sensors Headboard reading lamp Spot Mooring light Steaming light Triwhite Light Stereo / radio / CD speaker * 16-function 12 V control panel Shower drain pump Bilge pump Head bulkhead light + switch Navigation instrument pack... - Page 50 FORA MARINE ENGLISH 2010-10-27 50/72...
- Page 51 FORA MARINE 12V ELECTRICAL PANEL Label Description Protection General panel Navigation lights Steaming light Mooring light Deck light Fresh water / shower drain Bilge pump Refrigeration unit Heating Instrument 1 Instrument 2 Autopilot Spare Freshwater flowmeter 12 V outlet Display screen Selector: - batteries - tank gauges...
- Page 52 FORA MARINE ENGLISH 2010-10-27 52/72...
-
Page 53: Steering System
FORA MARINE STEERING SYSTEM Label Description Single blade installation Emergency tiller square Sealing ring Swivel joint Top bearing Rudder stock Autopilot steering arm Stop ring Ball washer Upper Ertacetal washer Upper ring for rudder trunk tube Rudder trunk Lower swivel joint Lower bearing Lower Ertacetal washer Tiller + tiller extension... - Page 54 FORA MARINE ENGLISH 2010-10-27 54/72...
- Page 55 FORA MARINE LIFE-SAVING FACILITIES Label Description 1 MP6 heavy Class II containerized life- raft Folding ladder in transom Helmsman life-line Life-line on starboard deck Life-line on port deck Towing cleats WORKDECK AREA Duckboard Non-slip area ENGLISH 2010-10-27 55/72...
- Page 56 FORA MARINE ENGLISH 2010-10-27 56/72...
-
Page 57: Abandoning Ship
FORA MARINE ABANDONING SHIP Labe Description Recommended fire-extinguisher locations ** Under chart table ** In forward cabin wardrobe ** In large stern portside locker ** WH Engine compartment extinguishing hole Exit Emergency exit Not supplied ENGLISH 2010-10-27 57/72... - Page 58 FORA MARINE ENGLISH 2010-10-27 58/72...
-
Page 59: Gas System
FORA MARINE GAS SYSTEM Label Description 1.8 kg gas cylinder ** CE shut-off valve (Fr. or Ger.) ** 30 mbar CE regulator (Fr. or Ger.)** with pressure gauge Medium-length connecting hose Spacer / tube 6 x 8 Watertight bulkhead fitting PVC pipe 6×8 copper pipe CE gas valve (under stove) - Page 60 FORA MARINE ENGLISH 2010-10-27 60/72...
- Page 61 FORA MARINE FRESH-WATER SYSTEM Label Description Portside fuel filler deck plate 100 L collapsible water tank, stern Starboard fuel filler deck plate Port Fresh-water intake Flow-meter Head mixer tap Head shower 1/4-turn valve Deck shower Hot water tank* Engine cooling circuit Filler hose 100 L collapsible water tank, bow Starboard Fresh-water intake...
- Page 62 FORA MARINE ENGLISH 2010-10-27 62/72...
-
Page 63: Skin Fittings
FORA MARINE WASTE WATER HOLDING TANK Label Description Toilet ¾" skin-fitting / seacock assembly Hose, Ø 38 Inlet hose Ø 20 35 L polythene holding tank* Immersion tube* 1¼" combined skin fitting / seacock Deck-plate Ø 38* Vent, 16 mm Ø* Vent hose, 16 mm Ø... - Page 64 FORA MARINE ENGLISH 2010-10-27 64/72...
- Page 65 FORA MARINE DRAINAGE SYSTEM Label Description Electric bilge pump Strainer Ø20 mm Bilge pump Straight 20 mm Ø skin fitting Ø20 mm discharge hose Manual bilge pump 25 mm D strainer Manual bilge pump Straight 25 mm Ø skin fitting Ø25 mm discharge hose ENGLISH 2010-10-27 65/72...
- Page 66 FORA MARINE ENGLISH 2010-10-27 66/72...
- Page 67 FORA MARINE SKIN FITTINGS Label Description ¼-turn sea-water intake 3/4" seacock for toilet Skin fitting for 1/4-turn valve 1" Washbasin discharge Shower waste 3/4" Electric bilge pump discharge 3/4" Skin fitting for 1/4-turn valve, 2" Sewage water vent Manual bilge pump discharge 1"...
- Page 68 FORA MARINE ENGLISH 2010-10-27 68/72...
- Page 69 FORA MARINE ENGINE INSTALLATION Label Description General D1-30 Engine Sail-drive motor base diaphragm Sea water pump Engine bed Circuit-breakers Anode Propeller Cooling / Exhaust Sea-water intake Sea-water hose Sea-water strainer Anti-siphon elbow Water-injection silencer Exhaust pipe Exhaust outlet Fuel system Fuel filler deck plate Fuel filler hose Fuel vent...
- Page 70 FORA MARINE ENGLISH 2010-10-27 70/72...
- Page 71 FORA MARINE LIFTING DIAGRAM Label Description See red triangular marker under deck-line Light displacement: 4,900 kg Max. beam 3.99 m Draft (double keel / single keel): 1.65 / 1.95 m Make sure the keel fastening nuts are in good condition, and check that they are properly tightened twice a year.
- Page 72 Fora Marine Les Quatre Chevaliers Rond Point de la République 17185 PERIGNY CEDEX FRANCE Tel. 33 (0)5 46 44 73 00 Fax 33 (0)5 46 45 48 21 e-mail: contact@rm-yachts.com Document for information only, not contractually binding ENGLISH 2010-10-27 72/72...
