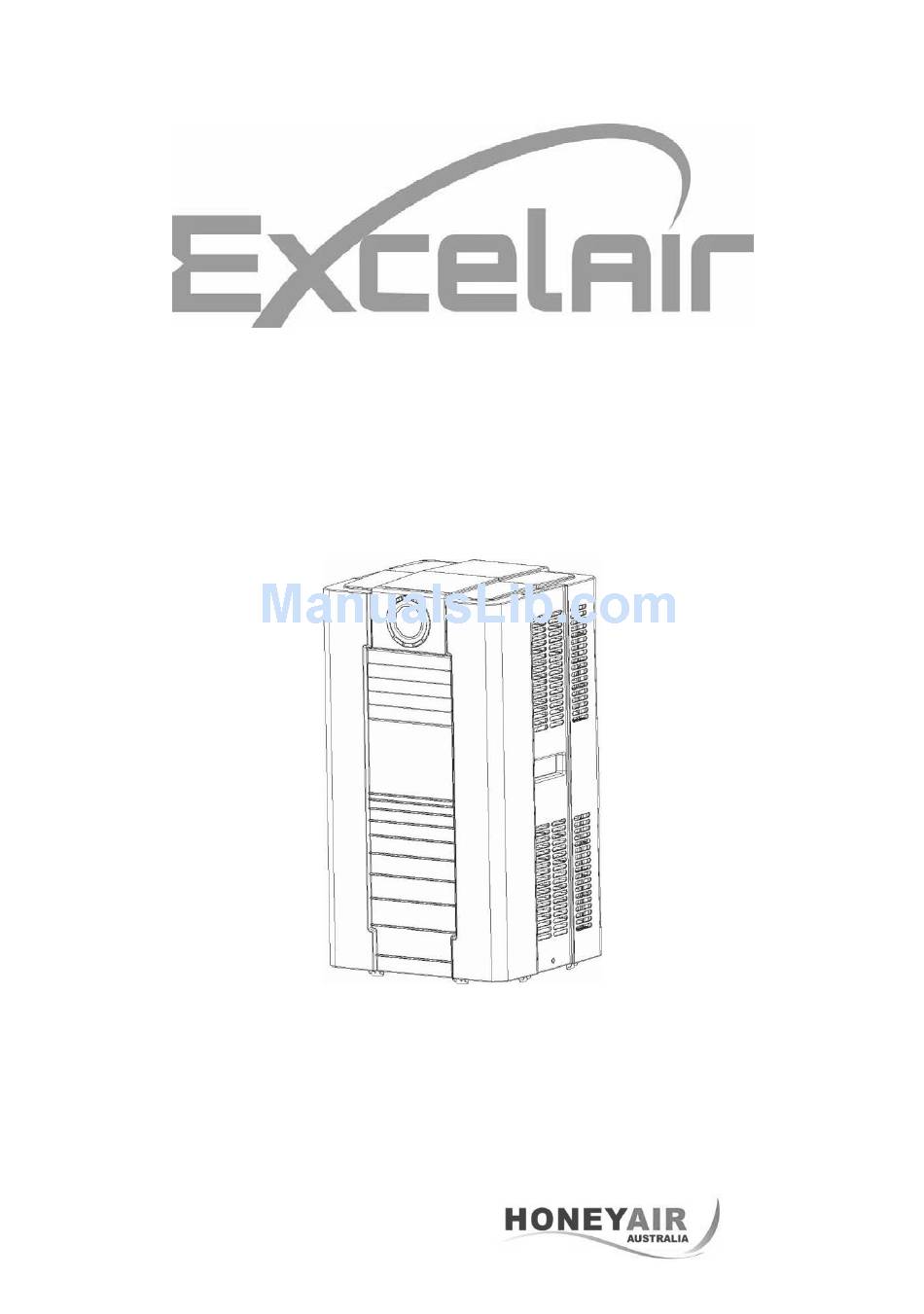

Instruction Manual
Model: EPA 16
Portable Airconditioner
Distributed in Australia by:
Honeyair Australia Pty Ltd.
78 Mallard Way, Cannington WA 6107
P 1300 710 860 F 1300 710 890 E info@gbi.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPA 16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Excelair EPA 16

  • Page 1 Instruction Manual Model: EPA 16 Portable Airconditioner Distributed in Australia by: Honeyair Australia Pty Ltd. 78 Mallard Way, Cannington WA 6107 P 1300 710 860 F 1300 710 890 E info@gbi.com.au...

  • Page 2: Specifications

    SPECIFICATIONS Model no. EPA16 Cooling capacity 16000 BTU/hr 4.7 KW Power/Ampere consumption for cooling 1800W/ 8.2A Air volume (max. speed) 550m Humidity removal capacity 1.5L/hour Power supply 220-240V~. 50Hz Compressor rotary Refrigerant R410A (Please refer to the rating label.) Fan speed Timer 1 24 hours Cooling: 18 ~ 32...

  • Page 3: Before Use

    BEFORE USE GENERAL SAFETY ONLY USE IN THE UPRIGHT POSITION ON A FLAT LEVEL SURFACE AND AT LEAST 50cm FROM ANY OBJECTS (Fig 1 & 4). DO NOT PLACE OBJECTS ON THE UNIT OR RESTRICT AIR INLET / FIG. 1 OUTLET (FIG.
  • Page 4 FOR MAXIMUM EFFICENCY Do not exceed the recommended room size 50m (typically 20m floor area) Close doors and windows Keep curtains of blinds closed during the sunniest part of the day Keep filters clean Once room has reached the desired conditions, reduce temperature and ventilation setting FIG.4...

  • Page 5: Installation Of The Exhaust Pipe

    ACCESSORIES 10. Exhaust hose. 11. PVC strip - for filling the open window space 12. PVC strip - for filling the open window space 13. PVC strip (with hole) - for filling the open window space and with hole for connection to tie-in 14.
  • Page 6 2. Using the Adaptor Wall or Window Outward adaptor FIG.10 FIG.9 Cut a 151mm diameter hole in the wall or window. Feed exhaust hose through the window or wall and attach the threaded adaptor from the outside as shown. When not in use, plug the hole with the cover provided.

  • Page 7: Mounting Of The Exhaust Pipe

    MOUNTING OF THE EXHAUST PIPE Use only the hose provided and clip exhaust hose and unit adaptor to FIG.11 the back of the air conditioner Avoid kinks and bends in the exhaust hose as this will cause expelled moist air to build up FIG.12 causing the unit to overheat and shut down.

  • Page 9: Control Panel

    CONTROL PANEL Buttons 1. Receiver for remote control 2. ON/OFF button 3. Temperature increase button 4. Temperature decrease button 5. TIO2/ION button (this is option function, only for the model with this function) 6. MODE selection button 7. SLEEP button 8.

  • Page 10: Operation

    OPERATION Turning ON/OFF Adjust the louvers to desired angle and position. Press ON/OFF button, the unit will start to work. If the ambient temperature is higher than 23 C, the unit will work in cool mode. higher than 20 C but below or equal to 23 C, the unit will work in ventilation model.
  • Page 13 DRAINAGE During the process of cooling, some water will be extracted from the air into the unit. Ifthe tank is full, both of the compressor and motor will stop. The will light on, also the machine will beepas reminder. To make the cooling work again, please empty the water by one of the following ways: Turn off the air conditioner and avoid moving it when full.
  • Page 14 The drain tube may be extended by adding an extension tube and using a suitable connector. FIG.21 Please note The drain must be at or below the outlet level. indicator will not function in this mode of drainage. If you want to extend the water tube, you can connect FIG.22 it with another tube (OD:...

  • Page 15: Maintenance

    MAINTENANCE Always unplug the air conditioner from the mains before cleaning. To maximize the efficiency of the air conditioner clean regularly. Cleaning the housing Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions.

  • Page 16: Fault Check List

    FAULT CHECK LIST The air conditioner does not run Is the air conditioner plugged in? Is there a power failure? Is the room temperature below the set temperature? The machine seems to do little Is there direct sunshine? (Please put down the curtain.) Are too many windows or doors open? Are there too many people in the room?
  • Page 17 For all warranty claims please return to place of purchase. If unit is deemed to be faulty it will be replaced during the 12 month warranty period. Distributed in Australia by: Honeyair Australia Pty Ltd. ABN 86 008 764 341 78 Mallard Way Cannington WA 6107 Phone 1300 710 860...
