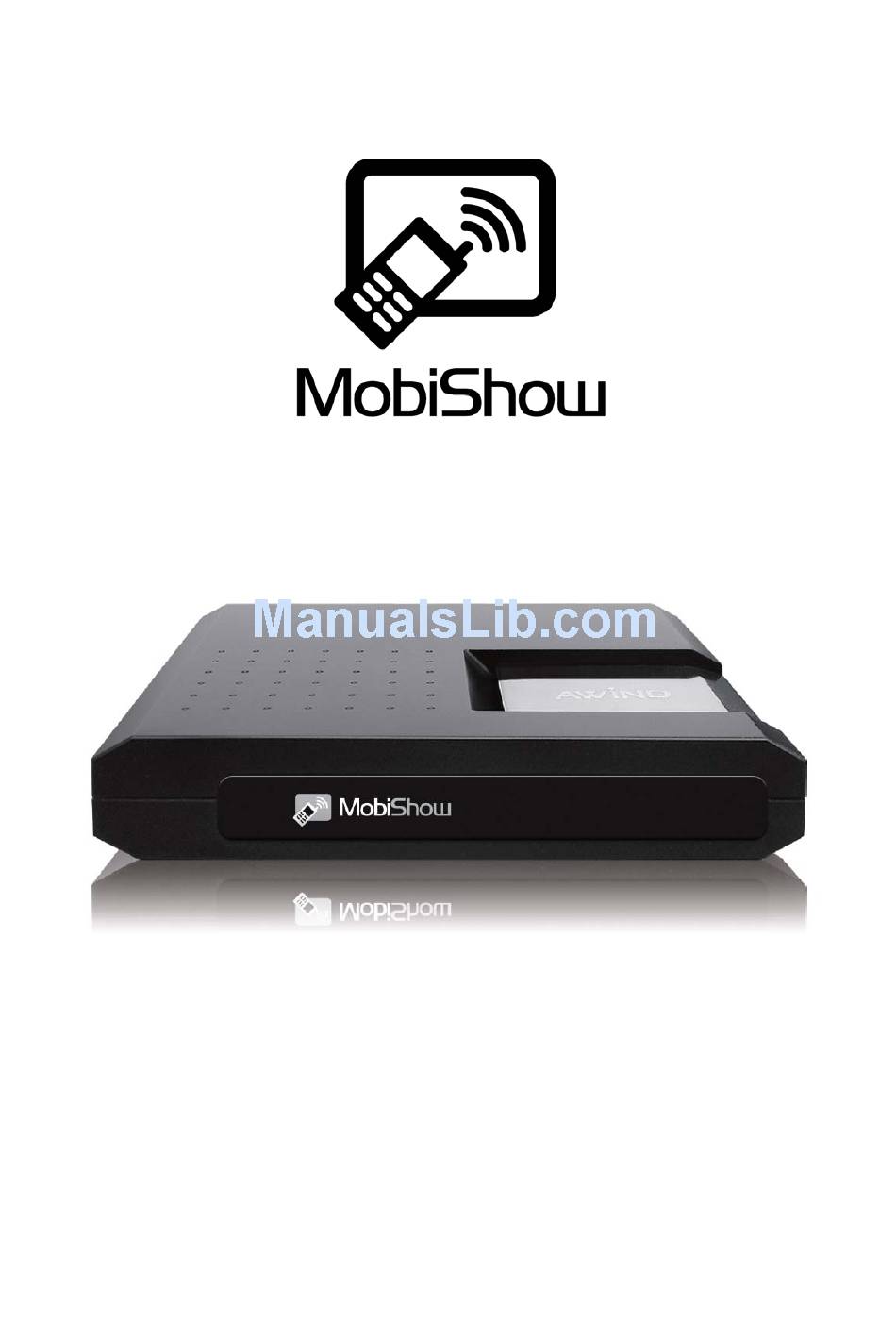

- Page 1 Quick Installation Guide (Model Name: MS‐200) Version: 1.5 Date: March 16, 2009...
- Page 2 MobiShow Quick Installation Guide Awind Inc. 1) Package Contents MobiShow Box Power Adapter (DC +5V, 2.5A) CD‐ROM with Smartphone & PC utilities and User’s Manual inside. Quick Installation Guide Warranty Card Carry Bag 2) Physical Details Front Panel Rear Panel ...
- Page 3 MobiShow Quick Installation Guide Awind Inc. 3) Hardware Installation 1) Connect power adapter DC plug to MobiShow DC jack. AC plug DC in 2) Connect Projector’s VGA cable to MobiShow VGA connector on the rear panel. 3) Turn on projector. 4) Turn on MobiShow box ♦ After system ready, the “POWER” LED and “WLAN” LED will be yellow color. The “LAN” LED will be off. ♦ When LAN connection is established, then “LAN” LED will be yellow color and blinking while data transmission. 5) When MobiShow is ready, the following screen is shown. ...
- Page 4 MobiShow Quick Installation Guide Awind Inc. 4) Software Installation 4.1 Download from MobiShow box 1) Turn on WiFi on your phone. 2) Connect your phone to MobiShow wireless network. The SSID is displayed on screen (default SSID is MobiShow). 3) Open the browser on your phone and enter the IP address of the MobiShow box. ♦ The default IP address is 192.168.100.10. ♦ Or, refer to the IP address which shown on the projector screen. 4) The following web page will be shown on your browser. 5) Click the “Download” link to download the software installer (in CAB format) to your phone. 6) Open Explorer on your phone and find the CAB file. 7) Double click on the CAB file to start installation. 8) Follow on‐screen instructions to finish installation. 4.2 Install from CD 1) Connect your Windows Mobile phone to PC. Make sure it is connected in ActiveSync. 2) Insert MobiShow Setup CD to PC. ...
- Page 5 MobiShow Quick Installation Guide Awind Inc. 5) Using MobiShow with a Smartphone 1) Open “Programs” on your phone and find “MobiShow” application. 2) Select “MobiShow” icon to launch the client software. 3) MobiShow will turn on Wi‐Fi on your phone and list available access points for you to choose. 4) Select a MobiShow wireless network (SSID with prefix MobiShow) to connect to. 5) MobiShow client will connect to that access point and search for MobiShow devices automatically. When a MobiShow device is found, it will automatically login and the following main menu is shown on your phone. ...
