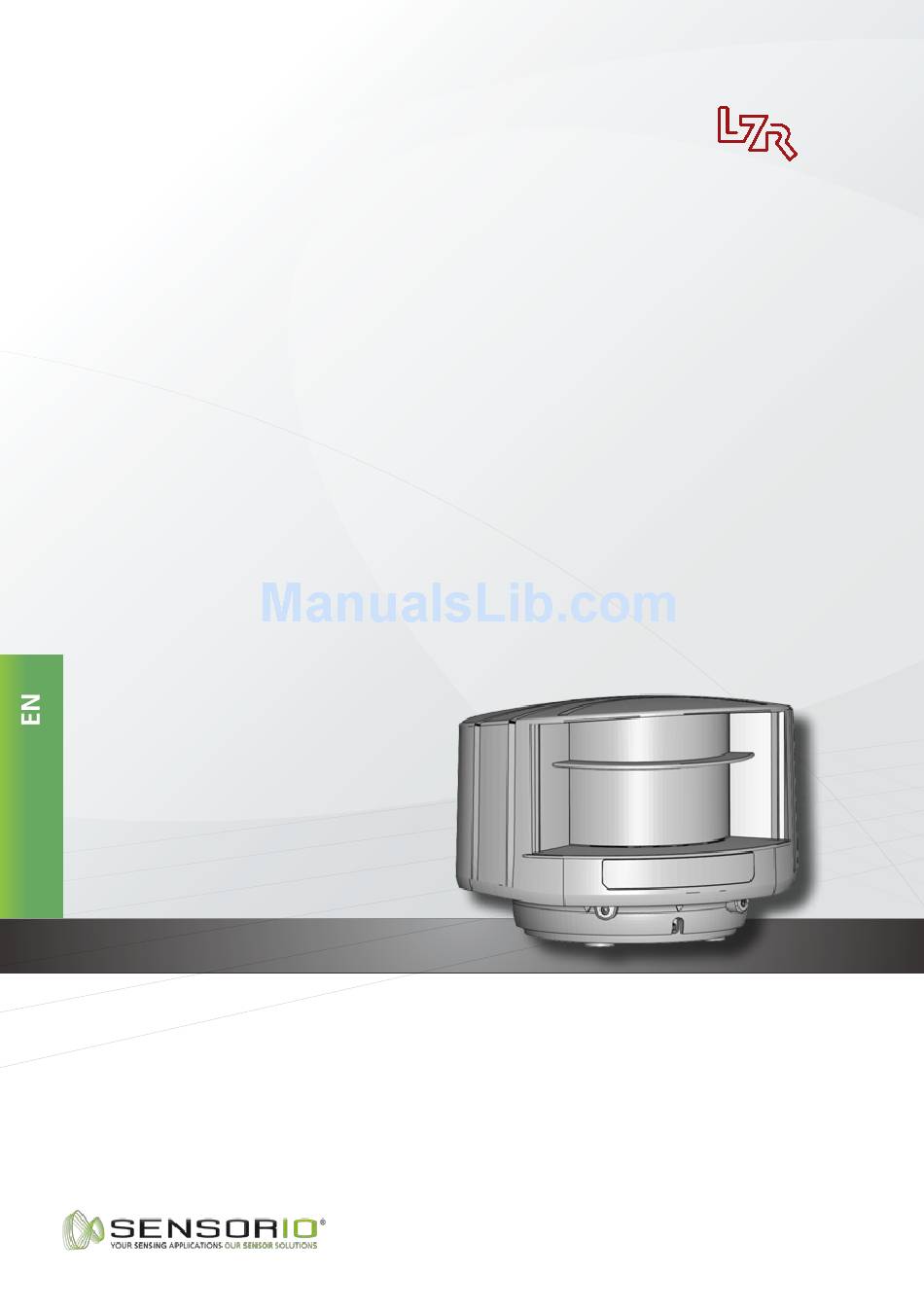

- Page 1 ® - W400 Laser scanner for THe safeTY of PoWer-oPeraTeD WInDoWs User’s Guide for product version 0700 and more...
- Page 2 SAFETY FOR POWER-OPERATED WINDOWS Other use of the device is outside the permitted purpose and can not be guaranteed by the manufacturer. The manufacturer cannot be held responsible for incorrect installations or inappropriate adjustments of the sensor. DESCRIPTION laser sweep emission protection cover laser sweep reception visible laser beam (3)
-
Page 3: Installation And Maintenance
SAFETY The device contains IR and visible laser diodes. IR laser: wavelength 905nm; max. output pulse power 75W (Class 1 according to IEC 60825-1) Visible laser: wavelength 650nm; max. output CW power 3mW (Class 3R according to IEC 60825-1) The visible laser beams are inactive during normal functioning. The installer can activate the visible lasers if needed. -
Page 4: Possible Applications
POSSIBLE APPLICATIONS VERTICAL PROTECTION HORIZONTAL PROTECTION... -
Page 5: Installation Steps
POWER SUPPLY - BROWN WHITE NOT USED YELLOW PINK RELAY 2 - SAFETY FIELD VIOLET TEST + No monitoring*: connect red and blue wires to power supply (no polarity) TEST - BLUE WHITE/RED NOT USED WHITE/BLUE *for more info, please contact SENSORIO... - Page 6 POSITIONING Unlock the sensor and activate the visible laser beams. The visible laser beams indicate approximately the postion of curtain C1 and limit the angle of the detection field. The visible laser beams stay activated for 15 minutes or can be turned off the same way they were activated.
- Page 7 FIELD DIMENSIONS WIDTH 0.5 m 5.0 m HEIGHT 0.5 m 5.0 m no field for a field height of 4.5 m EXAMPLE IMPORTANT Test the good functioning of the installation before leaving the premises. TEACH-IN Launch a teach-in • after changing the sensor position •...
- Page 8 REMOTE CONTROL ADJuSTMENTS (OPTIONAL) DeteCtIOn CurtAInS CurtAIn deactivate curtain C1 + C2 are deactivated activate curtain C3 + C4 are active Only C1 is active The distances between the curtains depend on the mounting height and side. When mounted on the left, the distance between the first and the last curtain is approximately 10 cm for every meter (mounting height).
-
Page 9: How To Use The Remote Control
HOW TO uSE THE REMOTE CONTROL After unlocking, the red If the red LED flashes quickly after unlocking, you To end an adjustment session, LED flashes and the sensor need to enter an access code from 1 to 4 digits. always lock the sensor. -
Page 10: Troubleshooting
A reflective object is in close Avoid highly reflective material in proximity to proximity to the sensor. the sensor. The sensor does You have to enter a code or Please contact SENSORIO. not unlock. the wrong code was entered. -
Page 11: Technical Specifications
EN 60529:2001; IEC 60825-1:2007 Laser Class 1 & 3R; EN 60950-1:2005; EN 61000-6-2:2005 EMC - Industrial level EN 61000-6-3:2006 EMC - Commercial level Specifications are subject to changes without prior notice. All values measured in specific conditions. *For other options, please contact SENSORIO... - Page 12 A DIVISION OF BEA SA | LIEGE SCIENCE PARK | ALLÉE DES NOISETIERS 5 - 4031 ANGLEUR [BELGIUM] T +32 4 361 65 89 | F +32 4 361 28 58 | INFO@SENSORIO.BE | WWW.SENSORIO.BE BEA hereby declares that the LZR -W400 is in conformity with the basic requirements and the other relevant ®...
