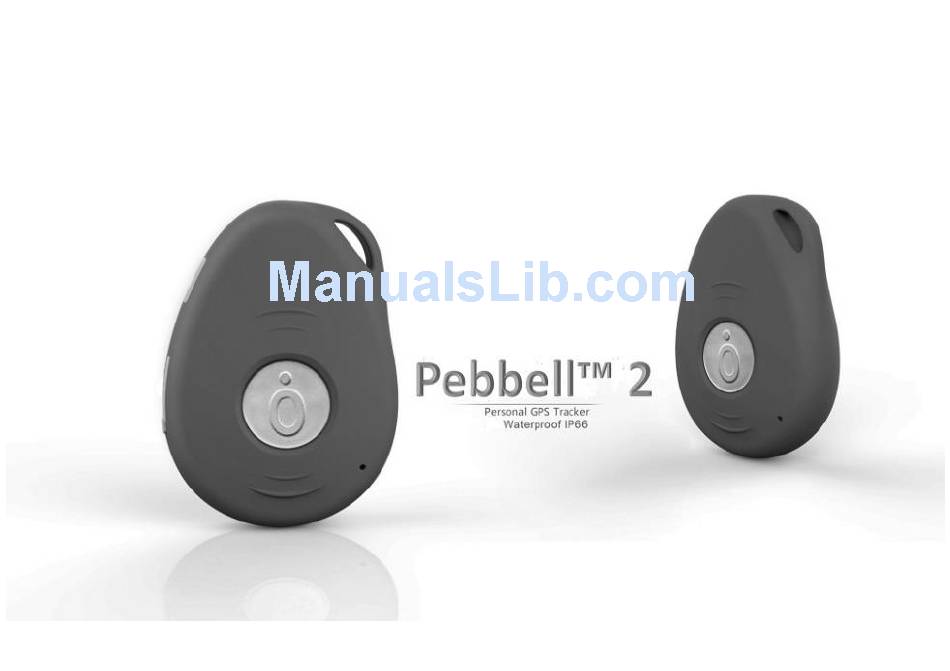

USER MANUAL

© HoIP Telecom, 2016 Publication number PEBBELL_v2_VF9.2_4402.1625

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pebbell 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HoIP Pebbell 2

  • Page 1: User Manual

    USER MANUAL © HoIP Telecom, 2016 Publication number PEBBELL_v2_VF9.2_4402.1625...
  • Page 2 The device is designed for use on the 850/900/1800/1900 MHZ mobile networks. You can use it also in all countries worldwide where HoIP Telecom has a SIM roaming contract. (**exception: Live Tracking Android and IOS Mobile Client).
  • Page 3 Information in this User´s manual is subject to change without notice. HoIP Telecom reserves the right to change or improve their products and to make changes in the content without obligation to notify any person or any organization of such changes or improvements.
  • Page 4 STARTING PEBBELL 2 Please read this document before using the product. Neglecting the rules may be dangerous or illegal. Further detailed information is given in this manual.  Do not switch the product on when wireless phone use is prohibited or when it may cause interference or danger.
  • Page 5 STARTING PEBBELL 2 ①-②-③ IMPORTANT TO DO FIRST Visit this website to add credit to your device: http://pebbell.easypayg.com/index.php We recommend adding £20 for your first top-up. With normal use, this should last you around 3-5 months In order to receive automatic top-up notifications when your Pebbell SIM credit balance is low, please LINK your device at http://www.pebbell-gps.com/link-pebbell...
  • Page 6 STARTING PEBBELL 2 RECOMMENDED PACKAGE CONTENT IN UK AC Charger Adapter PEBBELL 2 Desktop Docking Charger USB Charging Cable...
  • Page 7 STARTING PEBBELL 2 ① GETTING TO KNOW YOUR DEVICE 6 – www.pebbell-gps.com...

  • Page 8: Device Charging

    STARTING PEBBELL 2 ② DEVICE CHARGING The PEBBELL 2 device is equipped with an internal rechargeable battery. The autonomy of the battery may vary depending on the GPS and GSM activity and the use of the device. When charging for the first time use, please fully charge the battery for around 2~3 hours, using the USB charger or using the docking station to charge.

  • Page 9: Low Battery Alarm

    STARTING PEBBELL 2 LOW BATTERY ALARM When the unit’s battery is less than 15%, it will send an SMS alarm “BAT: LOW!” to all authorized numbers. If battery is less than 15%, the blue light will flash rapidly to warn the user to charge the device as soon as possible.

  • Page 10: Power Status Led

    STARTING PEBBELL 2 ⑤ WHAT DO THE LIGHTS MEAN? POWER STATUS - LED Blue ON (solid) Blue Blinking Quickly Blue Off or blinking slowly STATE The device is charging Battery power is lower than 15% Device has been fully charged or not charging GSM LED –...
  • Page 11 STARTING PEBBELL 2 ⑥ SET THE AUTHORIZED NUMBER (A, B and C) ① Send SMS Command: A1 Note: With no spaces in the text, case-insensitive.  Using your mobile phone, send SMS with a text A1 to the phone number of the Pebbell, it...
  • Page 12 STARTING PEBBELL 2 ⑦ ACTIVATING SOS “BUDDY” ALARM Press and hold the SOS button for 3 seconds until the device vibrates, and then green light will start to flash rapidly to confirm the request. After that, an SOS Alarm “Help me” –SMS message with LOCATION COORDINATES– is send to all authorized phone numbers.
  • Page 13 STARTING PEBBELL 2 ⑨ RECEIVING A NORMAL PHONE CALL To receive a normal call (only from authorized A1, B1 or C1 numbers), Pebbell will vibrate, then press SOS button and this opens the call. To end the call, press the SOS button.
  • Page 14 STARTING PEBBELL 2 ⑫ TURN OFF THE LEDs Send SMS Command: LED1 The device will reply “LED off” and later LEDs will stop flashing, but the device is actually on. To turn off this function, please send LED0 ⑬ MODIFY THE TIME ZONE Send SMS Command: TZ+ +00/-00 Note: UTC time has been set as default time.
  • Page 15 STARTING PEBBELL 2 ⑭SINGLE LOCATION REQUEST 1. Reply with coordinates and web link Send SMS Command: The device will reply “Time: xxxxx; Lat: xxxx; Lon: xxxx; Spd: xxxxx, Altitude:xxxx Bat: xxx and a link to google map: maps.google.com/maps?q=48.148838,11.542140 By clicking on the link the location will be...
  • Page 16 STARTING PEBBELL 2 2. Reply with Address (not in standard usage) Send SMS Command: add The device will reply with an address e.g. “Add: Coombe Lane, Awbridge, SO51 0HN Hampshire, Notes: This function needs DATA server function support to activate, please contact sales@hoip- telecom.co.uk...
  • Page 17 STARTING PEBBELL 2 ⑯ OVER-SPEED ALARM Send SMS Command: SPEED1, +speed (Default SPEED0) Notes: The speed must be in km/h in 2 or 3 digitals (01-255 km/h) Example: SPEED1, 100 Suppose the over-speed alarm we want to set is 100 km/h, when the device exceeds 100 km/h, it will send the message “Over-Speed! + GPS info”...

  • Page 18: Movement Alert

    STARTING PEBBELL 2  xxx is the preset distance to the tracker’s original place, must be 3 digitals. M means meters, KM means kilometers The device will send the message to the authorized numbers as “Geo fence alarm!+GPS info” when it enter the area you set (User must set this function when the blue light is flashing rapidly.)
  • Page 19 STARTING PEBBELL 2 ⑲ MOTION ALARM Send SMS Command: V1, xx S/M/H (Default V0) Note: No spaces in between, S means seconds, M means minutes, H means hours, xx means the time you set and must be two digitals. Example: V1, 05M If user turns on this function, the device will detect motion every 5 minutes and will send an SMS warning alarm to all registered phone numbers.
  • Page 20 STARTING PEBBELL 2 ②① AGPS Send SMS Command: AGPS1 (Default on) A-GPS is for accelerated positioning and helping position a device when GPS signals are weak or not available. GPS satellite signals may be impeded by tall buildings, and do not penetrate building interiors well.
  • Page 21 STARTING PEBBELL 2 ②③ GPS SIGNAL LOST AND RECOVERY ALERT Send SMS Command: GR1 (Default GR0) The device will automatically send the latest available GPS information to the preset numbers when it enters into the area without GPS signal. If user goes into an area that does not have a GPS signal, such as a tunnel, cave, parking garage, etc.
  • Page 22 STARTING PEBBELL 2 ②④ CHECK SETTINGS Send Command: STATUS The device will reply E.g. A+44xxxxxxxxxx B+44xxxxxxxxxx C+44xxxxxxxxxx;Speed: 0,110km/h; GEO: 0,0,0; VB: 0,0S; MV:0,0; LBS: 1; LED: 0; Z:0; TZ: 2.0; LI: 0; PS:1; DS:0,15M; FL: 1; Bat: 61% ; SMS: 1; LOCK: 0 To recognize the meaning of “0”...
  • Page 23 STARTING PEBBELL 2 ②⑤ DEVICE POWER MODES 1. No Power saving mode Send Command: PS0 In this mode, both GSM and GPS are on, battery can last 18~36 hours. 2. Smart Power saving mode Send SMS Command: PS1 (Default mode) In this mode, the GSM chip is working and receives calls, SMS and transmits location.

  • Page 24: Reboot Device

    STARTING PEBBELL 2 It can be only activated by movement. Once movement is detected, it will run for the set time (15 minutes) and sleep again if no movement is detected. Battery can last 40 days if no movement at all.

  • Page 25: Hardware Specification

    STARTING PEBBELL 2 ②⑧ BUILT –IN MEMORY The device built in 8MB flash memory inside. It will store the GPS information when do not have GSM network coverage (i.e., very low population density areas, some mountainous terrain, underground areas etc.). The device will transmit GPS locations to the WEB server automatically once the GSM network is recovered.

  • Page 26: Warranty Period

    HoIP Telecom undertakes that, during the period covered by the limited warranty, any defects in the materials, design or manufacture of the Pebbell GPS device and its accessories will be corrected by HoIP Telecom or one of its approved after-sales companies, free of charge and within a satisfactory time-frame. This correction shall cover the repair of the Pebbell GPS device and its accessories or, if HoIP Telecom considers it necessary, at its sole discretion, its replacement free of charge under the stipulations of this limited warranty.
  • Page 27 Pebbell GPS device or item in question, carefully protected in its original packaging, by registered mail with proof of delivery. HoIP Telecom informs the purchaser that it is not liable for the loss of the device and does not repair damage occurring during transport.

  • Page 28: Warranty Exclusions

    HoIP Telecom may use new or "as-new" parts or products or others equivalent to new parts or products to repair or replace the Pebbell GPS device and its accessories.
  • Page 29 3 – This limited warranty does not cover effective or alleged faults caused because the Pebbell GPS device has been used with, or connected to, a product, accessory or service not manufactured or supplied by HoIP Telecom or has been used for purposes other than those for which the Pebbell GPS device has been designed.
  • Page 30 Pebbell GPS device or item in question, carefully protected in its original packaging, by registered mail with proof of delivery. HoIP Telecom informs the purchaser that it is not liable for the loss of the device and does not repair damage occurring during transport.

  • Page 31: Limitation Of Liability

    Pebbell GPS device and its accessories. The above limits are not applicable in case of serious or intentional fault of HoIP Telecom, or in case of death or injury resulting from a serious fault attributable to HoIP Telecom. CAUTIONS Please comply with the instructions to extend the unit life: Keep the unit dry.
  • Page 32 STARTING PEBBELL 2 Don’t put the unit in overheated or overcooled places Clear the unit with a piece of dry cloth. Don’t clean in chemicals, detergent Don’t disassemble or refit the unit Using other batteries will cause problems REAL TIME TRACKING at http://tracking.pebbell.com/ Our web based tracking system incorporates the TCP/IP protocol and allows users to monitor it in real time over the internet.
  • Page 33 Q: What is a Pebbell GPS? PEBBELL 2 is especially built for real time monitoring and it can be used in all walks of life from traveling, lone worker protection to specialized care and security service. It is suitable for children, elderly, persons suffering from dementia, patients but also outdoorsmen and sportsmen etc.
  • Page 34 If you travel outside your respective country, then the product will use the roaming partners to transmit the products location. Please note that no roaming charges will apply in EU (HoIP SIM)
  • Page 35 STARTING PEBBELL 2 Q: Can anyone track my Pebbell GPS? No. you will be able to list the 3 trusted individuals that you want to receive alerts. You can change or edit these individuals at any time as needed. Q: What happens if there is no Mobile Networks coverage in the area?
  • Page 36 STARTING PEBBELL 2 Google Maps link, which shows the location of the wearer at the time of activation. The Pebbell two way speech also allows the wearer to talk into the pendant and directly communicate with their contact. If the first number doesn’t answer the phone then the device will continue to dial the 2nd contact and in turn the 3rd contact.
  • Page 37 STARTING PEBBELL 2 Q: What is the warranty for Pebbell? We offer a limited warranty that the hardware will be free from defects in material and workmanship when used normally and in accordance with our instructions. To the extent permitted by applicable law, the limited warranty offered by us is limited for a period of twelve (12) month from the date of purchase.
  • Page 38 STARTING PEBBELL 2 Q: How small can I set a Geo fence area? We recommend that you do not set the zone for less than 300 meters. This helps prevent false alerts Q: How big is Pebbell? Pebbell is 61mm long, 44mm wide and 16 mm deep. It weighs 35 grams. For full details check the "Specifications"...
