Installation Instructions
Remote Controlled Spotlight Type DR8 Mk2
BEFORE YOU START
Read these instructions carefully. For the latest
instructions on all our products see
www.rclighting.com/downloads
These instructions cover the following
installation methods:
A
3-Circuit Installation
B
2-Circuit Installation
C
1-Circuit Installation
D
E
F
G
H
I
J
If you have any di culty installing this product
please contact:
Remote Controlled Lighting Ltd (UK)
42 Riverside Road, London SW17 0BA
+44 (0) 20 8404 2400
tech@rclighting.com
Remote Controlled Lighting Ltd (Asia)
Unit 13, 8/F, Lai Sun Yuen Long Centre
21-35 Wang Yip Street East,
Yuen Long, Hong Kong
+852 2310 9733
Copyright © 2016 Remote Controlled Lighting Ltd. All Rights Reserved.
DOC-260-A
Important Safety Information
READ INSTRUCTIONS CAREFULLY BEFORE USING
THIS PRODUCT. SAVE INSTRUCTIONS FOR
LATER REFERENCE.
PRODUCT IS NOT SUITABLE FOR PHASE DIMMING
Products must be installed by a suitably qualified
professional only. Installations must conform to national
installation codes and accident prevention regulations.
If using a track adaptor, ensure it is compatible with the
track system installed. Failure to do so may result in
danger of electric shock and damage to the product.
Ensure electrical rating shown on product label
conforms to mains voltage supply.
Do not modify the product in any way. RCL accepts
no responsibility for damage caused by modifying
this product.
Product is rated IP20 unless otherwise stated. Install
indoors only and away from damp or wet environments.
This symbol indicates the minimum distance to a
lighted object and must be observed.
Caution, product will become hot in use. Allow to cool
before touching.
Dispose of this product in accordance with WEEE or
other national regulations.
Products marked with this symbol are compliant with
Class 2 regulations.

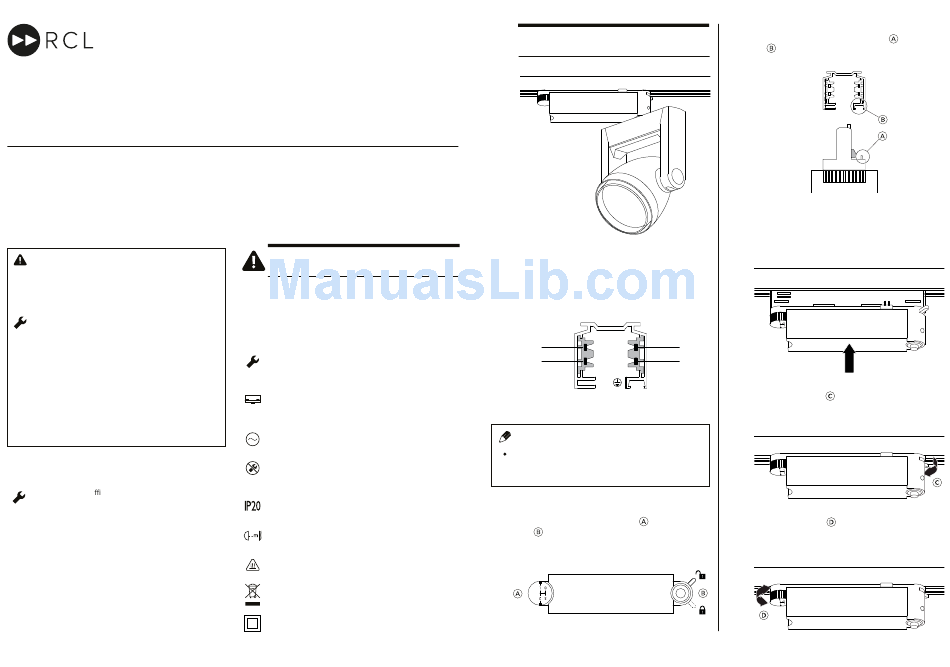

A
3-Circuit Track Installation
1
Ensure that the track system where the DR8 luminaire
is to be installed is compatible with the Eutrac
3-Circuit adaptor.
1
N
*note orientation
NOTES
If the spotlight is to be controlled via DMX or DALI,
ensure that track system includes Data Bus. See For
more information on DMX Installation see DOC-083.
2
To mount the track adaptor into the track system, first
check that both the selector knob
and the adaptor
lock
are disengaged, as shown below.
3
When installing the adaptor into the track, ensure that
it is orientated correctly. Align the tabs
slot
on the track.
4
Insert the track adaptor into track system. Take care
to avoid any fixing screws holding the track onto the
ceiling.
2
3
5
Rotate adaptor lock
clockwise 90° to connect the
adaptor to the neutral circuit.
6
Rotate selector knob
to the desired circuit position
(see section 7).
PAGE 1
with the
Advertisement
Table of Contents
Summary of Contents for RCL DR8 Mk2
- Page 1 If the spotlight is to be controlled via DMX or DALI, Do not modify the product in any way. RCL accepts ensure that track system includes Data Bus. See For no responsibility for damage caused by modifying more information on DMX Installation see DOC-083.
- Page 2 Eutrac, Erco & iGuzzini systems. For further ensure that track system includes Data Bus. See For including Eutrac, Erco & iGuzzini systems. For further options, please contact RCL. more information on DMX Installation see DOC-083. options, please contact RCL.
- Page 3 The Eutrac 2-Circuit track adaptor is compatible with adaptor. a number of di erent 2-Circuit track systems including Eutrac, Erco & iGuzzini systems. For further options, please contact RCL. Ø112 - 114mm When installing multiple fixtures, always allow a minimum of 250mm between luminaires.
- Page 4 WARNING If for any reason the mounting ring cannot be fitted securely, stop the installation and contact RCL. Run mains voltage cable to the hole and connect to the luminaire using an electrical connector (not Slide the fixing clip down the slot until it hits the...
- Page 5 If necessary, disconnect the lamp. IMPORTANT When mounting luminaires in troughs, always observe the minimum distance to a lighted object, as indicated on the fixture. For more information regarding correct trough installation, please contact RCL directly. PAGE 8 PAGE 9...
- Page 6 Unclip the bezel ring from the accessory holder. Snoot Installation Remove the accessory holder assembly from the luminaire, as shown in section G, parts 1 & 2. Insert the lamp holder/lamp reflector into one half of the accessory ring, as shown. NOTE ORIENTATION The accessory holder can hold up to two lenses, depending on the lamp type.
