Summary of Contents for ActForNet A291

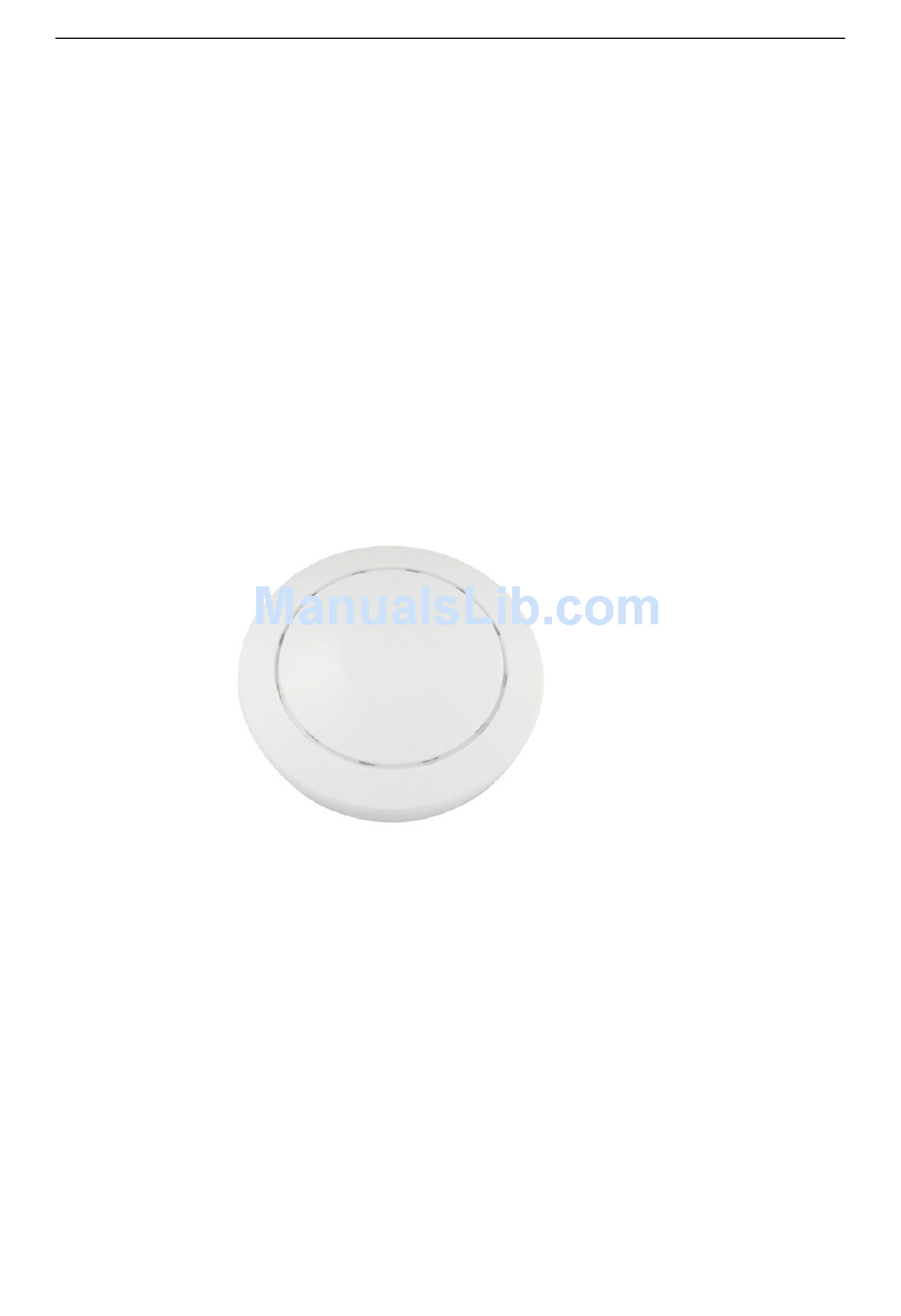

- Page 1 Quickly guider for Ceiling AP 密级 XXX 年 300Mbps Ceiling APP 1105 Quick installation guide August,2013...
- Page 2 Quickly guider for Ceiling AP 密级 This manual suit for quick installation of indoor 300m 11N wireless AP & High Power Router.This manual will instruct you how to configure and manage this indoor 300m 11N wireless AP & High Power Router in right ways .
-
Page 3: Quick Configuration Guide
Quickly guider for Ceiling AP 密级 Quick Configuration Guide .Connection and power supply. The device’s interface description XD9500`s Interface power supply mode 1. DC power supply: the DC’s electronic standard is 12V/1A, connection diagram as follow: 2. Powered over Ethernet: Connect device’s WAN/LAN Port with PoE adapter by LAN Cable (Both LAN port and WAN port support the 12V/24V PoE.), the right connection diagram should be as follow: 第... - Page 4 Quickly guider for Ceiling AP 密级 If user want access into Ceiling AP from PC, can be Wireless connection; or LAN cable connection, but the LAN cable should be designed as follow, and our ceiling AP should be under Gateway (Default Mode) and AP operation mode! 3.
- Page 5 Quickly guider for Ceiling AP 密级 Working mode Description login and launch 1)connect the ceiling AP with computer by Wired/Wireless 2)Get the IP address automatically or manually configure Wire connect A. manually configure 第 4 页 共 9 页...
- Page 6 Quickly guider for Ceiling AP 密级 configure local IP address as 192.168.0.x(X can be selected from 2-254) the same network segment as XD9500，subnet mask 255.255.255.0，As P2 and P3 shows. P2 IP configuration of computer network P3 IP configuration of computer network card wireless connection After basic configuration, if you want use wireless internet,you can configure computer wireless connection as local connection settings mentioned above.
- Page 7 Quickly guider for Ceiling AP 密级 P4 IP Address setting 第 6 页 共 9 页...
- Page 8 Quickly guider for Ceiling AP 密级 P 5 Wireless Connection If you computer include 802.11b/g/n functions but cannot find wireless connection,please contact the after-sell departement of your computer supplier Atten when in those situation. 1)Right click“network neighborhood”and chose "attribute" ， no wireless connection exist.
- Page 9 Quickly guider for Ceiling AP 密级 3) Log in the CPE: Open your web browser, type 192.168.0.1 in the address bar, enter the User name/Passwords: preset as admin/admin, then you can found on the label attached to the router, click OK P6 User name and passwords input steps: Operation mode setting ...
-
Page 10: Lan Setting
Quickly guider for Ceiling AP 密级 P7 Wizard Page Set Working Mode: Select Repeater Mode in P8, click Next P8 Operation mode select LAN Setting LAN IP Address Setting: Fill in the IP Address we need, it will show like P9 after configure DHCP Server: DHCP Server is unable in default under Repeater mode, click Next to continue... - Page 11 Quickly guider for Ceiling AP 密级 Connect with Wireless AP: Click Search Wireless AP in page P10, then choose the right wireless AP in P11. Then input the right passwords and click Next to continue in P12 P10 Scan AP P11 AP List after scan 第...
- Page 12 Quickly guider for Ceiling AP 密级 P12 Passwords input Basic Setting: configure the SSID, Channel, passwords if require, like P13 P13 Basic Setting Setting Finish: Click Finish after configure all the data, pop up a window and ask whether continue to changing even the ceiling AP will reboot.
- Page 13 Quickly guider for Ceiling AP 密级 P14 Change the working mode Checking Status: After reboot, the working mode of Ceiling AP is Repeater. Our PC and other wireless device can access to and get Ethernet from the top end AP or router by our ceiling AP in Repeater Mode.
- Page 14 Quickly guider for Ceiling AP 密级 Management Click Management to enter into the management page as follow P16 P 16 Management Page System: export the default data, or load the new configure file to restore the AP’s system, or reboot to default setting. ...
-
Page 15: Troubleshooting
Quickly guider for Ceiling AP 密级 Trouble Shooting Form 1 Symptoms and Treatment Symptoms Treatment Forget the login user name and Restore to factory default passwords 1、Pls make sure the PC and ceiling AP’s IP Address are in same network segment, can be checked through Ping: PC start--input CMD in Run, then ping 192.168.0.1 2 、...
