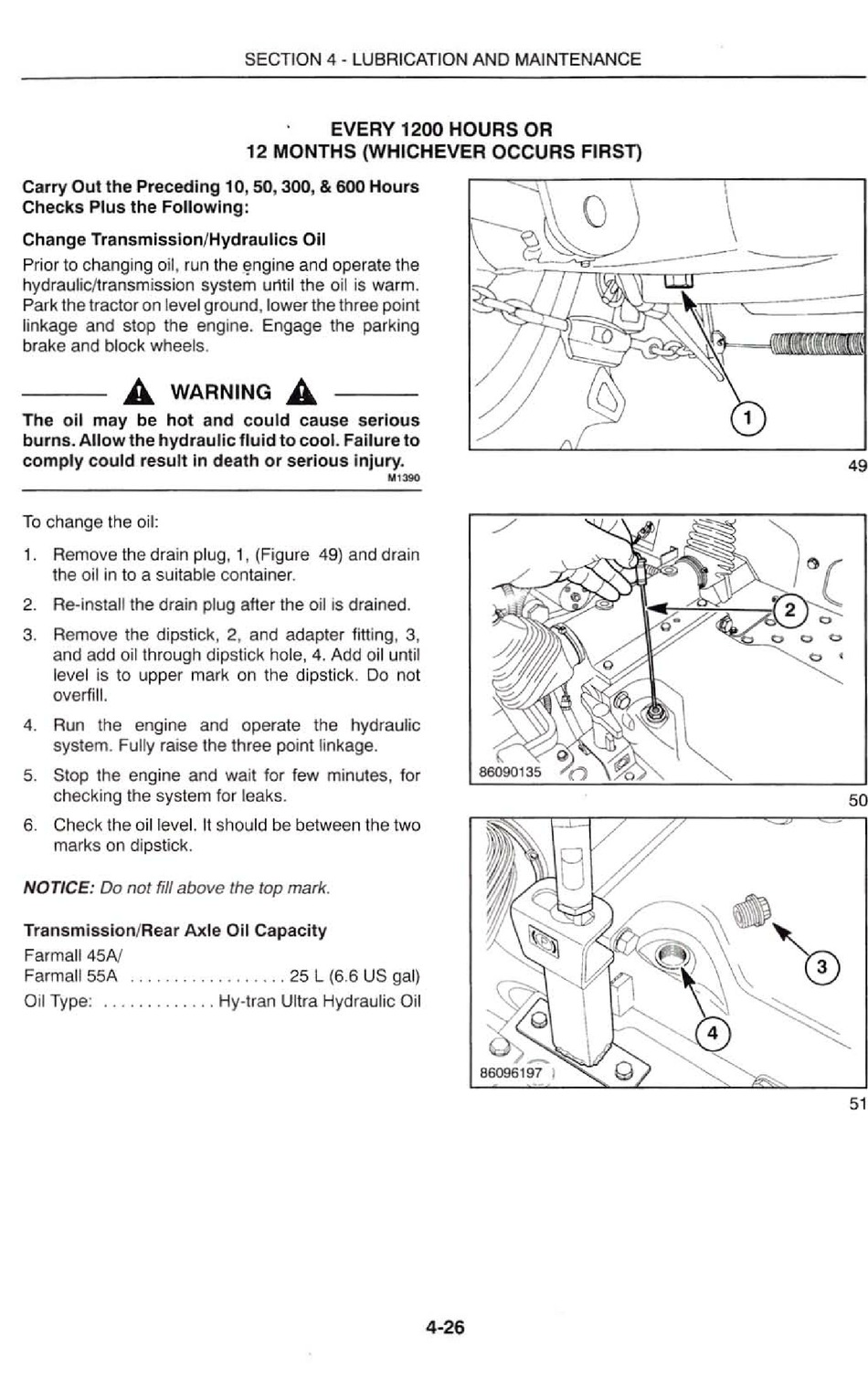

SECTION 4 - LUBRICATION AND MAI NTENANCE
EVERY
1200
HOURS OR
12
MONTHS (WHICHEVER OCCURS FIRST)
Carry Out the Preceding 10, 50, 300, & 600 Hours
Checks Plus the Following :
Change Transmission/Hydraulics Oil
Prior to changing oil , run the
~ngine
and operate the
hydraulic/transmission system ur1til the oil is warm.
Park the tractor on level ground , lower the three point
linkage and slop the engine. Engage the parking
brake and block wheels .
A
WARNING
A
The oil may be hot and could cause serious
burns. Allowthe hydraulic fluid to cool . Failure to
comply could result in death or serious injury.
,,-
To change the oil:
1. Remove the drain plug. 1, (Figure 49) and drain
the oil in to a suitable container.
2. Ae-install the drain plug after the oil is drained.
3. Remove the dipstick , 2, and adapter fitting , 3,
and add oil through dipstick hole, 4. Add oil until
level is to upper mark on the dipstick. Do not
overfill.
4. Run the engine and operate the hydraulic
system. Fully raise the three point linkage.
5. Stop the engine and wait for few minutes , for
checking the system for leaks.
6. Check the oil level. It should be between the two
marks on dipstick.
NOTICE: Do not fill above the top mark.
Transmission/Rear Axle Oil Capacity
Farmall 45N
Farmall55A .... .......... 25 L (6.6 US gal)
Oil Type : ..... . ...... . Hy-tran Ultra Hydraulic Oil
o
4-26
49
5 1
