INSTRUCTION MANUAL FOR THE MS200 STRINGING MACHINE.
CONTENTS:
A. TO PREPARE THE MACHINE FOR USE.
1. The assembly of the machine.
2. The calibration of the tension unit.
B. THE OPERATION OF THE MACHINE.
1. Adjusting the tension.
2. Cleaning the clamps.
3. The guide bars of the clamp system T92
4. The guide bars of the clamp system. T98
A. TO PREPARE THE MACHINE FOR USE.
A1. The assembly of the machine.
The figures in the circles show the sequence of
the assembly.

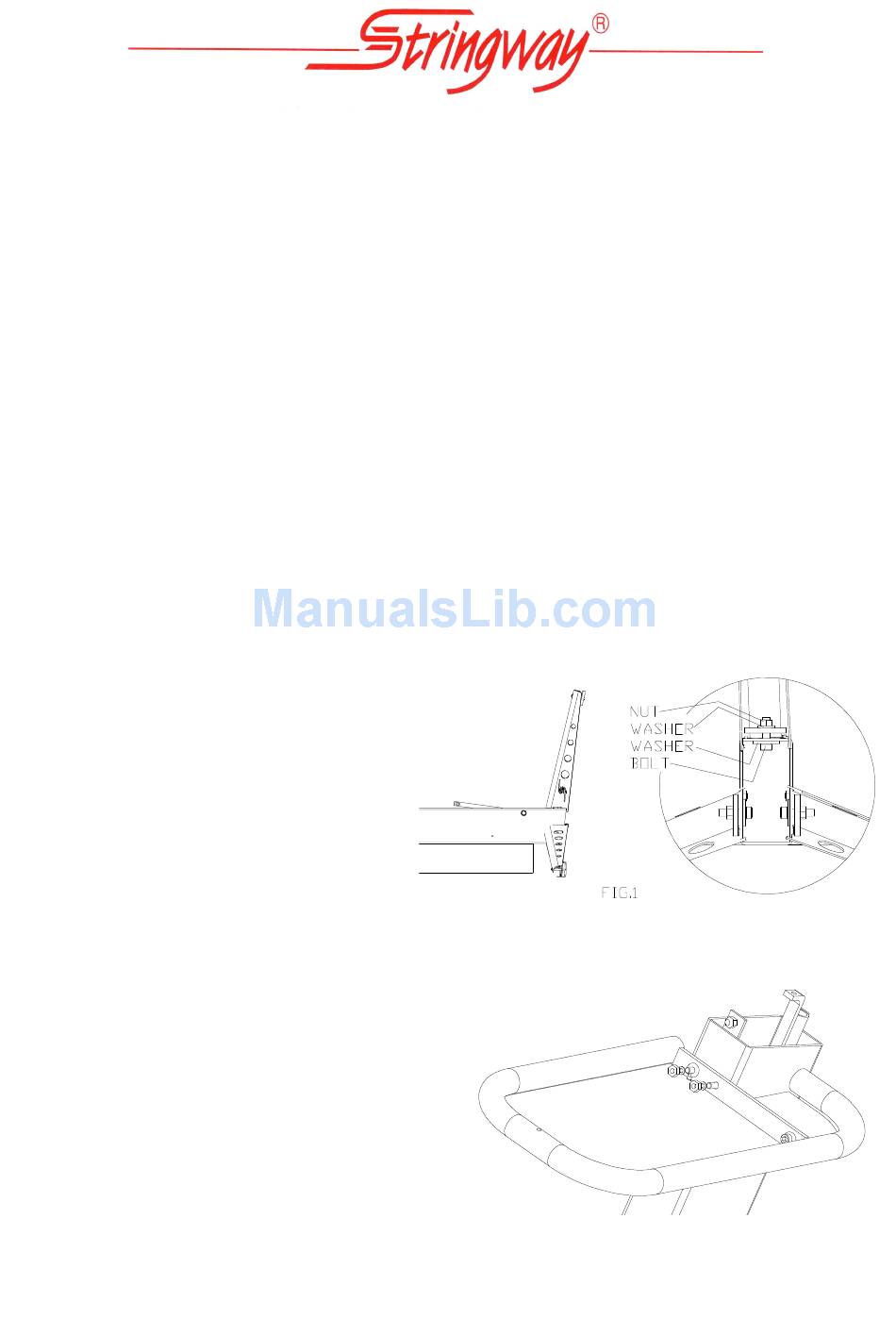

Fixing the legs [fig.1]:
* Put the floorstand on the table.
* Assemble the 3 toes:
- Insert the bolt with the washer from the inside of
the frame.
* Tighten the bolts firmly with a spanner.
Fixing the tooltray to the stand.
Insert the bolts from inside the tube and fix the
tool
tray with the nuts.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ms200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Stringway ms200

  • Page 1: Table Of Contents

    INSTRUCTION MANUAL FOR THE MS200 STRINGING MACHINE. CONTENTS: A. TO PREPARE THE MACHINE FOR USE. 1. The assembly of the machine. 2. The calibration of the tension unit. B. THE OPERATION OF THE MACHINE. 1. Adjusting the tension. 2. To pull tension on a string.
  • Page 2 Fixing the console to the tension housing (Fig 2 and 3). - Placing the tension unit and the racket support table (fig.5): * Turn the tension adjustment knob anti-clockwise as far as possible . * Push the release button down to unlock the tension head and move the tension head backwards (1)..
  • Page 3 B. THE USE OF THE MS200. B1 Adjusting the stringing-tension. B1a. Switching the tension range. * The tension can be adjusted in 2 ranges between 7 and 33 kg (15 and 73 lbs). Figure 7A and B shows how to switch from the lower to the higher range.

  • Page 4: To Pull Tension On A String

    B2a. To pull tension on a string. * The locking system: The MS200 has an automatic locking system on the tension head; - The tension head is locked in the starting position when no string is clamped in the tension head. The lock is automatically released when a string is clamped in the tension head.

  • Page 5: Mounting A Tennis Racquet

    B3. Mounting a tennis racquet It is not necessary to mount the racquet in the middle of the turntable, Leave the head support at one end of the table and move the throat support up and down to adjust it to the size of the racquet. Mounting a tennis racquet goes as follows, the numbers in figure 11 show the sequence of the actions.

  • Page 6: Mounting A Badminton Racquet

    B4. Mounting a badminton racquet. A badminton racquet is clamped differently from a tennis racquet: - Higher badminton supports are used at the head support instead of the white tennis supports. - The clamping hooks at the throat side are not used to clamp a badminton racquet. - The clamping piece with the screw is used to clamp the racquet.

  • Page 7: Using The Clamp System

    B6. Using the clamp systems. All machines can be supplied with 3 clamp systems, flying clamps, double action fixed clamps and single action clamps. B6a Using flying clamps TH. Figure 14 shows the flying clamp. A flying clamps holds the tension by clamping the last string to the string before last. The knob is used to adjust the clamp to the diameter of the string that is used.
  • Page 8 The clamping force of the guiding system can be adjusted with the nut (fig.17). VERY IMPORTANT: - The clamping force on the rail should only be adjusted with the handle in the VERTICAL end position. - During use the handle should always reach the vertical end position to be stable. The clamp can be adjusted to the diameter of the string and the stringing tension that is used with the Alan screw in the back side of the clamp.

  • Page 9: The Maintenance Of The Machine

    C. THE MAINTENANCE OF THE MACHINE. C1. Cleaning the string clamp of the tension unit (fig. 20). * Lift the lever so that the string clamp opens and pull the pin out of the upper jaw (2). * Pull the upper jaw off the pull rod and clean the surfaces of the string clamp with white spirit. C2.

  • Page 10: The Overhaul Of A Stringway Clamp

    * Tension the string again and check if the mark ends in the right position. D. OVERHAUL OF A STRINGWAY CLAMP. After extensive use the clamps of the Stringway machines can be overhauled quite easily. Figure 1 shows the parts of the clamp.
  • Page 11 For easy up and down sliding of the clamp it is advised to insert a thick layer of grease into the hollow that clamps the clamp on the pin of the sliding system. We wish you much pleasure with your MS200 stringing machine. --------------------...
