Summary of Contents for Trac Vac 1060

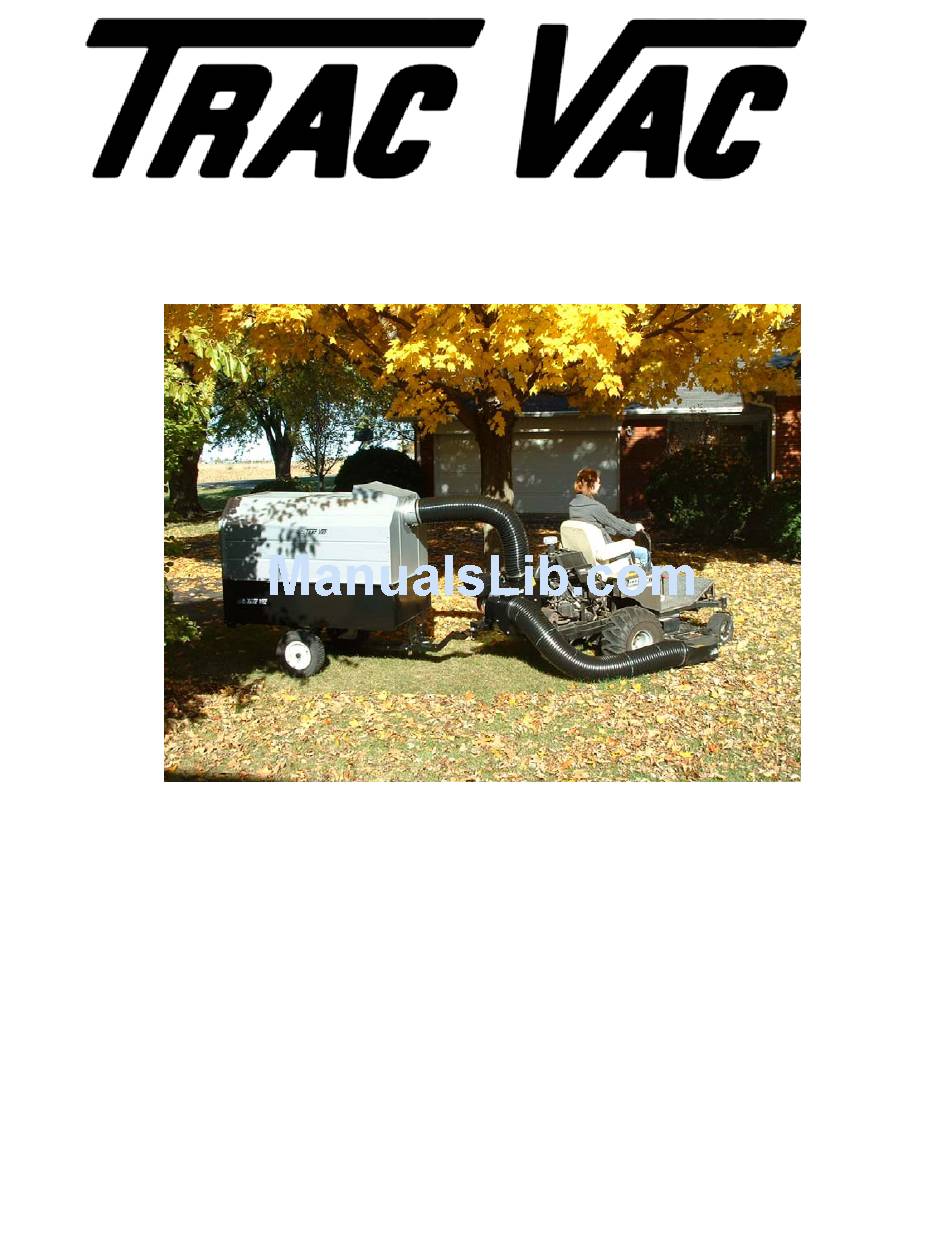

- Page 1 Model 1060 Operating and Assembly Manual Palmor Products Inc. 5225 Serum Plant Road Thorntown, IN 46071 3/31/2015...
-
Page 2: Safety Rules
SAFETY RULES Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when using power equipment. This symbol means Attention!!!!! It is used to point out safety precautions. ▪... - Page 3 Trac-Vac Model 1060 Drawbar Kit Part No. 10620 6-8-05...
- Page 4 Key Part No. Description 10602 Frame, RH 10605 Extension, Drawbar 10606 Drawbar 58067 Hitch Plate (comes w/ cart) 58061 Cart Latch, 580 20122 Engine, 11 HP B&S Pull Start 18113 Engine, 11 HP Electric Start 52026 Engine, 12 HP LCT (414 CC) 86513 Muffler Deflector 52047...
- Page 5 Model 348/368L Cart Covers Model 280/348L Cart Cover Model 280/368L Cart Cover Key Part No. Description Part No. Description Side Panel Side Panel 28047 28059 Front Panel Front Panel 28030 28035 Tailgate Tailgate 28236 28238 Deflector Deflector 28232 28235 28242 Front Screen Front Screen 28240...
- Page 6 Model 280 Cart Cover Assembly Instructions NOTE: Do not tighten any bolts until the end of construction. Place front on sides with flanges on Place side panels on end with decal Place screen without latch, (front outside . Start corner bolts in sides outward and about a foot apart at screen), on top of rear screen and top.
- Page 7 280/368L Latch Bracket Installation 1. Remove whizlock nut shown in illustration (Fig. 1) 2. Place latch bracket over bolt and replace whizlock nut. 3. Mark and drill Ø9/32" hole for the opposite end of latch bracket. (Fig. 2) 4. Attach latch bracket with 1/4-20 trusshead bolt & whizlock nut provided.
-
Page 8: Before Each Use
MAINTENANCE DANGER: The Trac-Vac was built to be operated according to the rules for safe operation in this manual. Carelessness or error on the part of the operator can result in serious injury. CAUTION!!!! This unit is capable of amputating fingers or hands and throwing objects. Failure to comply with SPINNING BLADE the safety instructions could result in serious injury or death. - Page 9 Exhaust Hose Installation 90° or under CORRECT INCORRECT For proper hose attachment, try to keep the hose level or below where it connects to the cart. Trim the hose if necessary. NOTES...
- Page 10 5. When storing a unit with Rubbermaid® containers, remove containers, remove clevis pin from top support, and rotate top around to completely open. TRAC VAC WARRANTY POLICY Palmor Products, Inc. will repair or replace, free of charge, any part, or parts that are defective in material or workmanship or both for a period of one year residential use, and 90 day’s for...
