Spectracom TSync-PCIe User Manual

Time code processor with optional gnss receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

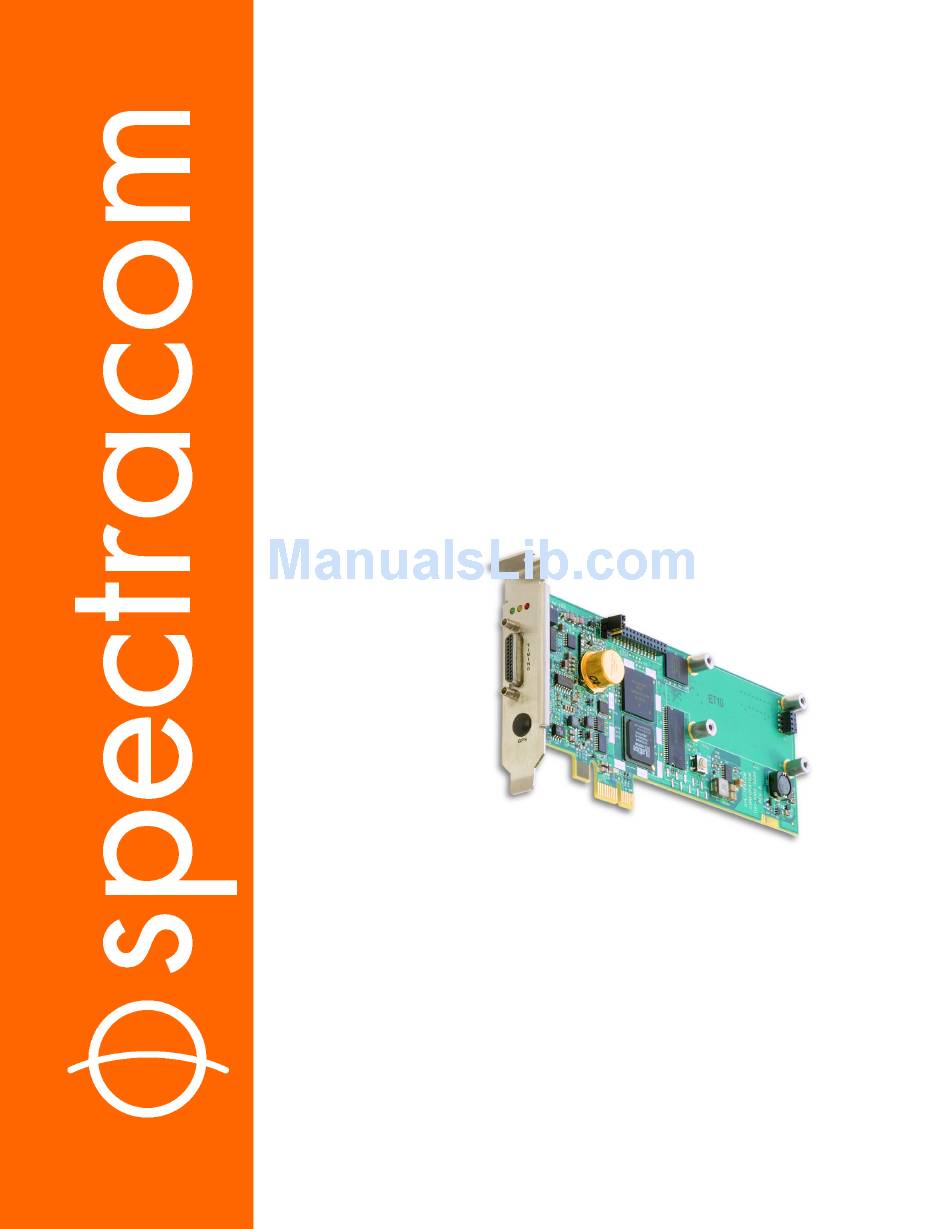

TSync-PCIe
TSync-PCIe TIME CODE PROCESSOR
with optional GNSS RECEIVER
User Manual
Part number: 1191-5000-0050
Revision: J
Date: May 20, 2014
www.spectracomcorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSync-PCIe and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spectracom TSync-PCIe

Summary of Contents for Spectracom TSync-PCIe

  • Page 1 TSync-PCIe TSync-PCIe TIME CODE PROCESSOR with optional GNSS RECEIVER User Manual Part number: 1191-5000-0050 Revision: J Date: May 20, 2014 www.spectracomcorp.com...
  • Page 3 Spectracom reserves the right to make changes to the product described in this document at any time and without notice. Any software that may be provided with the product described in this document is furnished under a license agreement or nondisclosure agreement.
  • Page 4 35/36, GPS/GNSS Simulators Period” and "Country Variances"). Country Variances Warranty Exceptions All Spectracom products sold in India have a This warranty shall not apply if the product is one year warranty. used contrary to the instructions in its manual or is otherwise subjected to misuse, abnormal...

  • Page 5: Warranty Procedure

    Customer must ard warranty. Contact Spectracom no notify Spectracom of a claim, with com later than the last year of the standard plete information regarding the claimed warranty for extended coverage.
  • Page 6 User Manual TSync-PCIe...

  • Page 7: Table Of Contents

    1.2 About Safety 1.2.1 Basic Responsibilities 1.2.2 Other Safety Tips 1.3 Compliance CHAPTER 2 Overview 2.1 General Information about GPS and GNSS 2.2 Spectracom GNSS Receiver 2.3 Unpacking 2.4 Product Inventory 2.5 Support CHAPTER 3 Specifications 3.1 General Specifications 3.2 PCIe Power 3.3 IRIG AM Input...
  • Page 8 6.1.1 GNSS Receivers as Input References 6.1.2 IRIG Inputs 6.1.3 External 1PPS Reference 6.1.4 Built-in References 6.2 Input Reference Monitor 6.3 Clock Subsystem 6.4 Output References 6.4.1 IRIG Output 6.4.2 10-MHz Sine Wave Output 6.4.3 1PPS Output • TABLE OF CONTENTS User Manual TSync-PCIe...
  • Page 9 6.9.1 Interrupt Descriptions CHAPTER 7 Options and Accessories 7.1 Options 7.2 Accessories 7.2.1 Adapter Cable, Timing Interface 7.2.2 Premium Breakout Cable 7.2.3 Basic Breakout Cable 7.2.4 GNSS Cables CHAPTER 8 Driver Support APPENDIX Appendix INDEX • TABLE OF CONTENTS User Manual TSync-PCIe...
  • Page 10 BLANK PAGE. • TABLE OF CONTENTS User Manual TSync-PCIe VIII...

  • Page 11: Safety And Compliance

    Safety and Compliance This Kapitel contains information that is relevant not only for your personal safety, but can also help prevent potential damage when working with the equipment. Also included in this chapter is inform ation about legal compliance, and pertinent technical standards to which this product adheres.

  • Page 12: Safety Symbols

    1.1  Safety Symbols Safety Symbols The following symbols are used in Spectracom technical documentation. Symbol Signal word Definition Potentially dangerous situation which may lead to personal DANGER! injury or death! Follow the instructions closely. Potential equipment damage or destruction! Follow the instruc CAUTION! tions closely.

  • Page 13: Other Safety Tips

    (for example vention Do not modify the equipment, and use only spare parts authorized by Spectracom. Always follow the instructions set out in this guide. Observe generally applicable legal and other local mandatory regulations.
  • Page 14 1.3  Compliance This product complies with the requirements of the Low Voltage Directive 2006/95/EC EMC Directive 2004/108/EC , and with the European Union Directive 2002/95/EC the Restriction of Hazardous Substances in Electrical and Electronic Equipment (RoHS). Electro-magnetic compliance This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 15: Overview

    Overview This overview provides general information about fundamental tech nical concepts pertaining to the TSync-PCIe board, as well as scope of delivery, and support information. This Chapter includes the following topics: 2.1 General Information about GPS and GNSS 2.2 Spectracom GNSS Receiver 2.3 Unpacking...

  • Page 16: General Information About Gps And Gnss

    This 10-MHz oscillator, central to the TSync-PCIe timing functions, uses the last known reference to increment (“freewheel”) in the absence of a timing input. The TSync-PCIe generates an IRIG AM and DCLS output pair, as well as 10-MHz sine wave and 1PPS outputs.

  • Page 17: Unpacking

    Unpack the equipment and inspect it for damage. If any equipment has been damaged in transit, or you experience any problems during installation and configuration of your Spec tracom product, please contact your closest Spectracom Customer Service Center (contact information see "Support" on the next page.) Electronic equipment is sensitive to Electrostatic Discharge (ESD).

  • Page 18: Support

    Customer service contact information Additional contact information can be found on the Spectracom website: http://www.spectracomcorp.com/Contact Should there be a need to return equipment to Spectracom, it must be NOTE – shipped in its original packing material. Save all packaging material for this pur pose.

  • Page 19: Specifications

    Specifications This Chapter includes the following topics: 3.1 General Specifications 3.2 PCIe Power 3.3 IRIG AM Input 3.4 IRIG DCLS Input 3.5 IRIG AM Output 3.6 IRIG DCLS Output 3.7 10-MHz Output 3.8 External 1PPS Input 3.9 1PPS Output 3.10 GPIO Inputs 3.11 GPIO Outputs 3.12 GNSS Receiver Specifications 3.12.1 RF Connector, Internal GNSS Receiver...

  • Page 20: General Specifications

    3.1  General Specifications General Specifications PCIe Power +3.3 V ±5%, 0.7 A typical +12 V ±8%, 0.2 A typical IRIG AM Input IRIG AM input at timing interface connector Accepts IRIG Formats A, B, G; NASA36; IEEE 1344 Amplitude: 500 mV to 10 V Modulation ratio: 2:1 minimum, 6:1 maximum Input impedance: 10k-ohm minimum...

  • Page 21: Irig Dcls Output

    3.6  IRIG DCLS Output Amplitude: 0.5 V to 6 V into 50 ohms, user settable 1 V to 12 V into > 600 ohms Output impedance: 50 ohm nominal Output load: 50 ohm minimum Modulation ratio: 3:1 nominal Accuracy: ±2 to 200 microseconds (IRIG-format dependent) IRIG DCLS Output IRIG DCLS output at timing interface connector Outputs formats A, B, E, G;...

  • Page 22: External 1Pps Input

    3.8  External 1PPS Input TCXO OCXO @1 Hz — –85 @10 Hz — –113 @100 Hz –110 –120 @1 KHz –135 –140 @10 KHz –140 –150 Signal wave form & levels: +13 dBm into 50 ohm, ±3 dB Table 3-1: 10-MHz output specifications External 1PPS Input External 1PPS reference input to timing connector rising edge falling edge active...

  • Page 23: Gpio Inputs

    3.10  GPIO Inputs TCXO OCXO After 4 hours 12 μs 3 μs After 24 hours 450 μs 100 μs Table 3-2: 1PPS output specifications 3.10 GPIO Inputs GPIO inputs to timing connector 50 ns active pulse width minimum 50 ns minimum between pulses 0V to +5.5 V input range, +0.8 V , +2.0 V Input impedance <150 pF capacitive...

  • Page 24: 3.12.1 Rf Connector, Internal Gnss Receiver

    3.13 External GNSS Receiver Accuracy horizontal position: <6 meters (50%) <9 meters (90%) Accuracy altitude position: <11 meters (50%) <18 meters (90%) 3.12.1 RF Connector, Internal GNSS Receiver The internal GNSS RF connector supports the RF connection between the internal GNSS receiver and an external L1 antenna. It consists of a female SMA connector. A short male SMA to female N cable made from RG-316 coax is provided to connect to the antenna RF cable.

  • Page 25: 3.13.4 Electrical Characteristics, Receiver Power

    3.14  Environmental Specifications 3.13.4 Electrical Characteristics, Receiver Power 50 mA @ 12 V provided to power antenna 3.14 Environmental Specifications Temperature: Operating: –40°C to 75°C (–40°F to 167°F) Storage: –40°C to 85°C (-–0°F to 185°F) Humidity: Operating and storage: 5% to 95% RH, non-condensing Altitude: Operating: Up to 10,000 feet Storage: Supports commercial shipping altitudes CHAPTER...
  • Page 26 3.14  Environmental Specifications BLANK PAGE. CHAPTER • Instruction Manual XYZ Rev. R...

  • Page 27: Pinouts

    Pinouts This Chapter includes the following topics: 4.1 Timing Connector Pinout 4.2 External GNSS Connector Pinout CHAPTER • Instruction Manual XYZ...

  • Page 28: Timing Connector Pinout

    4.1  Timing Connector Pinout The illustration below shows the functional elements of the TSync-PCIe card: Figure 4-1: TSync-PCIe board The timing interface connector supports all of the input and output references, and GPIO. It con sists of a 25-pin Micro D-sub plug.

  • Page 29: External Gnss Connector Pinout

    For additional information refer to "Accessories" on page 38. External GNSS Connector Pinout If your TSync-PCIe card is configured for an external GNSS receiver, a Mini-DIN-8 connector is used for signal transmission. The provided adapter cable (see illustration below) connects the cable of the external receiver with the GNSS connector of the TSync-PCIe card.

  • Page 30: Table 4-2: Adapter Pinout, Ext. Gnss Receiver

    4.2  External GNSS Connector Pinout Signal END "A" END "B" 1PPS + 1PPS – UP + UP – DOWN + DOWN – SHIELD SHELL SHELL Table 4-2: Adapter pinout, ext. GNSS receiver CHAPTER • Instruction Manual XYZ Rev. R...

  • Page 31: Installation

    Installation This Chapter includes the following topics: 5.1 GNSS Antenna 5.2 Changing the Board Bracket 5.3 Status LEDs CHAPTER • Instruction Manual XYZ...

  • Page 32: Gnss Antenna

    Mount the antenna at the desired location. Connect the supplied cable to the antenna. Take appropriate lightning precautions as necessary. Spectracom recommends applying an appropriate silicon grease to the NOTE – cable connection at the GNSS antenna in order to protect the connection from moisture.
  • Page 33 5.2  Changing the Board Bracket The TSync-PCIe board is shipped with the 1/2 height backplane pre-installed. Follow the pro cedure outlined below to install a full height backplane, if so required. Figure 5-1: Changing the board bracket CHAPTER • Instruction Manual XYZ Rev. R...

  • Page 34: Status Leds

    Tsync-PCIe board. Using the 1/8-inch nut driver, remove the two jack screws from the 25-pin connector. The half-height bracket can now be removed from the TSync-PCIe board. Install the full-height bracket. Replace the jack screws on the 25-pin connector.

  • Page 35: Table 5-1: Led Flash Patterns

    5.3  Status LEDs State Sync Alarm Holdover 1PPS Manual Holdover – No Longer Synchronized – Free Run Blink Blink – • Fault Code Code Code Code Code Table 5-1: LED flash patterns • The code indicates the fault condition. It blinks the number of times indicated with a 2- second pause between each set.
  • Page 36 5.3  Status LEDs BLANK PAGE. CHAPTER • Instruction Manual XYZ Rev. R...

  • Page 37: Theory Of Operation

    Theory of Operation The TSync-PCIe board's architecture essentially consists of input ref erences, which are used as sources of 1PPS synchronization and/or time-of-day (TOD) and date information, and for disciplining an internal oscillator. The TSync-PCIe takes the synchronous clock, a 1PPS and time-of-day (TOD) and date to create output references that act as time references for other devices.

  • Page 38: Input References

    IRIG formats can be amplitude modulated, or they can be digital signals at various car rier and clock rates. The TSync-PCIe architecture supports IRIG inputs with Formats A, B, and G. It supports inputs and outputs using modulation frequency values of pulse width code, also known as DCLS (0), and sine wave amplitude modulated coding.

  • Page 39: Table 6-1: Irig Input Reference Formats

    Table 6-1: IRIG Input Reference Formats The TSync-PCIe supports the IRIG B variant NASA36 as an input format, as well as the IEEE C37.118-2005 (which is an IRIG B format with extensions as an input format). The IEEE C37.118-2005 specification supersedes IEEE 1344-1996. The TSync-PCIe is backward com patible to IEEE 1344-1996 by compliance with IEEE C37.118-2005.

  • Page 40: External 1Pps Reference

    The TSync-PCIe board provides built-in references that support specialized user applications. 6.1.4.1 Host Reference The TSync-PCIe can be set to use the host as the source of date and time information, while another input reference is required to serve as the source of frequency input. This allows the host to provide time to the board while providing a means to determine and indicate whether that time is valid for synchronization.

  • Page 41: Clock Subsystem

    Clock Subsystem The clock subsystem is the heart of the TSync-PCIe timing architecture. Time is maintained in the board’s hardware and incremented in 5- nsec units, while sub- second information is tracked. Time, from seconds through years, is incremented based on the internal 1PPS derived from the selected input reference.

  • Page 42: Output References

    6.4.1 IRIG Output The TSync-PCIe board provides one IRIG AM and DCLS pair output. The IRIG output is a rolling count of the initial value of the system time until synchronized. The board drives the IRIG AM out put from an associated IRIG DCLS output and outputs the exact same format (except for the AM modulation).

  • Page 43: 10-Mhz Sine Wave Output

    Table 6-3: IRIG Output Reference Formats The TSync-PCIe allows the user to select the IRIG B variant NASA36 as an IRIG output. It also supports user-selection of IEEE C37.118-2005 as an IRIG output. This is an IRIG B format with extensions.

  • Page 44: General Purpose Input/Output

    6.5  General Purpose Input/Output General Purpose Input/Output The TSync-PCIe board has four general purpose input (GPIO) pins and four general purpose output (GPIO) pins. The General I/O subsystem provides a mechanism to generate or time stamp external events, to match times and generate a signal, to create Heartbeat pulses, or to create square wave clock signals synchronous to the internal timing system clock and to the 1PPS signal from the input reference.

  • Page 45: Leds

    Interrupts The host bus has one interrupt line available from the TSync-PCIe. All interrupt sources destined for the host bus are multiplexed on the single interrupt line. All interrupts are masked on startup, but can be unmasked using the host bus interrupt mask register.
  • Page 46 6.9  Interrupts 6.9.1.4 Local/μC Bus FIFO Overflow This interrupt is driven when the FIFO from the local bus to the microcontroller bus is over flowed. It is based on the rising edge of the FIFO’s overflow flag. 6.9.1.5 μC/local bus FIFO Data Available This interrupt is driven when the FIFO from the microcontroller bus to the local bus is no longer empty.

  • Page 47: Options And Accessories

    Options and Accessories This Chapter includes the following topics: 7.1 Options 7.2 Accessories 7.2.1 Adapter Cable, Timing Interface 7.2.2 Premium Breakout Cable 7.2.3 Basic Breakout Cable 7.2.4 GNSS Cables CHAPTER • Instruction Manual XYZ...

  • Page 48: Options

    7.1 Options Options A TCXO oscillator is standard. An available OCXO oscillator may be purchased as an option. Accessories 7.2.1 Adapter Cable, Timing Interface The included 6"-adapter cable is used to connect the breakout cable to the 25-pin timing inter face connector.

  • Page 49: Premium Breakout Cable

    7.2  Accessories END "A" END "B" PIN-8 PIN-8 PIN-9 PIN-9 PIN-10 PIN-10 PIN-11 PIN-11 PIN-12 PIN-12 PIN-13 PIN-13 PIN-14 PIN-14 PIN-15 PIN-15 PIN-16 PIN-16 PIN-17 PIN-17 PIN-18 PIN-18 PIN-19 PIN-19 PIN-20 PIN-20 PIN-21 PIN-21 PIN-22 PIN-22 PIN-23 PIN-23 PIN-24 PIN-24 PIN-25 PIN-25 NO CONNECT...
  • Page 50 7.2  Accessories Figure 7-2: Breakout cable, premium version Signal Signal P1—Timing Connector GPIO Output 2 GPIO Output 3 Ground Ground GPIO Output 0 GPIO Output 1 GPIO Input 2 GPIO Input 3 Ground Ground GPIO Input 0 GPIO Input 1 External 1PPS Input 1PPS Output Ground...

  • Page 51: Basic Breakout Cable

    7.2  Accessories Signal Signal P3—10MHz Output (BNC Female) 10MHz Output Ground P4—1PPS Output (BNC Female) 1PPS Output Ground P5—IRIG AM Input (BNC Female) IRIG AM Input + IRIG AM Input - P6—IRIG AM Output (BNC Female) IRIG AM Output Ground P7—1PPS Input (BNC Female) External 1PPS Input Ground...
  • Page 52 7.2  Accessories Figure 7-3: Breakout cable, basic version Signal Signal P1—Timing Connector GPIO Output 0 IRIG AM Input - Ground GPIO Output 1 GPIO Input 0 Ground External 1PPS Input Ground Ground IRIG DCLS Input - IRIG AM Output IRIG DCLS Input + IRIG AM Input + P2—Digital I/O (DB-9 Female) Ground...

  • Page 53: Gnss Cables

    GNSS Cables Contact Spectracom for more information on GNSS cable length options. If your TSync-PCIe board is configured to be operated with an external GNSS receiver, it will have shipped with a GNSS receiver adapter cable. Additional information see under "External GNSS Connector Pinout"...
  • Page 54 7.2  Accessories BLANK PAGE. CHAPTER • Instruction Manual XYZ Rev. R...

  • Page 55: Driver Support

    TSync- PCIe, as well as specific drivers and supporting doc umentation. Please contact your sales representative for more information about Spectracom’s bus-level timing board driver support for a variety of www.spec operating platforms. You may also visit our website at tracomcorp.com...
  • Page 56 BLANK PAGE. CHAPTER • Instruction Manual XYZ Rev. R...

  • Page 57: Appendix

    Appendix This appendix comprises lists of figures and tables, as well as release information specific to this User Manual. • APPENDIX Instruction Manual XYZ...
  • Page 58 Figure 5-1: Changing the board bracket Figure 7-1: Adapter cable Figure 7-2: Breakout cable, premium version Figure 7-3: Breakout cable, basic version Document Revision History Revision Description Date 2271 First iteration of this Spectracom product documentation 2299 Added external GPS receiver board Instruction Manual XYZ...
  • Page 59 APPENDIX Revision Description Date 2341 Changes to bring manual current to soft ware rev. 1.4.0: Changed GPI/O Output Squarewave Output specification. Revised basic breakout cable pinout. 2498 Updated for PTP, additional maintenance. Sept. 2010 2570 Minor corrections/maintenance to coincide January 2011 with TSync driver version 2.41 2702 Updated address information...
  • Page 60 BLANK PAGE. Instruction Manual XYZ...

  • Page 61: Index

    GPIO 10-MHz 11, 18, 1PPS 12, 18, Input references Inputs, Outputs Programmable 6, Interrupts Breakout Cable IRIG Basic Inputs Premium Outputs II, 6, 10, 18, 28, Clock Compliance LEDs Driver support Pinout Timing connector Emissions Electro-magnetic compliance Specifications GNSS 1, II, 6, 11, 19, 22, 28, •...
