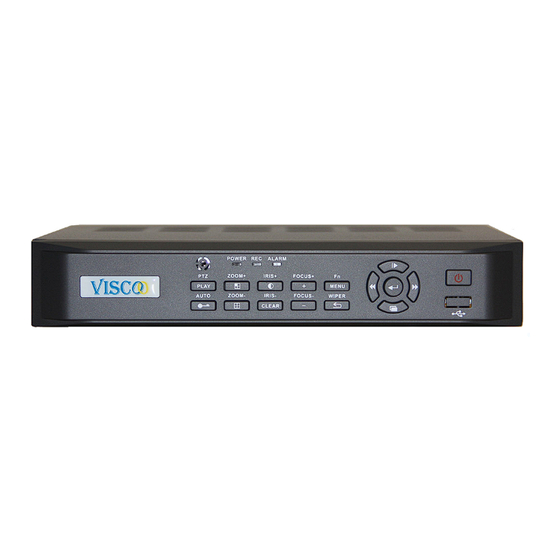

Visco VIS304 User Manual

Visco VIS304 User Manual

Vis-xxxx series, dvr7000series

Advertisement

English User Manual
Viscoo Enterprises Ltd.
October 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIS304 and is the answer not in the manual?

Questions and answers

Sano Adam
April 10, 2025

What are default password?

1 comments:
Mr. Anderson
April 10, 2025

The default password for the Visco VIS304 is “888888”.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Visco VIS304

  • Page 1 English User Manual Viscoo Enterprises Ltd. October 2011...
  • Page 2: Preface

    Preface Thank you for selecting our products. We will try our best to offer the best service for you. This manual applies to the VIS-XXXX Series, and we take the VIS316D as a sample in this manual. This manual applies to DVR7000series, and we take 16 channel DVR (DVR7016LH) as a sample. In this series, different product models configuration will have a little difference, and their might be differences between product functionality and operation.
  • Page 3: Table Of Contents

    List of content Preface ..............................2 1. Introduction ............................5 1.1 Summary............................5 1.2 Product introduction ........................5 2. Installation ............................7 2.1 Installation surroundings ....................... 7 2.1.1 Details of installing the HDD ....................7 2.2. Packet controle ..........................7 3.
  • Page 4 4.4.3 Sequence Cruise ........................18 4.5 Alarm settings ..........................18 4.5.1 Motion detection ........................18 4.5.2 Alarm Sensor setup ......................19 4.5.3 Alarm Output ........................20 4.5.4 Email Setup ........................... 20 4.6 COM Setup........................... 21 4.6.1 COM ............................21 4.6.2 PTZ ............................21 4.7 Network settings .........................
  • Page 5: Introduction

    DVR file system. It won’ t create the disk defragment in a long run; Logical stream media operation, fast response; Add the key information verify protection, avoid the key area of the HDD damage. This DVR system supports USB2.0 high-speed backup, mouse ,keyboard operation ,etc. 1.2 Product introduction Model VIS304 VIS308 VIS316 Housing Operation...
  • Page 6 E-Mail Alarm Support Mobile phone Support (Windows Mobile, Symbian, iPhone, BlackBerry, Android) Dual Stream Support 1 SATA Interface (Support Max. 2TB) Backup USB 2.0 / Remote Backup Network RJ45 10M/100M Ethernet Interface I/O Interface USB for mouse Other Functions PPPoE / DHCP / DDNS / Network Time Protocol / BNC Sequence Power Supply 220±30% V, 50±3% Hz / 110±20% V, 60±3% Hz Power...
  • Page 7: Installation

    Other functions Watchdog / PPPoE / DHCP / DDNS / Netwerk Time Protocol / BNC Sequence Power 220±30% V, 50±3% Hz / 110±20% V, 60±3% Hz Power useage 8W (Without HDD) 10W (Without HDD) 10W (Without HDD) Operating Temp. -10℃ ~ +55℃ 10% ~...
  • Page 8: Usb Backup Interface

    Video in: connect your camera’s here. Video out: connect your outgoing cables here for monitor or other connections. Audio in: connect your audio cable here if you use audio. Audio uit: connect your outgoing audio here for recording or other use. VGA: connect your VGA monitor here.
  • Page 9: The Frontpanel

    3.5 Het voorpaneel S.N. Name Function Power Turn device on-off 2 Function buttons. Menu Main menu recorder setup Playback(PTZ) 1. Press to gain access of the recording list, press again to cancel. 2. If you press long you will ge tinto the PTZ mode. Lock (auto) 1.
  • Page 10: Mouse Control

    3. When in PTZ mode it means “left”. Fast forward 1. Moving the cursor. 2. Fast forward. 3. When in PTZ mode it means `right`. Ok/Play/Pauze 1. Select. 2. Play and pause. 3.6 Mouse control You can also use the Mouse to control the device. This has many advantages and operating is a lot faster and easier.
  • Page 11: Menu Description

    Betekenis toetsen: 1.Power 14.9/WXYZ 27. Menu 2.Sound off 15. Call 28. VGA/TV 3.+, focus + 16. Log in/Log Off 29. F1 4. -, Focus - 17. Information 30. PTZ 5. rewind 18. Backup 31. Server Index 6. forward 19. Image / iris + 32.
  • Page 12 General settings General settings 1. Dispay contrast settings. 2. Video format ( PAL, NTSC). 3. Recording overwrite. 4. Automatic close. 5. Resolution. 6. Language selection. Time settings Time and date settings. Recording settings Schema opname Settings for time tables of recordings. Recording parameters 1.
  • Page 13: Operation Of The Unit

    baudrate, date bit, stop bit and parity bit PTZ Setup PTZ Protocol, speed en adress code System Users management 1. Adding and removing of users. management 2. Changing the different settings for the users. Back up settings Supported backup HDD Management Shows state of all HDD in device.
  • Page 14: Log Into The System

    4.1.2 login in to the system When the system is logged off “ ”, push the login/lock button on the remote control orthe right Mouse click. Then the next screen will come up asking for a user and a password to contineu: Enter uour username and password.
  • Page 15: Time Setup

    Supports VGA output resolution: 800*600, 1024*768, 1280*1024, 1440*900 these are adjustable.  Display contrast This option provides you to set the transparency of the menu. Number 5 gives you a non transparent menu, number 1 gives you the most transparent menu. 4.2.2 Time setup ...
  • Page 16: Manual Recording

    CBR: The compression bit rate remains constant even when the amount of light changes. The characteristics of CBR is that you always have good compressed images and that you can estimate better use of the disk space and network bandwith. ...
  • Page 17: Output Settings

    4.4 Output settings 4.4.1 Screen settings After logging in one chooses “main menu” and then”output setup” -> “display setup”, use the screen as follows: These settings are used to channel parameters such as name, mask video, video settings, v=channel name, position and OSD settings. 1.
  • Page 18: Preview Of The Digital Zoom

    (1) Select the parameters you want to change, then press the “+”,”- “ button on the remote. (2) Left Mouse click “+”,”-“ to change the settings, the “+”,”-“ on the interface, increase or decrease the value. (3) Video input changes Video input changes: change the black edges of each channel.
  • Page 19: Alarm Sensor Setup

    (3) Set the time schedule (The specific settings are found under the heading schedule recording (4) Select sensitivity: The sensitivity for motion detection is adjustable and the sensitivity is higher in proportion as they increase the value of 1 to 5. When the motion of the current channel is removed, the system will jump in alarm and start recording.
  • Page 20: Alarm Output

    In the "COM Setup" interface you can set the communication type, COM device and the baud rate. In the PTZ setup interface can be the protocol and address of the PTZ setup. Switch to the channel you want to set the preset points.
  • Page 21: Com Setup

    4.6 COM Setup After logging in, it goes through "Main Menu" to "COM Setup", the interface looks like this: Here you can change the settings to other serial devices to pair with this recorder. The recorder has two options for serial connections, the RS485 and RX. Both serial ports are full duplex terminals that can receive both data and send.
  • Page 22: Network Settings

     Multi-sequence preset positions (Note: Only activate the system log is off) (1) Sequence interval: 0 to 99 seconds. (2) No Preset.: Each channel can have up to 16 preset positions. (3) Range of the preset numbers. :001-255, means 255 closed.
  • Page 23: Pppoe

    enter the username and password that you created on the website. Save this data and then you must see the DDNS information after a few minutes. 4.7.3 PPPOE Select "Network Setup" tab and click the "PPPOE", then you will see the following screen: PPPOE is one of the ways to connect to a WAN network.
  • Page 24: System Management

     When you select an image file, the start, end are on the bottom of the display file in the playback interface.  Move the cursor to the file you want using your remote, press "confirm" to playback the file to start.
  • Page 25: Backup Control

    looks like this: 4.9.2 Backup control There are three ways to backup: 1. Backup file to a remote computer over the network. 2. USB Disk backup, the USB drive is FAT32 and larger than 512Mb. 3. Using a CD / DVD burner. 1.file backup De backup interface looks like this: The backup function allows the recorded files of 26 different files of different channels at different...
  • Page 26: Back To Default Settings

    Format : Select the number of the hard drive, then click the "format " button and press "OK" to confirm. When you have confirmed it there will be the message on your screen that the hard disk is formatted. 4.9.4 restore to factory settings The recorder to factory settings is done with the "System Management"...
  • Page 27: Online Status

    the alarm status Information screen looks like this: Here is the alarm type that is shown for each individual channel: sensor alarm (red color), motion alarm (yellow) and video loss alarm (blue color). You can delete alarms by pressing the "CLEAR" button on the front of your recorder or remote control or click the "Clear Alarm"...
  • Page 28: Usb Upgrade

     Do not make changes to the firmware, not the name of the firmware, otherwise we take no responsibility for the product and further upgrades are going to be charged. Make sure that when you update with the PC client, that the above procedure has been followed correctly.
  • Page 29: Wan Operation Instructions

    3. Refere to “Client manual” for more information. 2. WAN controle instructions  If a fixed WAN IP address is what leads to the recorder, then you can directly connect through the WAN network settings after you have set the recorder. ...
  • Page 30 not, you should check the batteries and see if there is no damage to the remote. 2. Check if the front panel is locked, press login / lock on your remote control. 3. Verify if the host software has blocked the recorder. Why does the system stop at a certain time? When the recorder stops at a specific time, almost every day, then you must look after your electrical system.
  • Page 31 username and password in the client 2. Open or close the multicast function in the recorder. It may manager software and I am successfully be that multicast is not supported in your network. logged in, but I still do not see images from 3.
  • Page 32 Why shakeing images during playback and Check the screen settings for your system PAL/NTSC for live view? Europe its PAL. Problems related to the alarm PTZ control How do I connect an alarm sensor on the The system supports various sensors such as PIR sensors, system? smoke detectors etc..

This manual is also suitable for:

Vis308dVis308Vis316d vis324dVis316
