Summary of Contents for Tuncmatik POWERNOTE MOBILE MICRO 90W

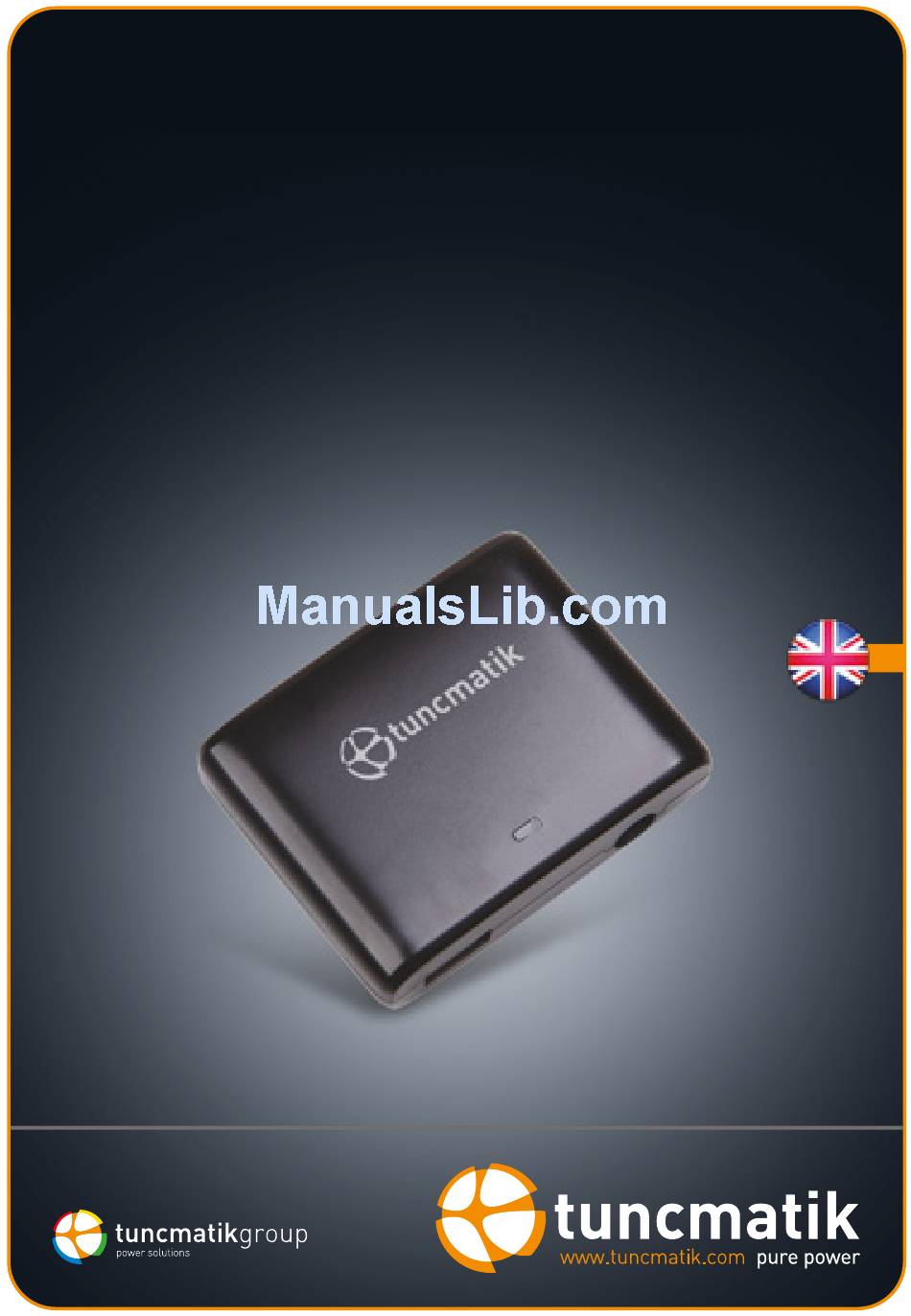

- Page 1 POWERNOTE MOBILE MICRO 90W ADAPTOR USER MANUAL...
- Page 2 Thank you for purchasing our products! Now enjoy your trip with the world’s smallest universal DC adaptor with 90W power for notebooks and USB chargeable devices. Since it’s very small, so it can be easily and conveniently carried with great convenience and it can power your laptop and devices in cars.
- Page 3 SMART PHONES TABLETS DIGITAL CAMERAS MP3-MP4 PLAYERS 1. Body 2. Car charging cable 3. Laptop prolong DC cable 4. Mobile phone USB cable (not include) 5. Laptop DC tip (8 pcs) The photos just for reference， the products kindly based on packaging sample.
- Page 4 Operation Instruction Check the DC voltage of your notebook. Method one: you can check from the back of your notebook. MODEL NO: CL32 DC RATING: 19V 3.42A Voltage=19 Volt Method two: you can look at the label of your notebook adaptor. INPUT: 100-240V~1.5A (1.5A) 50-60Hz OUTPUT: 19V 3.42A (3.42A)
- Page 5 Charge or supply power for laptops and smart phones Insert the car plug to the cigar lighter socket, then connect the other end to the input port of your car adaptor. Select the right laptop DC tip or mobile phone USB cable and connect it to the DC output or USB output of car adaptor, then it can charge or supply power for your laptops and smart phones.
- Page 6 Notebook DC Connectors Specification: Output Voltage Connectors Replacement Voltage Range Spec. ASUS *S56CM-XX 19V/3.42A, *S46CM-WX 19V/3.42A, *S300E 19V/3.42A, X55A 19V/3.42A, A55VD(A55VJ) 19V/4.74A, K56CA (N07) 18.6-20.3V 5.5*2.5*10.7 mm 19V/4.74A, TOSHIBA *Satellite 19V/2.37A, Satellite (L855) 19V/4.74A LENOVO *U310 20V/2A, *Ideapad 20V/2A, G585 20V/3.25A, Z580 20V/4.5A, Z500 20V/4.5A, G575 20V/3.25A SONY *Vaio SVT 19.5V/2A, Vaio SVE (112M1EB) 19.5V/2A, (N09)
-
Page 7: Important Safety Information
Please always follow all the warnings and instructions closely. • Your adaptor should be used with cables and tips approved by TUNCMATIK only. Using your adaptor with non-approved cables and tips may result in serious or fatal injury, and/or property damage. - Page 8 POWERNOTE MOBILE MICRO 90W...
- Page 9 POWERNOTE MOBILE MICRO 90W ADAPTOR ISO 9001 ISO 14001 OHSAS 18001 R e g i s t e r e d R e g i s t e r e d R e g i s t e r e d...
