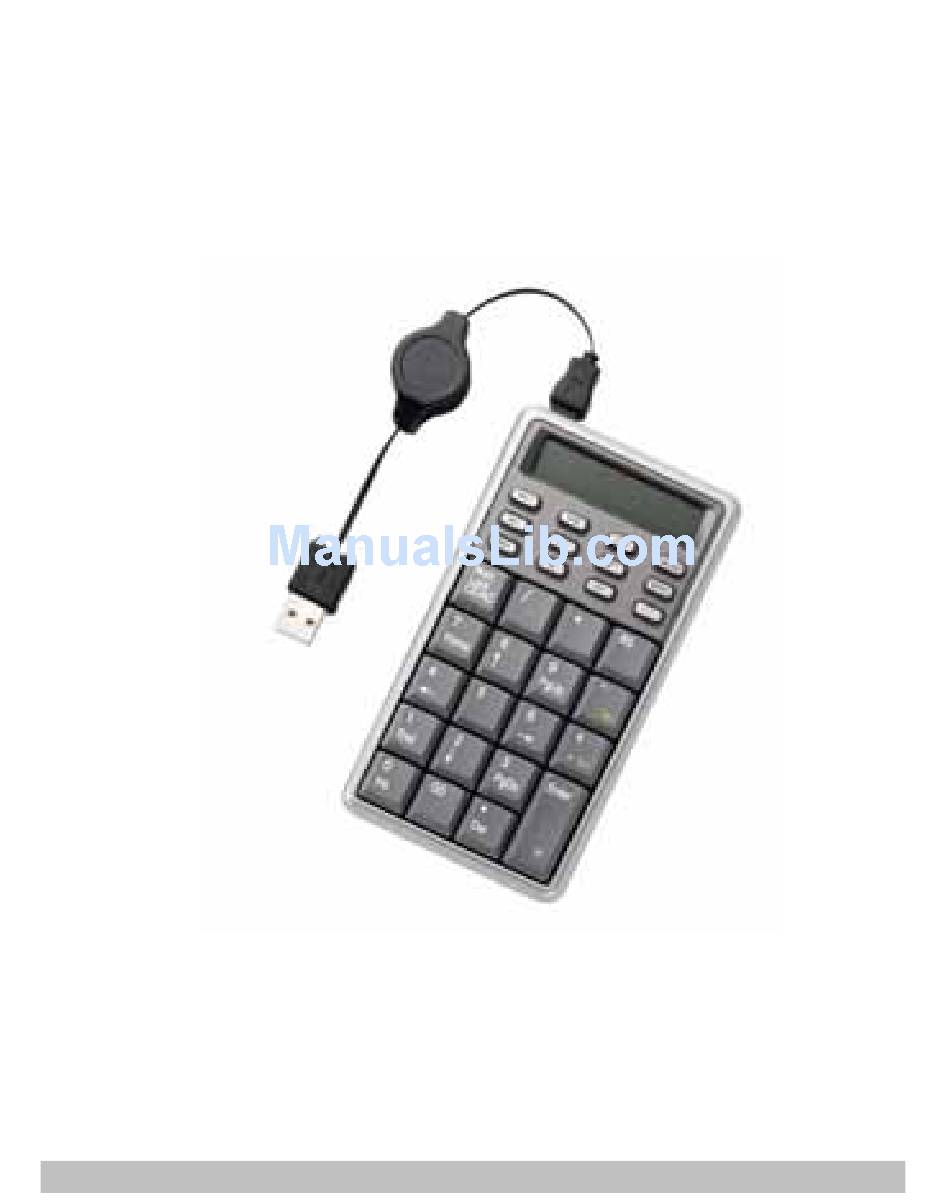

- Page 1 Calculator Mobile Mini Keypad User’s Manual Version: 1.0 2003/07 ID NO: PAKL-131C0501-00...
-
Page 2: System Requirements
Introduction Congratulations on your purchase of the CKP-115 or CKP-115H. This new keypad combines special Tax and Currency rate calculating functions. It makes the calculation process more easily and more convenient. System Requirements ® ® Microsoft Windows 98/Me/2000/XP compatible One USB v. 1.1 or 2.0 Compliant Port Installation ®... - Page 3 Windows 2000/XP Operating System 1. Plug the USB connector to your PC. 2. The Found New Hardware Wizard appears and the OS will install the driver automatically. No other steps are necessary. You are now ready to begin using your keypad Using the Calculator/Keypad Turning the keypad Off and On To turn on the keypad, press the CE/AC key.
- Page 4 I. First push, as MR key, transfers the contents of the memory register into the display register. II. Second push, as MC key, clears the memory. Calculator mode: Specifies the number of decimal places for rounding. Keypad mode: As the Tab function. Switches the sign of the displayed value between positive (+) and negative (-).
- Page 5 the Fn key with Tax– or Tax+ key; the calculation result will be changed. Price-less-tax calculation. Tax – Price-plus-tax calculation. Tax + When Num Off, the input symbol will be “=” (CKP-115H). Special Function: This new keypad has no synchronized problem; users can use the keypad and inputting characters from a notebook at the same time.
-
Page 6: About The Display
About the Display The display shows the number you input, calculation results, and various indicators showing the status of the calculator. -MINUS Negative value indicator MEMORY Independent memory indicator ERROR Error indicator ‘ 3-digit separator (apostrophe) CALC Indicate you are in calculator status Indicate you are in keypad status KEYPAD Grant total... - Page 7 monetary systems that require two decimal places. Two decimal places are not added in this mode if you press the DEL key while inputting a value, or for any operation other than addition and subtraction. Setting CUR Function CUR：Press CUR key for 1~1.5 sec, the “EURO” indicator on the LCD will start flashing.
- Page 8 key, then the calculate result will be 5.29. The formula is (180/34). Setting Tax Function: Press “%” key for 1~1.5 sec, the “TAX” indicator on the LCD will start flashing. Input your desire parameter then press “%” key again. The “TAX” indicator will disappear; it means the setting is accomplished.
- Page 9 Extendable cable Pull out the mini USB connector and the USB connector into two different directions as the graphic shows. And extend the cable to the desired length. Plug the mini USB connector into the keypad and plug the USB connector into your PC.
- Page 10 Specification of Calculator Mobile Mini Keypad 2 USB downstream ports; Bus power USB hub (CKP-115H) Operation Force 55±20gm Weight 100gm Total Travel 3.5±0.5gm Cable Length 750 ± 20(Black) mm Key Switches Membrane switch with tactile feedback Dimension: L×W×H 135×74×19.6mm Connector Power consumption DC 5 V ±...
- Page 11 If the problem was still unsolved, please contact the technical support. Technical support In an unlikely event that you encounter a problem with ORtek USB Keypad, please visit the web site www.ortek.com to contact our supporting group or E-mail to our technology support engineer information@ortek.com.tw.
