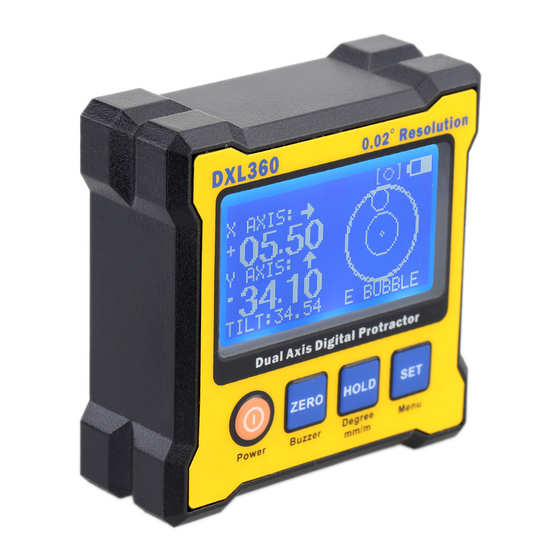

DXL360/S Digital Protractor
User Guide
Features:
1) DXL360S: High accuracy ± (0.08° + 1%), high resolution 0.01°
DXL360: ± (0.15° + 1%), resolution 0.02°
2) Laser Alignment
3) Dual and Single axis with user friendly LCD display angle
4) Rechargeable
5) V Shape metal case for easy to fit at the corner or pipe.
6) Magnetic base
7) Audible alarming at settable angle range
1
Advertisement
Table of Contents
Summary of Contents for Shenzhen DXL360
- Page 1 DXL360/S Digital Protractor User Guide Features: 1) DXL360S: High accuracy ± (0.08° + 1%), high resolution 0.01° DXL360: ± (0.15° + 1%), resolution 0.02° 2) Laser Alignment 3) Dual and Single axis with user friendly LCD display angle 4) Rechargeable 5) V Shape metal case for easy to fit at the corner or pipe.
- Page 2 Specifications DXL360S: ± (0.08° + 1%) Accuracy: DXL360: ± (0.15° + 1%) Single axis: 360°, Dual axis: ±40° Measuring range: DXL360S: 0.01° Resolution: DXL360: 0.02° <0.4 second Response time: 60dB @ 30cm Audio sound: 0 to 50°C Operating temperature: -10 to 60°C...
- Page 3 Button Functions Function Descriptions Button Normal Mode Set Mode ON/OF In normal operation, this button turns Serves as the the device ON/OFF. upward key Press and hold for 3 seconds to for option enable or disable backlight selection. HOLD When pressed, the current value will Serves as the downward be freezed, the unit icon...
- Page 4 displaced accordingly. The buzzer beep could be set at different accuracy level. Refer to section “Angle Alarming”. ZERO When pressed, the current reading is Serves as the set to zero; subsequent Set key. measurements are relative to this reading. The LCD will show icon to indicate the device is in zero mode.
- Page 5 LCD Icons Representations Battery status indication icons These icons indicate the battery level. There are 3 levels representing empty, half and full. When the In dual-axis mode, the LCD displays the direction of tilt graphically. The unit of scale is displayed below the graph with different scales.
- Page 6 Show this logo as relative value is showing. When the Zero button is pressed, the unit reset current angle to zero. Direction of tilt icons, show the tilt angle direction with respect to the unit bottom right hand corner. Dual-Axis Mode. Both the X and Y axis angle will be showed.
- Page 7 Single Axis Mode. Measure slope upto +-90 degree. The triangle icon indicates the direction of tilt with respect to the bottom right corner of the unit. Battery Charging It has a built in Lithium Ion rechargeable battery. A standard charger is supplied that the input voltage is 110V to 240V AC, 50/60Hz, and the output is 5V DC, 500mA.
- Page 8 The battery icon on the LCD blinks to indicate charging in process. Upon charging complete, the icon stops blinking. The charging time is approx. 3 hours. The unit could also be charged by connecting the USB cable to the unit and a computer’s USB port.
- Page 9 Relative and Absolute Mode Switching: Press and release the “ZERO” key to set the relative measurement zero point Press and release the “ZERO” key to cancel the relative zero point and back to absolute measurement mode. Hold Function Holding Mode: LCD Icon blinking: Holding function: Press and release the “HOLD”...
- Page 10 Or we can set to never sleep mode at below instruction. Power auto off setting: 1. Press and hold “ZERO” key and enter MENU mode 2. Select “POWER” by “ON/OFF” and “HOLD” key, press “ZERO” key to enter Power mode 3.
- Page 11 2. Select “FACTORY SET” by “ON/OFF” and “HOLD” key, press “ZERO” key to enter FACTORY SET mode 3. Scroll “YES” or “NO” by “ON/OFF” and “HOLD” key 4. Press “ZERO” key to confirm Angle Alarming Alarming Mode: LCD Icon: BUZZER >SINGLE : 0 0 .
- Page 12 SINGLE Vertical / Single axis mode alarming angle (Degree) DUAL.X Horizontal/ Dual axis mode X axis alarming angle (Degree) DUAL.Y Horizontal/ Dual axis mode Y axis alarming angle (Degree) RANGE The range (Degree)that will trigger the audible alarming For example: SINGLE. set to 20.00 RANGE set to 01.00 While the unit is in +19◌...
- Page 13 Calibration Calibrate the unit, once you found that there is accuracy drift on the unit. You can verify the accuracy at below step: Step 1 Step 2 At Step1, you measured X and Y value, X1 and Y1 At Step2, you measured X2 and Y2, in theory X1=-X2, Y1=-Y2. If the error is too large, you can enter calibration mode to eliminate the error...
- Page 14 Accuracy drift is causing by large ambient temperature change (5 to 10 Degree Celsius) or the unit has been dropped. Calibration Procedure: Step 1: Press and hold the “ZERO” key enter Menu mode. Select “Calibration” mode, press “ZERO”. Place the unit on a flat table (no need perfect level table) LCD display “CALIBRATE DUAL AXIS PRESS SET”, press set and buzzer will beep;...
- Page 15 Step 1 Step 2 Step 3: LCD display “CALIBRATE HORIZONTAL PRESS SET”. Place the unit horizontal like the picture “STEP 3” and then press Set, wait until the beep sound stop. Step 4: Then rotate the unit 180 degree at the same place. Press the “ZERO”...
- Page 16 Step 3 Step 4 Step 5: LCD display “CALIBRATE VERTICAL PRESS SET”, mention that the LCD in upper side, hold on a flat wall. And then press “ZERO” Key. Wait for the “Beep” sound stop. Step 6: Then rotate the unit 180 degree with the other side against the at the same place of wall (LCD in upper side).
- Page 17 selection menu. The calibration is done, by selecting “Back” to go back for normal operation Step 5 Step 6 Wall Wall...
