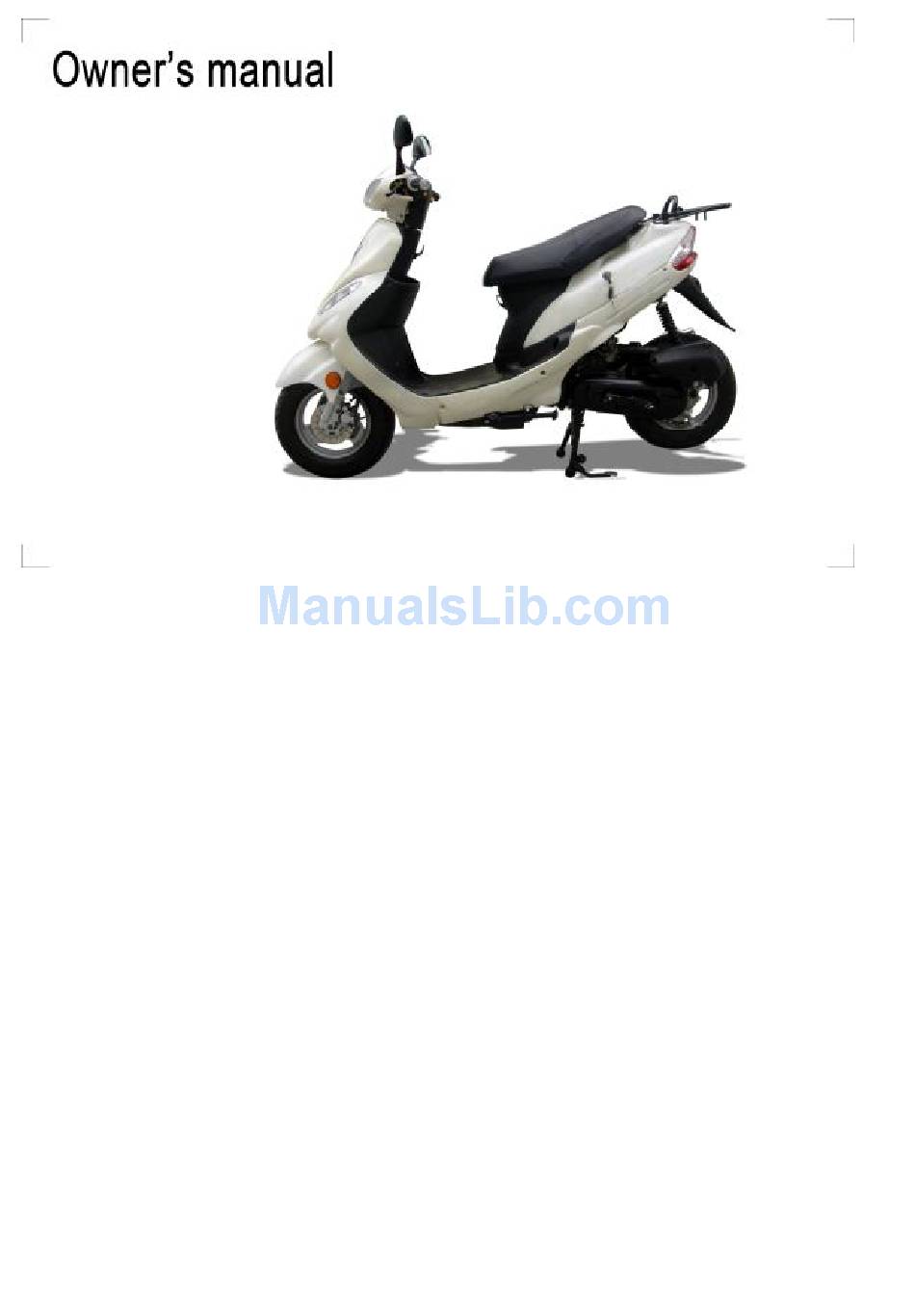

jonwa AA05F Owner's Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Congratulations on your purchase of AA05F .This mode is a fascinating

vehicle,

which can give you an surprising feeling of power and freedom. It is good

for

sporting and touring. It is convenient in use, and has elegant appearance

design,

international fashionable colour, With it you may have an enjoyment of

high-class

scooter while at economic price.

This manual will give you an understanding of the operation, inspection, and

basic

maintenance of this scooter. If you have any questions about the operation

maintenance of your scooter, please consult a dealer.

For the safe and efficient operation of your scooter, please read this manual

INTRODUCTION

IMPORTANT

Table of Contents

Need help?

Do you have a question about the AA05F and is the answer not in the manual?

Questions and answers

Summary of Contents for jonwa AA05F

Page 1 INTRODUCTION Congratulations on your purchase of AA05F .This mode is a fascinating vehicle, which can give you an surprising feeling of power and freedom. It is good sporting and touring. It is convenient in use, and has elegant appearance design,...
Page 2 carefully and completely before operating this scooter POINTS OF ATTENTION: RIDER AND PASSENGER: This model is designed for use by only one rider and one passenger. Do not load it over the limits on the specification table. ROAD CONDITION: This model is designed for riding on the flat road. PARTICULARLY IMPORTANT INFORMATION IS DISTINGUISHED IN THIS MANUAL BY THE FOLLOWING NOTATIONS: !!!WARNING:...
Page 3: Table Of Contents
1. Left Handlebar Switch 2. Right Handlebar Switch 3. Main Switch 4. Rear Storage Compartment 5. Rear Shock Absorber 6. Engine 7. Center Stand 8. Side Stand CONTENTS Safety Riding……………………… Acceleration…………………………… 21 Control Functions………………… Braking………………………………… 21 Main Switch…………………...….. Starting Off…………………….……… 22 Indicator Lights……………...……...
Page 4: Safety Riding
B. Storage……………………………… Specifications Table…………………… SAFETY RIDING Regular care and maintenance are essential for preserving your scooter’s value and operating condition. Moreover, what is true for the scooter is also true for the rider: good performance depends on being in good shape. Riding under the influence of medication, drugs and alcohol is, of course, out of the question.
Page 5: Control Functions
CONTROL FUNCTIONS All electrical circuits are switched off. MAIN SWITCH Turn the switch to OFF to stop the engine. The key can be removed in this position. Lock The steering is locked when the main switch is in the ‘LOCK’ position and all electrical circuits are switched off.
Page 6: Speedometer
SPEEDOMETER FUEL GAUGE 1.Speedometer 2.Trip odometer 3.Reset button 1. Fuel gauge The speedometer shows riding speed. This This model is equipped with an electric fuel speedometer is equipped with an odometer and gauge so the rider can monitor the fuel level trip odometer.
Page 7: Front Brake Lever
4. Lights switch 5. Star switch “ ” Start Switch 1. Turn the main switch to “on” 2. Apply either brake and push the start “LIGHTS” Switch switch or kick the start pedal to start the Turning the light switch to “ ”...
Page 8: Helmet Hook
1. Fuel tank cap 2. Match marks The fuel tank cap is located under the seat. !!!WARNING To open the fuel tank cap, insert the key into the lock and turn the key clockwise. Be sure the cap is properly installed and To close the cap, align the match marks and Locked in place before riding the scooter.
Page 9: Battery Cover Removal
!!!WARNING A hook is provided to secure a helmet with the luggage box. Never ride with a helmet secured in the To secure a helmet, hang the helmet on the hook. hook. The helmet may hit objects, causing loss of Control and possibly an accident.
Page 10: Brakes
Adjust if necessary. Engine Oil Check engine oil lever, add oil if necessary. Throttle Check for smooth operation. Adjust if necessary. Lights/Signals/Switches Check operation. Wheels/Tires Check tire pressure, wear and damage 14,15 Fittings/Fasteners Check all chassis fittings and fasteners. Tighten/Adjust, if necessary. CAUTION: Pre-operation checks should be made each time the scooter is used .Such an inspection can be accomplished in a very short time;...
Page 11: Tires
a. Free play 3-5mm Turn the throttle grip to see if it operates properly, and check the free play Make sure the grip returns by spring force when released dealer make necessary adjustments. - 14- TIRES !!!WARNING Tire inflation pressure should be checked and adjusted when the temperature of the tire equals the ambient air temperature.
Page 12: Fittings And Fasteners
distribute the weight evenly from side to side. Always check the tires before operating the Properly adjust the suspension for your load, scooter. If center tread depth reaches the and check the condition and pressure of your limit as shown, if the tire has a nail or glass tires.
Page 13: Operation And Important Riding Points
Do not overfill the tank. Avoid spilling fuel on the hot engine. Do not fill the fuel tank above the bottom of the filler tube as shown in the illustration or it may overflow when the fuel heats up later and expands. OPERATION AND IMPORTANT RIDING POINTS STARTING A COLD ENGINE !!! WARNING...
Page 14: Starting Off
3. Street car rails, metal plates on road construction sites, and man-hole covers become particularly slippery when in rain days. - 20 STARTING OFF ENGINE BRAKE-IN After warming up the engine: There is never a more important period in 1. Apply the rear brake lever with your left the life of your scooter than the period hand and hold the rear grab with your between zero and 1500km.
Page 15: Periodic Maintenance And
- 22 PERIODIC MAINTENANCE AND MINOR REPAIR !!!WARNING Periodic inspection, adjustment and lubrication will keep your scooter in the safest and most *If you are not familiar with scooter efficient condition possible. Safety is an service this work should be done by a obligation of the scooter owner.
Page 16: Gear Oil Replacement
- 24 - GEAR OIL REPLACEMENT !!!WARNING Replace the gear oil after initial riding Do not let foreign material enter the gear for300km, then replace again after every case. Be sure oil does not get on the tire or half year or 3000km later. wheel Do as below described for replacement: 6.
Page 17: Brake Lever Free Play Adjustment
The spark plug is an important engine C7HSA(NGK), A7RTC(CHN) component and is easy to inspect. The Before installing the spark plug, measure the condition of the spark plug can indicate electrode gap with a wire thickness gauge; adjust the condition of the engine. The ideal the gap to specification if necessary.
Page 18: Steering Inspection
1.Visual Check: dealer. Check for scratches or damage on the inner tube and excessive oil leakage from the front fork. 2.Operation Check: Place the scooter on a level place. a. Hold the scooter in an upright position and apply the front brake. b.
Page 19 see if the electrical device operates. If the prevent water entry; a plastic bag and strong fuse immediately blows again consult a rubber Band may be used. dealer. b. Make sure the spark plug and all filler caps CAUTION: are properly installed. Do not use fuses of higher amperage 2.
Page 20: Technical Data
Turn the engine over several times (ground the spark plug wire) to coat the cylinder wall with oil. !!!WARNING When using the starter motor to crank the engine, remove the spark plug wire, and ground it to prevent sparking. - 33- 3.
Page 21 Fuel Tank Capacity 5.0L Gear Oil Type API GL-3 SEA 85W/140 Fuel Type Petrol Spark Plug A7RTC(CHN)orC7HSA(NGK) Battery 12V /7Ah Clutch Dry, Centrifugal,Auto Tyre Pressure Front 200/ Rear 220 (kpa) Transmission C.V.T. - 35 - TECHNICAL DATA TYPE: JSD50QT-13 (50CC139QMB)25KM/h Subject Technical Details Subject...
