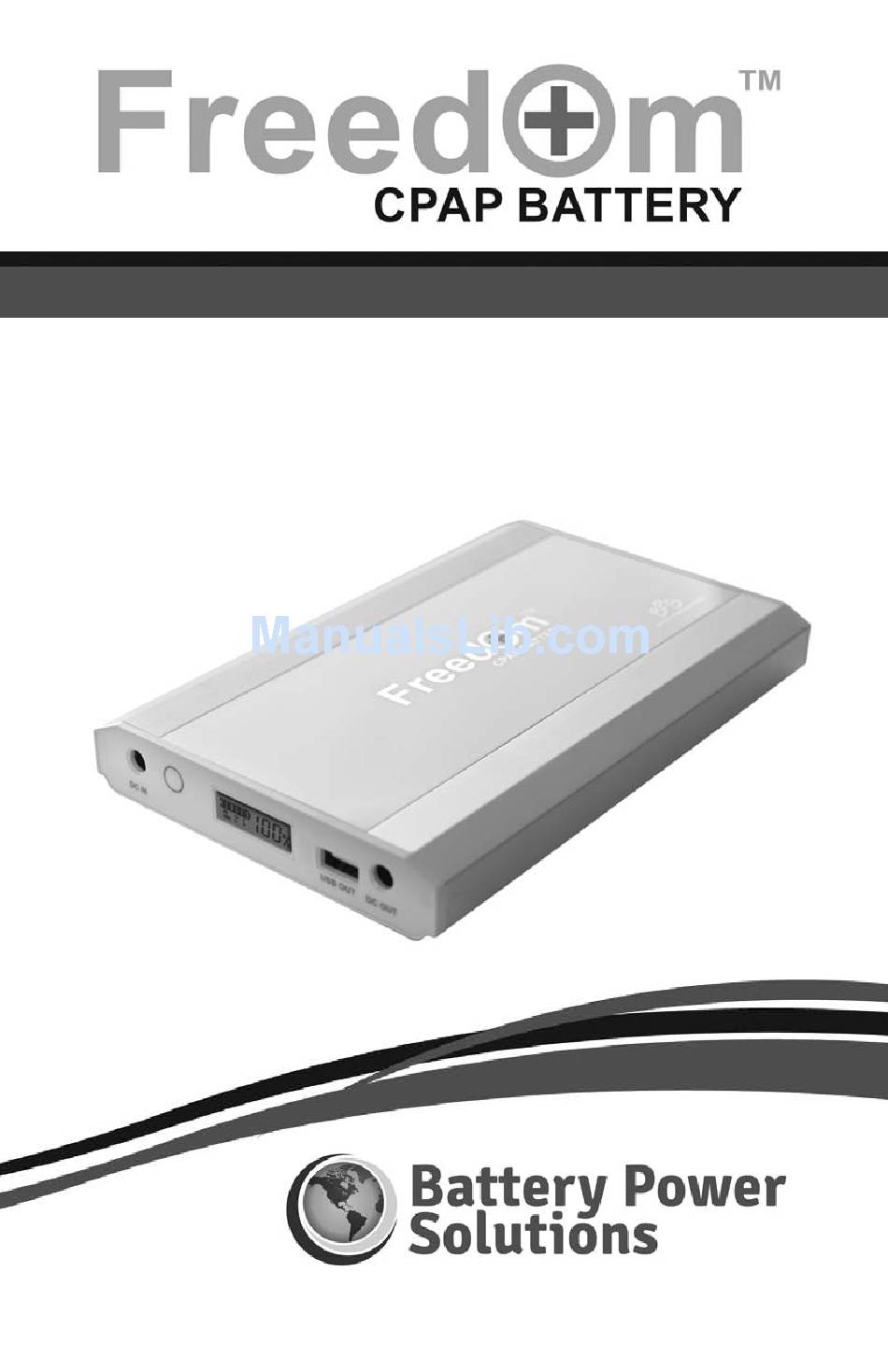

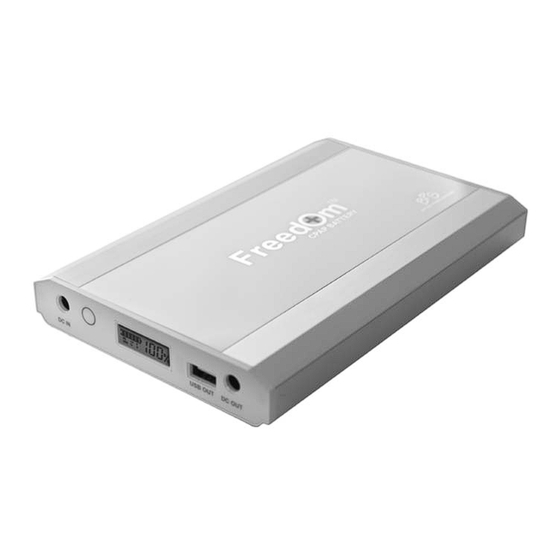

- Page 1 USER’S MANUAL Batteries to Power Your World!
-
Page 2: Table Of Contents
Table of Contents Package Contents................Connection Components Sold Separately........Product Specifications..............Safety Features................. Charge Time................Life Span..................Warranty..................Intended Use.................. Compatibility.................. Average Run Times................ Getting Started Initial Battery Usage..............Turning the Battery On/Off............The Control Board..............Charging the Battery..............Charging in a Foreign Country........... Single Battery Charging............ - Page 3 Table of Contents Powering Your PAP Device 9-10 Respironics DreamStation Series..........11-12 Respironics System One & M Series........13-15 ResMed Air 10 & S9 Series............16-17 ResMed S8 Series..............18-19 DeVilbiss IntelliPAP Series............20-21 Somnetics Transcend Series............22-23 HDM Z1 Series................24-25 Other PAP Devices..............
-
Page 4: Package Contents
(see below). Connection Components Sold Separately The following items are required to connect certain PAP devices to the Freedom™ battery. These items are typically packaged separately and are not included in the Freedom CPAP Battery Kit box. -
Page 5: Product Specifications
(per battery) when fully discharged. The battery does not need to be fully discharged before charging. Do not charge on any flammable surface. LIFE SPAN Under normal conditions the average life span of the Freedom CPAP Battery is generally around 400-500 charge/discharge cycles. The amount of charge the battery will hold will gradually decrease due to usage and aging. -
Page 6: Intended Use
CPAP Battery Kit. See page 1 for more information. Some older obsolete PAP devices and targeted ventilation PAP devices may not be compatible with or may require more power than the Freedom CPAP Battery can provide. Reference the instructions in this manual for your specific PAP device to determine which connection components are required. -
Page 7: Average Run Times
PAP device. To obtain optimal battery performance we recommend you forgo the use of heated humidification and heated tubing. Average run times are based on standard CPAP devices without the use of heated humidification or heated tubing on a pressure setting of 10 cm/H2O. -
Page 8: Getting Started
INITIAL BATTERY USAGE Before using the Freedom CPAP Battery for the first time be sure to charge it fully. It may only take a short time for the battery charge level to reach 100% as it is already partially charged before it leaves the factory. -
Page 9: Charging The Battery
Charging the Battery The Freedom CPAP Battery can be charged via a wall outlet using the included AC power supply in approximately 4 hours (per battery) when the battery is fully discharged. CHARGING IN A FOREIGN COUNTRY The AC power supply of the Freedom CPAP Battery will operate on any AC current from 100-240VAC and 50/60 Hz without any adjustment. -
Page 10: Dual Battery Charging
Note: It is normal for the AC power supply and the battery to be slightly warm to the touch during the charging process. Do not charge the Freedom CPAP Battery on any flammable surface. AC POWER SUPPLY AC POWER CORD... -
Page 11: Other Charging Options
Other Charging Options When AC power is not available you can still keep the Freedom CPAP Battery charged up and ready to go. Optional accessories are available for charging the battery in a vehicle or by using the power of the sun. For more detailed information on these charging accessories visit our website at www.batterypowersolutions.net or call us at 1-877-445-5228. -
Page 12: Respironics Dreamstation Series
12V power adapter is required in conjunction with the Freedom CPAP Battery. Our 12V power adapter was designed specifically for use with Respironics DreamStation series devices and the Freedom CPAP Battery. REQUIRED COMPONENTS Freedom CPAP Battery Kit ... -
Page 13: Respironics Dreamstation Series
Respironics DreamStation Series Devices DUAL BATTERY CONNECTION Dual battery connection will require an additional Freedom CPAP Battery. Plug the 12V power adapter into the DC power pigtail cord. Plug the DC power pigtail cord into the DC OUT jacks of both batteries. -
Page 14: Respironics System One & M Series
Respironics System One & M Series Devices Respironics System One and M series devices can be connected directly to the Freedom CPAP Battery using the DC power pigtail cord and the appropriate connector tip included in the Freedom CPAP Battery Kit. -
Page 15: Respironics System One & M Series
Respironics System One & M Series Devices DUAL BATTERY CONNECTION Dual battery connection will require an additional Freedom CPAP Battery. Plug the DC power pigtail cord into the DC OUT jacks of both batteries. Insert the appropriate connector tip into the DC power pigtail cord. -
Page 16: Resmed Air 10 & S9 Series
Set the converter box and the appropriate output cord for your device aside. Do not connect the output cord to the converter box yet as the converter box must be connected to the Freedom™ battery first. See the connection instructions on the following pages. - Page 17 ResMed Air 10 & S9 Series Devices The steps below must be followed in exact sequence in order to initiate the voltage conversion process and thus allow the Freedom CPAP Battery to power the ResMed Air 10 or S9 series device. After connection if you are not receiving power to the PAP device unplug all components and follow the instructions again.
-
Page 18: Resmed Air 10 & S9 Series
ResMed Air 10 & S9 Series Devices The steps below must be followed in exact sequence in order to initiate the voltage conversion process and thus allow the Freedom CPAP Battery to power the ResMed Air 10 or S9 series device. After connection if you are not receiving power to the PAP device unplug all components and follow the instructions again. -
Page 19: Resmed S8 Series
ResMed S8 Series Devices Although ResMed S8 series devices operate from 12V DC the DC input ports run opposite polarity from the Freedom CPAP Battery; therefore, the use of the 150W sine wave power inverter is required in conjunction with battery. DO NOT connect a ResMed S8 device to the battery without using the sine wave power inverter as doing so will cause irreversible damage to the PAP device. -
Page 20: Resmed S8 Series
PAP device. DUAL BATTERY CONNECTION Dual battery connection will require an additional Freedom CPAP Battery. Plug the DC power pigtail cord into the DC OUT jacks of both batteries. - Page 21 CPAP Battery using the DC power pigtail cord and connector tip “J” included in the Freedom CPAP Battery Kit. Note: IntelliPAP 2 series devices must be connected to the Freedom™ CPAP Battery via the 150W sine wave power inverter. REQUIRED COMPONENTS...
- Page 22 DeVilbiss IntelliPAP Series Devices Note: IntelliPAP 2 series devices must be connected to the Freedom™ CPAP Battery via the 150W sine wave power inverter. DUAL BATTERY CONNECTION Dual battery connection will require an additional Freedom CPAP Battery. Plug the DC power pigtail cord into the DC OUT jacks of both batteries.
-
Page 23: Somnetics Transcend Series
Somnetics Transcend Series Devices Somnetics Transcend series devices can be connected to the Freedom™ CPAP Battery via the 150W sine wave power inverter. REQUIRED COMPONENTS Freedom CPAP Battery Kit 150W Sine Wave Power Inverter (power inverter) Due to the initial power draw required to start the device the connection instructions below must be followed in exact sequence in order to prevent “tripping”... -
Page 24: Somnetics Transcend Series
DUAL BATTERY CONNECTION Dual battery connection will require an additional Freedom CPAP Battery. Plug the DC power pigtail cord into the DC OUT jacks of both batteries. - Page 25 HDM Z1 Series Devices HDM Z1 series devices can be connected to the Freedom™ CPAP Battery via the 150W sine wave power inverter. REQUIRED COMPONENTS Freedom CPAP Battery Kit 150W Sine Wave Power Inverter (power inverter) Due to the initial power draw required to start the device the connection instructions below must be followed in exact sequence in order to prevent “tripping”...
- Page 26 DUAL BATTERY CONNECTION Dual battery connection will require an additional Freedom CPAP Battery. Plug the DC power pigtail cord into the DC OUT jacks of both batteries.
-
Page 27: Other Pap Devices
Most other PAP device models including Fisher & Paykel ICON series, DeVilbiss IntelliPAP 2 series, 3B Medical RESmart and Luna series, and Apex Medical XT series devices can be connected to the Freedom™ CPAP Battery via the 150W sine wave power inverter. -
Page 28: Other Pap Devices
Other PAP Device Models DUAL BATTERY CONNECTION Dual battery connection will require an additional Freedom CPAP Battery. Plug the DC power pigtail cord into the DC OUT jacks of both batteries. Plug the DC input cord into the DC power pigtail cord. -
Page 29: Air Travel Usage
(the cells of the battery will not continuously charge and then discharge). You may use the Freedom battery in this power backup scenario using a single battery or in the dual battery confirguration; however, in the dual... -
Page 30: Devilbiss Intellipap Series
Plug the DC power pigtail cord with appropriate connector tip attached into the DC input port of the PAP device (see page 11). *NOTE: DeVilbiss IntelliPAP 2 series devices will connect to the Freedom CPAP Battery via the 150W Sine Wave Power Inverter (see page 28). -
Page 31: Hdm Z1 Series
Medical RESmart and Luna, Apex Medical XT, Somnetics Transcend, and HDM Z1 series devices connect to the Freedom™ battery via the 150W sine wave power inverter. Plug the AC power supply of the battery into the DC IN jack of the ... -
Page 32: Dual Battery Connection
Plug the DC power pigtail cord with appropriate connector tip attached into the DC input port of the PAP device (page 12). *NOTE: DeVilbiss IntelliPAP 2 series devices will connect to the Freedom CPAP Battery via the 150W Sine Wave Power Inverter (see page 30). - Page 33 Medical RESmart and Luna, Apex Medical XT, Somnetics Transcend, and HDM Z1 series devices connect to the Freedom™ battery via the 150W sine wave power inverter. Plug the AC power supply of the battery into one of the DC power ...
-
Page 34: Powering Other Devices
Powering Other Devices The Freedom CPAP Battery can be used to power many common handheld electronic devices such as cell phones, iPods, MP3 players, and tablets via the 5V USB port or DC input cord. USB PORT CONNECTION Plug the device’s USB cord into the USB OUT port of the battery. -
Page 35: Dc Input Cord Connection
Powering Other Devices DC INPUT CORD CONNECTION Plug the DC input cord into the DC OUT jack of the battery. Plug the device’s DC power cord into the DC input cord. Turn the device on and it should begin functioning. ... -
Page 36: Battery Care Instructions
Battery Care Instructions Understanding common phenomenon with rechargeable lithium-ion batteries can help you better care for your Freedom CPAP Battery and answer many common questions regarding usage. Lithium-ion batteries do not suffer from the memory effects that are associated with other types of battery chemistries. This means that the battery does not need to be completely discharged before charging. -
Page 37: Faq/Troubleshooting
PAP devices require a much higher power draw than today’s standard CPAP devices and therefore can result in lower run times or could prevent the battery from being able to power the device. The device-specific connection components required for some PAP ... - Page 38 “DC 12V” under the battery symbol on the digital display screen. Also note that due to the circuit board differences a Freedom™ CPAP Battery cannot be pigtailed with an older model C-100 CPAP Battery.
-
Page 39: Safety Warnings
Safety Warnings The following safety warnings must be observed at all times: Do not drop, hit, crush, or otherwise abuse the battery as this may result in the exposure of the cell contents, which are corrosive. Do not expose the battery to rain or moisture of any type. - Page 40 1-877-445-5228 www.batterypowersolutions.net FREEDOM CPAP BATTERY USER’S MANUAL FEBRUARY 2017...
