Summary of Contents for SVS SoundPath

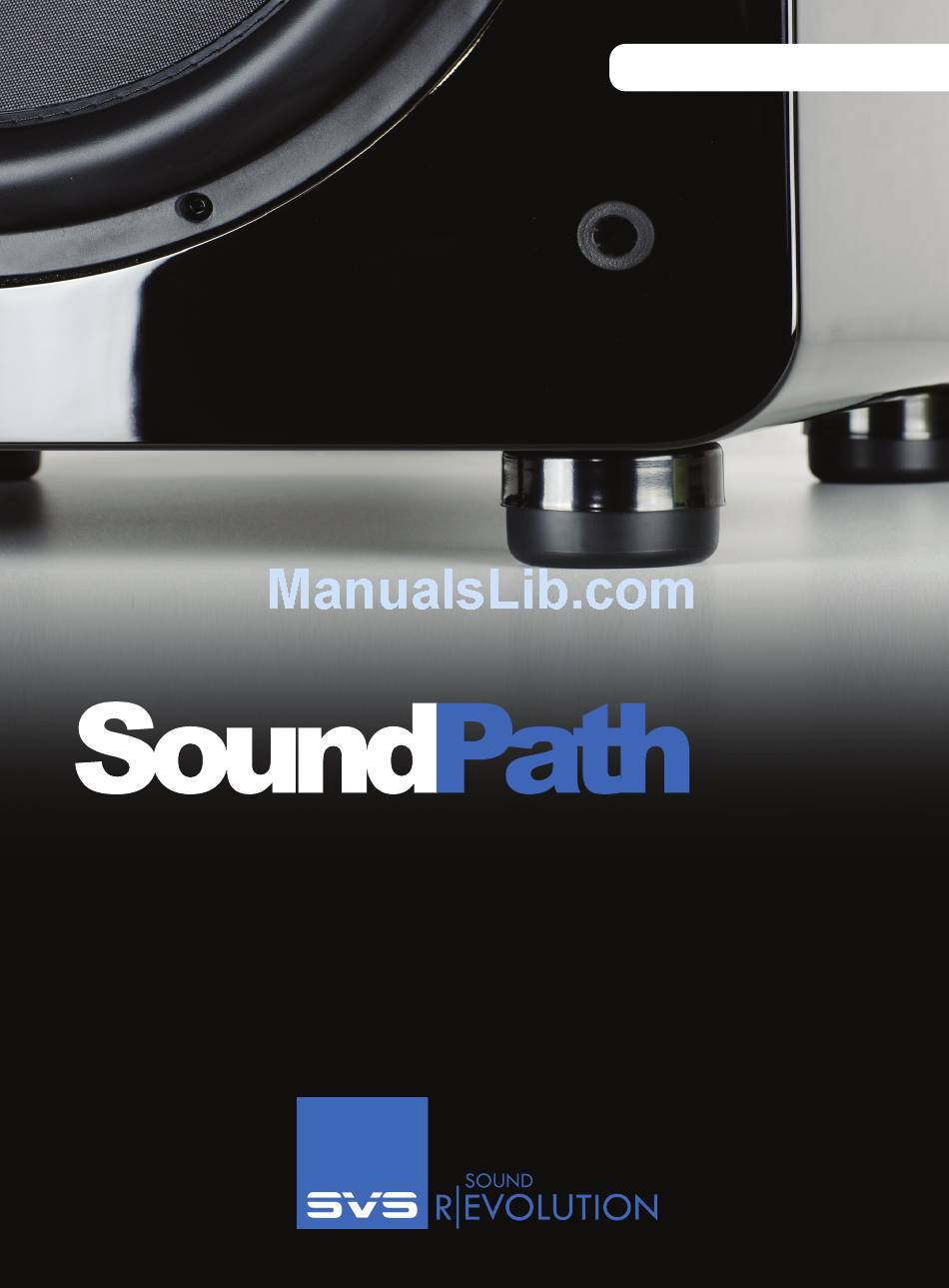

- Page 1 OWNER’S MANUAL PB-2000 SB-2000 POWERED SUBWOOFERS Subwoofer Isolation System...
- Page 2 floor vibration. Our Sound Experts in Customer Service can assist you with installing the SoundPath Subwoofer Isolation System, so please don’t hesitate to contact Customer Service if you need guidance.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PACKAGE CONTENTS INSTALLATION CABINET / BOX STYLE SUBWOOFERS SVS CYLINDER SUBWOOFERS – BASE PLATE RETAINED SPECIFICATIONS SHARE YOUR THOUGHTS... -
Page 4: Package Contents
PACKAGE CONTENTS Package Contents: 4 Foot System: • Four (4) SoundPath Isolation Elastomer Feet with Steel Outer Shell • Four (4) ¼-20 x 16 mm screws • Four (4) M6 x 16 mm screws • Four (4) M8 x 16 mm screws 6 Foot System: •... -
Page 5: Cabinet / Box Style Subwoofers
(3) thread sizes provided – ¼-20, M6 and M8. 5. Compare the OE feet machine screws to the 16 mm long Isolation System machine screws. Select the matching/correct thread size (SVS cabinet subwoofers utilize the ¼-20 thread size). 6. Once you have selected the correct thread size, install the Isolation feet by inserting the 16 mm long machine screw through the bottom opening of the rubber foot, through the opening in the steel outer shell, and into the threaded insert of the subwoofer cabinet. -
Page 6: Svs Cylinder Subwoofers - Base Plate Retained
INSTALLATION SVS CYLINDER SUBWOOFERS SVS Cylinder Subwoofers: 1. Using a helper as needed, lay the cylinder subwoofer sideways on a stable surface. Take care to avoid damaging the amplifier. 2. Peel off the original equipment (OE) rubber disc feet. 3. Only remove one (1) OE machine screw at a time. -
Page 7: Specifications
• Screw Engagement Depth: 9 mm (applies to 16 mm length screws) SHARE YOUR THOUGHTS Our SVS Sound Experts are standing by from Monday to Friday form 9AM-9PM ET, Saturday from 12PM-6PM, and Sunday from 12PM-4PM to assist you with subwoofer set-up and optimization, AV Receiver settings and more. - Page 8 NOTES ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 9 NOTES ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 10 260 Victoria Rd. Youngstown, Ohio 44515 United States (877) 626-5623 www.svsound.com...
