WARNING

Do not store or use gasoline



or other flammable vapors and

liquids in the vicinity of this or any

other appliance.

An Liquid Propane tank not



connected for use should not be

stored in the vicinity of this or any

other appliance.

DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flames.

3. Open the oven door.

4. If the odor continues, keep

away from the appliance and

immediately call your gas supplier

or fire department.

WARNING

For Outdoor Use Only

This is a listed appliance,

certified for use in the USA

ANSI Z21.89/CSA 1.18

Please read this entire manual before installation and use of this appliance. Failure to follow



these instructions could result in property damage, bodily injury, or even death.

Contact your local building or fire officials about restrictions and installation inspection



requirements in your area.

SAVE THESE INSTRUCTIONS.



UNITED STATES STOVE COMPANY • 227 INDUSTRIAL PARK ROAD • SOUTH PITTSBURG, TENNESSEE 37380 • WWW.USSTOVE.COM

Model HCP16SS

and Canada.

Tested to:

The French version of this manual is available for download at:

La version française de ce manuel est disponible pour le téléchargement à:

Owner's Manual

FOR TECHNICAL ASSISTANCE:

WARNING

PHONE: (800) 750-2723

FAX: (423) 837-2109

www.usstove.com

Table of Contents

Need help?

Do you have a question about the HCP16SS and is the answer not in the manual?

Questions and answers

Summary of Contents for Hom comfort HCP16SS

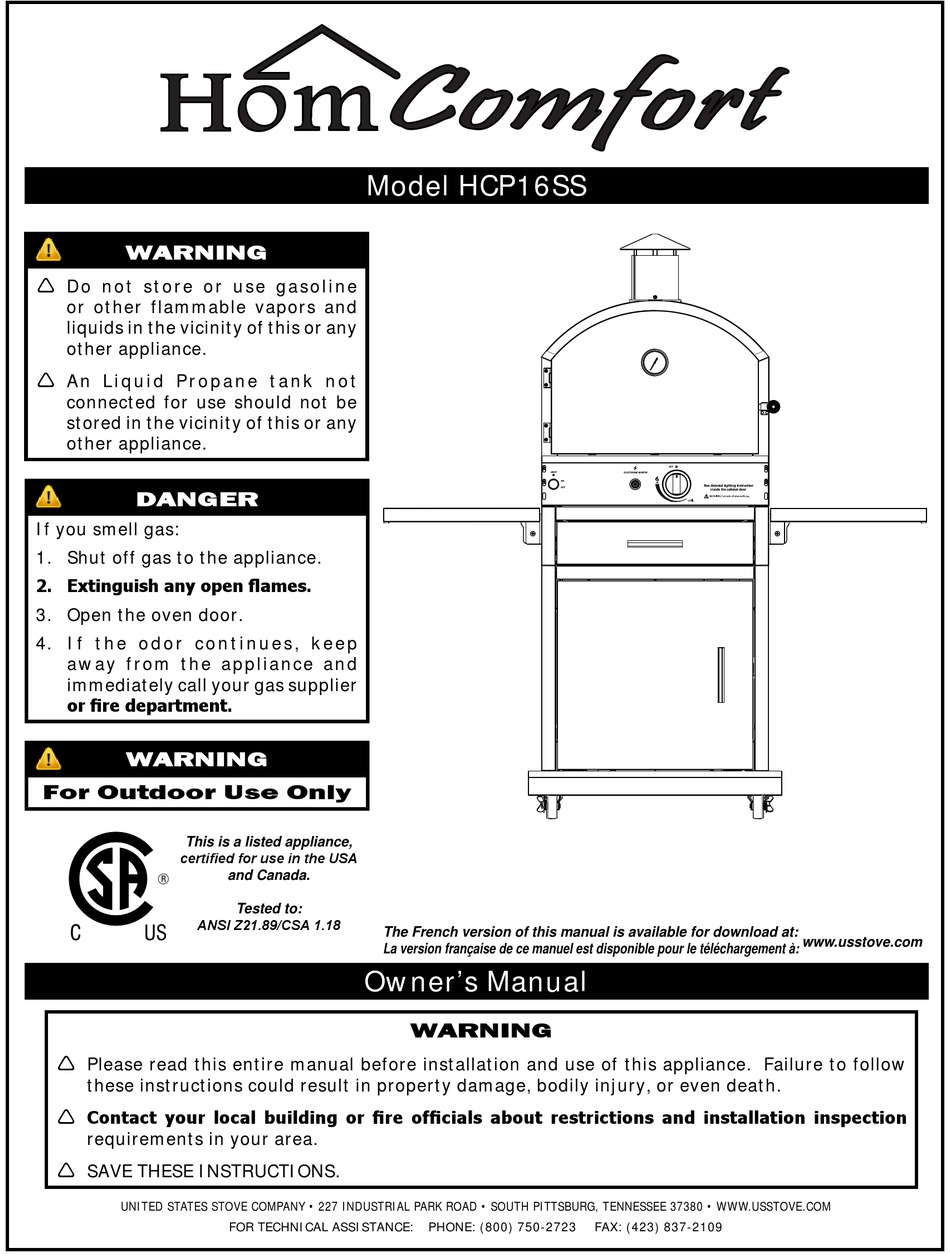

Page 1 Model HCP16SS WARNING Do not store or use gasoline  or other flammable vapors and liquids in the vicinity of this or any other appliance. An Liquid Propane tank not  connected for use should not be stored in the vicinity of this or any other appliance.
Page 2 Oven Operation 1-2-3 Before Cooking: Step 1 Keep your oven a safe distance away from your property.* Step 2 Always perform a leak test.* Step 3 Keep children away from the oven. During Cooking: (To avoid tripping safety valves, please follow these instructions carefully!) Step 1 Turn gas tank on slowly.
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Information…………………………………….………...….………….………….…………. 4 Package Contents…..………………..…..….……...…....………………………………. 6 Hardware Contents……………………………………………………………….………………….. 7 Assembly Instructions……………………..……………….……………………………………….. 8 LP Gas Assembly……………………………………………………..........15 Operating Instructions..………………………….……...……………………………....22 Care and Maintenance……………………………….……………………………………………… 24 Explored Diagram……………….……………………………………………………………….….. 27...
Page 4: Safety Information
Safety Information Please read and understand this entire manual before attempting to assemble, operate or install the product. 1. The installation of this appliance must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation Code, CSA/CGA-B149.1.
Page 5 Safety Information 16. The cylinder used must include a collar to protect the cylinder valve 17. Do not store a spare LP-gas cylinder under or near the appliance 18. Never fill the cylinder beyond 80 percent full 19. If the information in “17” and “18” is not followed exactly, a fire causing death or serious injury may occur.
Page 6: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Main Body Bottom Grill Cooking Grill Fat Cup Pizza Stone Smoker Box Flame Tamer...
Page 7: Hardware Contents
HARDWARE CONTENTS The following list is included inside the pizza oven carton: Battery 1 pc The following list is not included inside the pizza oven carton, but needed when the user is assembling the pizza oven. Phillips Head Screwdriver 1 pc...
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Assembly tip! (Please lightly tighten the screws during assembly of the cart. When the cart is completed THEN TIGHTEN ALL THE screws.
Page 9 3. Use screw M6*12×2 pcs to fix the left side panel onto the base panel of the stand. (Note: The panel should have the “small holes at the top” to the front of the cart assembly) 4. Use screw M3*12×2 pcs and nut M3×2 pcs to attach the door magnet onto the right side panel.
Page 10 6. Use screw M4*10×4 pcs and nut M4×4 pcs to attach the transformer assembly onto the outside of the back panel of the stand. (Note: These screws can be tightened at this time) 7. Use screw M6*12×5 pcs to attach the stand base panel onto the base panel, between the two side panels.
Page 11 8. Use screw M4*10×4 pcs to fix the stand door horizontal beam between the two side panels. (Note: Please fasten the upper two screws first, and then the lower two screws.) 9. Use screw M4*10×4 pcs to fix the stand top panel on the top of the two side panels and back panel.
Page 12 11. First, insert the door lower axis into the hole in the base panel. Next, push down the door upper spring axis and let go of the spring when it is pointed to the hole in the horizontal beam. (Note: You may need to add 1 or 2 washers 18*6.4*1 on the bottom pin so the door will close evenly)
Page 13 13. Use screw M5*10×16 pcs to attach side shelf bracket×4 pcs onto the drawer side panels. (Note: Arrows face UP) 14. Using one of the screw M5*10 to fix the match holder onto the front bracket of right side shelf. (This step may be skipped if you do not want or need a “match holder”...
Page 14 16. Use screw M4*8×3 pcs to fix the chimney assembly onto the top of the oven exterior. (Note: These screws can be tightened at this time) 17. Use screw M5*35×4 pcs to fix the back heat shield onto the back panel of the oven.
Page 15: Lp Gas Assembly
19. Insert the fat cup into the back of the oven. 20. Insert the battery into the electronic ignition. Unscrew the button and place battery positive (+) tip facing OUT. Screw button back on. Your complete pizza oven is now assembled.
Page 16 5. Make sure all burner knobs are in the OFF position. 6. Connect the hose and regulator assembly to the tank valve (See Fig. 6). Hand-tighten the quick coupling nut clockwise to a full stop. Fig. 6 DO NOT use a wrench to tighten because it could damage the quick coupling nut and result in a hazardous condition.
Page 17 WARNING: The Type I connective coupling (see Fig. 7) supplied with your grill must not be replaced with a different type of grill/tank connection system. Removal will result in loss of warranty, gas leakage, fire and severe bodily harm. Thermally Propane Sensitive Nut Regulator...
Page 18 L.P. TANK INFORMATION Never use a dented or rusted L.P. tank or cylinder with a damaged valve. L.P. cylinders are equipped with an O.P.D. (Overfilling Prevention Device). The device shuts off the flow of gas to a cylinder after 80% capacity is reached. This limits the potential for release of gas when the cylinder is heated, averting a fire or possible injury.
Page 19 PRE-OPERATION LEAK TESTING Although all gas connections on the grill are leak tested prior to shipment, a complete gas tightness check must be performed at the installation site due to possible shifting during shipment, installation or excessive pressure unknowingly being applied to the unit. Periodically check the whole system for leaks and immediately check the system if the smell of gas is detected.
Page 20 Clearance to combustible construction: A minimum of 61 cm (24 inches) from the sides and back must be maintained from the gas grill above and below the cooking surface to adjacent vertical combustible construction. Clearance to non-combustible construction: A minimum of 61 cm (24 inches) clearance from the back of the grill to non-combustible construction is required for the lid to fully open.
Page 21 WARNING Heat and smoke exhaust out of the chimney and the ventilation holes on the bottom of two oven side panels (See Fig. 8). Make sure to keep anything that could be damaged by heat or smoke away from the heat and smoke exhaust holes.
Page 22: Operating Instructions
Operating Instructions GRILL BURNER LIGHTING Warning: Do not lean over grill when lighting. Turn off LP supply at cylinder when appliance is not in use. Main Burner Lighting Illustration: 1. Check that the control knobs are in the OFF position. 2.
Page 23 USING THE GRILL LIGHT Light Operation Instruction 1. Make sure the light’s power switch on the control panel is in the “OFF” position. 2. Connect power plug to properly grounded outlet. 3. Turn the light’s power switch to “ON.” WARNING Keep any electrical supply cord away from any heated surface.
Page 24: Care And Maintenance
Care & Maintenance GENERAL MAINTENANCE - Keep outdoor cooking gas appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids. - Do not obstruct the flow of combustion and ventilation air. - Keep the ventilation openings of the cylinder enclosure free and clear from debris. - Visually check the burners.
Page 25 DRIP TRAY The drip tray should be cleaned periodically according to the using situation. NOTE: Allow the drip tray to cool before attempting to clean. COOKING GRATES The cooking grates can be cleaned immediately after cooking is completed and after turning off the grill.
Page 26 Replacing Battery for Electrical Igniter: 1. Remove the igniter cap by turning clockwise; 2. Replace the battery; 3. When installing new battery, ensure it is installed with the proper polarity; 4. Put on the igniter cap back by turning counterclockwise. WARNING: 1.
Page 27: Exploded Diagram
Exploded Diagram...
Page 28: Bottom Grill
Exploded Diagram Part Name Part Name Heat spacer Grease tray left bracket Back heat-shield Oven back support Light assy. Grease tray right bracket Light bracket Oven right supporting assy. Handle latch Light transformer Gas pipe Match holder Chimney assy. Camp stove superior girder Cooking grill Right side shelf bracket Smoker box assy.
