Hyper 361 P

USER MANUAL

Table of Contents

Need help?

Do you have a question about the Hyper 361 P and is the answer not in the manual?

Questions and answers

Summary of Contents for Divine Lighting Hyper 361 P

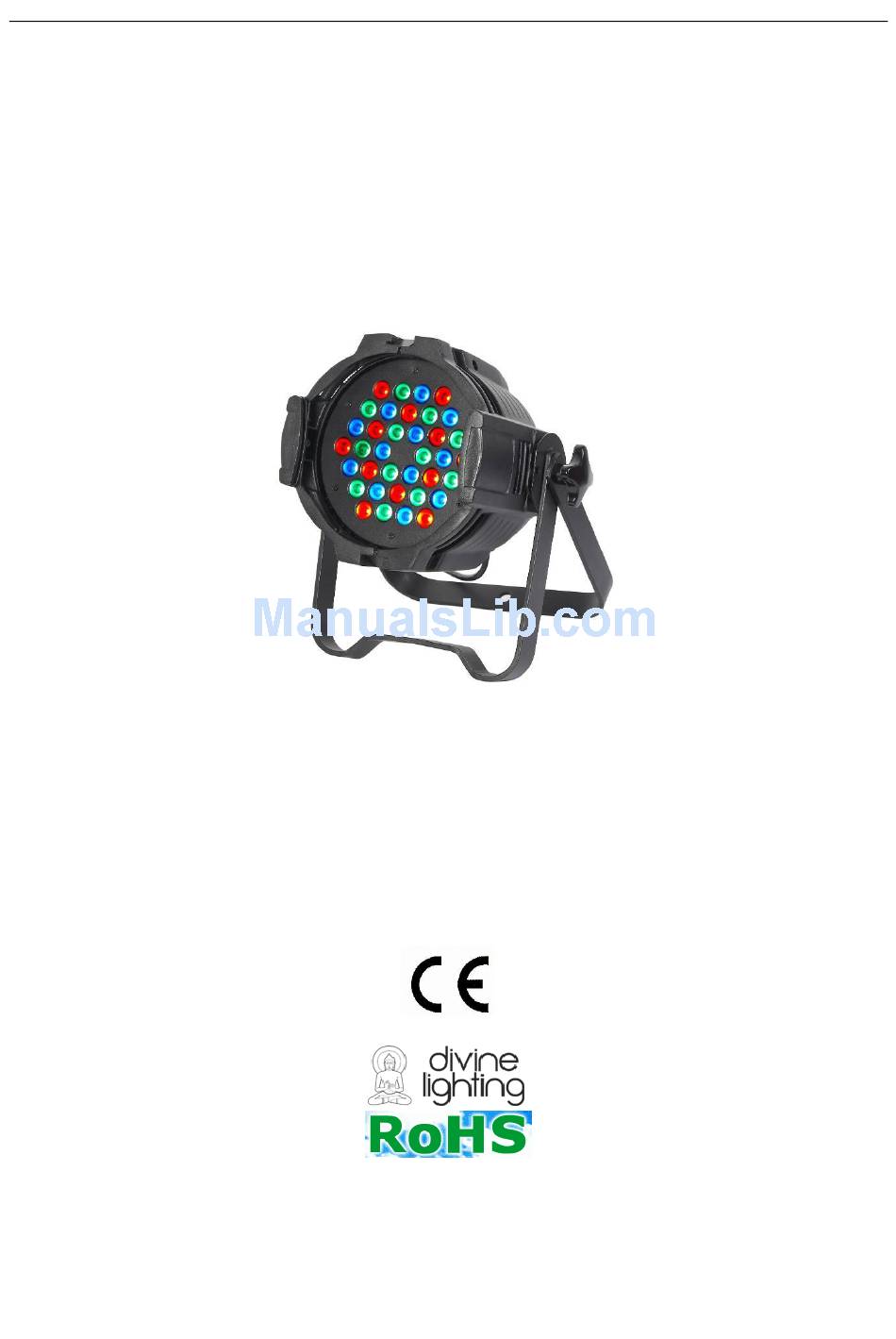

Page 1 Hyper 361 P USER MANUAL...
Page 2: Table Of Contents
Index Summary ........................1 Safety Instructions ......................1 Product Dimensions ...................... 2 Main Functions ......................3 DMX Operation ......................4 Display Operation Instruction ..................5 Manual Instructions ...................... 5 Master/Slave Operation ....................7 XLR Connection ......................7 Wiring Diagram ......................9 Troubleshooting ......................
Page 3: Summary
1. Summary Thank you for purchasing our Hyper 361 P lighting fixture. Please read these instructions carefully prior to operation. Use the fixture according to these instructions to reduce the chance of damage and accident.  Product Introduction This product uses high power R, G, B LED diodes. Each color can be manipulated independently.
Page 4: Product Dimensions
●Please make sure that this fixture is properly grounded. 3. Dimensions Hyper 361 P v1.0...
Page 5: Main Functions
 Linear Dimming 0%-100%, Strobes, Color change by fading, Color change by snapping  Modes: Auto run /sound activated/master slave/DMX remote controlled  Using switching power supply for optimal functioning and light weight.  DMX512 channels: 6 channels  Cast aluminum casing: Black, White (optional) Hyper 361 P v1.0...
Page 6: Dmx Operation
From bright to 64-95 dark From dark— 96-127 bright—dark Adjust speed with Channel 5.. RGB Gradient 128-159 Channels 1-4 disabled. 3 colors snap 160-191 change 7 colors snap 192-223 change Sound 224-255 Fixture changes color to noises. activated. Hyper 361 P v1.0...
Page 7: Display Operation Instruction
For example, if you want to set the DMX channel to 1, operate as follows: a) Press MENU, go back to the initial setting Hyper 361 P v1.0...
Page 8 ‖FLAS‖: (as in Flash) white color strobe（FL00-FL15 speed adjustable） ‖rL‖: red color brightness adjustment mode （r000-W255, r255 is the brightest） ‖gL‖: green color brightness adjustment mode（g000- g255, g255 is the brightest） k) ‖bL‖: blue color brightness adjustment mode（b000- b255, b255 is the brightest） Hyper 361 P v1.0...
Page 9: Master/Slave Operation
DMX mode and address them to channel 1 (A001). Any adjustments made to the master should be displayed on the slaves as well. 9. XLR Cable Connections  XLR cable：(DMX Cable) XLR/DMX connections are connected male to female, as shown below: pin 1:ground,pin 2: negative signal, pin 3: positive signal Hyper 361 P v1.0...
Page 10 Between pins 2 and 3, connect a resistance120Ω（1/4W） at the end of the DMX connecting as below:  Conversion between 3-pin and 5-pin XLR  If the output cable of DMX 512 controller is the 5-PIN, please use a 5-PIN to 3-PIN adapter. Hyper 361 P v1.0...
Page 11 10. Connection Diagram Hyper 361 P v1.0...
Page 12: Wiring Diagram
 Electrical wiring diagram DSLM-PAR575-5A 显示板 display board DC 24V IN 16P computer cable V+ R G B POWER IN DISPLAY 34063 STC12C5404 LM358 DMX IN/OUT Control board 75176 DSLM-PAR575-5408 DMX IN LED Aluminum Light Panel 灯板连接线 Hyper 361 P v1.0...
Page 13: Troubleshooting
 Use the multimeter to check if the led is powered or not. If not, Some of the LED's please change the led. not coming on.  Check whether current limiting resistor is normal or not  Check constant current IC is normal or not (compared with the Hyper 361 P v1.0...
Page 14 IC)  Check the switch of this color is normal or not Single color LED's Always bright/not  Change the IC control board bright Hyper 361 P v1.0...
Page 15: Technical Specifications
● Beam Angle: 25°, (15° or 45° by special order) ● Display mode：4 seven-segment LED screen display, four-key input ● Cooling mode: Natural Convection ● Anti-electricity intension：1.5KV ● Insulation Resistance：＞２MΩ ● Size:：330*295*220mm ● Net Weight：5 KG ● Casing: Cast Aluminum Black (White by special order) Hyper 361 P v1.0...
