Mankar HQ 30 Operating Instructions Manual

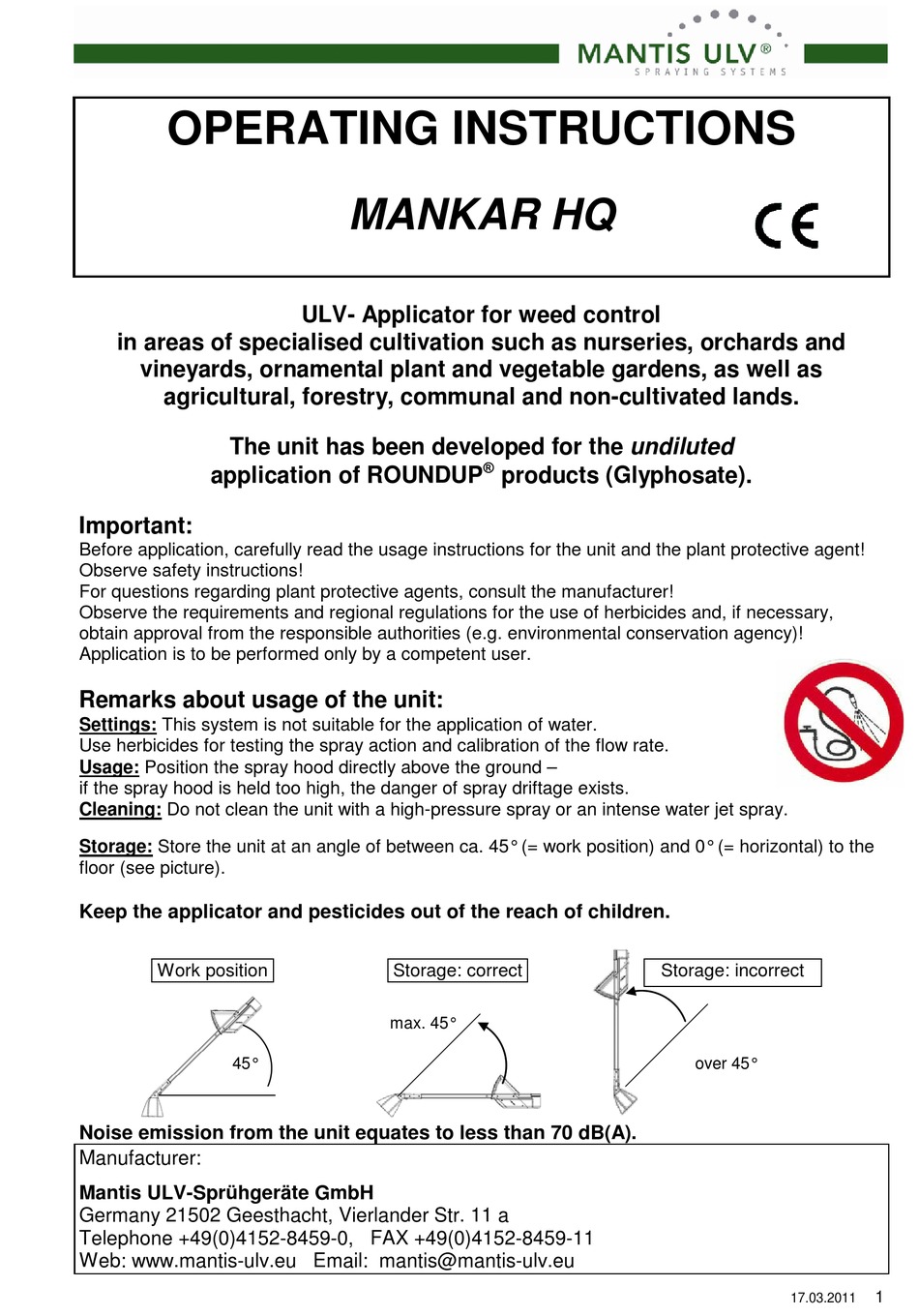

OPERATING INSTRUCTIONS

MANKAR HQ
ULV- Applicator for weed control
in areas of specialised cultivation such as nurseries, orchards and
vineyards, ornamental plant and vegetable gardens, as well as
agricultural, forestry, communal and non-cultivated lands.
The unit has been developed for the undiluted

application of ROUNDUP products (Glyphosate).
Important:
Before application, carefully read the usage instructions for the unit and the plant protective agent!
Observe safety instructions!
For questions regarding plant protective agents, consult the manufacturer!
Observe the requirements and regional regulations for the use of herbicides and, if necessary,
obtain approval from the responsible authorities (e.g. environmental conservation agency)!
Application is to be performed only by a competent user.
Remarks about usage of the unit:
Settings: This system is not suitable for the application of water.
Use herbicides for testing the spray action and calibration of the flow rate.
Usage: Position the spray hood directly above the ground –
if the spray hood is held too high, the danger of spray driftage exists.
Cleaning: Do not clean the unit with a high-pressure spray or an intense water jet spray.
Storage: Store the unit at an angle of between ca. 45° (= work position) and 0° (= horizontal) to the
floor (see picture).
Keep the applicator and pesticides out of the reach of children.
Work position Storage: correct Storage: incorrect
max. 45°
45° over 45°
Noise emission from the unit equates to less than 70 dB(A).
Manufacturer:
Mantis ULV-Sprühgeräte GmbH
Germany 21502 Geesthacht, Vierlander Str. 11 a
Telephone +49(0)4152-8459-0, FAX +49(0)4152-8459-11
Web: www.mantis-ulv.eu Email: mantis@mantis-ulv.eu
1
17.03.2011
