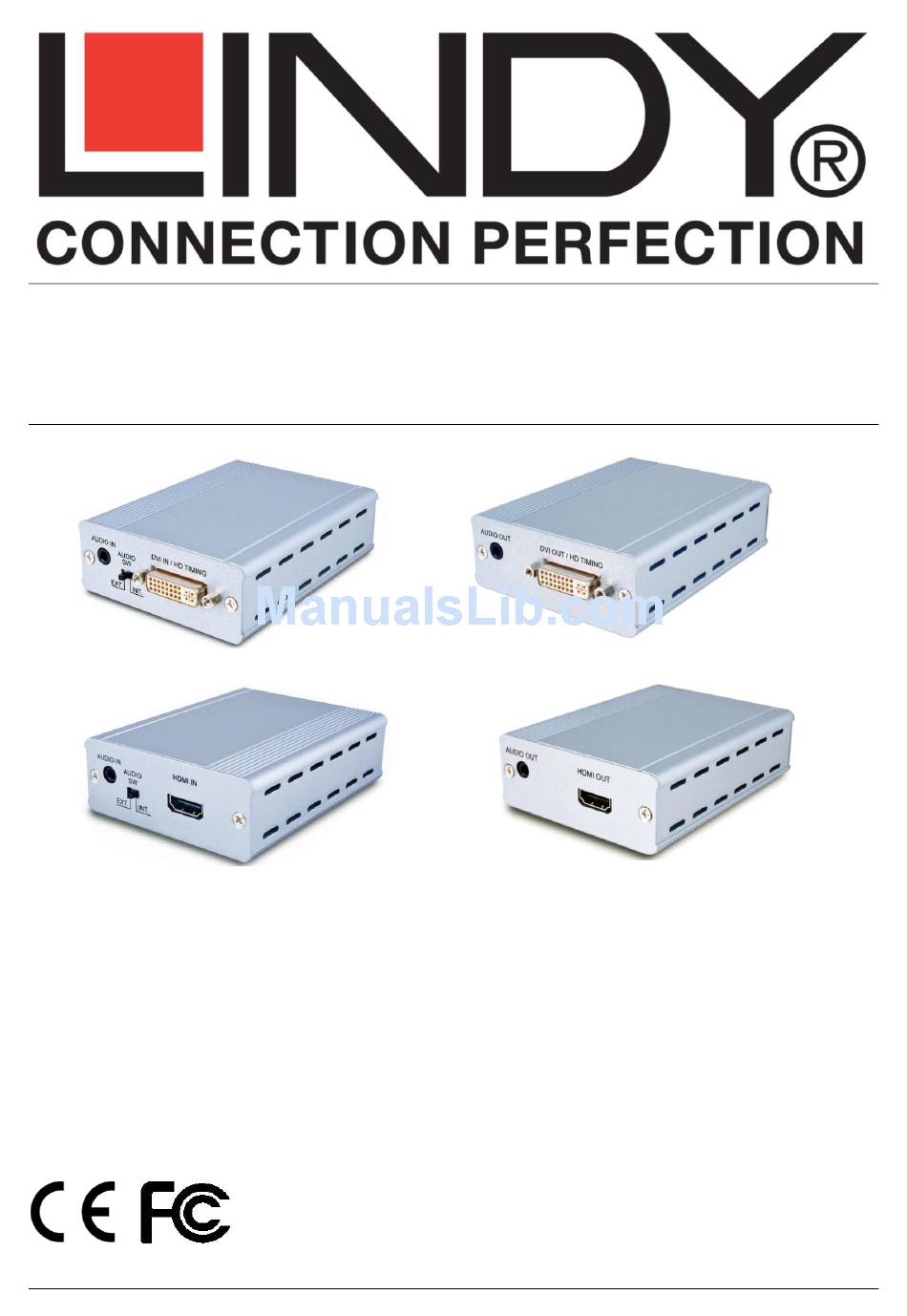

- Page 1 User Manual English No. 38196 - 3G SDI to DVI-D No. 38197 - DVI-D to 3G SDI No. 38198 - 3G SDI to HDMI No. 38199 - HDMI to 3G SDI www.LINDY.com © LINDY Group – SECOND EDITION (September 2016)
- Page 3 User Manual Introduction Thank you for buying one of the products from the LINDY HDMI/DVI-D SDI Converter/Extender range. This range of products gives you the ability to integrate SDI and DVI-D/HDMI equipment or when used in combination, extend DVI-D or HDMI signals up to 100m using low cost coaxial cable.
- Page 4 English User Manual Specifications 38196 - SDI to DVI Converter BNC input for SDI signals DVI-D Single Link output 3.5mm stereo audio output SDI input formats - 480i, 576i, 720p at 50/59.94/60fps, 1080i at 50/59.94/60fps, 1080p at 23.98/24/25/29.97/30/50/59.94/60fps, 1080PsF at 25/29.97/30 38197 - DVI to SDI Converter ...

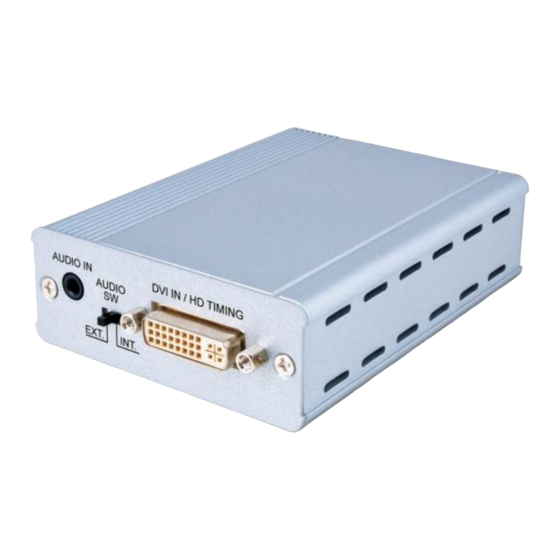

- Page 5 English User Manual Descriptions SDI connections 38196 & 38198 38197 & 38199 1. Locking 5V DC Power connector - plug the 5V DC power supply into the unit and connect the adaptor to an AC wall outlet. The looking connector prevents the power connector coming loose accidentally or from exposure to vibration and temperature cycling 2.
- Page 6 English User Manual Installation Before connecting any devices, please ensure everything is powered off. Connect the 5V DC power supply Converting video signals Connect the video source to the selected Converter using an appropriate cable Connect the output device to the Converter using an appropriate cable Extending video signals ...
- Page 7 English User Manual Connection Diagrams - Converters 38196 - SDI to DVI Converter HD-SDI Source e.g. SDI Camera Coaxial cable with BNC connector Power Supply 38196 SDI to DVI Converter DVI Cable 3.5mm Audio Cable Amplifier TV/Display/Monitor Recording Device...
- Page 8 English User Manual 38197- DVI to SDI Converter Laptop/Netbook Alternative Audio 3.5mm Audio Cable DVI Cable 38197 DVI to SDI Power Supply Converter Coaxial cable with BNC connector SDI Monitor...
- Page 9 English User Manual 38198 - SDI to HDMI Converter HD-SDI Camera Coaxial cable with BNC connector Power Supply 38198 SDI to HDMI Converter HDMI Cable Amplifier Recording Device HDMI TV / Monitor...
- Page 10 English User Manual 38199 – HDMI to SDI Converter HDMI Camera Laptop/Netbook Alternative Audio Source HDMI Cable 38199 HDMI to SDI Power Supply Converter Coaxial cable with BNC connector SDI Monitor...
- Page 11 English User Manual Connection Diagrams– Extenders Provide power to both sender and receiver using the 5V DC power adapter DVI-D HDMI Source Source 38199 38197 Extension via coaxial cable with BNC connectors up to 100m 38196 38198 HDMI DVI-D Output Output...
