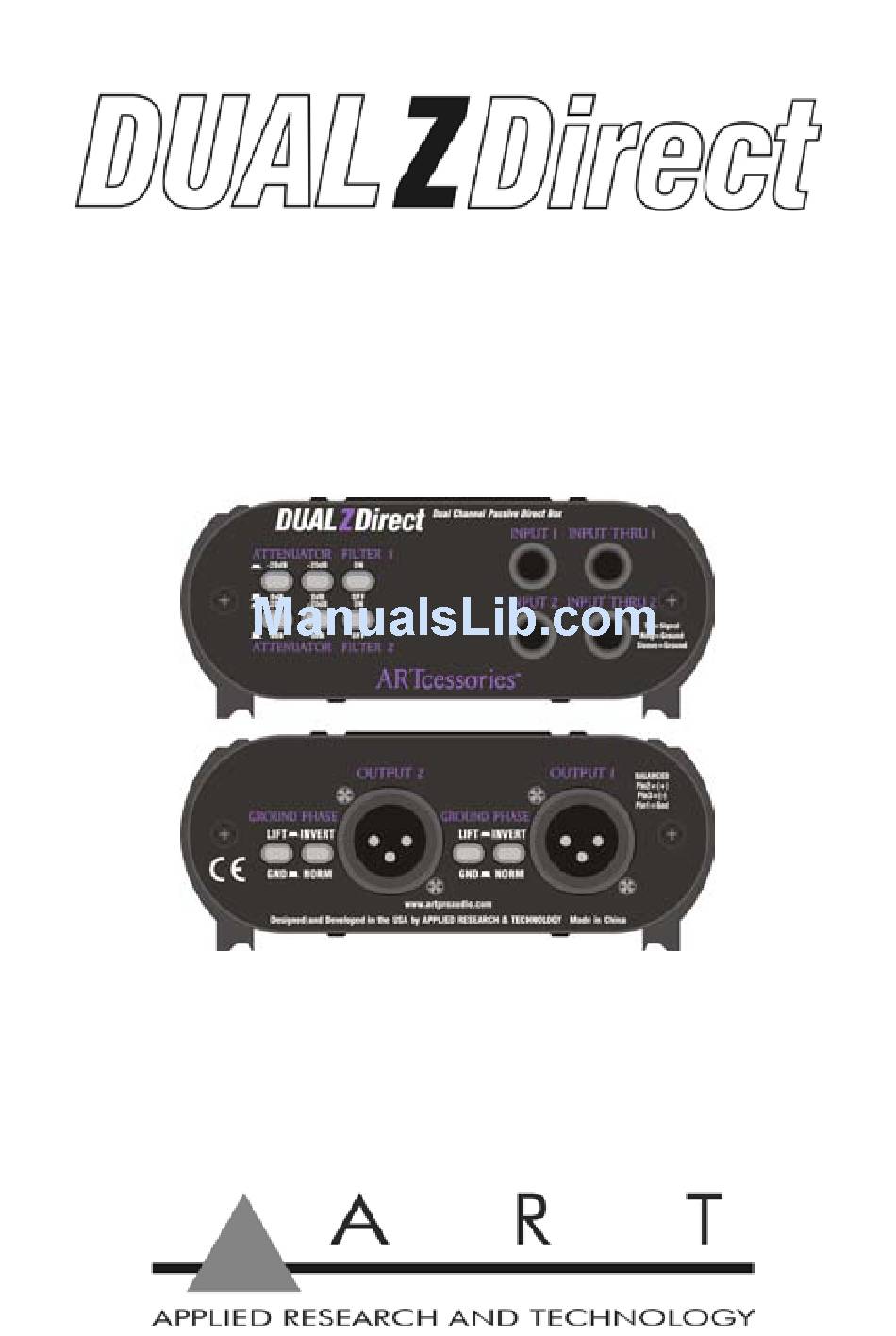

- Page 1 Dual Channel Passive Direct Box Artcessories User's Manual...
- Page 2 IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears, This symbol, whenever it appears, alerts you to important operating alerts you to the presence of and maintenance instructions in uninsulated dangerous voltage the accompanying literature. inside enclosure-voltage that may be Please read the manual.
- Page 3 This gives the DUALZDirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.

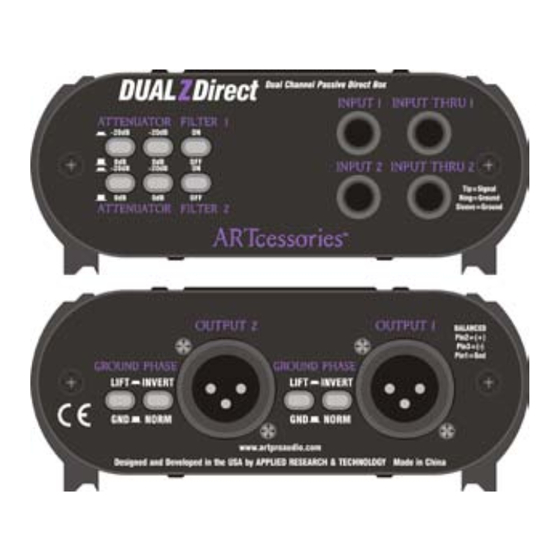

- Page 4 The compact black-anodized all aluminum case and it’s passive design allow the DUALZDirect to provide years of trouble free service in Live Sound, Permanent/Fixed Install, D.J., and virtually any PA application. It’s full...
- Page 5 • Switchable phase invert • Switchable ground lift (fully isolates inputs from chassis and outputs) • XLR connectors for balanced outputs • Rugged extruded aluminum case...
- Page 6 THRU 1/4' TRS phone jack and the other end to where your signal was going to, if connecting the DUALZDirect inline in the signal path. Repeat for the other INPUT and THRU jacks if desired. Connect a balanced line cable between the...
- Page 7 Signal Flow Chart...
-
Page 9: Specifications
SPECIFICATIONS: Frequency Response: 10 Hz - 50 kHz, ± 0.5 dB @ +4 dBu THD: .01% typical @ 1 kHz, +18 dBu <.05% @ 100 Hz, +18 dBu Channel Separation: > 80 dB (typical) Input Connections: 1/4" TRS unbalanced (2), 50k Ohm Thru Connections: 1/4"... -
Page 10: Warranty Information
This warranty is void if the serial number is altered, defaced, or removed. ART reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install the same on products previously manufactured. - Page 11 or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific rights and you may have other rights, which vary, from state to state. The warranty terms listed above are only valid within the United States of America. For units purchased outside the United States, an authorized distributor...
- Page 12 You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. If you believe that the ART unit is at fault, go to www.artproaudio.com. Select "Support", then "Return Authorization Request"...
