Repair Pontiac Mid-size 1974-1983 Repair Guide
Heater Core
REMOVAL & INSTALLATION
REMOVAL & INSTALLATION

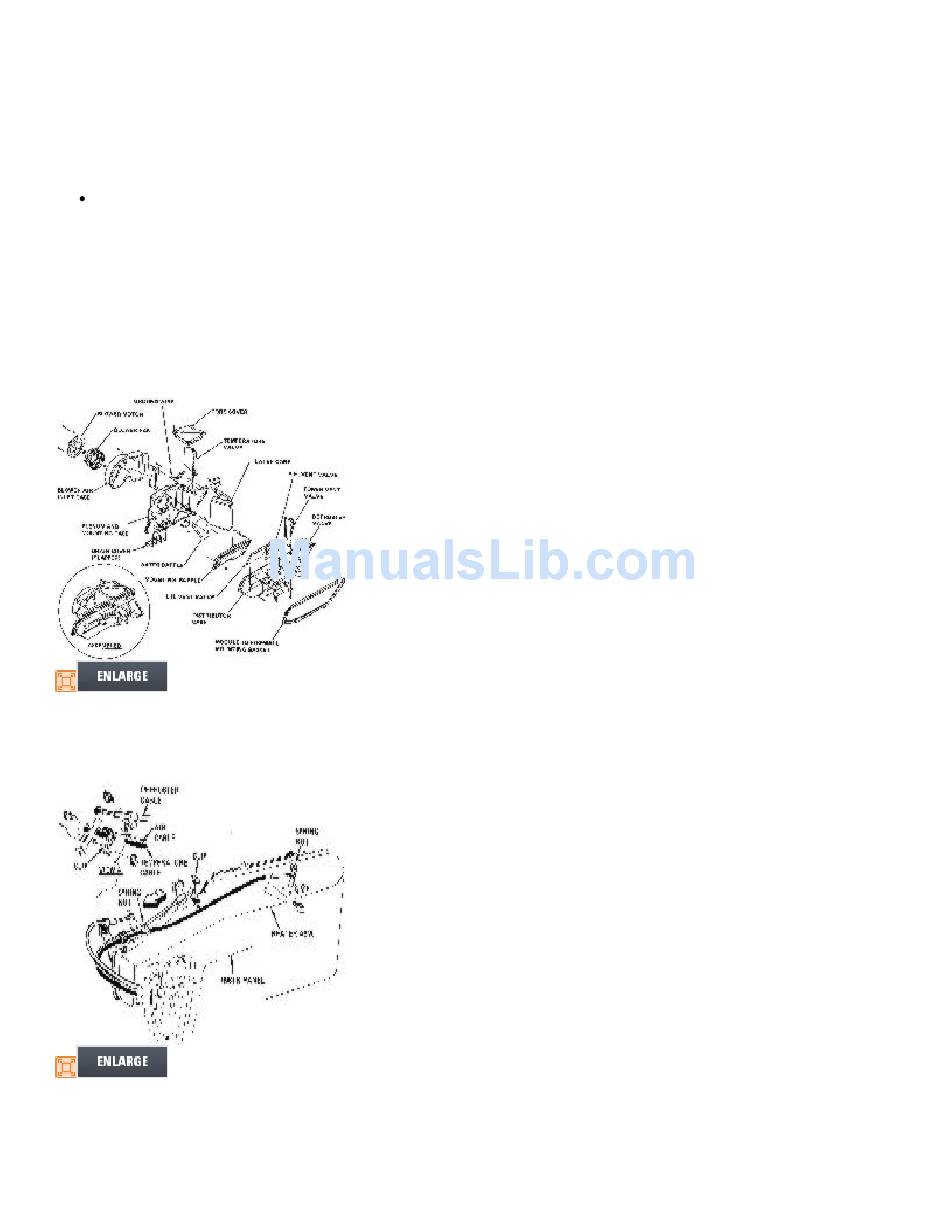

Fig. Fig. 1 Exploded view of the heater assembly components-1980-81 LeMans shown
Fig. Fig. 2 Heater cable routing-Phoenix and Ventura
1 of 11
8/10/2009 10:14 AM
Advertisement
Related Manuals for Pontiac Mid-size 1974-1983
Summary of Contents for Pontiac Mid-size 1974-1983
- Page 1 Repair Pontiac Mid-size 1974-1983 Repair Guide Heater Core REMOVAL & INSTALLATION REMOVAL & INSTALLATION Fig. Fig. 1 Exploded view of the heater assembly components-1980-81 LeMans shown Fig. Fig. 2 Heater cable routing-Phoenix and Ventura 1 of 11 8/10/2009 10:14 AM...
- Page 2 Fig. Fig. 3 Heater control cable and panel mounting-LeMans and Grand Prix Fig. Fig. 4 To remove the heater core, unfasten the lower windshield trim panel screws ... Fig. Fig. 5 ... then remove the lower windshield trim panel...
- Page 3 Fig. Fig. 6 Remove the rubber seal from around the cowl screen Fig. Fig. 7 If necessary, disconnect the windshield washer hose...
- Page 4 Fig. Fig. 8 Unfasten the windshield cowl screen retainers ... Fig. Fig. 9 ... then remove the cowl screen Fig. Fig. 10 Unfasten the heater case cover retaining bolts ... 4 of 11 8/10/2009 10:14 AM...
- Page 5 Fig. Fig. 11 ... then remove the heater case cover assembly Fig. Fig. 12 Unscrew the heater hose clamps ... Fig. Fig. 13 ... then disconnect the heater hoses from the core 5 of 11 8/10/2009 10:14 AM...
- Page 6 Fig. Fig. 14 Remove the heater core bracket retaining bolt ... Fig. Fig. 15 ... then remove the heater core from the case 1974-77 GTO, LeMans and Grand Am WITHOUT AIR CONDITIONING Drain the radiator. Disconnect the heater hoses at the air inlet assembly. Remove nuts from core studs on firewall (under hood).
-
Page 7: With Air Conditioning
WITH AIR CONDITIONING Drain the coolant. Disconnect the water hoses at the heater core tubes to prevent spilling coolant during removal. Remove the glove compartment. Remove the cold air duct and heater outlet. Remove the defroster duct attaching screw. Remove the screws and nuts which retain the case to the dash. Remove the blower motor resistor to gain access to the upper retaining nut inside the evaporator case. - Page 8 Installation is the reverse of removal. Use all new sealer when installing. 1975-79 Ventura, Phoenix Disconnect battery. Drain radiator, disconnect heater hoses at core and plug core tubes. Remove nuts from core case studs on firewall. Remove glove box and glove box door. From inside car, drill out lower right-hand heater case stud with in.
- Page 9 Reverse the steps to install. 1977 Grand Prix WITHOUT AIR CONDITIONING Disconnect the negative battery terminal. Drain the cooling system, disconnect the heater hoses, and plug the core tubes. Remove the screws and nuts from the heater module on the engine side. Remove the glove box to gain access to, and remove, the defroster duct screw, and the control cables.
- Page 10 Disconnect all electrical connectors. Move the lower windshield reverse molding out of the way. Remove the cowl brackets. Tape a strip of wood to the lower edge of the windshield glass, to protect the glass. Remove the top cover screws. Cut the sealing material along the cowl with a knife.
- Page 11 1977 Pontiac Grand Prix 6.6L 4BL 8cyl |.. 11 of 11 8/10/2009 10:14 AM...
