- Page 1 FOBO Bike User Manual Version 1.0 (for iOS7.1 and Android 4.30 & above) P a g e...
-
Page 2: Table Of Contents
2 About FOBO Bike 3 Importance of tire care 4 Description of FOBO Bike Tire Sensor unit Sensor lock nuts & wrench 5 Start to use FOBO Bike Installing FOBO Bike App Installing FOBO Bike sensors Setting up multiple users(FOBO Share) Tire rotation... -
Page 3: Introduction
With FOBO Bike, you will get an alert as soon as the tire pressure drops below a certain pre-set level and if you are within the Bluetooth range (~30m). - Page 4 FOBO Bike with permission. And it is simple with FOBOShare, the other user just need to download FOBO Bike App and you key in the e-mail address that the other user will be using to login to FOBO Bike App.
-
Page 5: Importance Of Tire Care
3 Importance of Tire Care It is extremely important to ensure bike tires are properly inflated for safety while riding. However, most riders tend to neglect proper tire care and maintenance. Bike tires are the only contact holding the bike to the road. The air pressure inside the tires is supporting the weight of the bike and passenger loads. -
Page 6: Description Of Fobo Bike

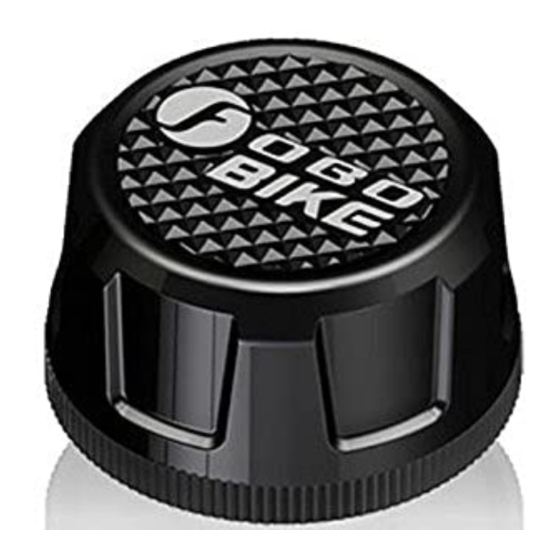

Internal PCB - internal electronics circuit FOBO Bike sensor units are designed to be robust and working reliably 24x7 to provide tire information. It is designed to be water proof (IP57) and using special engineering plastics, will be able to withstand road salts or other common automotive chemicals (petrol, engine oil, bike wash shampoo, etc). -
Page 7: Sensor Lock Nuts & Wrench
4.2 Sensor Lock nuts and wrench FOBO Bike sensors are tied to a FOBO account after installation. They are not re- usable or transferable without the owner releasing them from his/her FOBO account. This is a theft deterrent feature to discourage theft. - Page 8 In order to use the lock nuts, first install the lock nut to the tire valve (with the bump facing tire rim). Screw in all the way down and ensure that there is still a minimum of 5 thread count on the tire valve to make way for the sensor unit. Next, screw in the sensor unit until it is reasonably tight.
- Page 9 Steps to use FOBO Bike Lock Nut and wrench P a g e...
-
Page 10: Start To Use Fobo Bike
5.1 Installing FOBO Bike App You are required to have a smart phone with Bluetooth 4.0 (Bluetooth Smart) capability in order to use FOBO Bike. Follow the steps below to install your FOBO Bike: Step 1: Download FOBO Bike App to your smart phone ... -
Page 11: Installing Fobo Bike Sensors
HAND ONTO THE TIRE RIM SIMULTANEOUSLY TO MINIMISE ESD ATTACK WHICH MAY CAUSE DAMAGE TO THE SENSOR AND ITS FUNCTION. NOTE: INSTALLING FOBO BIKE SETS ON MORE THAN ONE BIKE WHICH ARE PARKED CLOSELY TOGETHER MAY CAUSE CROSS INTERFERENCE TO THE BLUETOOTH SIGNALS. PLEASE INSTALL FOBO BIKE ON ONE BIKE AT A TIME. -
Page 12: Setting Up Multiple Users(Fobo Share)
FOBO Bike App and login with an e-mail address. Note that shared users will not be able to change settings (name, user limits, etc) on your FOBO Bike set. They can only view the readings and get tire alerts. At HOME 12 |... -
Page 13: Tire Rotation
At the Bike status screen, click the icon at the top left of the screen to call up the Setting Menu. Select “Rotate Tire”, and then follow the instruction on the screen. You are now ready to use FOBO Bike with the new tire positions. You can perform tire rotation as often as you want. -
Page 14: Transfer Fobo Bike To Another User
“Delete” button, click it to remove the Bike profile. 5.7 Transfer FOBO Bike to another user Before passing on your FOBO Bike set to another user, you will have to release FOBO Bike sensors from your user account. -
Page 15: Clear Memory
User can clear the memory of Tire Pressure readings by selecting Clear Memory option in the bike setting screen. All relevant tire boxes in the Bike Status screen will be cleared and display “--" until the phone receives signal from FOBO Bike sensors. - Page 16 FOBO Bike sensors due to the air cooling effect on the tire valve when the bike is moving. It is extremely dangerous to ride when you get this alert message. WARNING: WHEN YOU SEE THESE ALERT, PLEASE STOP YOUR BIKE IMMEDIATELY AND CHECK THE TIRE! 6.4 Signal low or sensor missing...
-
Page 17: Replacing Battery
CAUSE INCONVENIENCE. Replacing Battery The coin cell battery (CR2032) used in FOBO Bike sensors could last up to two years on normal operation. Operating in extreme cold temperatures may reduce battery operating life for both sensors. You will get an alert on the smart phone when the sensor battery goes below indicated level. -
Page 18: Trouble Shooting Guide
Trouble Shooting Guide Could not sign up a new FOBO account (did not receive authentication e- mail) o Check the e-mail address entry is typed correctly o Check the Spam mailbox, in case the e-mail was filtered by the e-... -
Page 19: Fobo Bike Specifications
FOBO Bike Specifications Bluetooth: v4.0 Supported profiles: GAP, GATT attributes, Device Information Service, Proximity Reporter, Battery Service Transmit Conducted Power: +4.0dBm (sensor) Receiver Sensitivity: -93dBm@0.1%BER Antenna Return Loss: -12dB Operating Frequency: 2.4 GHz Weight: ~11.5g (sensor – with battery) ... -
Page 20: Warning
Warning Take note that FOBO Bike is not meant to function as anti-accident or anti-injury device. FOBO Bike is not a substitute for safe tire maintenance practices. Please take full responsibility of your own safety while riding. And continue to send your bike for regular tire check and maintenance. -
Page 21: Regulatory Information
Regulatory Information Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 22 Hereby, Salutica Allied Solutions Sdn. Bhd. declares that this Bluetooth device is in compliance with the essential requirements and other relevant provision of Directive 1999/5/EC. Caution: Changes or modifications to this FOBO device not expressly Approved by the party responsible for compliance could void the user’s authority to operate it. 22 |...
- Page 23 Proximity (PXP) Device Information Service (DIS) Bluetooth Wireless Interoperability: This FOBO device is designed to be interoperating with all Bluetooth wireless products that support compatible profiles and roles including: Bluetooth core technology v4.0 Bluetooth master and slave roles Intellectual Properties ™...
- Page 24 Salutica for use with the FOBO products or any damage to the FOBO products or ancillary equipment as a result of such use; 4) damage caused by (a) accident, fire, misuse, neglect, unusual physical or electrical stress, or modification; (b) improper or unauthorized installation, wiring, repair, testing or (c) use of the product outside Salutica’s published guidelines;...
-
Page 25: Limitation Of Liability
CONDITIONS OF NORMAL USE. EXCEPT AS INDICATED ABOVE, IN NO EVENT WILL SALUTICA BE LIABLE FOR ANY DAMAGES CAUSED BY THE FOBO BIKE PRODUCT OR THE FAILURE OF THE PRODUCT TO PERFORM, INCLUDING ANY LOST PROFITS OR SAVINGS OR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
