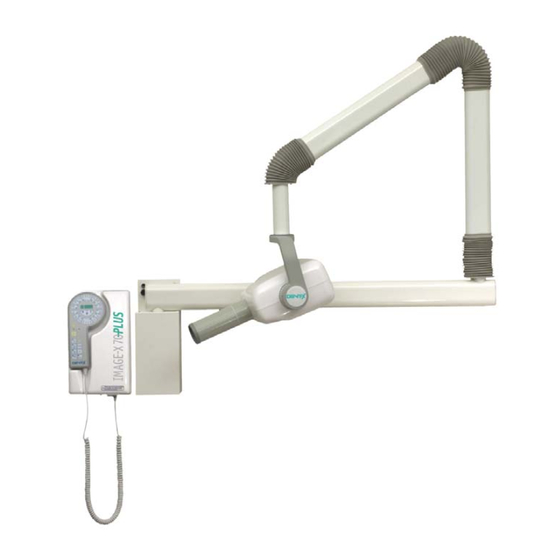

Summary of Contents for ImageWorks IMAGE-VET 70 PLUS

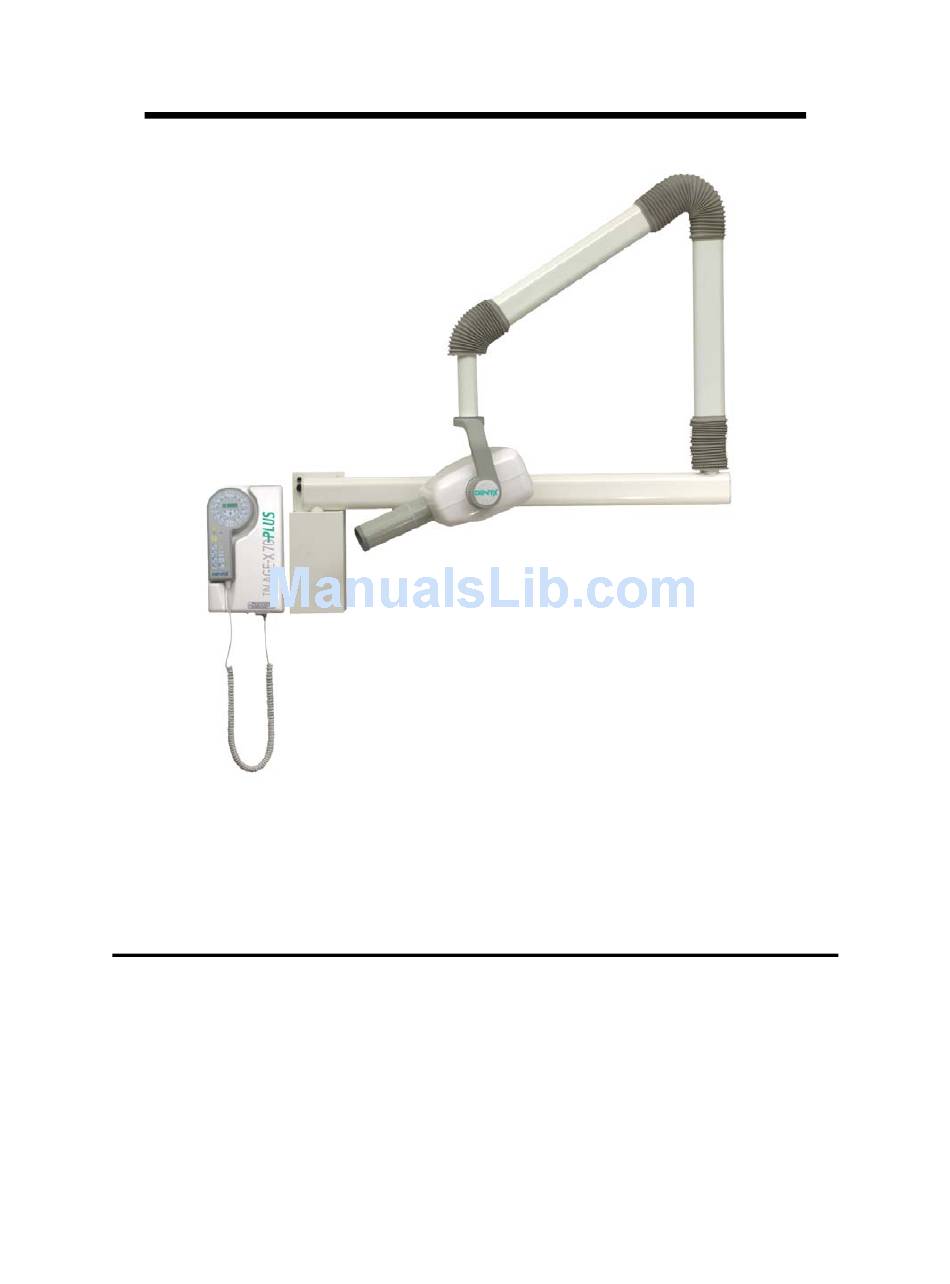

- Page 1 IMAGE-VET 70 PLUS Troubleshooting Reference Trained Service Personal ONLY Observe ALL safety Procedures in the service manual Reference: Installation, Operation, Service & parts Manual (P/N: 897-000002)
- Page 2 Table of Contents 1) Wiring Connections_______________________________________1 2) No X-Ray or Light X-Ray__________________________________1 3) Error Codes____________________________________________2-3 4) Miscellaneous____________________________________________4 > Greater Than < Lower Than Equal To ≈ About the Same...
- Page 3 1) I. Wiring Connections Three wiring are coming out of the x-ray tube and are connected as follows: a) The black wire (L) is connected to number 10 on the bar closest to the switch. b) The white wire (N) is connected to number 16 on the bar closest to the switch. c) Green-yellow is connected to ground (metal screw second on the left from the power switch).
- Page 4 3) Error Codes a) E001: x-ray exposure button was released too fast. b) E002: E002 Frequency is incorrect Turn the machine off and remove J3 from the PC board (it is located on the left edge when facing the power switch on the control box) make sure it is clean and put it back in place (covers both pins). Turn the machine on Problem Solved Problem wasn’t solved Machine is good...
- Page 5 g) E010: Check if wiring is accurate Wiring Good Wiring Bed Make sure the J6 on the control Fix connection according box is open, i.e.: it doesn’t cover to the instruction. both pins (cover only the left one). J6 is located on the left edge of the PC Board when facing the Power switch.
- Page 6 4) Miscellaneous a) No Ready Light: Make sure that the jumper between 8 & 9, on the bar furthest from the Power Switch, is in place. b) Machine Doesn’t Work but Everything Else is Fine: Check that J1 is to the right and covers pins 1 & 2. J1 location determines whether the Hand-Held device is used or whether an external device is used (J1 is located on the opposite side to the Power Switch).
