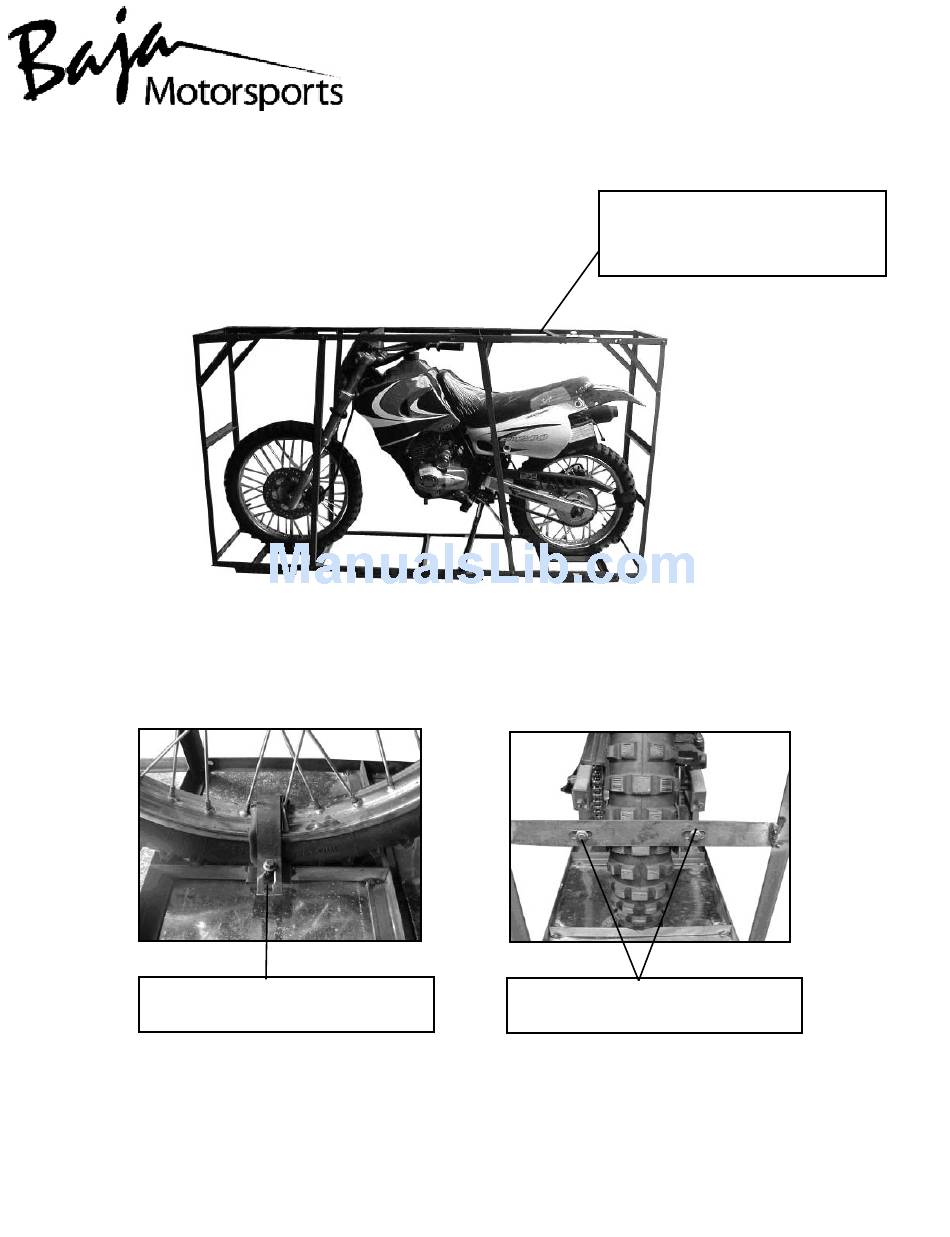

- Page 1 Set-up Instructions SSR200 . Remove cardboard carton from metal frame and bolts from metal frame. 3. Remove bolts and bracket holding 2. Remove bolts and bracket holding rear wheel to frame front wheel to frame. REV - A...
-
Page 2: Removal From Crate
Removal from crate 4. Remove bolts and bracket holding the top of the handlebar to the metal frame. 6. Assemble front brake 5. Attach kickstand lever and handlerbar. 8. Remove packaging 7. Attach gear shift lever straps and attach the pedals... - Page 3 Hardware, assembly parts and tool kit Handlebar bolts Front fender grommets Handlebar brackets Front fender hardware Front fender bolts Plastic straps...
-
Page 4: Handlebar Assembly
Handlebar assembly 9. Attach handlebars using the handlebar brackets and bolts. Torque to 25Nm (8.5ft.lb.) -
Page 5: Front Fender Assembly
Front Fender Assembly 0. Insert rubber grommets and metal plate in holes provided on fender according to photo. . Attach fender to front forks using 3 fender bolts in hardware box... -
Page 6: Battery Installation
Battery installation 2. Refer to battery section of owners manual for correct installation and charging of battery... - Page 7 Gas and Oil 3. Fill engine with correct amount of oil and rear gear case with correct amount of gear oil. Refer to owners 4. Fill gas tank as specified manual for oil types and quantity. in owners manual. Gas Cap Oil Cap 5.
