Summary of Contents for stex S25E

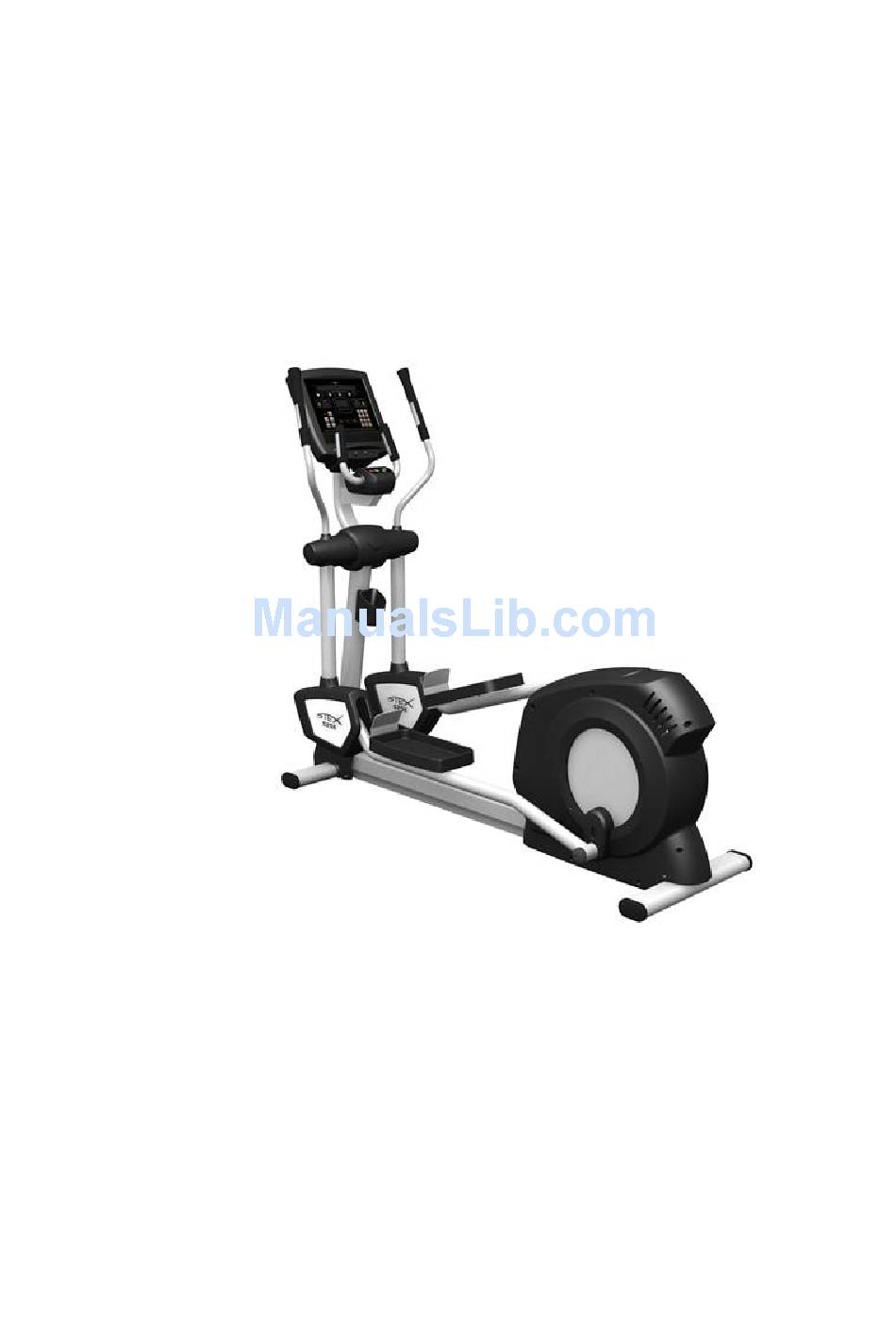

  • Page 1 S25E Elliptical Customer Support Services Service manual...
  • Page 2 General Contents 1. Introduction 2. Component identification 3. Parts manual 4. Assembly instructions < 2 >...
  • Page 3 // If you have any problem ~~~ If you have any problem for STEX exercise new Elliptical, please contact our sales dealer or our service center by phone or E-mail. In order to speed our response to your particular situation, please have the following information available...
  • Page 4 3. Part manual 3-1 Leveller assembly (#1) – S25E Series 3-1 Description Parts Parts No. Q’TY Remark Leveling foot 301002 4 ea Ass’y wheel BRK 201087 2 ea Moving wheel 301003 2 ea Hex. Head 300034 2 ea M10 x 45L...
  • Page 5 3-2 Crank shaft / Pulley assembly (#2) – S25E Series 3-2 Description Parts Parts No. Q’TY Remark Crank pulley 301204 1 ea Crank shaft ass’y 301205 1 ea Crank shaft bracket 2 301206 1 ea Hex. Socket head 300084 3 ea...
  • Page 6 3-3 Motor / Idler assembly (#3) – S25E Series 3-3 Description Parts Parts No. Q’TY Remark Hybrid Generator 301211 1 ea Hex. Socket head 300089 4 ea M6 x 15 (SEMS) BRK Ellip. Idler 301212 1 ea Roller Idler 0001...
  • Page 7 3-4 Power board assembly (#4) – S25E Series 3-4 Description Parts Parts No. Q’TY Remark BRK Power board 301139 1 ea Power board 201006 1 ea Machine pan head 300057 4 ea M4 x 8L (SEMS) Machine pan head 300040...
  • Page 8 3-5 Crank link assembly (#5) – S25E Series 3-5 Description Parts Parts No. Q’TY Remark Crank link 01 301217 2 ea Paralley key 301218 2 ea 8 x 7 x 15L Set screw 300131 2 ea M6 x 8L Hex. Socket head...
  • Page 9 3-6 Rocker arm assembly (#6) – S25E Series 3-6 Description Parts Parts No. Q’TY Remark Shoulder housing stopper 301222 2 ea Hex. Socket head 300096 2 ea M8 x 20L Ass’y Rocker arm frame(L / R) 301224 / 301223 1 ea / 1ea...
  • Page 10 3-7 Extension mold assembly (#7) – S25E Series 3-7 Description Parts Parts No. Q’TY Remark Ass’y Extrusion molding E001 201118 1 ea Tapping pan head 3000989 6 ea M5 x 12L < 10 >...
  • Page 11 3-8 Front cover & Crank link cover assembly (#8) – S25E Series 3-8 Description Parts Parts No. Q’TY Remark Mold_ Front cover R 301243 1 ea Ass’y Ext. Input board 201120 1 set Mold_ Front cover L 301244 1 ea...
  • Page 12 3-9 Pedal link assembly (#9) – S25E Series 3-9 Description Parts Parts No. Q’TY Remark Ass’y Slide link frame(L / R) 301230 / 301229 1 ea / 1 ea Slide link pedal 301232 2 ea Pedal insert bushing 301234 8 ea...
  • Page 13 3-10 Slide roller & Stroke link assembly (#10) – S25E Series 3-10 Description Parts Parts No. Q’TY Remark Slide roller ass’y 201094 2 ea Hex. Socket head 300098 4 ea M8 x 80L Nut Nylon Insert lock 300023 4 ea Stroke link ass’y(L / R)
  • Page 14 3-11 Shoulder cover aseembly (#11) – S25E Series 3-11 Description Parts Parts No. Q’TY Remark Ass’y Shoul. Link bottom cover R 201098 2 ea Machine pan head 300040 2 ea M5 x 12L (SEMS) Ass’y Shoul. Link bottom cover L...
  • Page 15 3-12 Main cover & Crank link shaft cap & Foot cover aseembly (#12) – S25E Series 3-12 Description Parts Parts No. Q’TY Remark Mold_ Main cover side 301240 1 ea Mold_ Main cover side 301240 1 ea Tapping pan head...
  • Page 16 3-13 Rotating handle assembly (#13) – S25E Series 3-13 Description Parts Parts No. Q’TY Remark Ass’y Rotating handle R 201106 1 set Ass’y Rotating handle L 201107 1 set Socket button head 300116 8 ea M8 x 20L (SEMS) < 16 >...
  • Page 17 3-14 Display console assembly (#14) – S25E Series 3-14 Description Parts Parts No. Q’TY Remark Ass’y_ D Console supp. Frame(Ellip) 201104 1 ea Ass’y Display conlsole 201033 / 201035 / 1 set (S25E / S25EX / S25EXi) 201114 Machine pan head...
  • Page 18 3-15 Shoulder link cover assembly (#15) – S25E Series 3-15 Description Parts Parts No. Q’TY Remark Mold_ Neck cover back 301276 1 ea Machine pan head 300065 5 ea M5 x 12L (SEMS) Machine pan head 300065 5 ea M5 x 12L (SEMS)
  • Page 19 3-16 Display console assembly (#16-1) – S25E 3-16 Description Parts Parts No. Q’TY Remark Mold_ Console front cover 01 301084 1 ea Display board 201039 1 ea Tapping pan head 300051 6 ea M4 x 8L Mold_ Front board cover 0002...
  • Page 20 3-17 Display console assembly (#16-2) – S25EX 3-17 Description Parts Parts No. Q’TY Remark Mold_ Console front cover 03 301085 1 ea Mold_ Front board cover 0002 201066 1 ea BRK Front board 301103 1 ea Multi board 201126 1 ea Machine pan head 300057 2 ea...
  • Page 21 3-18 Display console assembly (#16-3) – S25EXi 3-18 Description Parts Parts No. Q’TY Remark Mold_ Console front cover 03 301085 1 ea Mold_ Front board cover 0002 201066 1 ea BRK Front board 301103 1 ea Multi board 201126 1 ea Machine pan head 300057 2 ea...
  • Page 22 3-19 Circuit Diagram – S25E < 22 >...
  • Page 23 3-19 Description – S25E Parts Parts No. Q’TY Remark Display board 201039 1 ea Rev. 07 Membrane overlay 301082 1 ea Wire_D001 301086 1 ea iPOD Cable 200066 1 ea Front board 201044 1 ea Rev. F Wire_D002 301087 1 ea...
  • Page 24 3-20 Circuit Diagram – S25EX < 24 >...
  • Page 25 3-20 Description – S25EX Parts Parts No. Q’TY Remark Interface board 201040 1 ea Rev. L Wire_I005 301093 1 ea Wire_I004 301092 1 ea Wire_I003 301091 1 ea S_Scaler Comm Cable 300337 1 ea Wire_D005 301088 1 ea Wire_D003 301043 1 ea Wire_D002 301087...
  • Page 26 3-21 Circuit Diagram – S25EXi < 26 >...
  • Page 27 3-21 Description – S25EXi Parts Parts No. Q’TY Remark Interface board 201040 1 ea Rev. L Wire_I005 301093 1 ea Wire_I004 301092 1 ea Wire_I003 301091 1 ea S_Scaler Comm Cable 300337 1 ea Wire_D005 301088 1 ea Wire_D003 301043 1 ea Wire_D002 301087...

  • Page 28: Assembly Instructions

     DO read the entire operation manual prior to operate this machine as this is essential for proper use.  DO verify the contents of the delivery prior to setting the machine. If any parts are missing, contact STEX(Sales dealer or our service center) at the number listed in the operation manual. Save the shipping cartons in case of return.
  • Page 29 Accompanying parts Models Parts Q’TY S25E S25EX S25EXi ○ ○ ○ Display console support column ○ ○ ○ Hexagon socket head // (SEMS)M820L ○ ○ ○ Fast track_bottom cover ○ ○ ○ Pan head screw // (SEMS)M512L ○ ○ ○...
  • Page 30 Assembly procedures  S25E 1. Check the contents//Accompanying parts, required tools, & others… 2. Secure the DISPLAY CONSOLE SUPPORT COLUMN(1). 1) Position the DISPLAY CONSOLE SUPPORT COLUMN(1) as shown. 2) Feed the wires through the DISPLAY CONSOLE SUPPORT COLUMN. 3) Connect the HEART RATE CABLES(a) leading from the DISPLAY CONSOLE SUPPORT COLUMN to the WIRES(b) leading from the base frame.
  • Page 31 4. Secure the FIXED HANDLEBAR(5). 1) Position the FIXED HANDLEBAR(5) as shown. 2) Secure the FIXED HANDLEBAR using four M615mm SCREWS(6). Note: Be careful not to pinch wires. 5. Secure the FAST TRACK_TOP COVER(7). 1) Position the FAST TRACK_TOP COVER(7) as shown. 2) Connect the HEART RATE CABLES(a, c) and FAST TRACK CABLE(d) leading from the upper DISPLAY CONSOLE SUPPORT COLUMN to their respective locations in the back of the FAST...
  • Page 32 M512mm SCREWS(10) as shown. 4) Position the REAR COVER(11) at the back of the DISPLAY CONSOLE and secure it using four M510mm TAPPING SCREWS(12). 7. Secure the RIGHT ROTATING HANDLEBAR(13). 1) Position the RIGHT ROTATING HANDLEBAR(13) as shown. 2) Connect the HEART RATE CABLE(g) leading from the RIGHT ROTATING HANDLEBAR to the CONNECTOR(h) extending from the top of the right pivot arm.
  • Page 33 10. Secure the NECK COVERS. 1) Position the NECK COVER_BACK(21) as shown and secure it using two M512mm SCREWS(21) on the base frame. 2) Align holes of the NECK COVER_FRONT(20) with those in the NECK COVER_BACK. Secure them together using four M512mm SCREWS(21).
  • Page 34 Assembly procedures  S25EX//EXi 1. Check the contents//Accompanying parts, required tools, & others… 2. Secure the DISPLAY CONSOLE SUPPORT COLUMN(1). 1) Position the DISPLAY CONSOLE SUPPORT COLUMN(1) as shown. 2) Feed the wires through the DISPLAY CONSOLE SUPPORT COLUMN. 3) Connect the HEART RATE CABLES(a) leading from the DISPLAY CONSOLE SUPPORT COLUMN to the WIRES(b) leading from the base frame.
  • Page 35 4. Secure the FIXED HANDLEBAR(5). 1) Position the FIXED HANDLEBAR(5) as shown. 2) Secure the FIXED HANDLEBAR using four M615mm SCREWS(6). Note: Be careful not to pinch wires. 5. Secure the FAST TRACK_TOP COVER(7). 1) Position the FAST TRACK_TOP COVER(7) as shown. 2) Connect the HEART RATE CABLES(a, c) and FAST TRACK CABLE(d) leading from the upper DISPLAY CONSOLE SUPPORT COLUMN to their respective locations in the back of the FAST...
  • Page 36 3) Secure the DISPLAY CONSOLE using five M512mm SCREWS(10) as shown. 4) Position the REAR COVER(11) at the back of the DISPLAY CONSOLE and secure it using four M510mm TAPPING SCREWS(12). 7. Secure the RIGHT ROTATING HANDLEBAR(13). 1) Position the RIGHT ROTATING HANDLEBAR(13) as shown. 2) Connect the HEART RATE CABLE(j) leading from the RIGHT ROTATING HANDLEBAR to the CONNECTOR(k) extending from the top of the right pivot arm.
  • Page 37 10. Secure the NECK COVERS. 1) Position the NECK COVER_BACK(21) as shown and secure it using two M512mm SCREWS(21) on the base frame. 2) Align holes of the NECK COVER_FRONT(20) with those in the NECK COVER_BACK. Secure them together using four M512mm SCREWS(21).
  • Page 38 Pre-operation check! ① Ensure that all screws are tight. ② Ensure that the elliptical is properly leveled and stable. ③ Ensure that the leveler nuts are tight. ④ Read the entire operation manual before using the elliptical. < 38 >...
