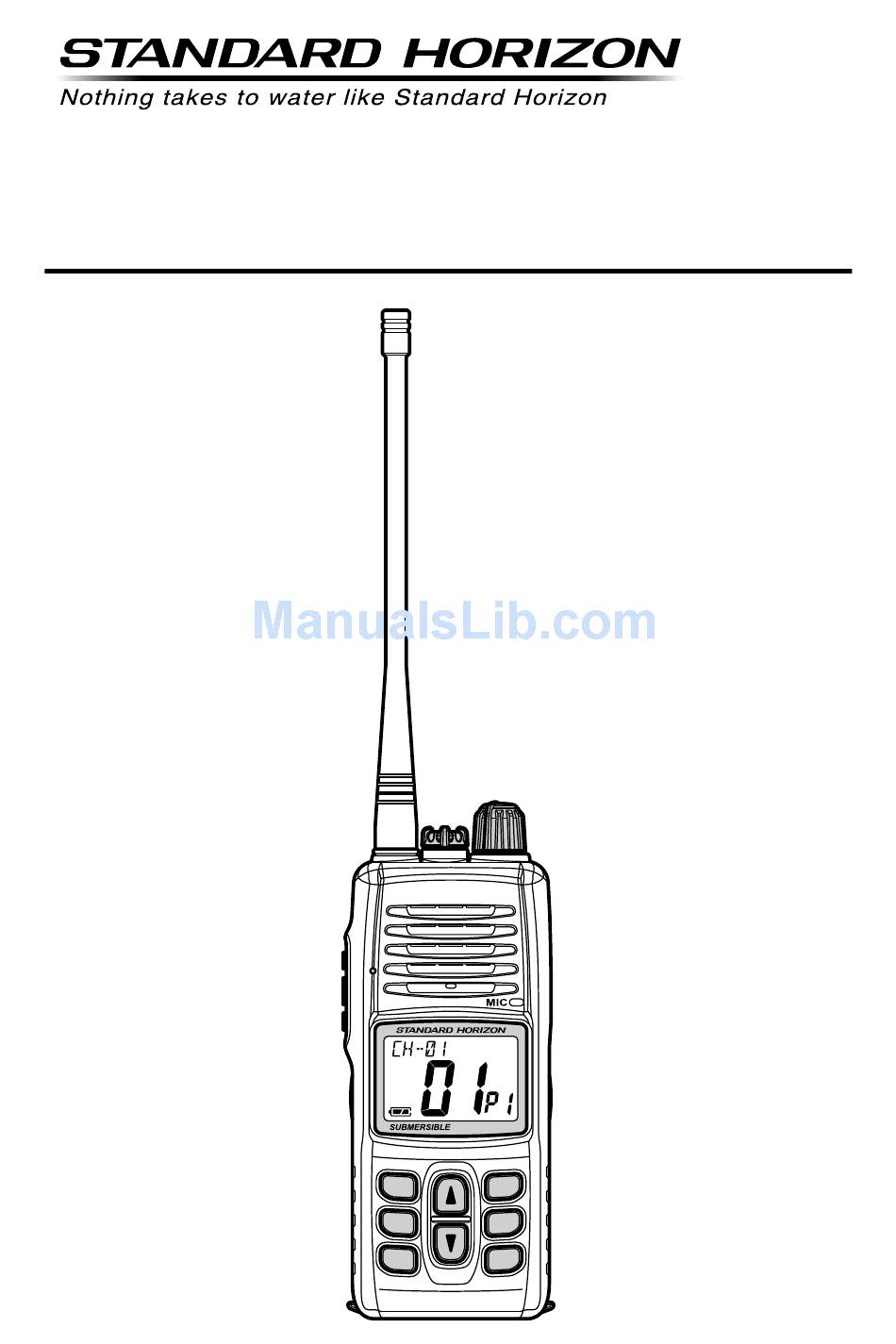

- Page 1 HX407 UHF FM Transceiver Owner’s Manual HX407 P-CH...
-
Page 2: Table Of Contents
TROUBLESHOOTING CHART .................27 9. WARRANTY .........................28 10. OPTIONAL ALKALINE BATTERY TRAY INSTALLATION ..........31 10.1 FBA-42 ALKALINE BATTERY TRAY .................31 11. SPECIFICATIONS ........................32 11.1 GENERAL ........................32 11.2 TRANSMITTER ......................32 11.3 RECEIVER ........................32 FCC AND CANADA RADIO LICENSE INFORMATION .............33 Page 2 HX407... -
Page 3: Warning! Fcc Rf Exposure Requirements
(CLIP-22). Other body-worn accessories or configurations may NOT comply with the FCC RF exposure requirements and should be avoided. The CLIP-22 belt-clip must be used in order to comply with the FCC RF exposure requirements. HX407 Page 3... - Page 4 Do not operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, health care facilities, aircraft, and blasting sites. Page 4 HX407...
-
Page 5: General Information
The HX407 is a JIS-8 / IPX8 (1.5 m or 4.92 feet for 30 minutes) Submersible 5-Watt portable two way marine transceiver with the capability to be programmed with CTCSS or DCS signalling by an authorized Standard Horizon dealer. -
Page 6: Accessories
“C” suffix is for use with 230 VAC (Type-C plug), and “U” suffix is for use with 230 VAC (Type-BF plug). ➈ Note: Before operating the HX407 for the first time, it is recommended that the bat- ➉ tery be charged. Please see section “3.3.3 BATTERY CHARGING”... -
Page 7: Getting Started
The design of the HX407 allows water to enter between the radio and the battery pack, however waterproof performance is not compromised. After using the HX407 in salt water environment is recommended to clean the radio with fresh water by rinsing the battery and radio (separately) under a sink facet or by dunking in a fresh water. -
Page 8: Batteries And Chargers
Use only a STANDARD HORIZON approved charger. The use of any other charger may cause permanent damage to the battery. Follow charging instructions provided with the chargers. Keep the battery contacts clean and dry. Page 8 HX407... -
Page 9: Battery Installation And Removal
To remove the battery, turn the radio off. Slide the Battery Pack Latch on the bottom of the radio, then lift up on the bottom of the battery and remove it from the radio. HAND STRAP INSTALLATION HX407 Page 9... -
Page 10: Battery Charging
NOTE The CD-50 cradle is only designed for the charging of the HX407’s battery, and is not suitable for other purposes. The CD-50 may contribute noise to TV and radio reception in the immediate vicinity, so we do not recommend its use adjacent to such device. -
Page 11: Controls And Indicators
” When this jack is used, the inter- nal speaker and microphone are disabled. ‘ 1) Do not allow the HX407 to become submerged in HX407 water while the plastic cover over the MIC/SP jack is removed. P-CH 2) Do not remove/install the op- ’... - Page 12 When transmitting, position your mouth 1 inch (2.5 cm) away from the small mic hole. Speak slowly and clearly into the microphone. ➉ Battery Pack Lock (Bottom side) Slide the Battery Pack Lock to the “” position for battery removal. Page 12 HX407...
-
Page 13: Lcd Indicators
Refer to section “5.4 KEYPAD LOCKING” for details. “ ” Indicator This indicator will be displayed when the channel has been added to the Scan Memory. “ ” Indicator This indicator is displayed when the TX output power is selected to “Low” power. HX407 Page 13... -
Page 14: Basic Operation
3. If using Low power is not effective, press (or press and hold) the desired programmable key on which Tx Power H/L is set to select High power (“ ” icon disappears). 4. When receiving a signal, wait until the incoming signal stops before trans- Page 14 HX407... -
Page 15: Transmit Time - Out Timer (Tot)
The PTT switch is disabled for 10 seconds after the transceiver automati- cally switches to the receiving mode by the TOT feature. 5.4 KEYPAD LOCKING In order to prevent accidental channel change, the HX407’s keypad may be locked. 1. Press (or press and hold) assigned programmable key to lock the keypad, when the “... -
Page 16: Advanced Operation
(repeatedly) upward or downward through the channels. Key Lock Press (or press and hold) the assigned programmable key to toggle the Key Lock feature “On” and “Off”. In order to prevent accidental channel change, the HX407’s keypad may be locked. Page 16 HX407... - Page 17 While scanning, the transceiver will check each channel of the programmed group for the presence of the signal, and will stop on a channel if a signal is present. Press (or press and hold) the assigned programmable key to activate the scanning on the selected groups. HX407 Page 17...
-
Page 18: Programmable Key Functions Chart
Ch Dn Ch Continuous Up Ch Continuous Dn Key Lock Lamp Scan Scan Mem Dual Watch Scrambler Group Change Up Group Change Dn Tx Save Disable Group Scan On/Off Ta Scan Talk Around Direct Ch1 - 4 Page 18 HX407... -
Page 19: Memory Scan
6.2 MEMORY SCAN The HX407 will automatically scan channels programmed into Preset Channel Memory and also channels store into Scan Memory. When an incoming signal is detected on one of the channels during scan, the radio will pause on that channel, allowing you to listen to the incoming trans- mission. -
Page 20: Operation
“M-SCAN” will be shown in the upper left corner of the display. 3. When the HX407 receives a transmission, it will stop on the channel until the incoming signal disappears, then start scanning again. -
Page 21: Dual Watch
4. When the HX407 receives a signal on the Priority channel it will stay on this channel until the incoming signal disappears, then start Priority scanning again. -
Page 22: Voice Scrambler
6.5 VOICE SCRAMBLER When the HX407's built in 32 code voice inversion voice scrambler is enabled your voice will be scrambled to all persons listening on a specific channel and may only be decoded by another Standard Horizon UHF with scrambler capability. -
Page 23: Menu ("Set") Mode
7. MENU (“SET”) MODE The Setup Menu allows a number of the HX407 operating parameters to be custom configured for your operating requirements. The Setup Menu is easy to activate and setup using the following procedure: 1. Turn the transceiver off by rotating the VOL knob fully counter-clockwise. - Page 24 HLc: High-Low Cut HLb: High-Low Boost Low Boost Hb: High Boost SCRAMBLER Function: Enables/Disables the Voice Scrambler and selects the channel and scramble code. Available Values: 01 to 32 (channel) / OFF, 00 to 31 (scramble code) Default: OFF Page 24 HX407...
- Page 25 Function: Select the VOX gain. Available Values: 1 / 2 / 3 / 4 / 5 (level) Default: 2 VOX TIMER Function: Select the VOX delay time. Available Values: 1 / 2 / 3 / 4 / 5 (seconds) Default: 3 HX407 Page 25...
-
Page 26: Maintenance
Commonly requested parts, and their part numbers are listed below. SRA-14G Antenna: ABA50X001 SRA-14H Antenna: ABA50X002 SRA-14J Antenna: ABA50X003 VOL Knob: RA1193900 MIC/SP Rubber Cap: RA1194200 MIC/SP Plastic Cap: RA057790A CLIP-22 Belt Clip: CP9672002 Hand Strap: S6000418 Page 26 HX407... -
Page 27: Factory Service
Turn the Key Lock off. Refer to section 6.6 of this manual. Charging indicator on CD- Defective battery FNB- Contact Standard Horizon Product 50 does not illumininate. Support at (800)767-2450. 115LI. Battery contacts not making contact with the charger cradle. HX407 Page 27... -
Page 28: Warranty
STANDARD HORIZON’s liability for any breach of contract or any breach of express or implied warranties in connection with the sale of Products shall be limited solely to repair or replacement, at its option, of the Product or Page 28 HX407... - Page 29 STANDARD HORIZON. IN CONNECTION WITH THE SALE OF ITS PRODUCTS, STANDARD HORIZON MAKES NO WARRANTIES, EXPRESS OR IMPLIED AS TO THE MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR OTHERWISE, EXCEPT AS EXPRESSLY SET FORTH HEREIN. HX407 Page 29...
- Page 30 Product Support Inquiries If you have any questions or comments regarding the use of the HX407, you can visit the STANDARD HORIZON Web site to send an E-Mail or contact the Product Support team at (800) 767-2450 M-F 8:00AM to 5:00PM PST.
-
Page 31: Optional Alkaline Battery Tray Installation
FBA-42 is a battery tray that holds six AA size Alkaline batteries and is used with the HX407 transceiver. When the FBA-42 is installed into the HX407 the radio can withstand immersion in water up to 1.5 m (4.92 Ft) for 30 minutes. -
Page 32: Specifications
Max imum Audio Output Power: 700 mW @16 Ω for 10 % THD (@7.4 V) AF Output (External SP): 300 mW @8 Ω for 10 % THD (@7.4 V) Spurious Emission: Less than 2 nW Measured in accordance with TIA/EIA-603. Page 32 HX407... -
Page 33: Fcc And Canada Radio License Information
FCC Type Accepted: ..........Part 22 / Part 80 / Part 74 Output Power with FNB-115LI: ........1.0/5.0 W (Low/High) Emission: ................. 16K0G3E, 11K0G3E Frequency Range: .............406.100 to 470.000 MHz FCC Type Number: ..............K6630394X20 Industry Canada Type Approval: ..........511B-30394X20 HX407 Page 33... - Page 34 Les types d’antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation de l’émetteur. l’établissement d’une communication satisfaisante. Page 34 HX407...
- Page 36 Copyright 2016 YAESU MUSEN CO., LTD. All rights reserved. No portion of this manual may be reproduced without the permission of 1602S-0O YAESU MUSEN CO., LTD. Printed in Japan *EM039U100* YAESU USA 6125 Phyllis Drive, Cypress, CA 90630...
