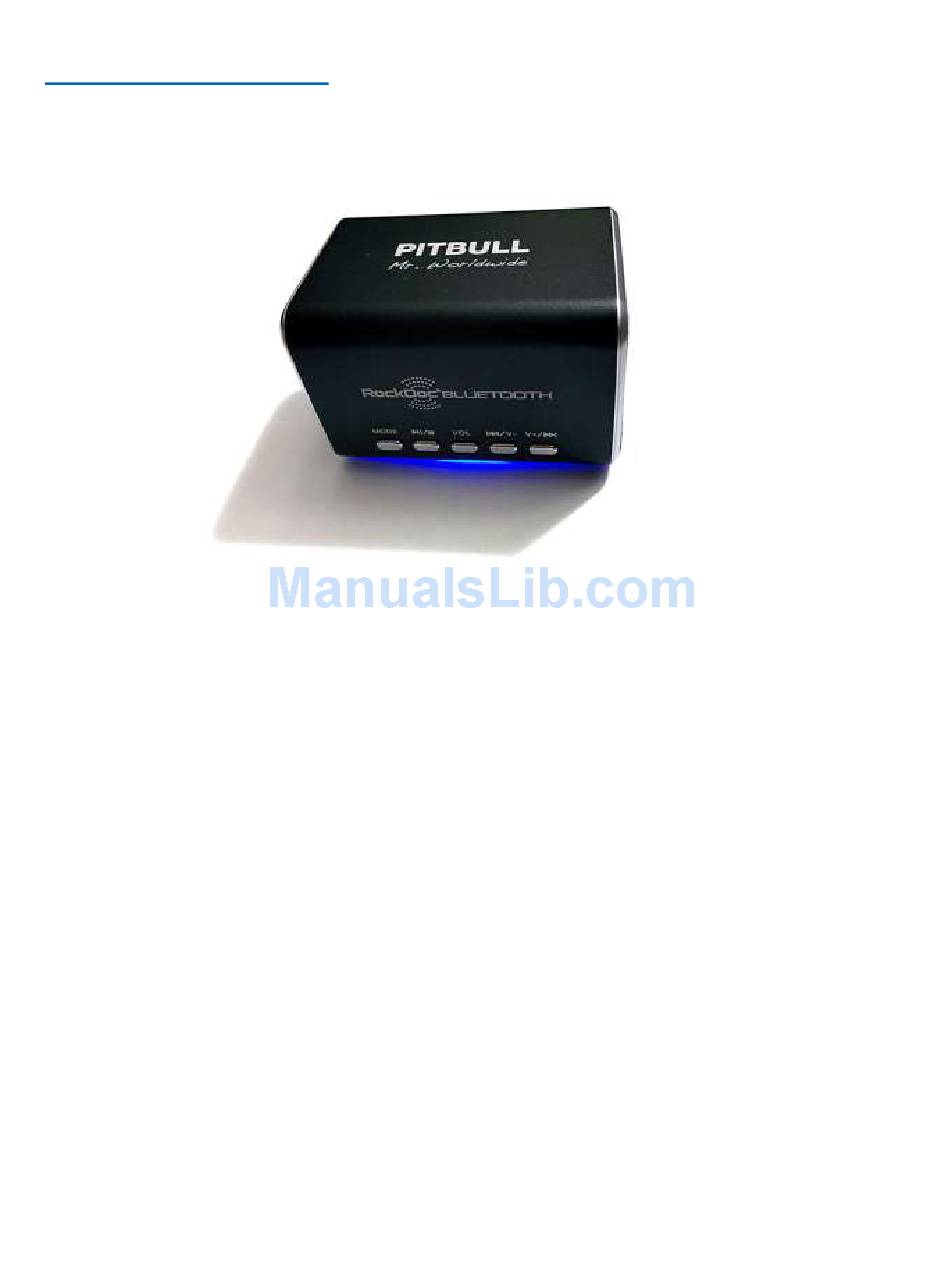

VisionTek ROCK05BT Instruction Manual

Rockdoc/pittbull bluetooth speaker

Bluetooth Speaker

Bluetooth Speaker Specifications:

 Dimensions: 3" x 2" x 2" (75mm x 50mm x 53mm)

 Frequency response: 150-18000 HZ (±3dB)

 Speaker Output: RMS 6W (3W+3W), 4 Ohms

 3.7V Lithium Battery (model BL-5B, factory installed) can play music and

charge simultaneously while connected to power source

 Line In/5v: Micro USB power supply, audio input

 OFF/ON: On-Off switch setting

 Micro SD: Slot for Micro SD card

 Bluetooth Speaker with built-in Micro SD slot and speakers (2 x 3W)

 Multi-purpose Cable: Side 1: Audio 3.5mm jack (Line In) & micro USB

(power purpose) | Side 2: Standard USB plug

 Instructions manual

RockDoc/PITTBULL Model ROCK05BT

Instructions Manual

(revised by hqtelecom.com)

Table of Contents

Do you have a question about the ROCK05BT and is the answer not in the manual?

Page 1 Bluetooth Speaker RockDoc/PITTBULL Model ROCK05BT Instructions Manual (revised by hqtelecom.com) Bluetooth Speaker Specifications:  Dimensions: 3” x 2” x 2” (75mm x 50mm x 53mm)  Frequency response: 150-18000 HZ (±3dB)  Speaker Output: RMS 6W (3W+3W), 4 Ohms  3.7V Lithium Battery (model BL-5B, factory installed) can play music and charge simultaneously while connected to power source ...
Page 2 Charging the battery on the RockDoc® Speaker Your RockDoc® Speaker comes from the factory equipped with a 3.7V Lithium battery (model BL-5B).  This battery is installed in the battery compartment located in the bottom of the RockDoc® Speaker.  To charge the battery, connect the multi-purpose cable on Micro USB LINE IN DC-5V socket on your RockDoc®...
Page 3  Turn Bluetooth “ON” on your Bluetooth-enabled device and/or start searching for Bluetooth devices.  Look for “RockDoc” in the Bluetooth-enabled devices list. You may have to refresh the list.  Select “RockDoc” to pair your device and the speaker. You may need to enter the code “0000”.
Page 4  MODE: Pressing the “MODE” button will toggle between Line In, Micro SD, and Bluetooth.  II/ Play/Pause/Stop song in progress   VOL: Toggle between volume and song selection  /V- : Previous Song/Rewind/Volume Down  V+/ : Next Song/Fast Forward/Volume Up ...
