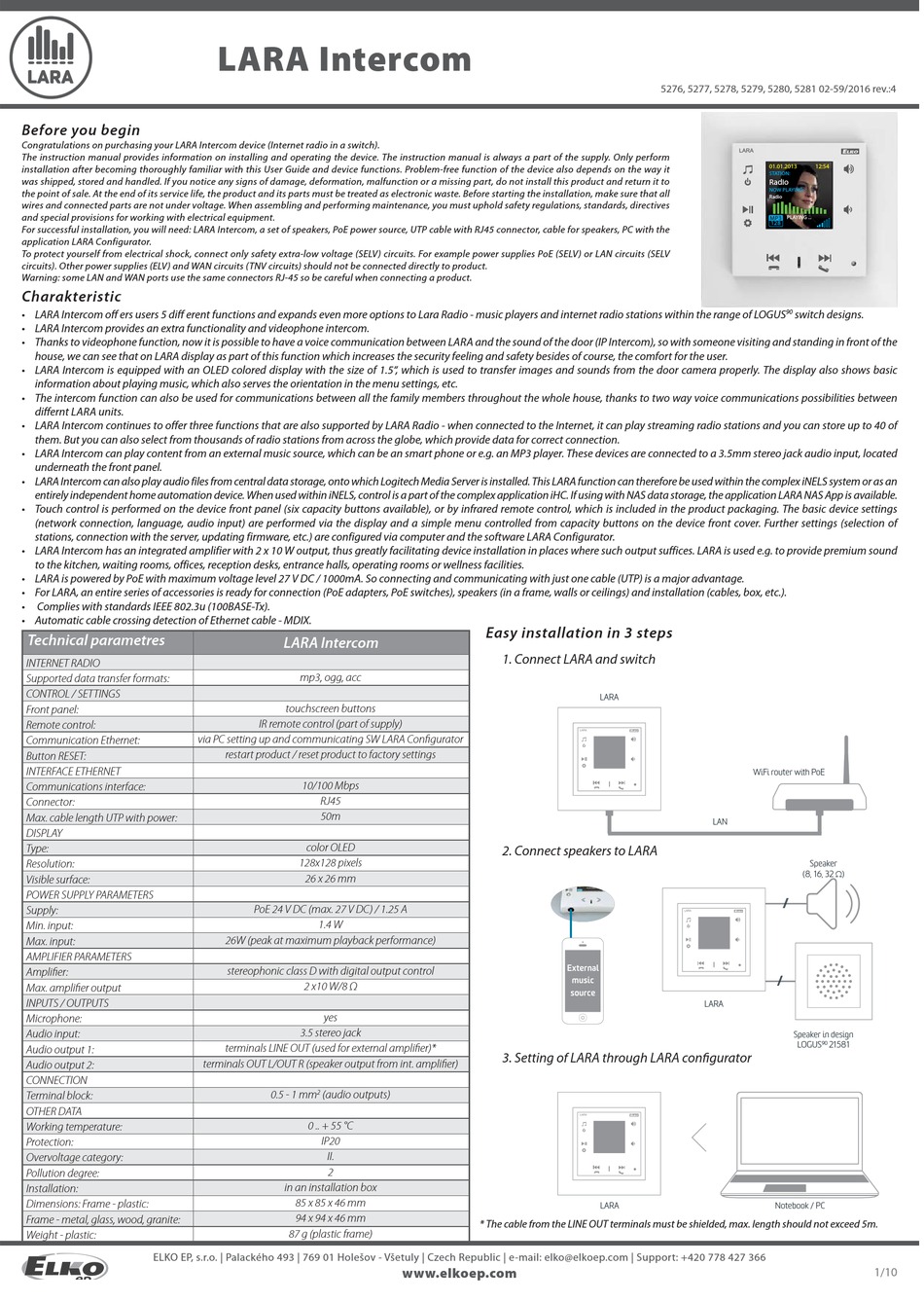

Lara 5276 User Manual

Before you begin

Congratulations on purchasing your LARA Intercom device (Internet radio in a switch).
The instruction manual provides information on installing and operating the device. The instruction manual is always a part of the supply. Only perform
installation after becoming thoroughly familiar with this User Guide and device functions. Problem-free function of the device also depends on the way it
was shipped, stored and handled. If you notice any signs of damage, deformation, malfunction or a missing part, do not install this product and return it to
the point of sale. At the end of its service life, the product and its parts must be treated as electronic waste. Before starting the installation, make sure that all
wires and connected parts are not under voltage. When assembling and performing maintenance, you must uphold safety regulations, standards, directives
and special provisions for working with electrical equipment.
For successful installation, you will need: LARA Intercom, a set of speakers, PoE power source, UTP cable with RJ45 connector, cable for speakers, PC with the
application LARA Configurator.
To protect yourself from electrical shock, connect only safety extra-low voltage (SELV) circuits. For example power supplies PoE (SELV) or LAN circuits (SELV
circuits). Other power supplies (ELV) and WAN circuits (TNV circuits) should not be connected directly to product.
Warning: some LAN and WAN ports use the same connectors RJ-45 so be careful when connecting a product.
Charakteristic
• LARA Intercom off ers users 5 diff erent functions and expands even more options to Lara Radio - music players and internet radio stations within the range of LOGUS
• LARA Intercom provides an extra functionality and videophone intercom.
• Thanks to videophone function, now it is possible to have a voice communication between LARA and the sound of the door (IP Intercom), so with someone visiting and standing in front of the
house, we can see that on LARA display as part of this function which increases the security feeling and safety besides of course, the comfort for the user.

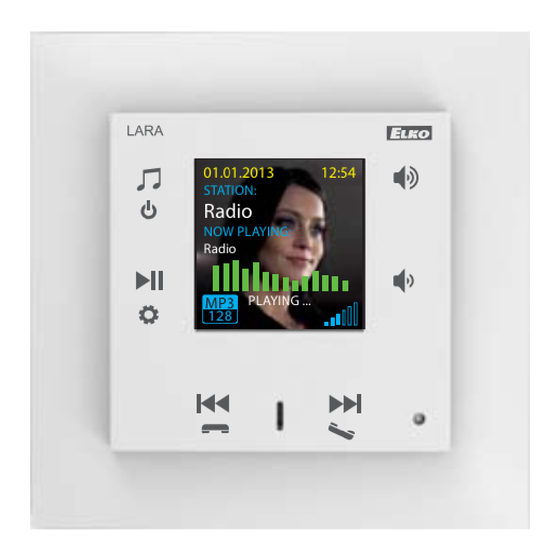

• LARA Intercom is equipped with an OLED colored display with the size of 1.5", which is used to transfer images and sounds from the door camera properly. The display also shows basic
information about playing music, which also serves the orientation in the menu settings, etc.
• The intercom function can also be used for communications between all the family members throughout the whole house, thanks to two way voice communications possibilities between
diff ernt LARA units.
• LARA Intercom continues to offer three functions that are also supported by LARA Radio - when connected to the Internet, it can play streaming radio stations and you can store up to 40 of
them. But you can also select from thousands of radio stations from across the globe, which provide data for correct connection.
• LARA Intercom can play content from an external music source, which can be an smart phone or e.g. an MP3 player. These devices are connected to a 3.5mm stereo jack audio input, located
underneath the front panel.
• LARA Intercom can also play audio files from central data storage, onto which Logitech Media Server is installed. This LARA function can therefore be used within the complex iNELS system or as an
entirely independent home automation device. When used within iNELS, control is a part of the complex application iHC. If using with NAS data storage, the application LARA NAS App is available.
• Touch control is performed on the device front panel (six capacity buttons available), or by infrared remote control, which is included in the product packaging. The basic device settings
(network connection, language, audio input) are performed via the display and a simple menu controlled from capacity buttons on the device front cover. Further settings (selection of
stations, connection with the server, updating firmware, etc.) are configured via computer and the software LARA Configurator.
• LARA Intercom has an integrated amplifier with 2 x 10 W output, thus greatly facilitating device installation in places where such output suffices. LARA is used e.g. to provide premium sound
to the kitchen, waiting rooms, offices, reception desks, entrance halls, operating rooms or wellness facilities.
• LARA is powered by PoE with maximum voltage level 27 V DC / 1000mA. So connecting and communicating with just one cable (UTP) is a major advantage.
• For LARA, an entire series of accessories is ready for connection (PoE adapters, PoE switches), speakers (in a frame, walls or ceilings) and installation (cables, box, etc.).
• Complies with standards IEEE 802.3u (100BASE-Tx).
• Automatic cable crossing detection of Ethernet cable - MDIX.
Technical parametres
INTERNET RADIO
Supported data transfer formats:
CONTROL / SETTINGS
Front panel:
Remote control:
Communication Ethernet:
Button RESET:
INTERFACE ETHERNET
Communications interface:
Connector:
Max. cable length UTP with power:
DISPLAY
Type:
Resolution:
Visible surface:
POWER SUPPLY PARAMETERS
Supply:
Min. input:
Max. input:
AMPLIFIER PARAMETERS
Amplifi er:
Max. amplifi er output
INPUTS / OUTPUTS
Microphone:
Audio input:
Audio output 1:
Audio output 2:
CONNECTION
Terminal block:
OTHER DATA
Working temperature:
Protection:
Overvoltage category:
Pollution degree:
Installation:
Dimensions: Frame - plastic:
Frame - metal, glass, wood, granite:
Weight - plastic:
ELKO EP, s.r.o. | Palackého 493 | 769 01 Holešov - Všetuly | Czech Republic | e-mail: elko@elkoep.com | Support: +420 778 427 366
LARA Intercom
LARA Intercom
mp3, ogg, acc
touchscreen buttons
IR remote control (part of supply)
via PC setting up and communicating SW LARA Confi gurator
restart product / reset product to factory settings
10/100 Mbps
RJ45
50m
color OLED
128x128 pixels
26 x 26 mm
PoE 24 V DC (max. 27 V DC) / 1.25 A
1.4 W
26W (peak at maximum playback performance)
stereophonic class D with digital output control
2 x10 W/8 Ω
yes
3.5 stereo jack
terminals LINE OUT (used for external amplifi er)*
terminals OUT L/OUT R (speaker output from int. amplifi er)
2
0.5 - 1 mm (audio outputs)
0 .. + 55 °C
IP20
II.
2
in an installation box
85 x 85 x 46 mm
94 x 94 x 46 mm
87 g (plastic frame)
Easy installation in 3 steps
1. Connect LARA and switch
2. Connect speakers to LARA
External
music
source
3. Setting of LARA through LARA confi gurator
* The cable from the LINE OUT terminals must be shielded, max. length should not exceed 5m.
www.elkoep.com
5276, 5277, 5278, 5279, 5280, 5281 02-59/2016 rev.:4
01.01.2013
STATION:
Radio
NOW PLAYING:
Radio
MP3
128
LARA
WiFi router with PoE
LAN
LARA
LARA
12:54
PLAYING ...
90
switch designs.
Speaker
(8, 16, 32 )
/ /
/ /
Speaker in design
90
LOGUS 21581
Notebook / PC
1/10
