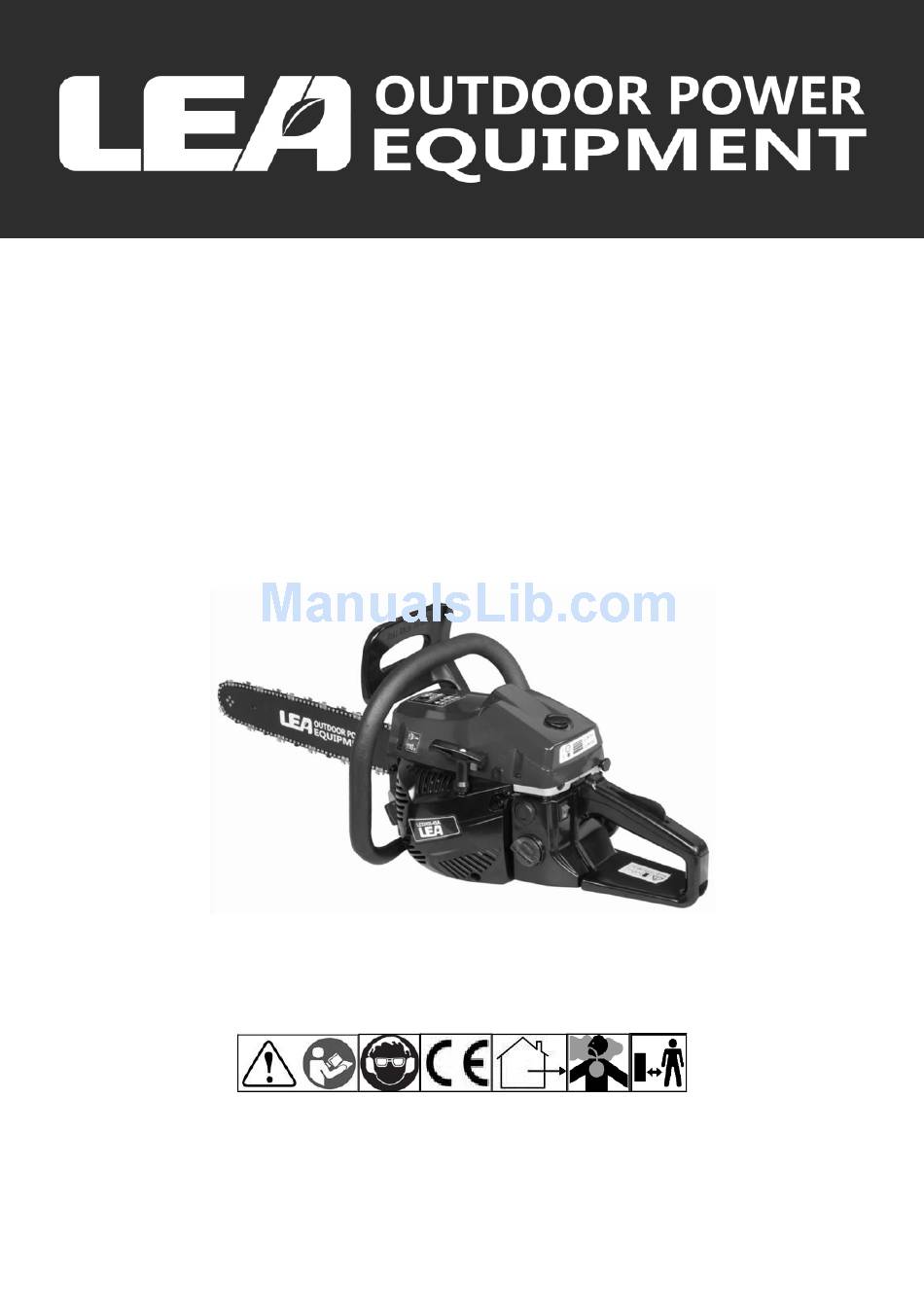

Original Instructions
PETROL CHAIN SAW
LE32458-45A
Read this operator manual carefully before the first use.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LE32458-45A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lea LE32458-45A

Summary of Contents for Lea LE32458-45A

  • Page 1 Original Instructions PETROL CHAIN SAW LE32458-45A Read this operator manual carefully before the first use.
  • Page 2 LIST OF MAIN PART...

  • Page 3: Technical Specifications

    31. Air vents 32. Spark plug wrench 33. Screwdriver 34. Chain file 35. Fuel mixing bottle 36. Guide bar cover TECHNICAL SPECIFICATIONS Model LE32458-45A Equipment mobility hand-held Unit mass 5,4 kg Volumes of fuel tank 550 cm³ Volumes of oil tank 260 cm³...
  • Page 4 Max. Engine speed 12000 min Clutch engagement speed 4500 min Engine idling speed 3000±500 Max. chain speed 19.3m/s Maximum shaft brake power of the 1.6kW /8000min engine A-weighted sound pressure level at LpA: 96 dB(A) K=3,0 dB(A) operator position according to ISO 22868 .

  • Page 5: Description Of The Symbols

    The vibration emission level given in this information sheet has been measured in accordance with a standardized test given in ISO 22867:2003 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool.
  • Page 6 Read the operator’s manual Before any use, refer to the corresponding paragraph in the present manual. Conform to relevant safety standards. Do not use in the rain or leave outdoors while it’s raining. Start engine creates sparking. Sparking can ignite nearby flammable gases.
  • Page 7 gas. Breathing carbon monoxide can cause nausea, fainting or death. Danger of injury from flying parts! Always maintain a sufficiently safe distance. These symbols indicates the requirement of wearing ear protection, eye protection when using the product. Push the bubble 7 times before use to make sure the petroleum spirit full of the oil way.

  • Page 8: General Safety Warnings

    Choke open The screw under the "H" stamp is The High-speed adjustment screw. The screw under the "L" stamp is The Slow-speed adjustment screw. The screw up the "T" stamp is the idle adjustment screw. Shows the direction of the saw chain installation. Chain oil adjuster nut.
  • Page 9 medication. Inattention can result in serious injuries. If you use the petrol chainsaw for lengthy periods of time, you may suffer circulation problems caused by vibrations (white finger disease) and noise. It is not possible to provide precise details on the duration of use in each case since it may differ from person to person.
  • Page 10 Preparation a) WARNING-Petrol is highly flammable: store fuel in containers specifically designed for this purpose; refuel outdoors only and do not smoke while refueling; add fuel before starting the engine. Never remove the cap of fuel tank or add petrol while the engine is running or when the engine is hot; if petrol is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until petrol vapours have dissipated;...
  • Page 11 as flame protection in case of misfire. g) To avoid possible burn injuries, do not touch the exhaust system or other parts that become hot during operation. Pay attention to the warnings on the machine. h) The engine must not be operated with excessive rotary speed. The operation of the engine with excessive rotary speed raises the risk of injury.
  • Page 12 Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the saw chain.
  • Page 13 Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss of control. Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting plastic, masonry or non-wood building materials.
  • Page 14 Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:...

  • Page 15: Intended Use

    kickback. Follow the manufacturer’s sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback. INTENDED USE The chain saw is intended for sawing of trees, tree trunks, branches, wooden beams, planks, etc. Cuts can be sawed with or across the grain.
  • Page 16 Fig.3 Fig. 4 Place the slot in the guide bar (13) over the two bolts (21). Push the guide bar (13) to the left towards the sprocket (24) (behind the clutch (25)). Make sure the tension pin (22b) is inserted into the lower hole on the guide bar (Fig.
  • Page 17 Fig. 7 Fig. 8 Refit the cover (18). Fix it with the retaining nuts (16) (Fig. 9). Fig. 9 WARNING! Always carry out a test run before starting work and after every tool change! Always ensure that the tools are in good condition, correctly mounted and able to turn freely.
  • Page 18 tension (Fig. 10). Fig. 10 Turn the tension screw (22a) until the chain ‘tie straps’ are just touching the bottom edge of the guide bar (13) (Fig. 11, 12). Fig. 11 Fig. 12 Lift up the tip of the guide bar (13) and tighten the rear retaining nut (16) first followed by the front retaining nut (16) (Fig.

  • Page 19: Operation

    Fig. 13 Fig. 14 Adjust the tension if you find that the chain saw is too loose or tight. WARNING! Do not over tension the chain as this will lead to excessive wear and will reduce the life of bar and chain. Over tensioning also reduce the amount of cuts you should get.
  • Page 20 mixed with oil only. Only fuel the machine in well-lit areas. Avoid fuel spillage. Never refuel the machine during operation. Let the engine cool down for about two minutes before refueling. Refueling must not be carried out near naked flames, control lamps or spark producing electrical equipment such as electric tools, welders or sanders.
  • Page 21 Use at least 90 octane fuel. We recommend unleaded petrol as it leaves fewer residues inside the motor and on the ignition plug, and prolongs the life cycle of the exhaust system. Never use old or dirty petrol or oil/petrol mixtures. Avoid contamination with dirt or water in the tank.
  • Page 22 16, a) of the oiler, which is on the bottom of the product. Fig. 15 Fig. 16 WARNING. a) Do not refill oil while engine is running or hot. b) Make sure oil is not leaking. Caution! Do not use waste or regenerated oil that can cause damage to the oil pump.
  • Page 23 Make sure that no unauthorised persons are in the working area, otherwise there is a risk of serious personal injury. 1. Press the primer (4) several times until fuel begins to fill the bulb. 2. Turn the ignition switch (27) to the” ON “position. 3.
  • Page 24 7. In rain or stormy weather Chain brake The chain brake is a device which stops the chain instantaneously if the chain saw recoils due to kickback. Normally, the brake is activated automatically by inertial force. It can also be activated manually by pushing the brake lever (Front handle guard) down toward the front.
  • Page 25 the stop position. If the saw chain strikes stone or other debris, stop the engine and check whether something has been damaged and the saw chain is still secure. WARNING! Before proceeding to your job, read "For Safe Operation" section It is recommended to first practice sawing easy logs.
  • Page 26 The chain saw operator should keep on the uphill side of the terrain as the tree is likely to roll or slide downhill after it is felled. An escape path should be planned and cleared as necessary before cuts are started. The escape path should extend back and diagonally to the rear of the expected line of fall as illustrated in Figure BB.101.
  • Page 27 planned. Be alert for overhead limbs falling and watch your footing. BB.104 Limbing a tree Limbing is removing the branches from a fallen tree. When limbing leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut as illustrated in Figure BB.103.
  • Page 28 Figure BB.101-Description of felling: escape routes Figure BB.102-Description of felling :undercutting Figure BB.103-Tree limbing Figure BB.104-Log supported along the entire length...
  • Page 29 Figure BB.105-Log supported one end Figure BB.106-Log supported both ends...

  • Page 30: Maintenance

    Figure BB.107-Bucking a log Stopping the engine 1. Reduce the engine speed and let it run with no load for a few minutes. 2. Switch off the engine by moving the engine switch to the stop position. The accessory may cause an accident if it continues to turn after the engine has stopped or after the engine switch has been released.
  • Page 31 which have not equivalent quality may damage the machine. Please never use non approved components and remove the safety devices after or during maintenance. Maintenance Daily Weekly Monthly maintenan maintenanc maintenan Clean the outside of the machine. Check that the engine switch works correctly.
  • Page 32 Maintenance Daily Weekly Monthly maintenan maintenanc maintenan Check the starter and starter cord. Clean the outside of the spark plug. Remove it and check the electrode gap. Adjust the gap to 0.6-0.7 mm or replace the spark plug. Check that the spark plug is fitted with a spark plug cap.
  • Page 33 To reduce the fire hazard, clean dirt, leaves and surplus lubricant, etc from the muffler and engine. MAINTENANCE should be Before Monthly Every Every six carried out at REGULAR or after three months INTERVALS in each of the every 25 hours months or after indicated months or after a...
  • Page 34 5. Reinstall the air filters and screws. 6. Reinstall the air filter cover, and tighten the air filter cover screw. WARNING: The use of petrol or combustible solvents for cleaning can cause fire explosion. Therefore only soap water non-combustible solvent. Never operate the machine without the air filter.
  • Page 35 8. Install /reinstall the spark plug carefully by hand. 9. Once the spark plug has been seated, tighten it with a spark plug wrench. 10. Reinstall the spark plug cap on top of the spark plug. 11. Reinstall the spark plug cover. Cleaning Warning: cutting edges of chain are sharp, use protective gloves when handling chain.
  • Page 36 Normal guide bar maintenance 1. Remove guide bar from chain saw. 2. Remove sawdust from guide bar groove periodically. Use putty knife or wire, 3. Clean oil slots after each day of use. 4. Remove burrs from sides of guide bar. Use flat file to make side edges square. Replace guide bar when bar is bent or cracked.
  • Page 37 the others, both right and left , After some sharpening the delimiting device on the chain will exceed the height of the cutting teeth, file the exceeding part by means of a flat file to round off the depth delimiting device. Ensure that the chain is replaced before stretching to exceed the maximum adjustment of the chain saw bar.

  • Page 38: Troubleshooting

    REPAIRS The machine can only be repaired by a repair service or a similarly qualified specialist. STORING Transporting the machine in a car, please empty the fuel tank completely first to avoid the leakage. Secure the machine during transport to prevent loss of fuel, damage or injury. Store the machine, operating instructions and where necessary the accessories in the original packaging.
  • Page 39 start or The fuel does not does not Ask your distributor for Carburetor start arrive at the advice cylinder Fuel at the Open the throttle valve cylinder Clean or replace the air There is fuel The fuel mixture is filter in the too rich Adjust the carburetor...
  • Page 40 Cooling Prolonged use in Excessive Clean system dirty or dusty places Plate cracked, Spark contaminate Fair wear and tear Replace suppressor d or perforated engine Internal engine Ask your distributor for does not problem advice engage...
  • Page 41 ……………………………………………………………………………………………………… Conformity Declaration The undersigned, hereby certifies that the units described below Gasoline chain saw Model: LE32458-45A(PN4600-9) Power: 1.2K W Displacement: 45.8cm³ Measured sound power level: 106 dB (A) Guaranteed sound power level: 110dB (A) Conformity assessment procedure concerning directive 2000/14/EC: Annex V is in compliance with the provisions of the following Europeandirectives: 2014/30/EU "ElectroMagnetic Compatibility "...
