0315S00GR - RUBBED BLACK
DJ209B4 -
This instruction booklet contains
IMPORTANT safety information.
Please read and keep for future reference.
DATE OF PURCHASE:
MODEL #:
COUNTRY SATIN
NOTE:
RECEIPT OF PURCHASE:
ATTACH HERE
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our
customer service department. We will replace the
NEED HELP!
E-Mail: csr@jardcoent.com
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT T
E-MAIL:DAS@DOREL.COM
part FREE of charge.
Tel #: 1-800-295-1980
Fax #: 514-353-7819
Advertisement
Table of Contents
Related Manuals for Bella D'Este CLAREMONT 4 IN 1 CRIB 0315S00GR
Summary of Contents for Bella D'Este CLAREMONT 4 IN 1 CRIB 0315S00GR

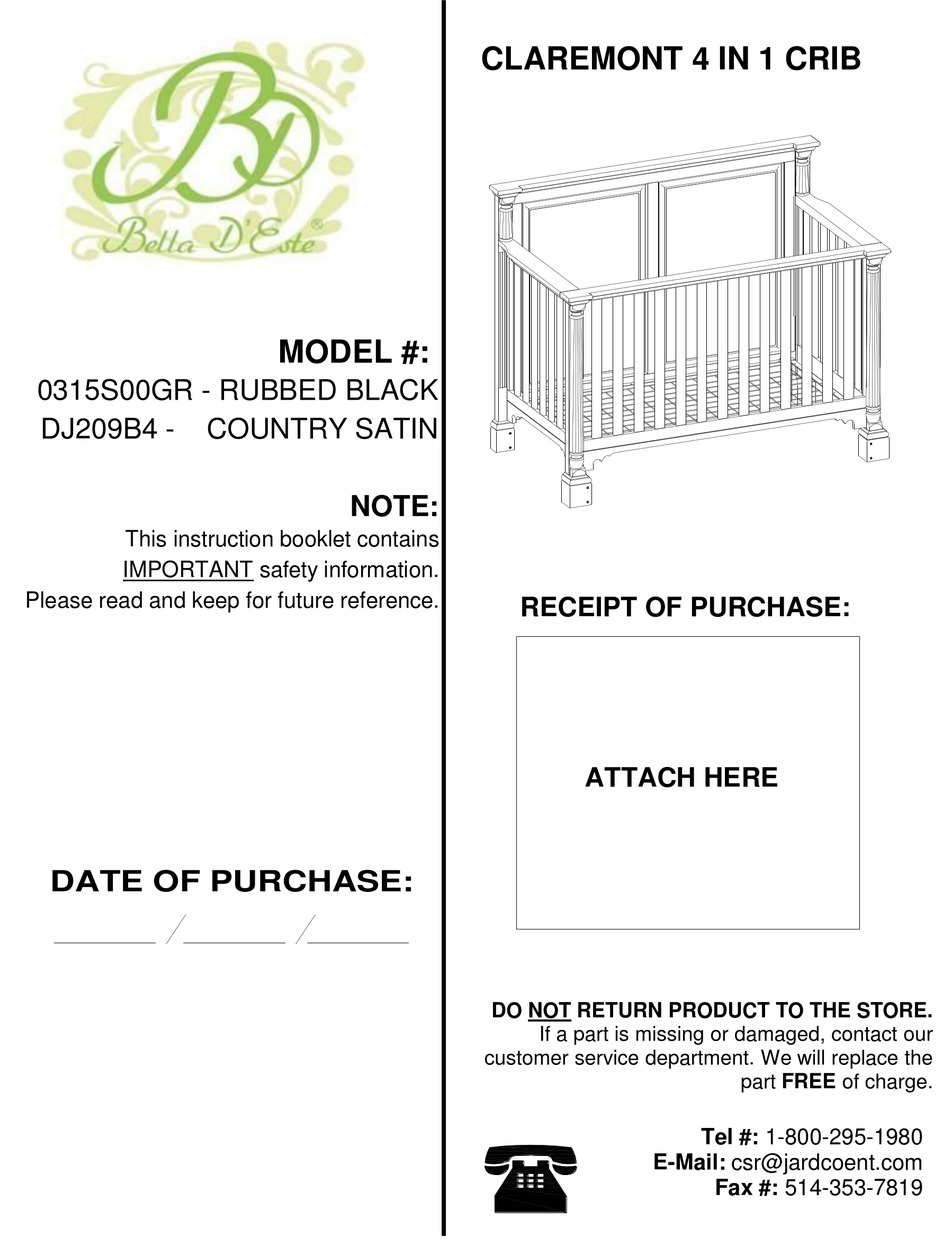

- Page 1 CLAREMONT 4 IN 1 CRIB MODEL #: 0315S00GR - RUBBED BLACK DJ209B4 - COUNTRY SATIN NOTE: This instruction booklet contains IMPORTANT safety information. Please read and keep for future reference. RECEIPT OF PURCHASE: ATTACH HERE DATE OF PURCHASE: DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact our customer service department.
- Page 2 CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part.
- Page 3 NOTES Ensure all parts and components are present before beginning assembly. Assemble on soft, smooth surface to prevent damage to product finish. Phillips head screw driver is not included. DO NOT use power tools. CAUTION: Adult assembly required. Assembly will require two people. WARNING: Should this product become damaged, and/or components are broken or missing, DO NOT USE.
- Page 4 CLAREMONT 4 IN 1 CRIB BOLT 4 PCS 4 MM BOLT ALLEN KEY 2 PCS 1 PC LEFT END PANEL RIGHT END PANEL LEFT FRONT POST RIGHT FRONT POST 1 PC 1 PC 1 PC 1 PC FRONT PANEL HEAD BOARD 1 PC 1 PC MATTRESS SUPPORT...
- Page 5 CLAREMONT 4 IN 1 CRIB When inserting bolts turn clockwise until tight. Then loosen 1/2-3/4 of a turn. After crib is completely assembled, return to each bolt and tighten. Use wax or soap on all bolts to facilitate assembly. NOTE: Posts (B1 & B2) are provided for future use of Day Bed. Please keep in a safe location to avoid damages.
- Page 6 CLAREMONT 4 IN 1 CRIB STEP 2 Fasten mattress support (E) to the posts of right end panel (A2) and left end panel (A1) using bolts (4) and Allen key (6). Ensure the mattress support is leveled and centered before tightening all 4 bolts.
- Page 7 CLAREMONT 4 IN 1 CRIB STEP 3 Attach the front Panel (D) to end panels (A1 & (A2) using bolts (2) & (5 ). Use Allen key (6) to tighten bolts. NOTE: Please make sure that the top of the post is flush with the top of curving rail on end panels when tightening bolts.
- Page 8 CLAREMONT 4 IN 1 CRIB WARNINGS: * Any mattress used in this day bed must be at least 27-1/4 inches by 51-5/8 inches (69cm by 131cm) with a minimum thickness of 4 inches (10cm) but not exceeding 6 inches (15cm). * The DAY BED is not intended for children under 15 months of age or over 50 pounds.
- Page 9 DIAGRAM 1 DIAGRAM 2 NOTE: Headboard SIDE RAIL Headboard SLAT Footboard WOOD CLAREMONT 4 IN 1 CRIB FULL SIZE CONVERSION RAILS ARE NOT INCLUDED. DIAGRAM 1 IS FOR REFERENCE ONLY. BED RAILS MAY DIFFER FROM ILLUSTRATION. STEP 1 Assemble the full size conversion rails (not included) to the headboard (C )and the front panel (D) as shown in diagram 1.

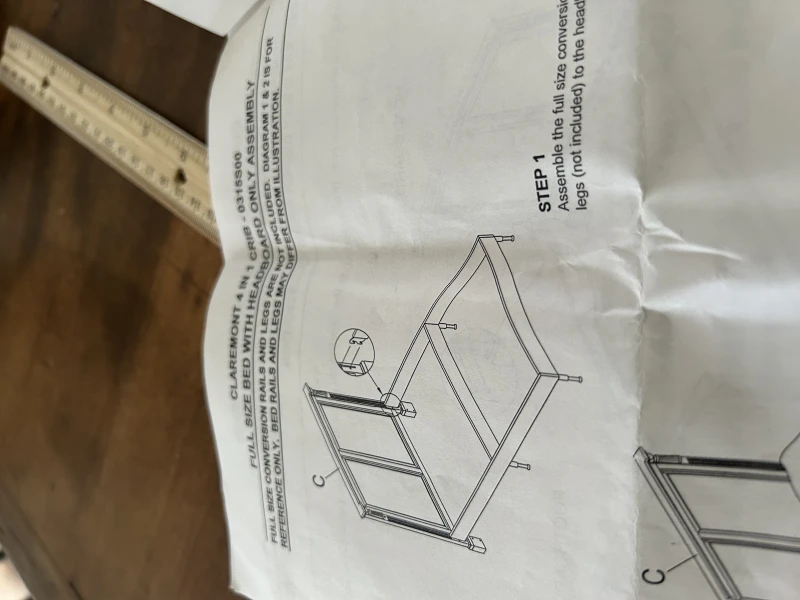

- Page 10 STEP 2 CLAREMONT 4 IN 1 CRIB FULL SIZE CONVERSION RAILS AND LEGS ARE NOT INCLUDED. DIAGRAM 1 & 2 IS FOR REFERENCE ONLY. BED RAILS AND LEGS MAY DIFFER FROM ILLUSTRATION. STEP 1 Assemble the full size conversion rails and legs (not included) to the headboard (C) .
