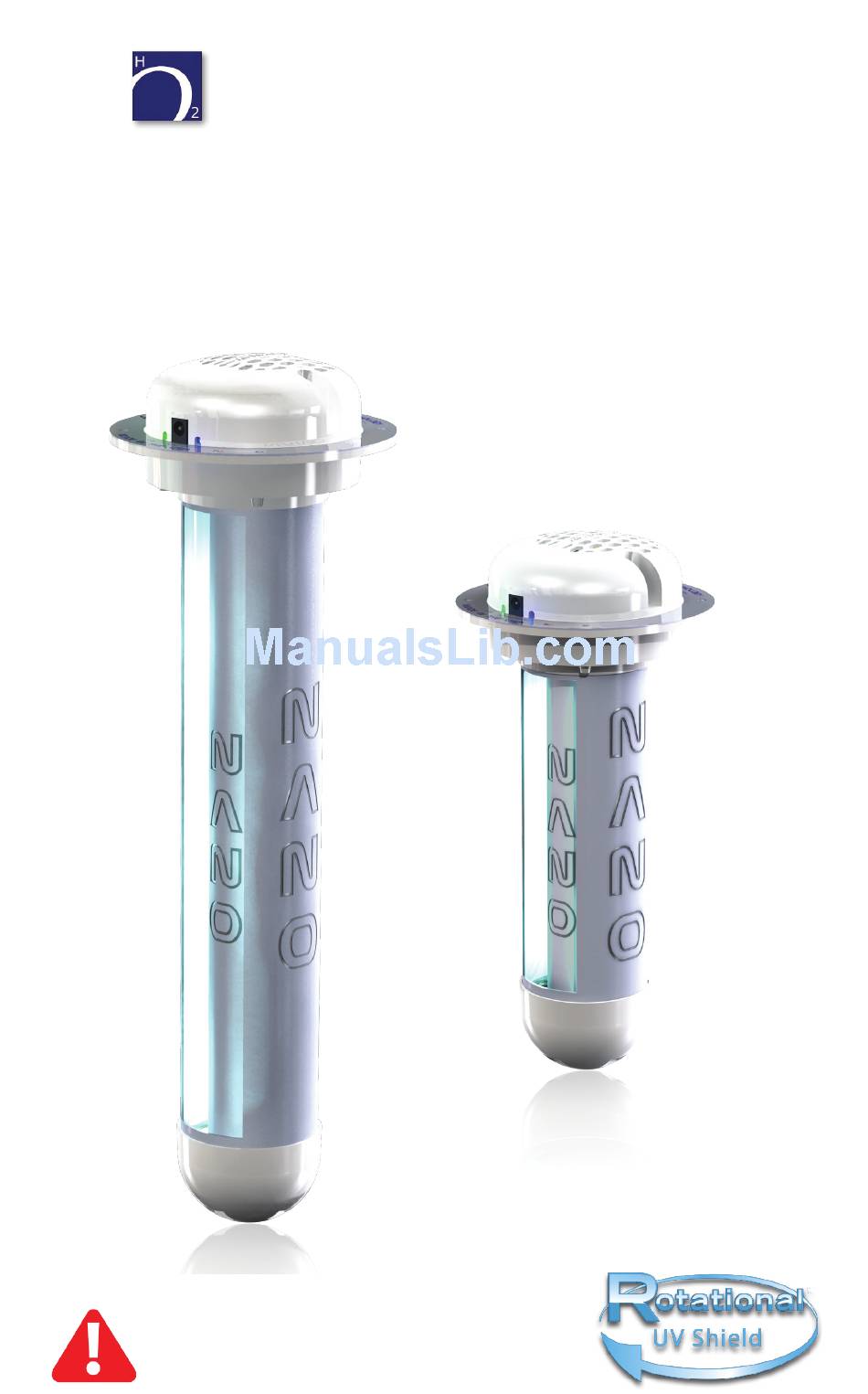

- Page 1 Air Fantastic Central Air Purifier (CAP) Owner’s Manual For use with Models: CAP3000, CAP5000 For safety and to ensure proper use carefully read the contents of this manual before operating or installing the unit.
-
Page 2: Table Of Contents
Thank You for Choosing Air Fantastic CAP system! ® Congratulations, you own the most advanced induct air purifier available! Before operating the CAP System please read this manual in its entirety. Doing so will give you important information to keep you safe from harm and ensure you get the most benefits from your System. -
Page 3: Important Safety Instructions
Important Safety Instructions When operating any electrical appliance, basic precautions should always be fol- lowed for safety. RISK OF FIRE, ELECTRIC SHOCK, OR INJURY Cooling Vents • Carefully read the entire contents of this manual. • Do not use outdoors, in moist areas or on wet surfaces. •... -
Page 4: Features And Benefits
Energy Efficient Green Technology The Central Air Purifier is an energy efficient air purification system. Other PCO devices require several hundred watts to operate. The CAP3000 operates on just 13 watts of electricity and the CAP5000 operates on just 18 watts. -
Page 5: Technology
Indications For Use CAP System devices are intended for the removal of air- borne contaminations of pathogens and/or harmful molds and volatile organic compounds present in rooms or en- Induct closed areas. Quad- Ion Cell Technology The device utilizes a PCO reaction chamber comprised of an Quad-Ion Cell coated internally with a TiO based cata- lyst that reacts with photons from the 254nm UVC germi-... -
Page 6: Status Indicator Lights
Unit has power, UVC lamp is defective or not prop- erly connected. Unplug the device. Make sure UVC lamp is properly connected. Plug unit back into power source. If the light is still red please contact an Air Fantastic representative. Status Indicator Lights “Lamp Replacement” Indicator Blue Solid The UVC lamp is within its two year life span. -
Page 7: Ballast Assembly
UV light can degrade many of the components used within an HVAC system causing premature system failure. Air Fantastic has designed the perfect solution. With the development of our proprietary Rotational UV Shield you can control how little or how much... - Page 8 • Coverage - As a general recommendation the CAP3000 should be used in areas up to 3000 square feet and the CAP5000 should be used for areas between 3000 and 5000 square feet. Areas of higher contamination, areas above 5000 square feet or with ceilings above 10 feet may require additional units for best results.
-
Page 9: Installation Instructions
Preparing to Install Your New CAP System The CAP System was designed to be simple and effective. Remove the unit, power adapter, power cord, mounting hardware (eight self tapping screws) from the box. We recommend keeping the box and all packaging material for shipping the unit should it ever need to be returned for repairs. - Page 10 3. A trained service professional should be consulted to determine the extent of rota- tion. Rotate the UV Shield to the desired Ballast Cover opened or closed position. Place one hand on the Distal Cap and the other on the Outer UV Shield. Rotate the Distal Cap clockwise while rotating the Shield counter clockwise until the desired posi- tion is reached.
- Page 11 Aluminum Tape Ring Retainer Ring Ballast Assembly Air Flow Label Using a 1/4” hex head screw driver, secure the Ballast Assembly to the Re- tainer Ring with four self tapping 3/4” screws being careful not to overtighten stripping the screw holes. When mounting to a fiber glass duct the adhesive gasket will help secure the unit, but the four hex screws are still required to secure the Ballast Assembly.
-
Page 12: Initial Startup
Replacement light will begin to blink as a reminder that it’s time to replace the Quad-Ion Cell. The CAP System utilizes a proprietary UVC lamp that can only be purchased from an authorized Air Fantastic dealer. The American made lamp utilizes a proprietary long life coating increasing the average life to two years. - Page 13 Maintenance (Continued) Using a 1/4” hex head screw driver, remove the four screws securing the Bal- last Assembly and pull the Ballast Assembly away from the Retainer Ring until the four pins have completely disconnected from the Ballast Assembly. Using a 1/4” hex head screw driver, remove the four screws securing the Quad-Ion Cell and pull the Quad-Ion Cell out from the Retainer Ring.
- Page 14 Insert the new Quad-Ion Cell into the Retainer Ring. Using the illus- tration, be certain the Quad-Ion Cell is installed using the correct pin ori- entation. Secure the Quad-Ion Cell with four 1/4” hex head screws. Do not overtighten the screws to prevent them from stripping.
-
Page 15: Limited Warranty
CAP System Limited Warranty Air Fantastic gives you the following limited warranty for this product only if it was originally purchased directly from Air Fantastic or an Air Fantastic authorized dealer. Air Fantastic will repair or replace, free of charge to the original purchaser, any part that is found to be defective in material or workmanship within two (2) years of the date of purchase. -
Page 16: Troubleshooting Guide
Quad-Ion Cell has been replaced. Contact an Air Fantastic authorized dealer to purchase a new Quad-Ion Cell. If the above does not repair the symptom please contact an Air Fantastic Cus- tomer Service Representative: Phone: 1-877-424-7326 E-mail: markm@airFantastic.com Web: www.airfantastic.com...
