TL

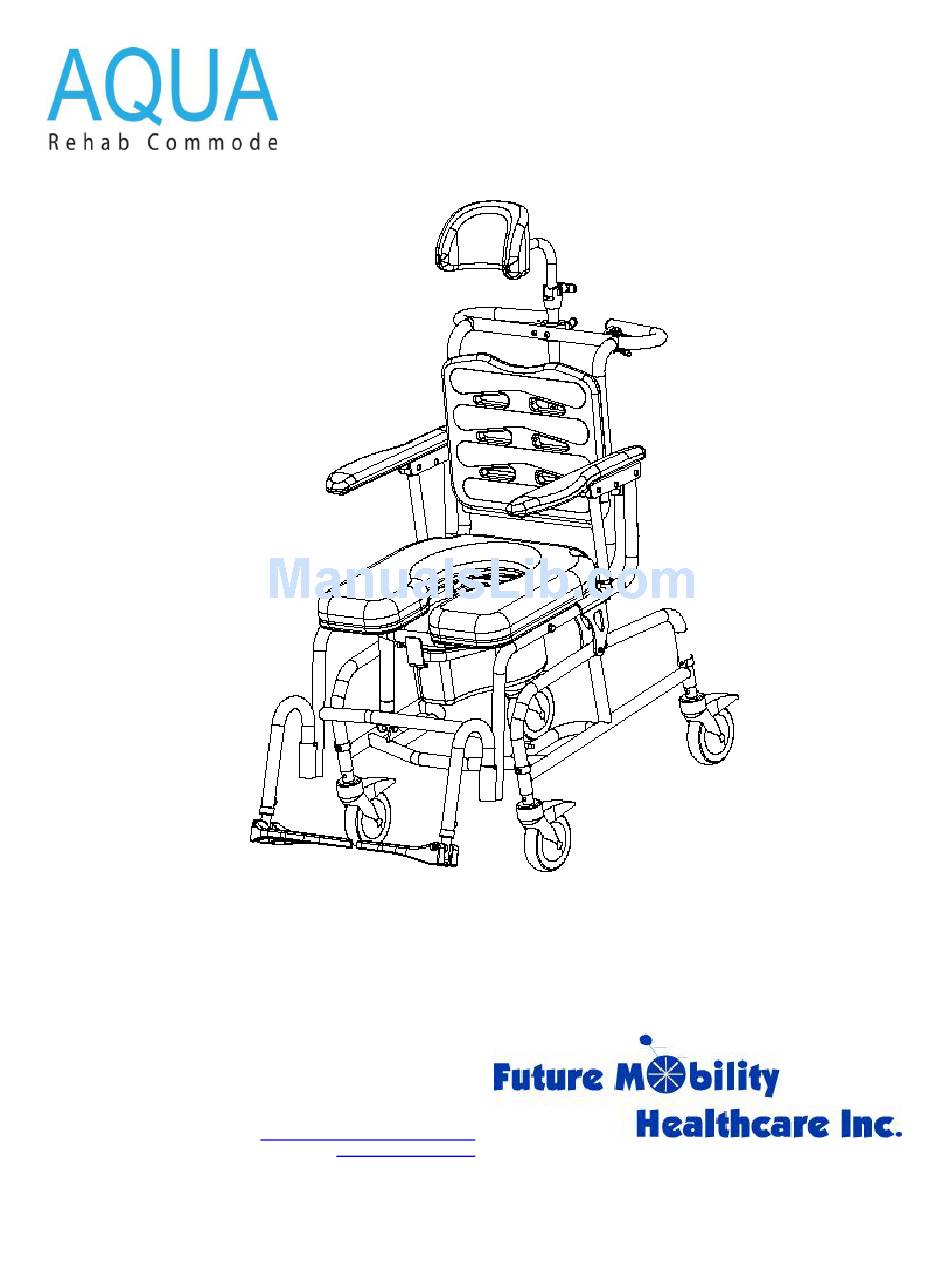

Owner's Operations Manual
AQUA REHAB COMMODE TL
Future Mobility Healthcare Inc.
3223 Orlando Drive
Mississauga, ON L4V 1C5
905 671-1661 – 1 888 737-4011
Fax: 1-888-670-3377
e-mail:
customerservice@futuremobility.ca
Innovative seating and mobility solutions
www.futuremobility.ca
Future Mobility Healthcare Inc., 3223 Orlando Drive, Mississauga, ON L4V 1C5 – 905 671-1661 – 1 888 737-4011 – Fax: 905 671-3377
1013310 REV 1
2010 FMH
Page 1
Advertisement
Table of Contents
Related Manuals for Future Mobility Healthcare AQUA REHAB COMMODE TL
Summary of Contents for Future Mobility Healthcare AQUA REHAB COMMODE TL
- Page 1 Owner’s Operations Manual AQUA REHAB COMMODE TL Future Mobility Healthcare Inc. 3223 Orlando Drive Mississauga, ON L4V 1C5 905 671-1661 – 1 888 737-4011 Fax: 1-888-670-3377 e-mail: customerservice@futuremobility.ca Innovative seating and mobility solutions www.futuremobility.ca Future Mobility Healthcare Inc., 3223 Orlando Drive, Mississauga, ON L4V 1C5 – 905 671-1661 – 1 888 737-4011 – Fax: 905 671-3377...
-
Page 2: Operating Instructions
- otherwise, injury or damage may occur. NOTICE Information contained within this document is subject to change without notice. AQUA REHAB COMMODE TL LABELS WEIGHT CAPACITY 250 LBS. (114 KGS) REFER TO OWNER’S MANUAL Future Mobility Healthcare Inc., 3223 Orlando Drive, Mississauga, ON L4V 1C5 – 905 671-1661 – 1 888 737-4011 – Fax: 905 671-3377... -
Page 3: Table Of Contents
TABLE OF CONTENTS Labels……………………………………………………………………………………… Specifications……………………………………………………………………………. General Guidelines……………………………………………………………………… Safety Inspection……………………………………………………………………….. Front Rigging…………………………………………………………………………….. Arms………………………………………………………………………………………. Back……………………………………………………………………………………….. Seat………………………………………………………………………………………... Potty………………………………………………………………………………………. Casters……………………………………………………………………………………. Rear Wheels……………………………………………………………………………… Wheel Locks……………………………………………………………………………… Anti Tip…………………………………………………………………………………….. Seat to Floor……………………………………………………………………………… Warranty…………………………………………………………………………………… Future Mobility Healthcare Inc., 3223 Orlando Drive, Mississauga, ON L4V 1C5 – 905 671-1661 – 1 888 737-4011 – Fax: 905 671-3377 1013310 REV 1 2010 FMH Page 3... -
Page 4: Specifications
AQUA REHAB COMMODE TL SPECIFICATIONS Chair Size Overall Max. Width 22” (from outside arm pads) Overall Seat Width 18” Overall Max. Length 38” (with swingaway), 29” (no swingaway) Overall Max. Height 45” (to top of headrest) ... - Page 5 Back Support Foam skinned rectangular shaped back easy to remove and clean Casters Tente Caster with Locking mechanism Stainless Steel Caster Stem Future Mobility Healthcare Inc., 3223 Orlando Drive, Mississauga, ON L4V 1C5 – 905 671-1661 – 1 888 737-4011 – Fax: 905 671-3377 1013310 REV 1 2010 FMH Page 5...
-
Page 6: General Guidelines
GENERAL GUIDELINES STABILITY WARNING The back tilt angle, position of the front and rear casters as well as the user condition directly relate to the stability of the tilt commode. Any change to one (1) or any combination of the five (3) criteria may cause the tilt commode to decrease in stability. -
Page 7: Safety Inspection
Before attempting to transfer in and out of the tilt commode, every precaution should be taken to reduce the gap distance. Turn all four casters parallel to the object you are transferring onto. When transferring to and from the commode, ALWAYS ENGAGE ALL CASTER LOCKS. -
Page 8: Front Rigging
Inspect casters for cracks and wear Inspect for cracked, bent or broken spokes Inspect Tente Caster lock to ensure it engages properly CLEANING Clean upholstery and armrests Clean potty and commode seat Check commode for sign of human waste on all parts to maintain sanitary conditions. - Page 9 Installing/Removing the Front Riggings Removing: 1. Lift the front rigging up such that the hanger body clears the top opening of the seat frame front. 2. The rigging should be placed near the commode so when needed it maybe placed back onto the commode 3.
-
Page 10: Arms
ARMS WARNING After ANY adjustments, repair or service and BEFORE use, make sure all attaching hardware is tightened securely – otherwise injury or damage may occur. ROTATING ARM ASSEMBLY UPWARDS\DOWNWARDS 1. Grasp the top portion of the arm assembly and rotate the arm upwards to the position shown in the figure in lower right corner. -
Page 11: Seat
2. Gently pull the foam skinned backrest outwards and away from the chair. The backrest has four (4) protrusion on the backside which help to keep it in place and which also fit into four (4) holes located on the metal back frame. 3. -
Page 12: Potty
Replacing Seat Pad Assembly POTTY WARNING After ANY adjustments, repair or service and BEFORE use, make sure all attaching hardware is tightened securely – otherwise injury or damage may occur. REMOVING POTTY 1. Turn the commode around so that one can see the back of the commode and potty. 2. -
Page 13: Casters
Removing/Installing Potty Potty Assembly INSTALLING POTTY 1. Turn the commode around so that one can see the back of the commode and potty. 2. Ensure the wheel or caster locks are engaged before installing potty. Also ensure that the wheelchair is in the ‘zero’ or normal position such that the seat angle is about 3°. 3. -
Page 14: Seat To Floor
3. Place the snap clip back into the lower frame front side to secure the caster assembly to the frame. Ensure the hole used by the snap clip is at the same position on both sides such that the frame is straight and not at an angle. 4. - Page 15 Seat to Floor Height Configurations STF – FRONT STF – REAR COMMODE TYPE (INCHES) CASTER HOLE (INCHES) 20.00 20.00 ATTENDANT PROPELLED 20.75 20.75 ATTENDANT PROPELLED 21.50 21.50 ATTENDANT PROPELLED TILTING CHAIR 1. Ensure the occupant is seated on the commode and the armrests are at normal or ‘zero’...
-
Page 16: Warranty
This warranty is extended only to the original purchaser/user of our products. Future Mobility Healthcare Inc. warrants its Aqua Rehab Commode TL to be free from defects in materials and workmanship for two (2) years from the date of purchase for the steel frame while the stainless steel frame is warranted for five (5) years from the original date of purchase. - Page 17 This warranty shall be extended to comply with all provincial laws and requirements. Future Mobility Healthcare Inc. 3223 Orlando Drive Mississauga, ON L4V 1C5 905 671-1661 – 1 888 737-4011 Fax: 905 671-3377 e-mail: customerservice@futuremobility.ca www.futuremobility.ca Innovative seating and mobility solutions Future Mobility Healthcare Inc., 3223 Orlando Drive, Mississauga, ON L4V 1C5 –...
