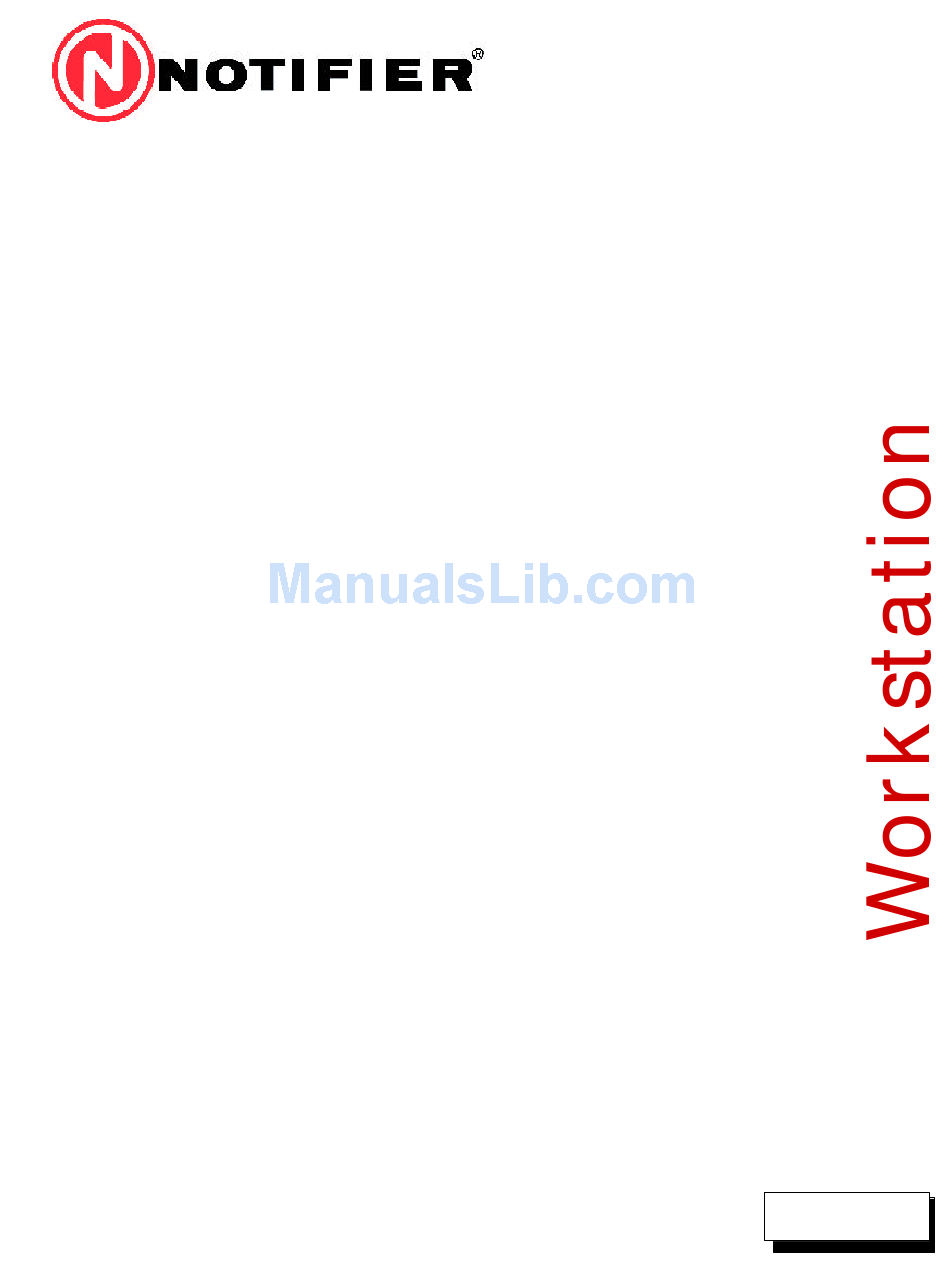

Installation, Operation,
and Administration Manual
UniNet 2000

Workstation

Document 51540
4/8/02
5 1 5 4 0 : B 1
0 3 3
B1
Rev
E C N 0 2 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UniNet 2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Notifier UniNet 2000

  • Page 1: Workstation

    UniNet 2000 Workstation Installation, Operation, and Administration Manual Document 51540 4/8/02 5 1 5 4 0 : B 1 E C N 0 2 - 0 3 3...
  • Page 2 This page intentionally left blank. The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...
  • Page 3 Fire Alarm System Limitations While a fire alarm system may lower insurance rates, it is not a substitute for fire insurance! An automatic fire alarm system–typically made up of smoke rials, etc.). detectors, heat detectors, manual pull stations, audible warning Heat detectors do not sense particles of combustion and alarm devices, and a fire alarm control with remote notification only when heat on their sensors increases at a predetermined...

  • Page 4: Installation Precautions

    Acclimate Plus™, HARSH™, NOTI•FIRE•NET™, ONYX™, and VeriFire™ are trademarks, and FlashScan® and VIEW ® are registered trademarks of NOTIFIER. NION™ and UniNet™ are trademarks of NIS. NIS™ and Notifier Integrated Systems™ are trademarks and NOTIFIER® is a registered trademark of Fire•Lite Alarms, Inc.

  • Page 5: Table Of Contents

    Contents Workstation ................1 Foreword ....................12 Introduction .................... 12 Part 1 Workstation Installation ..........13 Section 1.1: UWS Computer Installation ..........15 1.1.1 Description of the Computer Components ................15 1.1.2 Installation Description ......................16 Figure 1-1: Attaching the PCLB-5 to the Intel Pentium II Computer ..........16 Figure 1-2: Attaching the PCLB-6 to the Intel Pentium III Rack Mountable Computer ....
  • Page 6 Figure 1-20: System Options: Speech Annunciation Tab ............. 32 Figure 1-21: System Options: Operator Response Tab ..............32 Figure 1-22: System Options: Operator Features Setup ............... 33 Figure 1-23: System Options: Site Information Setup Tab ............34 Figure 1-24: System Options: Arm/Disarm Filter Tab ..............34 Part 2 Operation..............35 Figure 2-1: The Workstation Main Screen ..................
  • Page 7 Section 2.4: Advanced Features ............. 53 2.4.1 Monitoring and Control Profiles ..................... 53 Figure 2-22: Event Monitoring Configuration Dialog ..............53 Figure 2-23: Control Profile Select Dialog..................54 2.4.2 Function Keys ........................... 55 2.4.3 Printing in the Workstation ....................55 2.4.4 History Manager ........................
  • Page 8 Figure 3-14: Tools Tab ........................79 Figure 3-15: Text Tab ........................80 Figure 3-16: Color Tab ........................80 3.3.3 Vector Drawing Tools ....................... 81 Figure 3-17: Mouse Pointer Tools ....................81 3.3.4 Using Text ..........................84 3.3.5 Importing .BMP and .WMF Files ..................... 84 3.3.6 Cutting, Copying and Pasting ....................
  • Page 9 Figure 3-38: Function Key Configuration form ................106 Figure 3-39: Function Key Help Bar ....................108 3.5.4 Using Macro Editor ........................ 108 Figure 3-40: Command Buttons in the Operator Area ..............108 Figure 3-41: Macro Editor ......................108 3.5.5 Guidance Text ........................110 Figure 3-42: Guidance Text Reader / Editor .................
  • Page 10 Figure 4-8: Javelin PRZ Controller Interface ................133 Figure 4-9: Javelin Plug-In Interface .................... 134 4.7.3 Javelin Video Switcher (JavVid) Plug-In ................134 4.8: Pelco Plug-In Application .............. 137 4.8.1 Pelco CCTV NION Plug-In ..................... 137 Figure 4-10: Pelco CCTV NION Plug-In Interface ................. 137 4.8.2 Command Buttons .........................
  • Page 11 Figure 4-28: Finding Panel Circuits ....................155 4.11.11 Panel Interfaces ........................ 156 NFS-640/3030 Panels ........................156 NFS-640/3030 Panels (Cont’d) ....................... 157 NFS-640/3030 Panels (Cont’d) ....................... 158 NFS-640/3030 Panels (Cont’d) ....................... 159 AFP-300/400 Panels ........................160 AFP-300/400 Panels (Cont’d) ......................161 AFP-300/400 Panels (Cont’d) ......................

  • Page 12: Foreword

    Foreword The contents of this manual are important and must be kept in close proximity of the Workstation. If building ownership is changed, this manual including all other testing and maintenance information must also be passed to the current owner of the facility. A copy of this manual was shipped with the equipment and is also available from the manufacturer.

  • Page 13: Part 1 Workstation Installation

    Part Workstation Installation The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...
  • Page 14 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 15: Section 1.1: Uws Computer Installation

    Section 1.1: UWS Computer Installation The UniNet 2000 network may be comprised of two different UL listed computers. UniNet 2000 is now available with a rack mount capable UL listed Pentium III computer. These new computers may be used in conjunction with a UniNet 2000 system using the Intel Pentium II previously offered with UniNet 2000.

  • Page 16: Installation Description

    The computer should be placed on a desk or table with the monitor, keyboard, and pointing device. This must be done in accordance with local code requirements. Connecting AC Power to the PC Power Supply of UniNet 2000 Computers AC power must be connected in a permanent manner and enclosed by the included PCLB-5 (Intel Pentium II computer) or PCLB-6 (Intel Pentium III computer) electrical box.

  • Page 17: Figure 1-3: Connecting The Power Cord And Primary Ac Power To The Hsp-121B

    NOTES: The workstation requires 115 VAC, 60Hz primary power. A UPS (Uninterruptable Power Supply) which is UL listed for use with fire protective signaling units is required for each workstation. The power switch on the back of the Intel Pentium III computer has been disabled and permanently fixed in the ON psition.

  • Page 18: Figure 1-4: Computer Ups Supervision

    UPS Supervision Where a workstation or server PC is not ancillary, the use of a supervised 115VAC Uninterruptable Power Supply (UPS) is required. A networked NION with supervised dry contact inputs must be located within three feet of the UPS, and wiring must be in conduit. Refer to figures 1-3 for wiring information. Example: NION- 2 C 8 M...
  • Page 19 Figure 1-5: Intel Pentium III Rack Mountable Computer and Peripheral Connections NOTE: The power switch on the back of the UnInet 2000 Intel Pentium III computer has been disabled and permanently fixed in the ON position. A functional power supply switch is located behind the locking front door.

  • Page 20: Figure 1-6: Intel Pentium Ii Computer And Peripheral Connections

    NOTE: Use only wire for power limited systems. Power limited wire runs use type FPLR, FPLP, FPL or equivalent cabling per NEC 760. Monitor Port RJ-45 Ethernet Connection Workstation Supervisor S p e a k e r Connection COM Port 1 L P T - 1 COM Port 2 USB Ports...

  • Page 21: The Workstation Supervisor

    1.1.3 The Workstation Supervisor The workstation supervisor is designed to monitor the workstation. In the event that the software stops running or the CPU fails, an onboard sounder is activated to notify operators of the problem. The board also has an onboard output relay to allow annunciation by any external device which uses dry contact inputs.

  • Page 22: Figure 1-8: Workstation Supervisor Dip Switch Settings

    If the supervisor is being installed in the field, be sure to use the currently defined default setting unless directed by a Notifier technician to do otherwise. The default setting is 700H.

  • Page 23: Network Hubs

    1.1.4 Network Hubs For network hookup and expansion, you will need a hub. Hubs provide the means to for multiple computers to connect to an Ethernet network. The following model is recommended and listed to U.L. 864: • ENIC-HUB (TP800) 100 Base TX Stackable Hub Each hub used must be mounted in a NISCAB-5 enclosure with network and power transient protection.

  • Page 24: Screen Savers, Power Management And Screen Resolution

    1.1.5 Screen Savers, Power Management and Screen Resolution To ensure that the workstation annunciates every message; all power management functions, including CPU and monitor sleep modes, must be disabled. No third party screen savers (i.e. After Dark) or Open GL applications should be used;...

  • Page 25: Section 1.2: Printer Installation

    Event Printer Setup The event printer is a dot-matrix printer (i.e. NOTIFIER PRN series) that receives all messages from the COM port; it is configured in the Printers tab of the System Setup folder. Do not install this printer in Windows.

  • Page 26: Event And Report Printer Setup

    Event Printer Connections PRN series event printers require a serial cable assembled with the following connections. DB9F Serial Connector DB25M Serial Connector Figure 1-12: PRN Series Serial Cable Wiring Diagram 1.2.2 Event and Report Printer Setup The UniNet software must be configured properly for communication with optional event and report printers. IMPORTANT: Report printers must be configured and installed in Windows.

  • Page 27: Section 1.3: Basic Workstation Setup

    Section 1.3: Basic Workstation Setup 1.3.1 Configuring Event Managers and Alarm Servers Event Managers provide the workstation with a buffer of events from each of its configured Alarm Servers. The Alarm Servers interface with the actual devices and pass the information to the Event Manager. All communication between the Workstation and any other device goes through the Event Manager.

  • Page 28: Figure 1-15: Alarm Server Connection Fields

    Column Description The Event Manager or Alarm Server number Type The application type: EM=Event Manager, LAS=Local Area Server, WAS=Wide Area Server Name The name of the computer on which the application resides IP Address The static network IP address of the computer Port An Ethernet parameter describing the port on which the current Event Manager resides;...

  • Page 29: The System Setup Folder

    2. Give the server a unique Server Number. Specify the Network Name of the computer on which the server resides, or enter the computer's static IP address. If applicable, select the number of the server it either backs up or is backed up by. 3.
  • Page 30 • Device Descriptions - This box contains two checkbox options. The first is Extract Descriptions From Panel. This option assigns device descriptions as they are reported from the panel instead of using the locally defined descriptions. This description will appear in the proximity display and be displayed when viewing the device description or properties.

  • Page 31: Figure 1-19: System Options: Printers Tab

    • Suppress Automatic Device Icon Creation for New Devices - When activated, this prevents the automatic creation of new device icons when events are annunciated. New devices can still be created manually, and existing devices will function normally. • Database Synchronization Enabled- When this box is checked (option enabled), databases on remote workstations will automatically be synchronized with this workstation when database changes are made.

  • Page 32: Figure 1-20: System Options: Speech Annunciation Tab

    Speech Annunciation Because of its depth and complexity, the Speech annunciation portion of this software is covered in Section 3.5.6 Creating and Assigning Voice Annunciation Files. Figure 1-20: System Options: Speech Annunciation Tab Operator Response Tab The Operator Response Tab allows the definition of custom fields that an operator can use to enter response information that will be recorded to the History File for later viewing.

  • Page 33: Figure 1-22: System Options: Operator Features Setup

    Operator Features Setup Tab The Operator Features Setup Tab contains configuration tools for enhancements covering operator log in and supervision of operator performance. Figure 1-22: System Options: Operator Features Setup • Use Unacked Event Supervision - When this feature is enabled, the workstation supervises operator acknowledgement of new events.

  • Page 34: Figure 1-23: System Options: Site Information Setup Tab

    Figure 1-23: System Options: Site Information Setup Tab The Site Information Setup Tab allows you to define only text-based fields. These fields can be up to 80 characters in length. To add a new field: 1. Type a description under Field Description. 2.

  • Page 35: Part 2 Operation

    Part Operation The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...
  • Page 36 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 37: Section 2.1: Basic Workstation Operation

    Section 2.1: Basic Workstation Operation 2.1.1 The Workstation Main Screen Tour The main screen of the Workstation can be divided into six primary parts plus pull down menus. The primary screen parts are: • Screen Description • Floor Plan Display. •...

  • Page 38: Figure 2-2: The Event Display

    Screen Description The Site Description, located above the upper left corner of the Floor Plan display, identifies which screen is currently shown on the Workstation. This description is created in Edit mode by accessing either of the two follow- ing menu options: 1.

  • Page 39: Figure 2-3: Network Communications

    Network Communications The network communications box displays basic information relating to the Event Manager, Alarm Servers, and network traffic. The right side of the box displays the number of Alarm Servers and Event Managers (respectively) currently on-line. Immediately below each connection label are send and receive indicators for data transmitted between the alarm server(s) and the workstation.

  • Page 40: Logging Into The Workstation

    2.1.2 Logging Into the Workstation When the workstation is started, it begins with the operator account that is currently logged in to the system. This information is retrieved from the registry and is specific to each computer. If the computer is rebooted, the registry is cleared, and the workstation is logged in with the Default operator account.

  • Page 41: Section 2.2: Event Handling

    Section 2.2: Event Handling 2.2.1 About Events An Event is any change in the status of a device or a transfer of information between a device and the workstation or between two devices. Some of these events are considered background and housekeeping events and are not seen by the user.

  • Page 42: Event Handling

    2.2.3 Event Handling When the Event Manager sends an off-normal event to the workstation, the event is placed in the New Events list box on the main screen. It remains there until it is acknowledged either locally or by another workstation on the network which is controlling the device.

  • Page 43: Configurable Event Counters

    2.2.4 Configurable Event Counters The Configurable Counters feature of the Workstation allows users to configure the Event Counters section of the application. In previous versions of the Workstation, the Event Counter would list Event Statuses such as Alarm, Trouble, Security, Supervisory, and Access Control Events. This new feature allows users to configure both the name of the counter (limited to five counters) and the Event Statuses that are counted in each catagory.

  • Page 44: Getting More Information About Events

    Figure 2-10: Modifying/Adding an Event Type Restoring Defaults The fourth selection under the Event Type box is a button titled Restore Defaults. This will repopulate the Event Type box with the 5 default settings: Fire Alarms, Supervisory Alarms, Trouble Events, Access Control Events, and Security Alarms.

  • Page 45: 6: The View Latest Events And Messages Window

    2.2.6: The View Latest Events and Messages Window The View Latest Events and Messages window provides the user with information about system events. This display can be filtered for the following types of events: • system events applying to the software •...

  • Page 46: Armed / Disarmed Points Display

    2.2.7 Armed / Disarmed Points Display The Armed / Disarmed Points display is accessible from the View menu. This form provides a complete list indicat- ing which points are currently armed (coded in red) or disarmed (coded in blue). Every point is displayed by either its native address or the display ID according to how the workstation is currently set.

  • Page 47: Section 2.3: Floor Plan Display

    Section 2.3: Floor Plan Display 2.3.1 Introduction to the Floor Plan The Floor Plan Display provides a graphical context for the devices on the network, showing their location on a building floor plan. It can also display informational icons for items such as biohazard warnings and various other cautions.

  • Page 48: Contents Of The Floor Plan Display

    2.3.2 Contents of the Floor Plan Display The floor plan display is a highly detailed canvas that allows the workstation to function within a wide range of applications, scales, and environments. This section will detail the different types of objects on the display and examine situations in which they might be found.

  • Page 49: Figure 2-17: Sample Information Window

    If the proximity display option is turned on, an information window appears when the mouse cursor is placed over an addressable device. This window displays the Device ID, description, and type (shown in Figure 2-17). Devices have two IDs. One is the Device ID, which is the actual network address of the device.

  • Page 50: Keymap

    2.3.3 Keymap The keymap provides either an overview of the currently displayed screen (without devices, buttons, or other objects) or a predefined bitmap. Open the keymap by selecting View, Keymap from the main screen menu bar, or click the keymap button in the graphic toolbox. When the main screen floor plan display is zoomed in and the keymap is not in bitmap mode, a red box on the overview outlines what portion of the map is currently being displayed.

  • Page 51: Addressable Device Pop-Up Menus

    2.3.4 Addressable Device Pop-Up Menus Addressable Device Pop-Up menus provide the operator with device specific information and controls. The device pop-up menu is activated by clicking the right mouse button on any addressable device. The menu that appears depends on the type of device, the situation, and the rights of the user. Some options are common to all address- able devices, and some devices have functions that are device type specific.

  • Page 52: Symbol Key

    2.3.5 Symbol Key The Symbol Key provides a directory of devices and information labels found on the floor plan display. The symbol key also allows the operator to change the description of any of the device icons. The top tabs allow you to select viewing devices (such as, NIONs, Fire Panels, etc.) or information labels (such as hazardous material, radioactivity, etc.).

  • Page 53: Section 2.4: Advanced Features

    Section 2.4: Advanced Features 2.4.1 Monitoring and Control Profiles Monitoring and control profiles allow the operator to select what devices will be monitored and controlled by the workstation. Each predefined setting, called a profile, is defined by the system administrator for the specific site and application.

  • Page 54: Figure 2-23: Control Profile Select Dialog

    Control Profiles Control profiles determine which devices the workstation is currently supervising. This is very important because when a message is sent to a device, or an event for a device is acknowledged, that message or acknowledgment is only local unless the workstation has control of that device. Because of the need to be able to respond to problems that may occur in areas that a specific operator does not always monitor, the operator can change control of specific devices.

  • Page 55: Function Keys

    2.4.2 Function Keys Function Keys F2 through F12 are all configurable within the UniNet Software. This allows commonly used functions to be assigned to the function keys for easy access. Configuration of the function keys is an assignable security privilege, but generally the system administrator will define their function. The workstation has a toolbar for function keys which displays the 12 keys and a description of what the key has been assigned to do.

  • Page 56: History Manager

    2.4.4 History Manager The History Manager is a utility for viewing all of the events that are currently stored in the history database of a network client application. It serves as a database manager which can organize all events which pass through the main software application.

  • Page 57: Figure 2-25: The Event Display

    NOTE: For more information on the History Manager application including filter application and report scheduling and generation, refer to the System Utilities manual. Figure 2-25: The Event Display When used with the workstation history database, the Event Display contains nine columns of information (six are shown above because of screen width).

  • Page 58: Panel Communications

    From the bottom of the Panel Communications dialog box, select the Node, and if applicable, the subnode with which to connect. • Select Establish Communications Session from the Connection pull down menu item. Notifier HVAC NION MAIN MENU 72 F ECON: ON...

  • Page 59: View Member Information Window

    NOTE:The panel communications session is an ancillary feature and is not meant to be used as a substitute for a dedicated terminal. Terminal functions through this window may be much slower compared to a terminal connected directly to the panel. Other options within the Panel Communications Session box: •...

  • Page 60: View Site Information

    2.4.7 View Site Information This option allows you to obtain detailed information about a specific site or sites, based on search criteria. To access this feature, click on View, Site Information. To display information, select by either Site ID or Site Name.

  • Page 61: Part 3 System Administration

    Part System Administra- tion The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...
  • Page 62 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 63: Section 3.1: User Management

    Section 3.1: User Management UniNet supports a variety of tools to configure and manage databases for system users, system operators and administrators. Workstation specific profiles can be defined for the following user categories: • Security • Monitoring • Control Configuration of each of these categories is explained in the following sections. 3.1.1 The Member Editor and Member Database The member database contains information on access card holders and system operators.

  • Page 64: Figure 3-2: Member Name And Name Format

    Adding a New Member To add a new member, click on the Add Member button. In the Member Information frame, enter the person's name using the Member Name dialog. To assign a card to the member, enter the card number in the Card Number field.

  • Page 65: Member Editor Configuration

    Digital Images of System Members A digital image of a member may be included in their record. For operators, this image would be displayed during login and on the main screen after login. UniBadge can print these imported images on badges. This image is obtained from a file on the hard drive.

  • Page 66: Figure 3-3: New Udf Dialog

    Edit Fields tab - This feature allows any user with editing access to add, remove, or edit user defined fields. To add a new UDF, click on Add Field. In the corresponding dialog, enter the field name and choose a field type. If you choose to create a text field (maximum 200 characters), you will be prompted to enter a field size.

  • Page 67: Security And Security Profiles

    3.1.3 Security and Security Profiles There are numerous workstation security controls to ensure that the workstation is not disabled by unauthorized users. Two basic areas of protection are covered: • Hardware Security. • Software Security. Hardware Security Workstation power connections are secured with special hardware, and the computer power switch is disabled. With proper line current surge protection and UPS power supply installed, the workstation is well protected from system failures.

  • Page 68: Security Profiles

    Security Profiles Operator functionality and activity are controlled by the assignment of security profiles. Each operator and admin- istrator is assigned a security profile with their system member record. Security profiles contain a list of all worksta- tion functions where anyone assigned to that profile is allowed access. Security profiles are defined and maintained by a system administrator using the Security Profile Maintenance dialog box.

  • Page 69: Figure 3-6: Security Profile Maintenance Dialog

    Profile List Feature Group Headings Individual Features Figure 3-6: Security Profile Maintenance Dialog To remove an existing profile, select the profile from the Profiles list box then, click on the Delete Profile button, and confirm its removal. If any existing operators are assigned that profile, then the workstation prompts for assignment of new profiles for those operators.

  • Page 70: Defining Monitor And Control Profiles

    3.1.4 Defining Monitor and Control Profiles Monitoring and control profiles allow the operator to select what devices will be monitored and controlled by the workstation. Each profile is defined for the specific site and application. Monitoring profiles determine what events are seen by the workstation and control profiles select what devices are controlled by the workstation.
  • Page 71 Event types are filtered by the device status. The device status represents every alarm type recognized by the system. Each profile can be defined to filter alarms system-wide by their status. Both of these methods can be used in a profile to allow alarms to be filtered for selected types and all alarms to be filtered for a selected location.

  • Page 72: Figure 3-8: The Control Profiles Configuration Dialog

    Control Profiles Control profiles define which nodes a workstation currently supervises. If a workstation does not have control of a node, all actions taken at a workstation in regard to that node are local only. For example, an acknowledge command at the workstation tallies on the workstation, but the node doesn't receive it. In addition, only one workstation can have control of any node at any time.

  • Page 73: Section 3.2: Screen And Site Management

    Section 3.2: Screen and Site Management 3.2.1 Screen Structure Graphical displays in the workstation are arranged as screens associated with a particular site. Multiple sites can be created on a workstation, each one with its own collection of screens. All addressable point devices must be placed on a screen that is part of the site from which the point is reporting.

  • Page 74: Figure 3-9: Add New Site Form

    Creating a New Site To create a new site, go into Graphics mode, then select Create A New Site from the Add/Copy Screen submenu of the Graphics pulldown on the main screen. This will open the Add New Site form (see figure below).

  • Page 75: Adding And Editing Screens

    3.2.3 Adding and Editing Screens Screens are the fundamental visual interface between sites and the operator. Screens are displayed in the Floor Plan Area of the main display. Each site can contain numerous screens, and screens can contain floor plans, graphics, and/or devices.

  • Page 76: Other Screen And Site Related Operations

    If a .WMF vector drawing is used, it will be stored in the workstation's screen database. This format provides an image that can be re-sized and zoomed without loss of quality and resolution. Individual elements of the vector drawing can also be edited and the colors modified. For more information on these operations, refer to the section titled Graphic Tools, which covers the graphic editing of screens.

  • Page 77: Section 3.3: Graphic And Screen Editing Tools

    Section 3.3: Graphic and Screen Editing Tools 3.3.1 Editing Screens A NOTE ABOUT EDITING SCREENS: Whenever you are editing a screen or site, it is recommended that you first back up the SCREEN.MDB file. In the event of a mistake, you can revert to the old screen. Edit Mode You must activate Edit Mode in order to edit screens, and you must have access to this feature.

  • Page 78: Graphics Toolbox

    3.3.2 Graphics Toolbox Toolbox Layout The graphics toolbox contains buttons for most of the common screen editing tools. These tools are grouped on separate tabs of the toolbox. The diagram below illustrates what each icon represents. This toolbox is opened and closed by toggling edit mode from the Common Screen Tools area.

  • Page 79: Figure 3-13: Draw Tab

    Draw Tab • Add Device - Adds a new device to the titled Vector Drawing). floor plan display (for information on device • Add Ellipse - Activates the Ellipse tool (See placement and configuration, see Section the subsection titled Vector Drawing). 3.4).

  • Page 80: Figure 3-15: Text Tab

    Text Tab For details, see the subsection titled Using Text. • Toggle Italics - Toggles italics on and off for the currently selected text. • Font - Select the desired font from the Font combo box. • Toggle Underline - Toggles underline on and off for the currently selected text.

  • Page 81: Vector Drawing Tools

    3.3.3 Vector Drawing Tools The UniNet workstation software includes a number of tools for creating vector based graphics on the floor plan display. All of these tools are accessed through the Graphics Toolbox (explained above), and operate only while in Edit Mode.
  • Page 82 The Line Tool The line tool is one of the most fundamental tools in vector drawing. Its operation is simple: • Select the Line Tool by clicking on the line tool icon on the toolbar. The mouse pointer will change to the line tool pointer.
  • Page 83 Filled Box Tool This tool works in the exact same fashion as the box tool except that instead of a transparent fill, it has a solid color fill by default. Everything works in the same way as the box tool. When working with a filled object (box ellipse, sector, chord or polygon), selecting the box and then a color on the color palette will modify the fill color of the box.

  • Page 84: Using Text

    3.3.4 Using Text Text in the workstation can take two fundamental forms: • device text • non device text Device text is defined as text labels that relate to specific devices and their icons. Device text is covered in the Devices section of the manual.

  • Page 85: Cutting, Copying And Pasting

    Importing .WMF files .WMF files are read into the software and converted into individual lines that can be moved, colorized, resized, and deleted with the workstation vector drawing tools. A good starting point for screen creation is to import a floor plan of the building or area that is being monitored.
  • Page 86 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 87: Section 3.4: Device Placement And Configuration

    Section 3.4: Device Placement and Configuration 3.4.1 Graphic Devices - Description Graphic devices are the primary event annunciation and user configurable on-screen tools of the workstation. The user can create an unlimited number of graphic devices and place them on any screen of the workstation. The workstation even auto-creates devices for new events.

  • Page 88: Adding Addressable Devices

    3.4.2 Adding Addressable Devices Addressable devices can be assigned at any time during workstation configuration or they are created automati- cally the first time a device reports in. All addressable devices are placed on a screen within the site with which they are associated.

  • Page 89: The New Devices Dialog

    3.4.3 The New Devices Dialog When adding an addressable device, first navigate to the screen under the site where the device will be located. Next, zoom in the floor plan to the level of resolution at which you want the default device size displayed. Then, select the menu items Graphics, Add Symbol, Device.

  • Page 90: Figure 3-20: The Device Library

    Each section of the New Devices dialog contains input fields and option lists for defining a device. All parameters of a discrete device can be defined on this form. Analog devices require additional configuration on a related form. Analog devices are covered in the next section. Each feature of the New Device dialog is described below.

  • Page 91: Defining Analog Devices

    Additional Device Information Device types relate to the precise nature of the device being monitored. They define the device as a photoelectric smoke detector, a manual pullstation, a card reader, a motion detector, etc... This assignment is done automati- cally if the device is autocreated. There are also two optional assignments;...

  • Page 92: Figure 3-22: The Analog Device

    The Analog Input Device dialog is divided into two areas, the Device Assignment Area and the Device Testing Area. The display style and performance of the device are defined in the assignment area. Then, its performance can be manually demonstrated in the testing area to verify expected performance before finishing the assignment.

  • Page 93: Adding Sound, Video And Text

    Device Testing Area The area on the right side of the Analog Input Device dialog provides a simple testing tool to check the perfor- mance of a newly assigned analog device. The Sample Display area shows the device graphics with address, value and state fields.

  • Page 94: Figure 3-24: The Open Text File Dialog

    To start recording, press the record button. Speak clearly into the microphone. When finished, press the Stop button. The length of the file is indicated on the right-hand side of the speech editor. To listen to the voice file, press the Play button. If the message is correct, select Save File As from the File menu. Enter a name for the file and make sure the path is correct.

  • Page 95: Navigation And Functional Buttons

    3.4.6 Navigation and Functional Buttons Two types of button devices can be assigned to screens, Navigation and Functional buttons. Navigation buttons are linked to other screens and provide navigation shortcuts for operators. Functional buttons are assigned to predefined macros to provide command shortcuts to operators. Buttons can be placed on any screen and multiple buttons can access the same screen or execute the same macro.

  • Page 96: Figure 3-27: Functional Button Configuration Dialog

    4. Select a graphic symbol for the button. 5. Place the button in the desired screen location. Assigning Functional Buttons To assign a functional button: 1. Go to the screen where the button is to be placed. 2. Select Graphics, Add Symbol, Functional Button. This opens the Functional Button Configu- ration dialog.

  • Page 97: Annunciation Icons

    3.4.7 Annunciation Icons Annunciation icons are two state devices that represent current conditions for an entire site. When an annunciation icon is assigned for a site it displays a normal condition when the site is completely free of off-normal devices. If any one device goes to an off-normal state then the icon displays the site as off-normal.

  • Page 98: Information Labels

    3.4.8 Information Labels Information labels are graphic devices that provide additional important information about a location represented on a screen. These labels are generally common symbols and warning signs (i.e. flammable, poison, biohazard, etc.). Information labels do not receive information regarding alarms and troubles from the system. They can have video, picture, text and sound files linked to them to provide additional information just like addressable devices.

  • Page 99: Creating A Device Symbol

    3.4.9 Creating a Device Symbol UniNet includes a comprehensive library of device symbols, however custom symbols may Selection Box be created by the user for library inclusion. These symbols must be created off-line using any graphic design package or imported from another source and saved in bitmap (.bmp) Selection Tool format.

  • Page 100: Other Device Features

    3.4.10 Other Device Features Search for a Device A device search utility is provided to locate an addressable device anywhere on the workstation. When used it changes to the screen where the device is located. To execute a device search, select Graphics, Search for a Symbol.

  • Page 101: The Effect Of Zooming On Devices

    Proximity Activated Display and Device Description Extraction Two configurable options are available for device descriptions as they are displayed at the workstation. Both of these features are configured using the Workstation Configuration, Options. This opens the System Setup folder. These options are available on the General tab. Proximity Activated Display - this option provides a dynamic description box that automatically pops up whenever the mouse pointer touches the device.
  • Page 102 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 103: Section 3.5: System Maintenance

    Section 3.5: System Maintenance 3.5.1 Database Management There are three main databases that are maintained in a UniNet system. These three databases are: • History Database - Holds a record of all events and actions that have taken place. The history database holds a large amount of data and can become the largest of all the database files.
  • Page 104 Compacting Databases When an entry is deleted from a database in the workstation it is flagged as being deleted. If the next entry to be added will fit in the deleted entry's location, it will be overwritten. Unfortunately, this system is not perfect, and the database files can grow larger in size over time because of unused space.

  • Page 105: Node Configuration

    3.5.2 Node Configuration Node configuration is performed in the Tools, Network Administration option. This allows each node on the network to be defined for workstation display purposes in terms of device type, alarm type (graphical or text only), and a description of the device. Node Select View S i t e...

  • Page 106: Defining Function Keys And Command Buttons

    The network Node/SubNode Display shows the hierarchy of the network. On the far left is an entry for each site, with a small expansion box (showing a minus for expanded and a plus for non-expanded) to the left. Clicking on the expansion box opens up the site to show each node (by node number) of the site.
  • Page 107 Defining A Function Key Use the following procedures as an outline for defining function keys: • Select the radio button of the function key that is to be reassigned. Any of the 12 functions keys can be selected, but keep in mind that regardless of its settings, F1 will be set to on-line help. •...

  • Page 108: Using Macro Editor

    Function Key Help Bar The Key Help Bar displays the text entered in the Help Text field of the Function Key form. This is used as a quick reference as to the definition of the function keys. This can be called up by a defined function key, using the Toggle Function Key Help Bar action, or by pressing CTRL H on the keyboard.
  • Page 109 Database updates are maintained by the system as changes occur within the display. Beneath the Macros table are three buttons. If a macro is currently highlighted, or there are no macros defined, then the buttons read Add Macro and Delete Macro. To create a macro, click the Add Macro button. Adding a macro will create an entry for the next available macro number.

  • Page 110: Guidance Text

    3.5.5 Guidance Text Guidance text is used to give general information that pertains to a particular screen or site. This information can be anything in a text format, and commonly contains such information as contact numbers, safety precautions, and special procedures. The guidance text can be viewed by selecting View, Guidance Text or edited by selecting Graphics, Edit, Guidance Text.
  • Page 111 The Sentence Structure display box holds the actual annunciation sentence structure. Each row in the display represents one item in the structure. When an off-normal event occurs, the sentence structure is processed in a top to bottom order. Each item can be of one of the following types: •...

  • Page 112: Universal Time Code Editor

    3.5.7 Universal Time Code Editor The Universal Time Code Editor or UTE is a utility that allows the definition, viewing, and editing of UniNet Universal Time Codes. These time codes can be used for many different applications within the UniNet system. Although time codes are not used by the workstation software, many workstation plug-ins and sister applications support these time codes.
  • Page 113 Time Codes To add a time code, click the New Code button in the Time Codes area and enter a name, start and stop time, and the days of the week to which the time code is assigned. It is also possible to specify if the time code applies on holidays by checking or unchecking the box labeled "Hol"...

  • Page 114: Figure 3-45: Holiday Codes Form

    Holiday Codes Holiday codes define what dates are considered holidays by a particular site or location. The holiday code editor allows the definition of multiple calendars, each with up to 75 holidays. A counter at the bottom of the holidays form shows the number of currently defined holidays.

  • Page 115: Device Test Manager

    3.5.8 Device Test Manager The Device Test Manager is used to set up monitoring tests for selected devices. Once a test has been created and is running, you can wait for an event to come in from a device, or you can manually trip the device.
  • Page 116 This page intentionally left blank. The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 117: Part 4 Plug-In Applications And Installations

    Part Plug-In Applications and Installations The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...
  • Page 118 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 119: Plug-In Installation

    Plug-In for a device, follow these steps: 1. Select the appropriate NION type in the NION Type combo box (For example, if the 2C8M Plug-In is being configured, select Notifier 2C8M). NOTE: The related hardware must be installed to utilize the related features provided by the plug-in.

  • Page 120: Mapping Plug-Ins With Nions

    2. Click Change... to modify the currently selected plug-in for the selected device. This will bring up a file selection dialog showing the Plugin directory. Select the .CFG or .EXE file associated with the desired plug-in and click on OK. 3.

  • Page 121: Genfire Plug-In Application

    4.2: GenFire Plug-In Application 4.2.1 GenFire.CFG Configuration File The GenFire (short for Generic Fire) Plug-In provides common fire-related functions to a variety of devices. GenFire is a configuration file, and therefore does not actually run or load any applications. GenFire adds six menu and macro commands that relate to common fire devices.
  • Page 122 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 123: Afp-400/Afc-600 Plug-In Application

    4.3: AFP-400/AFC-600 Plug-In Application 4.3.1 Command Options These Plug-Ins provide common fire-related functions to the AFP-400 and AFC-600 panels. Each Plug-In contains ten menu items and macro commands that relate to common fire devices. These ten menu items are: • Acknowledge •...
  • Page 124 Manual Evacuate The Manual Evacuate menu item relates to the Control panel. This menu item activates the panel's manual evacua- tion system. Enable/Disable The types of devices which can be enabled and disabled by the plug-in are, Ionization smoke detectors, Photoelec- tric smoke detectors, Heat detectors, Flame detectors, Pullstations, Tri-State Pullstations, Monitor modules, Tri-State Monitor modules, Conventional smoke detectors, Sprinklers, Audible outputs, Generic control outputs, Unsuper- vised outputs, Common generic control outs, Waterflow, Supervisory, Laser detectors, Beam detectors, Smoke...

  • Page 125: Nion-Env Plug-In Application

    4.4: NION-ENV Plug-in Application 4.4.1 NION-ENV Configuration and Settings Forms The NION-ENV Plug-In provides two menu commands when configured for use with the HVAC device type. These two commands are: • View Current Settings • Configure Device Both of these commands open similar forms. The primary difference between the two is that the Configure Device menu item allows modification of all NION settings, and View Current Settings provides the same info in a non-editable format.

  • Page 126: Operation Mode

    Temperature Setpoints The following information can be set within the form: Cooling Setpoint in degrees Fahrenheit. This value indicates the temperature that, if the current temperature is higher, will begin cooling (using a multi stage process, for the specifics of stages and the formulas for their activation, see the NION-ENV Manual or the HVAC Operation section of this manual.) Heating Setpoint in degrees Fahrenheit.

  • Page 127: View Current Settings

    4.4.3 View Current Settings The View Current Settings form contains the exact same information as the HVAC Configuration form in a non-editable format. When you open the View Form, it will retrieve the settings from the NION-ENV and report them to the screen. When viewing is completed, simply click OK to close the form. Figure 4-4: View Current Settings Form 4.4.4 HVAC Operation Heating and cooling operation is based on configured setpoints for the following parameters:...
  • Page 128 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 129: Reserved

    4.5: Reserved The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...
  • Page 130 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 131: Burle Plug-In Application

    4.6: Burle Plug-In Application 4.6.1 The Burle Plug-In Interface This plug-in application (Burle.exe and .cfg) controls the Burle CCTV NION through the interface shown below: Configure pull-down m e n u Joystick Text Box Zoom/ Focus/Iris Controls Figure 4-5: Burle CCTV NION Plug-In Interface The Burle CCTV NION Plug-In controls the Pan/Tilt/Zoom functions available via the Burle CCTV NION and allows full software control of zoom, focus, and iris open/close.

  • Page 132: Unilogic Applications For The Burle Cctv Nion Plug-In

    Configure - To assign a name to a camera, select Set Camera Title, enter the text (max. 16 char.), and click on OK to apply. Monitor titles can also be set with a similar process: select Set Monitor Title, enter the text (max.

  • Page 133: Javelin Plug-In Application

    4.7: Javelin Plug-In Application 4.7.1 Javelin PTZ and Switcher Plug-Ins The control of Javelin CCTV switchers and PTZs is provided by this single plug-in application (Javelin.exe and .cfg) and provides the following features on two forms: • Javelin PTZ - Controls the Pan/Tilt/Zoom functions available on Javelin PTZ Controllers.

  • Page 134: Javelin Video Switcher (Javvid) Plug-In

    JavPTZ Controls The Javelin PTZ Plug-In can be divided into a few basic controls: • Joystick - The Joystick controls the pan and tilt capabilities of a Javelin PTZ Controller. To use the joystick, click on the joystick and move the mouse to push it in the desired direction. As long as the mouse button is depressed, the joystick will move towards the cursor, even if the cursor moves past the boundaries of the control.
  • Page 135 JavVid Controls The Javelin Video Switcher Plug-In can be divided into a few basic controls: • Camera Selection Area - The Camera Selection Area of the JavVid plug-in provides a control for selecting what camera is to be affected by the JavVid plug-in, as well as a button to open the camera titling box.
  • Page 136 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 137: Pelco Plug-In Application

    4.8: Pelco Plug-In Application 4.8.1 Pelco CCTV NION Plug-In This plug-in application (Pelco.exe and .cfg) controls the Pelco CCTV NION through the interface shown below: Configure pull-down m e n u C o m m a n d Buttons Joystick Zoom/Focus/Iris Controls Figure 4-10: Pelco CCTV NION Plug-In Interface...

  • Page 138: Command Buttons

    4.8.2 Command Buttons Sequences - To implement a sequence programmed via the Pelco monitor, click on Seq, select the sequence number, and click on Start to start the sequence, Stop to stop, and Hold to pause. Once the sequence is paused, the user can click on Prev or Next to go to the previous or next sequence.

  • Page 139: Figure 4-14: Patterns

    Pattern - This applies to cameras with PTZ features. Select the camera for which to record a pattern. Select Configure, Record Pattern, and enter pattern number 1 or 2. Click on Record, operate the PTZ controls, and Stop when completed. To play back a pattern, click on Pattern, enter the desired pattern number, then use Start and Stop to control playback.

  • Page 140: Unilogic Applications For The Pelco Cctv Nion Plug-In

    4.8.3 UniLogic Applications for the Pelco CCTV NION Plug-In The Pelco CCTV NION can activate a preset, pattern or sequence based on any selected event through the use of UniLogic. To activate a preset from UniLogic, manually create two icons in the workstation, one with device ID “S,” followed by a 4-digit camera number and 3-digit monitor number (i.e., S0012001), and the other with a device ID of “PR,”...

  • Page 141: Vicon Plug-In Application

    4.9: Vicon Plug-In Application 4.9.1 Vicon CCTV NION Plug-In This plug-in application (Vicon.exe and .cfg) controls the Vicon CCTV NION through the interface shown below: Configure pull-down m e n u Joystick Zoom/Focus/Iris Controls Figure 4-16: Vicon CCTV NION Plug-In Interface The Vicon CCTV NION Plug-In controls the Pan/Tilt/Zoom functions available via the Vicon CCTV NION and allows full software control of zoom, focus, and iris open/close.
  • Page 142 AutoIris - Toggles between activating/deactivating the AutoIris feature. This automatically adjusts the brightness depending on the angle of the camera. Four Speed Receiver - This checkbox should be selected if the currently selected PTZ unit uses a four-speed receiver. The box should not be checked if the receiver has 255 speeds. Tour - The Tour feature enables the user to utilize a tour, which is programmed via the Vicon keyboard.

  • Page 143: Nion-2C8M / 16C48M Point Scheduling Plug-In Applications

    4.10 4.10: NION-2C8M / 16C48M Point Scheduling Plug-In Applications 4.10.1 NION-2C8M/16C48M Overview The NION-2C8M and NION-16C48M can be configured to operate using dedicated scheduler application plug- ins (2C8M.cfg and .exe and 16C48M.cfg and .exe). Schedulers provide tools to configure these NIONs with automated I/O scheduling.

  • Page 144: Figure 4-18: 16C48M I/O Configuration

    Figure 4-18: 16C48M I/O Configuration The device type and event status are selected from standard lists of system recognized types and codes. The device type corresponds to the physical definition of the input. NOTE: It is possible for the icon device type to not match the device type in the scheduler. Example: The icon is defined as a digital input and the scheduler defines the same point as a smoke detector.

  • Page 145: Time Codes

    On 16C48M and 48M NIONs, the input state may also be defined. Options include: • Not Configured - for unused inputs. • 2 State Normally Open - normally open input reporting active and normal. • 2 State Normally Closed - normally closed input reporting active and normal. •...

  • Page 146: Universal Time Codes And Time Code Groups

    4.10.3 Universal Time Codes and Time Code Groups The Universal Time Code Editor (UTE) is a utility that allows you to define, view, and edit UniNet Universal Time Codes. These time codes can be imported into the NION configuration scheduler. The Universal Time code Editor provides a method of managing time codes from a centralized utility and allows the user to import and transfer time codes among various applications.

  • Page 147: Functional Properties Of The 2C8M / 16C48M

    4.10.4 Functional Properties of the 2C8M / 16C48M There are several properties involved with the operation of inputs and outputs on discrete point NIONs. Each of these properties must be considered carefully when configuring points and I/O schedules. Input Properties The two main properties of any discrete NION input are its mode and state.
  • Page 148 Disarm - When a point is in Disarmed mode it does not monitor alarms for the input point. It will report trouble conditions, but will not report input active or input normal conditions. The following rules apply: 1. If a point is in an off-normal condition (input active) and a Disarm command is received the resulting action is based on the origin of the command.
  • Page 149 There are six different states for output points: Output On Output Off Automatic Output On Automatic Output Off Momentary Output On Momentary Output Off As an output point transitions through any of these states the appropriate state change event is broadcast on the network.
  • Page 150 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 151: Nfn Explorer

    4.11 4.11: NFN Explorer 4.11.1 NFN Explorer Overview The NFN Explorer is a Windows application incorporated into the UniNet facilities monitoring system. The NFN Explorer allows the user to browse and edit properties of all devices existing on Noti•Fire•Net™ (in network mode) or a single NFS-640 panel (on a UniNet Echelon Network) using the familiar Windows Explorer style interface.

  • Page 152: The Nfn Explorer

    4.11.4 The NFN Explorer Once opened, the NFN Explorer plug-in looks very much like the Windows Explorer. The style of the Explorer is a two pane window, displaying all known panels monitored by that NFN NION on the left side, and properties and values of each device on the panels on the right.

  • Page 153: Editing Panel Properties

    4.11.7 Editing Panel Properties Some panel properties will have an asterisk (*) next to their name. The asterisk signifies that the property is editable. Properties without an asterisk are read-only. To change the value of an editable property, simply click on the property value to highlight the text, type in the new information, and press the <enter>...

  • Page 154: Modules

    4.11.9 Modules Like Detectors, new Modules will not show up within the NFN Explorer until they have been indentified by the Explorer. This is accomplished similarly to how detectors are updated. Go to the Panel that the modules are listed on, and expand the appropriate Loop (if applicable), then right-click on Modules to bring up the Detect Modules option.

  • Page 155: Panels

    4.11.10 Panels Another way to program the NFN Explorer is to use the Detect Panel Circuits feature. Detect Panel Circuits is found by right-clicking directly on the Panel Circuits text listed in the left hand side of the NFN Explorer. Once selected, the Explorer will query the network and automatically update itself with the panel circuits that reside on the network at the time of the query.

  • Page 156: Panel Interfaces

    4.11.11 Panel Interfaces The following lists describes each panel supported by the NFN NION, with its associated properties. Some properties are individually editable from within the NFN Explorer program, and are noted so within the table. NFS-640/3030 Panels DEVICE TYPE PROPERTY EDITABLE Detector...

  • Page 157: Nfs-640/3030 Panels (Cont'd)

    NFS-640/3030 Panels (Cont’d) DEVICE TYPE PROPERTY EDITABLE Modules/Panel Custom Label Circ./Bell Circ. Extended Label R. Click Functions: -Update Module Type -Enable/Disable -Force ON (O) Type Code Label -Force OFF (O) Flashscan Type Point Mapping Alarm Verification Participation (Input Only) Switch Inhibit (Output/PC/BC) Silenceable Walk Test Participation...

  • Page 158: Nfs-640/3030 Panels (Cont'd)

    NFS-640/3030 Panels (Cont’d) DEVICE TYPE PROPERTY EDITABLE Logic Zones Network visibility State Status Logic Equation (ASCII) Loops Dynamic Polling Wiring Style Module Poll Type Detector Poll Type Panel All Systems Normal Message R. Click Functions: -Clear All Network number Verification Counters Network drop number Terminal Operation...

  • Page 159: Nfs-640/3030 Panels (Cont'd)

    NFS-640/3030 Panels (Cont’d) DEVICE TYPE PROPERTY EDITABLE Panel (continued) Pre-signal delay time R. Click Functions: PAS installed -Clear All Verification Local term mode Counters Terminal supervision Display Intensity AC power fail mode LCD80 Supervision UDACT install Alarm counter Unacked alarm counter Security alarm counter Unacked security alarm counter...

  • Page 160: Afp-300/400 Panels

    AFP-300/400 Panels DEVICE TYPE PROPERTY EDITABLE Detector Label R. Click Functions: Point Type -Update -Disable Alarm Sensitivity -Enable Pre-Alarm Sensitivity % of Alarm Verification Counter Multidetector Setting STATUS Alarm Trouble Pre-Alarm Disabled SETTING Verification Control-By-Event The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 161: Afp-300/400 Panels (Cont'd)

    AFP-300/400 Panels (Cont’d) DEVICE TYPE PROPERTY EDITABLE Modules/Panel Label Circ./Bell Circ. Point Type R. Click Functions: -Update -Enable -Disable STATUS -Activate (O) -Deactivate (O) Active Trouble Disabled SETTING Switch Inhibit Silence Walk Test Control-By-Event Not in NFN Verify Pre Alarm Info.

  • Page 162: Afp-300/400 Panels (Cont'd)

    AFP-300/400 Panels (Cont’d) DEVICE TYPE PROPERTY EDITABLE Release Zone Delay Time R. Click Functions: Soak Timer -Update Abort STATUS Active Trouble Cross Zone Special Zone Special Zone Text STATUS Active Trouble Annunciator Mapping Points System Data Label Silence Inhibit Time Auto Silence Time Verification Time STATUS...

  • Page 163: Afp1010/Am2020 Panels

    AFP1010/AM2020 Panels DEVICE TYPE PROPERTY EDITABLE Detector Label R. Click Functions: Point Type -Update -Disable Annunciator Panel -Enable Annunciator Point Verification Counter % of Alarm Active Trouble Disable Tracking Verification Day/Night Sensitivity Control-By-Event Modules Label R. Click Functions: Type -Update -Enable Annunciator Panel -Disable...

  • Page 164: Afp1010/Am2020 Panels (Cont'd)

    AFP1010/AM2020 Panels (Cont’d) DEVICE TYPE PROPERTY EDITABLE Annunciator Label R.Click Functions: Update System Data Label R. Click Functions: -Update TIME DELAYS Alarm Verification Timer Silence Inhibit Timer Signal Cut Out Time Forward Zone Boundary LOCAL PARAMETERS NFPA 72A NFPA 72B NFPA 72C NFPA 72D NFPA 71...

  • Page 165: Afp1010/Am2020 Panels (Cont'd)

    AFP1010/AM2020 Panels (Cont’d) DEVICE TYPE PROPERTY EDITABLE System Data ISIB PARAMETERS (Cont'd) MIB Channel A (High) R. Click Functions: -Update MIB Channel B (High) Dual Data Port MIB Supports Dual Port ASR Lockout ASR Lockout/LAN Failure UDACT Address BATTERY CHARACTERISTICS Battery Type Capacity Battery Standby...

  • Page 166: Afp1010/Am2020 Panels (Cont'd)

    AFP1010/AM2020 Panels (Cont’d) DEVICE TYPE PROPERTY EDITABLE System Data LOOPS (Cont'd) Loop 1 R. Click Functions: -Update Loop 2 Loop 3 Loop 4 Loop 5 Loop 6 Loop 7 Loop 8 Loop 9 Loop 10 LOCAL MODES Lib Det Lib Mon Lib Ctrl Detector Verification Time ACS Supervisory...

  • Page 167: Afp1010/Am2020 Panels (Cont'd)

    AFP1010/AM2020 Panels (Cont’d) DEVICE TYPE PROPERTY EDITABLE System Data (Cont'd) ACS 1 R. Click Functions: -Update ACS 2 ACS 3 ACS 4 ACS 5 ACS 6 ACS 7 ACS 8 ACS 9 ACS 10 ACS 11 ACS 12 ACS 13 ACS 14 ACS 15 ACS 16...
  • Page 168 Notes The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 169: Appendices Additional System Information

    Appendices Additional System Information The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...
  • Page 170 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 171: Appendix A: Uninet Keyboard Shortcuts

    Appendix A: UniNet Keyboard Shortcuts CTRL * Change Line Style CTRL A Select All Objects in Floor Plan C TRL C Copy Selected Objects CTRL E Toggle Edit Mode On/Off CTRL F Change Fill Style (Ellipses/Rectangles Only) CTRL G Toggle Grid Mode On/Off CTRL R Rotate Selected Objects 90 Degrees (As a Group) CTRL V...

  • Page 172: Figure A-2: Edit Mode Keyboard Shortcuts (Cont.)

    CTRL/ALT R Refresh Current MetaDraw (Floorplan) Display CTRL/ALT U Toggle Non-Device Related Text Underline Style On/Off CTRL/ALT V Flip Objects Vertically (As a Group) C TRL + (Context Sensitive) Increase Font Size (Non-Device Text) C TRL - (Context Sensitive) Decrease Font Size (Non-Device Text) Deselect any Selected Objects in Floorplan Remove Selected Objects and Devices Shift Right Arrow...

  • Page 173: Appendix B: Pull Down Menu Hierarchy

    Appendix B: Pull Down Menu Hierarchy File... New... •Speech File •Text File Open... •Speech File •Text File Print... Device List... For This Site Only... •By ID •By Device Type Entire List... •By ID •By Device Type •Floorplan Area Events... •Print Unacked Events •Print Acked Events •Print All Events •Printer Setup...

  • Page 174: Other Applications

    •Member Information •Symbol Key •Keymap Other Applications... Tools... •History Manager •Panel Communications •Event Monitoring Selection •Node Control Selection •Function Key Editor •Command Button Editor •Macro Editor •Member Editor •Time Code Editor •Network Administration •Device Test Manager •Print Device Table Screen Navigation... •Front Screen •Previously Viewed Screen •Previous Screen Number...
  • Page 175 Edit... •Site Information •Screen Title •Guidance Text Delete... •Site •Screen Add Symbol... •Navigational Button •Functional Button (Macro) •Device •Information Label •Site Symbol •Bitmap Maintenance Database Utilities... Repair... •History Database •Screen Database •System Database Compact... •Screen Database •System Database •All Databases Synchronization...
  • Page 176 Workstation Configuration... •Event Managers •Event Counters •NION Applications Profile Editors... •Event Monitoring Profiles •Control Profiles •Security Profiles •Options Help... •About •Contents •Display Function Key Help The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 177: Appendix C: Terminology Index

    Appendix C: Terminology Index Absolute Address - The absolute address is the actual physical address of a device on the network. An absolute address is a 14 character string that consists of a three digit node ID, a three digit subnode ID, and an 8 character (alphanumeric) device ID.
  • Page 178 Command Buttons - see Functional Buttons. Control Profiles - Control profiles determine what devices the workstation is currently supervising. If a worksta- tion does not have control of a device, commands and actions relating to that device will affect only the device locally (on screen).
  • Page 179 History Database - Maintains a record of all events and actions that take place. The history database holds a large amount of data and can become the largest of all the database files. HVAC - HVAC stands for Heating, Ventilation, and Air Conditioning. Information Label - Information labels are icons that may include linked text, pictures, video, and sound that represent information about locations or specific details about areas of the monitored network.
  • Page 180 Node Number - A node number is assigned to any NION monitoring a device in the field. Node numbers are assigned to NIONs either at a local area server or a BCI where the device is attached. Off-Normal Event - An Off-Normal Event is an event which indicates activity or change in a condition that requires the attention and/or response of an operator.
  • Page 181 Security Profiles - Operator functionality and activity are controlled by the assignment of security profiles. Each operator and administrator is assigned a security profile with their system member record. Security profiles contain a list of all workstation functions to which anyone assigned to that profile is allowed access. Single Ended Event - An event that, once it is received, leaves the sending device in the same condition that it was in originally.
  • Page 182 Windows MetaFile (.WMF) - WMF is an extension that stands for Windows MetaFile. These files hold vector drawing information, discrete points, lines, and curves. .WMF files are used in the workstation predominately for importing floor plans. Because .WMF is vector based, the information in them can be re-sized without loss of resolution and quality.

  • Page 183: Appendix D: Using Sound Recorder

    Appendix D: Using Sound Recorder The Sound Recorder Sound Recorder is a Windows 2000 built-in application for recording, playing and modifying digital audio files. Because it is built into Windows 2000, it is used to edit sound in the workstation as well. The Sound Recorder can be accessed by a number of different facilities of the workstation.

  • Page 184: Sound Recorder Pull Down Menu Hierarchy

    Length Readout The Length readout displays the total length (in seconds) of the currently open digital audio file. This display is very useful for monitoring specific record times when recording new files directly with the Sound Recorder. Wave Display the Wave Display rests in the middle of the sound recorder window and is used to display the wave file being edited and played.
  • Page 185 The Audio Properties option calls up the system sound settings that are specific to the sound card in use on the workstation. This form allows control of such items as sample rate, sound quality (vs. performance), etc. Effects Pulldown The Effects menu contains options that modify the data of the current audio file. Increase and Decrease Volume raises and lowers the volume of the sound file by 25%.
  • Page 186 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 187: Appendix E: Event Data (Status, Priority, And Color Coding)

    Appendix E: Event Data (Status, Priority, and Color Coding) Event Data UL Catagory Off Normal Condition Normal Condition Each event within the workstation has its Fire Alarms and Process Alarms own unique properties. These properties include normal and off-normal condi- Alarm Alarm Restored tions, abbreviations for the event, color...
  • Page 188 Other Signals Agent Release Agent Release Off Agent Release Abort Agent Release Abort Off Recent Alarm Soft Anti-Passback Warning Soft Anti-Passback Warning Card REJECTED - Inv. Antipassb Card ACCEPTED Card REJECTED - Invalid Time Invalid Facility Code Card Not Active No Entry After Unlock Request to Exit Extended Unlock Reminder...

  • Page 189: Figure E-2: Event Color Coding

    Off Normal Fire Alarm Off-Normal Event Color Fire Alarm(Non Latching) Yellow Pre-Alarm Alarm Verifying for Fire Alarm Agent Release Alert Condition Tamper Switch Activated Soft Anti-Passback Warning Agent Release Abort Card REJECTED - Inv. Antipassb Door Ajar No Entry After Unlock Extended Unlock Reminder Forced Entry Figure E-2: Event...

  • Page 190: Figure E-3: Event Abbreviations

    Event Abbreviations and Annunciation Each UniNet Event has a full name. This is the actual event name and is usually a descriptive name for what has occurred. But because in some situations graphical space is limited, the event database maintains an abbreviation for each event.
  • Page 191 Off-Normal Event Normal Event Off-Normal Event Normal Condition Abbreviation Abbreviation Zone Trouble Zone Trouble Restored ZnTrouble ZnTblOff Ground Fault Ground Fault Restored GndFault GndNorm AC Power Failure AC Power Restored ACFail ACNorm Trouble Trouble Restored Trouble Tbloff Off-Normal Condition Returned to Normal Normal OffNormal Loop Trouble...

  • Page 192: Printer Output Format

    Printer Output Format The event printer port of the workstation outputs each event as it is annunciated at the workstation. The annuncia- tion output is five lines per event. There are four lines containing device information and status. The lines are not padded with spaces at the end, but are padded internally for columnar separation.

  • Page 193: Index

    Index Index Chord Tool 83 About Events 41 Common Tools 49 Acknowledged Events 42 Compacting Databases 104 Acknowledging Events 38 Contents of the Floor Plan Display 48 Adding and Editing Screens 75 Control Profiles 53, 72 Adding Video and Picture Files 93 Defining, 70 Addressable Device Pop-Up Menus 51 Filtering, 71...
  • Page 194 Event Display 38, 57 Color Coding 58 Hardware Security 67 Event Handling 41, 42 History Display 152 Acknowledged Events 42 History Manager 56 Event Manager Connections 27 History of Device 51 Event Manager Synchronization 39 Event Priority 187, 188 Event Types 41 Access Control Events 41 Import Member Database 104 Fire Alarms 41...
  • Page 195 Modules 154 Operation 152 Screen Database Storage of Imported Files 85 Overview 151 Screens 75 Panel Interfaces 156 Adding 75 Panels 155 Deleting 76 Registering 151 Edit Mode 77 NION-16C48M Plug-In Application 143 Editing 75, 77 NION-2C8M Plug-In Application 143 Operations 76 NION-ENV Plug-in Application 125, 126 Repairing 85...
  • Page 196 Vector Drawing Tools 81 Vector Graphics 49, 81 Vicon Plug-In Application 142 Video and Picture Files Adding, 93 View Member Information 59, 60 Voice Annunciation 110 creating/editing 94 Prerecorded Wave Files 111 Voice Files Creating, 93, 94 Windows 94 Workstation Supervisor 21 The Workstation Installation/Operation Manual Version 2 Document 51540 Rev.
  • Page 197 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...
  • Page 198 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...
  • Page 199 NOTES The Workstation Installation/Operation Manual Version 2 Document 51540 Rev. B1 4/8/02...

  • Page 200: Limited Warranty

    This warranty is void ® if the product is altered, repaired or serviced by anyone other than NOTIFIER or its authorized distributors or if there is a failure to maintain the products and systems in which they operate in a proper and workable manner.

Table of Contents
