If this unit is installed in a corner with the door opening against a wall, please fit short handles.
these are available from Bathstore.
White units have protective film on the front and side panels, please remove this film after
installation.
© Oct 2014

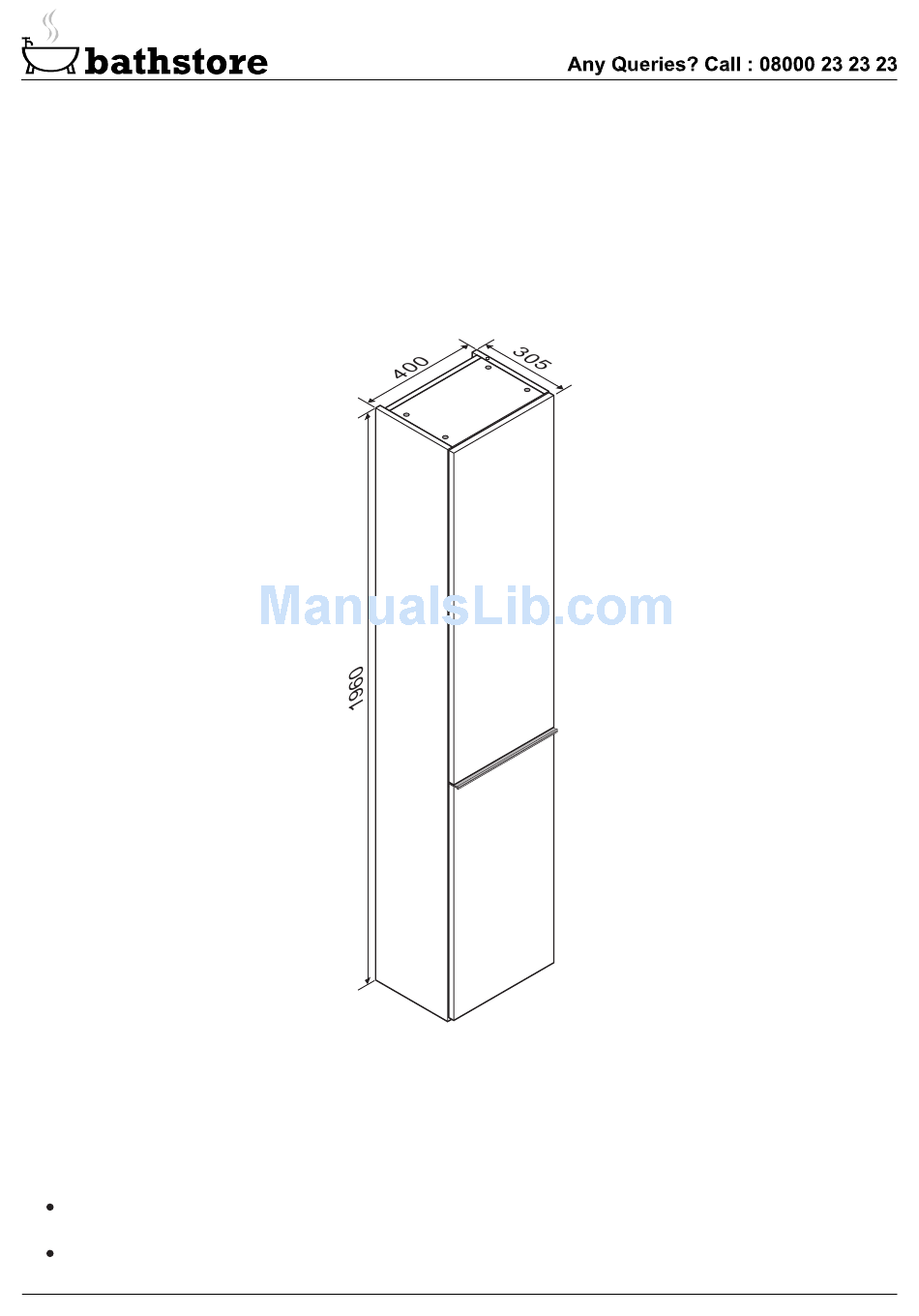

MyPlan 400 Tall Unit
Assembly Instructions
41405018750
Width 400mm
Depth 305mm
Height 1960mm
1-12
Advertisement
Summary of Contents for bathstore MyPlan 400 Tall Unit
- Page 1 MyPlan 400 Tall Unit Assembly Instructions 41405018750 Width 400mm Depth 305mm Height 1960mm If this unit is installed in a corner with the door opening against a wall, please fit short handles. these are available from Bathstore. White units have protective film on the front and side panels, please remove this film after installation.
- Page 2 Tools Required: Ø4mm Ø8mm CODE SIZE (mm) CODE DIAGRAM CODE DIAGRAM 1960 x 285 x 18 (LH) 1960 x 285 x 18 (RH) 364 x 248 x 18 358 x 230 x 6mm 364 x 230 x 18 364 x 212 x 18 364 x 135 x 18 Snap apart ST4 *14mm...
- Page 3 Step 1: Plumbing Void If the furniture conceals pipe runs along the wall, please cut the side panels within the grey area. The measurement are the maximum possible for the cutout. Important: The pipe runs should be done prior to fitting the furniture in place.
- Page 4 Step 2: Fit the cam (part L) with the arrow pointing towards the edge of the panel. Step 3: © Oct 2014 4-12...
- Page 5 Step 4: Step 5: 9 places © Oct 2014 5-12...
- Page 6 Step 6: Step 7: 3 places © Oct 2014 6-12...
- Page 7 Step 8: Step 9: 12 places © Oct 2014 7-12...
- Page 8 Step 10: Step 11: © Oct 2014 8-12...
- Page 9 The wall fixings supplied may not be suitable for your installation. You may need to source Step 12: Step 13: alternatives depending on the material and strength of the wall. Snap apart ST5 *50mm © Oct 2014 9-12...
- Page 10 Step 14: Step 15: © Oct 2014 10-12...
- Page 11 Step 15: Step 16: Step 17: The doors may be fitted on either the left or the right. Step 18: Step 19: Hinge release: To release the hinge from the hinge plate, squeeze the button on the end of the hinge. ©...
-
Page 12: Care And Maintenance
Once the units have been installed and levelled but before fully tightening the wall fixings, they should be joined together using the joining bolts (V) to give extra strength. Note: Before drilling ensure that you avoid any runners, hinges, shelves or pipe work. Joining bolts can be hidden under the hinge plates if both units have hinges in the same position.
